350-601 practice questions 411–420

1. Question 411 · 504 in bank

   A customer wants to offload some of its order processing to a public cloud environment. The customer environment is based on Cisco ACI and uses Puppet with containerized applications. The operations team requires a solution to orchestrate and optimize the cost of the new solution. Which product must be used to meet these requirements?

   • ACisco Workload Optimization Manager
   • BCisco CloudCenter
   • CCisco Intersight
   • DCisco Data Center Network Manager

   Show answer

   Answer: B

   Explanation

   Cisco CloudCenter has the following key features: - Enforce multicloud governance by guiding user decisions to reduce risk - Securely automate deployment to reduce manual effort and get consistent results - Increase feature velocity via integration with developer tools to accelerate time to market (CI/CD = Puppet, Chef, and Ansible). - Optimize cloud consumption to cut pay-per-use cloud costs Reference: https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/cloudcenter-suite/datasheet-c78-741886.html

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 412 · 504 in bank

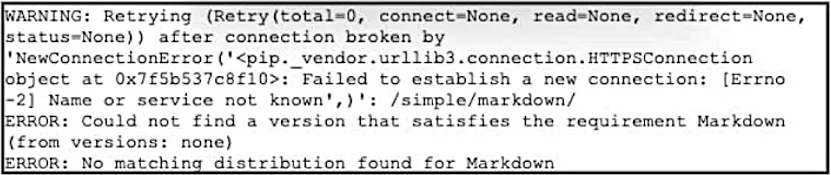

   Refer to the exhibit. An engineer runs a Python script from a newly enabled guest shell on a Cisco Nexus 93108 Series Switch. The script needs an additional package called "Markdown" installed from the Python package manager. Which set of tasks must the engineer perform to install the required package?

   • ASet the NAMESERVER variable in /etc/sysconfig/network. Clone the Markdown repository with the git clone command.
   • BAdd nameserver configuration to /etc/resolv.conf. Run sudo chvrf management pip install Markdown.
   • CEnable ip domain-lookup in startup-config. Enter python install Markdown as root.
   • DConfigure ip name-server in configuration mode. Execute sudo yum -y install Markdown.

   Show answer

   Answer: B

   References

   • Cisco documentation

   Next question

3. Question 413 · 504 in bank

   Refer to the exhibit. A traffic collector virtual machine is installed inside the Cisco UCS server. The collector must monitor traffic that is received on G1/2 with ERSPAN. Which set of actions must be taken to send the traffic to the traffic collector?



   • AConfigure ERSPAN. Configure a source session on Cisco UCS Manager.
   • BConfigure SPAN. Configure a source session on the SW1 switch.
   • CConfigure SPAN. Configure a source session on Cisco UCS Manager.
   • DConfigure ERSPAN. Configure a source session on the SW1 switch.

   Show answer

   Answer: D

   Next question

4. Question 414 · 504 in bank

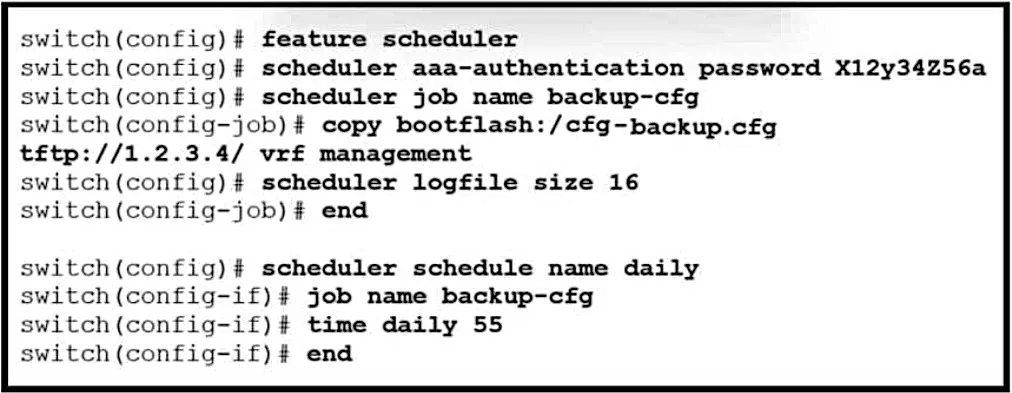

   Refer to the exhibit. An engineer is performing a Cisco Nexus 3000 Series Switch configuration backup with a TFTP server that is reachable in the global routing table. Which action completes the scheduler configuration?

   • AUse the default VRF for the scheduler job.
   • BConfigure the scheduler authentication password.
   • CDefine the scheduler start time as required.
   • DMake the size of the job output lower than the size of the log file.

   Show answer

   Answer: A

   Explanation

   A. I would select C. is wrong, since the "time daily 55"already defined that: For the time daily 55 command, the scheduler assumes a start time every day at 22:55 hours

   Source: Adapted from community discussion — crooks_1988

   References

   • Cisco documentation

   Next question

5. Question 415 · 504 in bank



   Refer to the exhibit. An engineer configures FCoE in a newly installed data center. Which configuration must be applied to activate VSAN 100 on VFC 100?

   • AMap an FCoE VLAN to VSAN 100.
   • BAllow VSAN 100 on interface eth1/12.
   • CIssue the shutdown lan command on VFC 100.
   • DConfigure a VLAN on VFC 100.

   Show answer

   Answer: A

   Next question

6. Question 416 · 504 in bank

   An engineer is designing a cloud solution for an organization. The security requirements mandate that the cloud must be hosted in a local data center but leverage the remote data center for remote backups. Additionally, the workloads in the data center must be scaled out to a known cloud provider in the future. Which cloud deployment model must be used to meet these requirements?

   • Apublic cloud
   • Bhybrid cloud
   • Cprivate cloud
   • Dedge cloud

   Show answer

   Answer: B

   Next question

7. Question 417 · 504 in bank

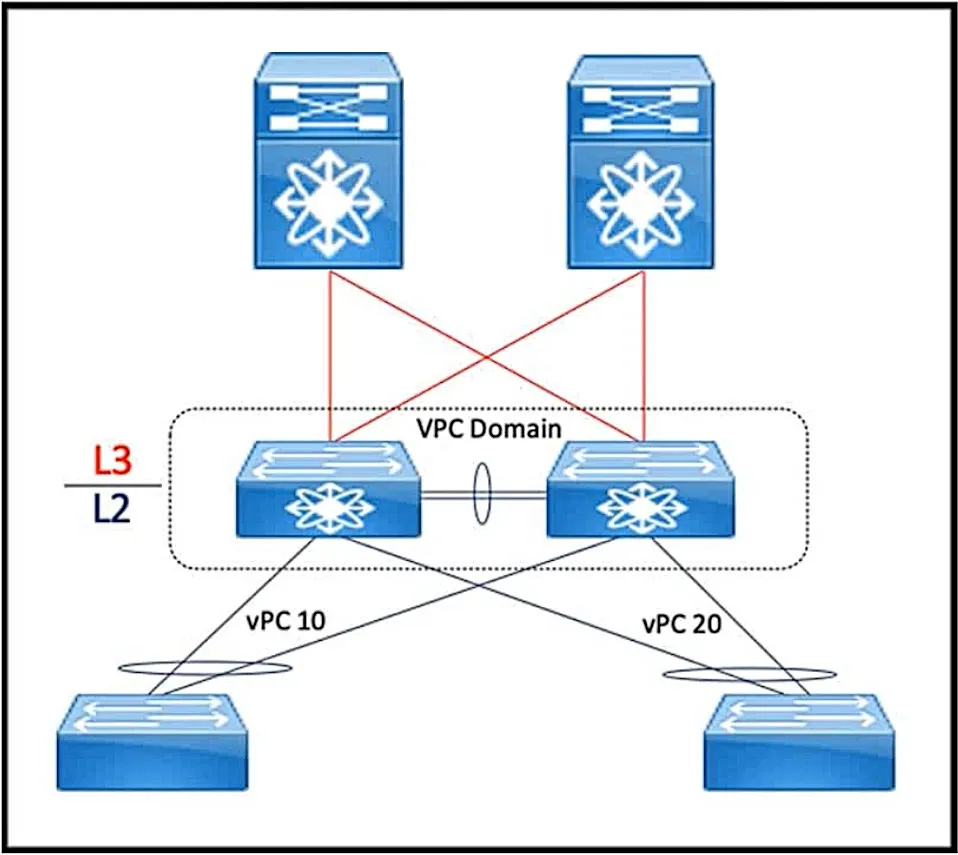

   Refer to the exhibit. A network engineer must improve the convergence time during vPC primary peer device failure and recovery. Which set of actions is required on both vPC switches to accomplish this task?

   • AConfigure the same system priority. Enable LACP toward the access switches.
   • BConfigure the same STP priority. Enable the peer-switch feature.
   • CConfigure vPC role priority. Enable the peer-gateway feature.
   • DConfigure port channels with BPDU guard. Globally enable the loop guard feature.

   Show answer

   Answer: B

   Explanation

   Answer is B vPC Peer Switch The vPC peer switch feature was added to Cisco NX-OS to address performance concerns around STP convergence. This feature allows a pair of Cisco Nexus 9000 Series devices to appear as a single STP root in the Layer 2 topology. This feature eliminates the need to pin the STP root to the vPC primary switch and improves vPC convergence if the vPC primary switch fails. To avoid loops, the vPC peer link is excluded from the STP computation. In vPC peer switch mode, STP BPDUs are sent from both vPC peer devices to avoid issues related toSTP BPDU timeout on the downstream switches, which can cause traffic disruption. This feature can be used with the pure peer switch topology in which the devices all belong to the vPC.

   Source: Adapted from community discussion — Arch_Angel

   References

   • cisco.com documentation

   Next question

8. Question 418 · 504 in bank

   A customer deploys a media server to distribute streaming videos to network clients. The requirement is to allow the video feed to reach only requesting clients. The shared trees must not propagate the video feed if no clients from that tree request it. To reduce configuration touchpoints, the solution must support the automatic discovery and announcement of RP-set information. Each router in the network is responsible for selecting the RP. Which configuration set meets these requirements?

   • Arouter(config-if)# ip pim bidir-enable router(config)# ip pim ssm default router(config)# ip igmp version 3
   • Brouter(config-if)# ip pim dense-mode router(config)# ip pim rp-address 1.1.1.1 router(config)# ip pim rp listener
   • Crouter(config-if)# ip pim sparse-sense mode router(config)# ip pim auto-rp router(config)# ip pim send-rp-announce
   • Drouter(config-if)# ip pim sparse mode router(config)# ip pim bsr-candidate Lo0 router(config)# ip pim rp-candidate Lo0

   Show answer

   Answer: D

   Explanation

   D is correct BSR Election and Functionality PIM uses the BSR to discover and announce RP-set information for each group prefix to all the routers in a PIM domain. This is the same function performed by Auto-RP, but the BSR is part of the PIM Version 2 specification. The BSR mechanism interoperates with Auto-RP on Cisco routers. https://www.cisco.com/en/US/docs/ios/12_4t/ip_mcast/configuration/guide/mctbasic.html .|.

   Source: Adapted from community discussion — Arch_Angel

   References

   • Cisco documentation

   Next question

9. Question 419 · 504 in bank

   An engineer must configure port aggregation between two Cisco MDS 9000 Series Switches. The solution must meet these requirements: • Suspend member interface if parameters mismatch. • Load-balance traffic on multiple ports. • Support traffic from multiple VSANs. Which port channel configuration must be used?

   • APort type: FT Port - Port channel mode: Active
   • BPort type: F Port - Port channel mode: On
   • CPort type: E Port - Port channel mode: Active
   • DPort type: TE Port - Port channel mode: On

   Show answer

   Answer: D

   Explanation

   https://www.cisco.com/en/US/docs/switches/datacenter/mds9000/sw/6_2/configuration/guides/int/nx-os/pc.html on mode - Moves interfaces to the suspended state if its operational values are incompatible with the PortChannel. active mode - Moves interfaces to the isolated state if its operational values are incompatible with the PortChannel.

   Source: Adapted from community discussion — P1Z7C

   References

   • Cisco documentation

   Next question

10. Question 420 · 504 in bank

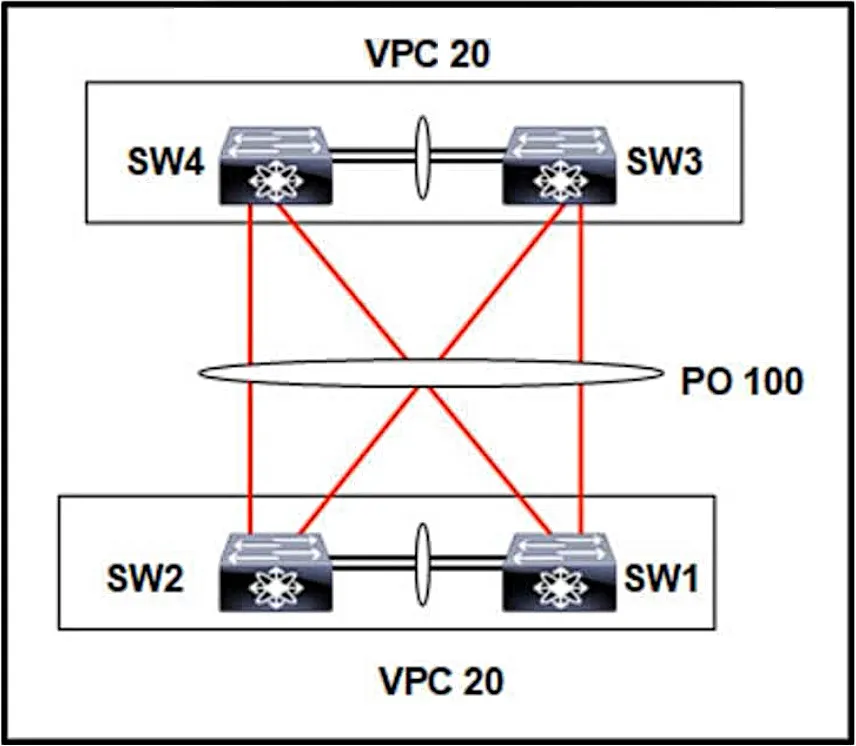

    Refer to the exhibit. Two data center fabrics use VPC data center interconnect. The system MAC value on SW1 is 00:23:04:ee:be:20. Which value must be set to configure the system MAC address?

    • A00:23:04:ee:be:14 on SW3
    • B00:23:04:ee:be:20 on SW3
    • C00:23:04:ee:be:14 on SW2
    • D46:43:32:e5:92:80 on SW2

    Show answer

    Answer: A

    Next question
