350-601ProfessionalCiscoAll questions freePage 44 of 51

350-601 practice questions 431–440

Implementing and Operating Cisco Data Center Core Technologies (DCCOR)504 questions across 51 pages are complete and free, with no account or card.

Start practising Review syllabus domains

Questions 431–440 · 504 available

Free practiceExam guide

Official study references

504 questions in this bank

Free access · progress saved on this device

Question 431 · 504 in bank

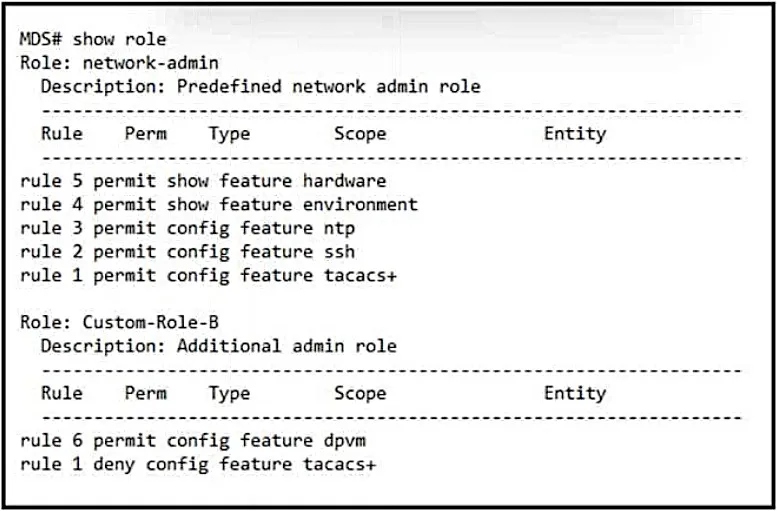

Refer to the exhibit. A Cisco MDS 9000 Series Switch is configured with RBAC. The default role applies to all users. User A is also assigned to the role Custom-Role-B. Which set of features will user A be authorized to configure?
Show answer
Answer: B
Explanation
Was confusing to me too, until i found their exact example, so they are insinuating the user has this network-admin role, so, yes, B for sure. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/security/cisco_mds9000_security_config_guide_8x/configuring_users_and_common_roles.html Different rule type — If the default role and the configured role for a specific user have different rule types for a particular rule, then the default role will override the conflicting rule statement of the configured role.If the default role, say A, has the following rules: rule 5 permit show feature environment rule 4 permit show feature hardware rule 3 permit config feature ssh -> yes rule 2 permit config feature ntp -> yes rule 1 permit config feature tacacs+ -> yes
Source: Adapted from community discussion — CoAsT_x
References
Cisco documentation
Permanent link to question 431 Report an issue
Question 432 · 504 in bank
Which mroute state is created when Bidirectional PIM is deployed at a site?
Show answer
Answer: A
Explanation
Bidirectional PIM is a different flavor of multicast than what you are probably used to (sparse, dense and sparse-dense mode). Most multicast networks have a couple of sources and many receivers. Bidirectional PIM has been invented for networks where we have many sources and receivers talking to each other. An example of this is videoconferencing where it's not just 1 source with many listeners but all the participants are communicating with each other. The downside of using PIM sparse mode with many active sources and receivers is that we will see many mroute state entries that can take quite some resources. Using PIM sparse mode the RP builds 2 entries: (*,G) (S,G) When we use PIM bidirectional mode the RP will never build a (S,G) entry and we only allow the (*,G) entry for the shared tree. PIM routers will never build the SPT (Shortest Path Tree) towards the source. Reference: https://networklessons.com/multicast/multicast-bidirectional-pim
Source: Adapted from community discussion — designated
References
Cisco documentation
Permanent link to question 432 Report an issue
Question 433 · 504 in bank

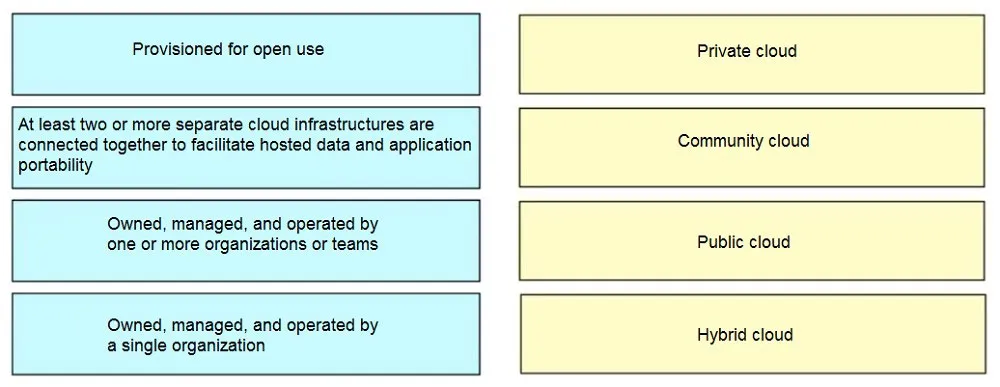

DRAG DROP - A network engineer is asked to describe the cloud infrastructure models from the perspective of their operation and access to resources. Drag and drop the descriptions from the left onto the appropriate characteristics on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure

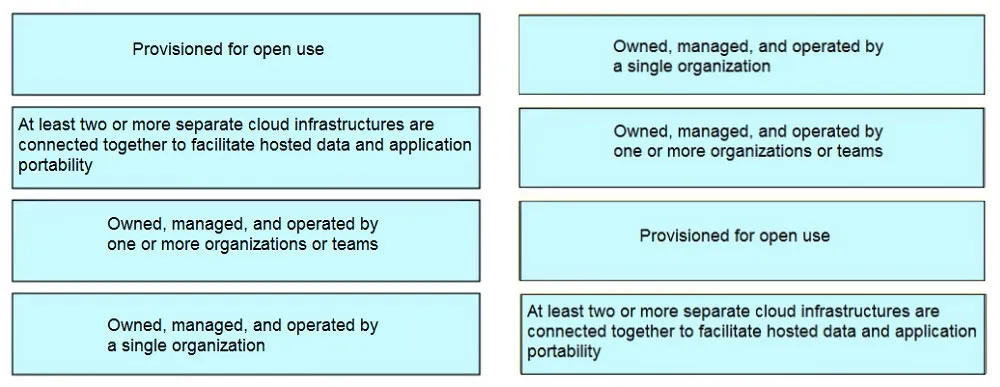

Answer: See figure below
Permanent link to question 433 Report an issue
Question 434 · 504 in bank
A network engineer needs a tool to automate the provisioning of Cisco UCS Service Profiles. The administrator has limited programming knowledge but is skilled with scripting tools. The tool must include existing support for Cisco UCS configuration. Additionally, the administrator will eventually use the solution to manage Cisco UCS C-Series Rack Servers. Which tool meets these requirements?
Show answer
Answer: D
Permanent link to question 434 Report an issue
Question 435 · 504 in bank
An engineer must integrate Cisco ACI with VMware vCenter. The virtualization team configured the necessary port groups and assigned them to virtual machines through VMware vCenter. The final port group configuration must be protected from being changed by Cisco APIC. Which action accomplishes these goals?
Show answer
Answer: B
References
Cisco documentation
Permanent link to question 435 Report an issue
Question 436 · 504 in bank
Refer to the exhibit.
A software downgrade must be performed on a Cisco Nexus 9000 Series switch. What is displayed by running the command shown?
Show answer
Answer: A
Explanation
It is A! Before downgrading software, verify if there are any incompatibilities to make sure features can be properly disabled before performing the downgrade. This will inform the administrator if there are any features that will be automatically removed from the configuration and allow the administrator to take action prior to the downgrade. This command should be run regardless if the ISSU or traditional downgrade method is performed.
Source: Adapted from community discussion — udo2020
References
Cisco documentation
Permanent link to question 436 Report an issue
Question 437 · 504 in bank

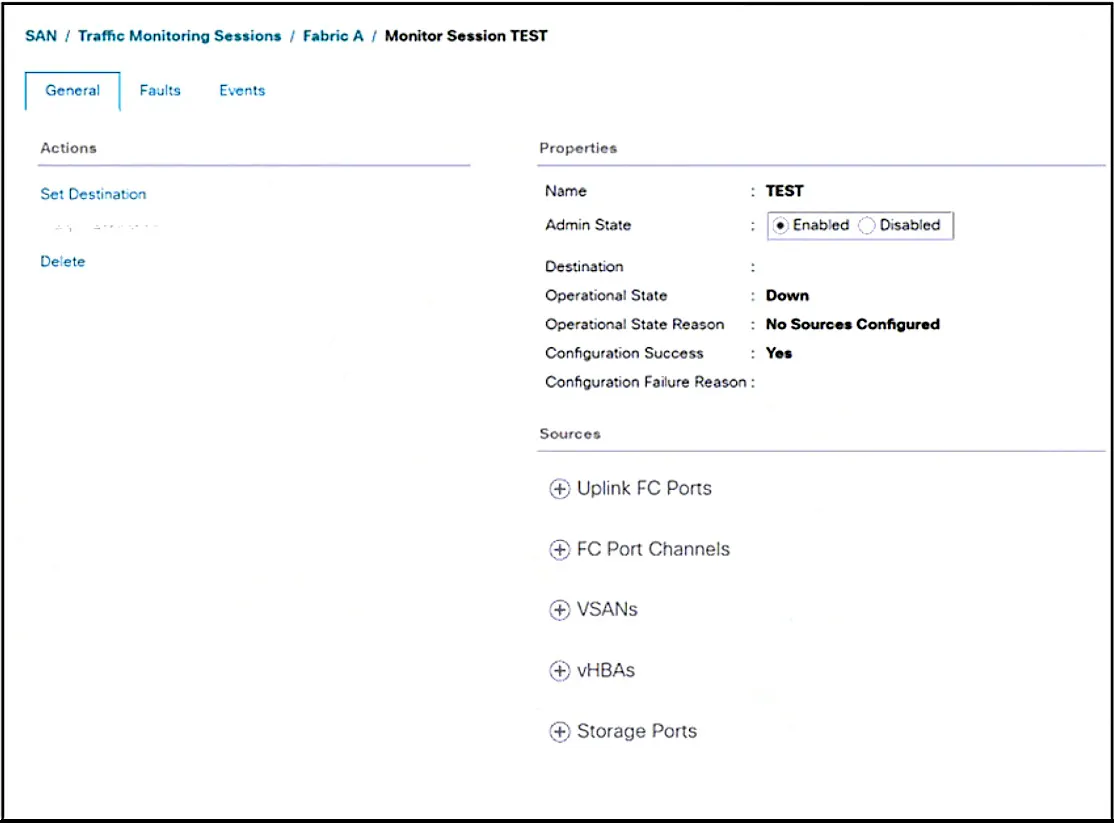

Refer to the exhibit.
Users report SAN traffic packet loss on a blade server that is managed by using Cisco UCS Manager. An engineer must implement a SPAN feature to an external Fibre Channel analyzer. Which configuration source in the TEST monitoring session must the engineer select?
Show answer
Answer: B
Permanent link to question 437 Report an issue
Question 438 · 504 in bank
Select 2

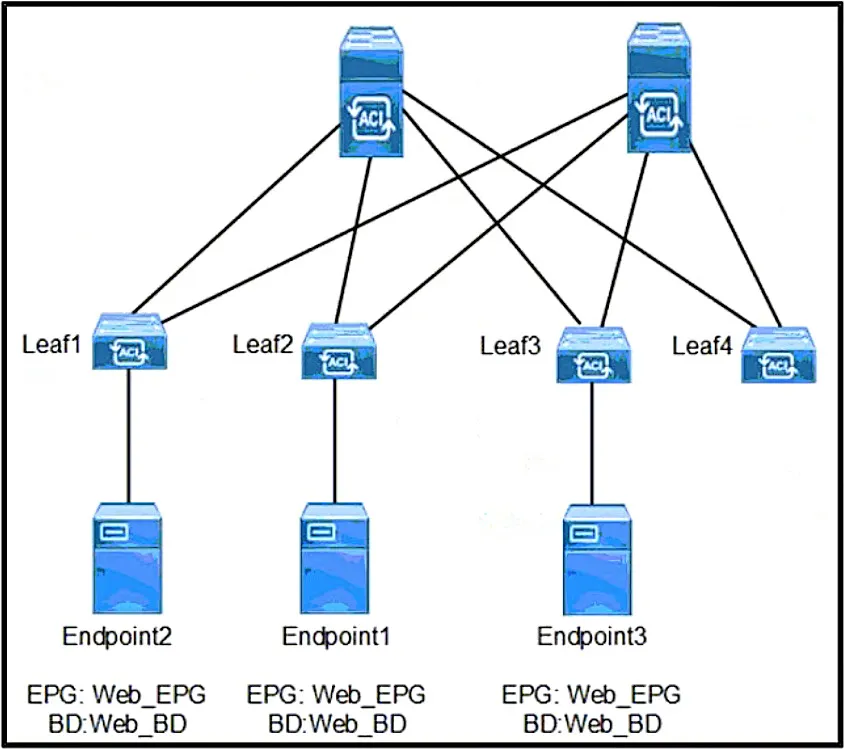

Refer to the exhibit.
Three operational endpoints are deployed under the same application EPG. Only the ICMP traffic must be permitted within the Web_EPG. Which two actions must be taken to accomplish this goal? (Choose two.)
Show answer
Answer: DE
Explanation
By enabling intra-EPG isolation, ACI blocks all communication between endpoints within the same EPG by default. After enabling isolation, you can create contracts to selectively allow certain types of traffic between specific endpoints or classes of traffic.
Source: Adapted from community discussion — xxbofh
Permanent link to question 438 Report an issue
Question 439 · 504 in bank
Which component is, by default, excluded from the host firmware package on a Cisco UCS B-Series Server?
Show answer
Answer: B
References
Cisco documentation
Permanent link to question 439 Report an issue
Question 440 · 504 in bank
What does WWPN uniquely identify in this Fibre Channel fabric?
Show answer
Answer: A
Permanent link to question 440 Report an issue
