Implementing and Operating Cisco Data Center Core Technologies (DCCOR)504 questions across 51 pages are complete and free, with no account or card.
504 questions in this bank
Free access · progress saved on this device

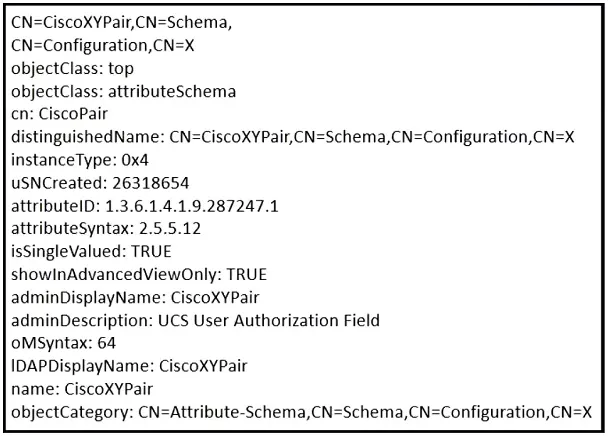

Refer to the exhibit. A network engineer must configure an authentication solution for Cisco UCS with these conditions: • Two-factor authentication must be enabled for all UCS user authentication. • All AAA packets must be encrypted and use TCP port 49 to establish communication. Which set of actions meets these requirements?
Answer: B

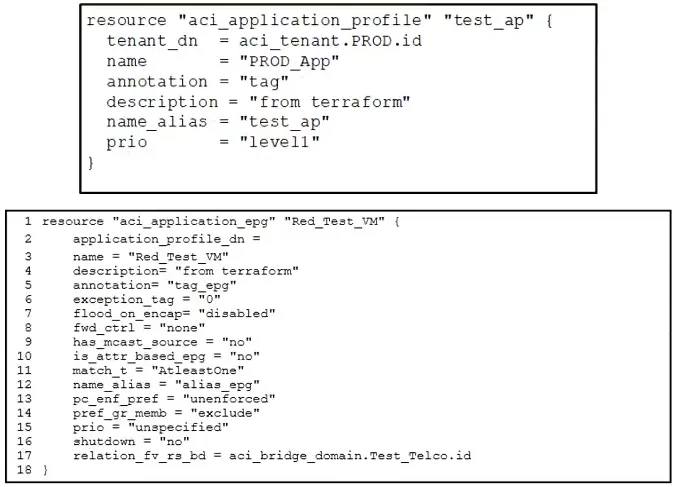

Refer to the exhibit. These Cisco ACI objects already have been created: • Bridge domain: Test_Telco • Application profile: PROD_App • Tenant: PROD Which value for application_profile_dn on line 2 must be used to automate the creation of EPG Red_Test_VM using Terraform?
Answer: C
Which feature of Cisco Nexus Dashboard permits users to switch between site controllers of Cisco ACI?
Answer: B

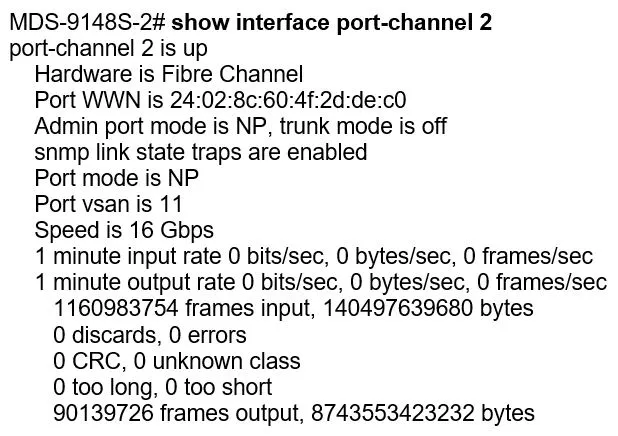

Which FC mode is the device MDS-9148S-2 operating in?
Answer: B
DRAG DROP - An engineer must authenticate EIGRP configuration on interface Eth1/1 of the Cisco Nexus 9000 Series Switch. Drag and drop the CU commands from the right to complete the EIGRP key authentication configuration on the left. Not all CLI commands are used.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
Which two protocols are used by the NFSv4 protocol? (Choose two.)
Answer: CE
NSFv4 only support TCP as transport , IP is a protocol & ethernet kind of encapsulation protocol hence answer is , TCP & IP my opinion
Source: Adapted from community discussion — Lalag
Refer to the exhibit. An engineer created a VRF called “Sigtran” using Terraform resource “aci_vrf” identified by “Signaling” and the bridge domain called “App”. Which argument reference must be used to map the bridge domain to the “Sigtran” VRF?
Answer: A
A customer asks an engineer to develop an orchestration solution to automate repetitive tasks. The customer operations team must integrate the tool with its existing automation framework. The customer asks for the tool to support these requirements: • The customer’s security requirements mandate the use of SSH transport. • No extra software must be installed on the managed systems. • The support staff has limited knowledge of scripting languages, so the solution must be easy to read and use declarative language. Which solution meets these requirements?
Answer: D
A customer data center experiences bandwidth contention that affects the servers connected to the NPV-enabled switch. The NPV switch is connected to the NPIV switch using two 10 Gb uplinks, but the traffic originating from the connected hosts to the core switch exceeds the available bandwidth. The engineers decided to add a third uplink to the NPV switch to increase the available bandwidth. Which set of commands must be used to provision the new uplink?
Answer: C
FC NPV supports disruptive load balancing of server logins. When disruptive load balancing is enabled, FC NPV redistributes the server interfaces across all available NP uplinks when a new NP uplink becomes operational. To move a server interface from one NP uplink to another NP uplink, FC NPV forces reinitialization of the server interface so that the server performs a new login to the core switch. Only server interfaces that are moved to a different uplink are reinitialized. A system message is generated for each server interface that is moved. Note Redistributing a server interface causes traffic disruption to the attached end devices. Adding a member to the existing port-channel does not trigger disruptive auto load-balance. To avoid disruption of server traffic, you should enable this feature only after adding a new NP uplink, and then disable it again after the server interfaces have been redistributed. If disruptive load balancing is not enabled, you can manually reinitialize some or all of the server interfaces to distribute server traffic to new NP uplink interfaces.
Source: Adapted from community discussion — Huberttheman
Refer to the exhibit. An engineer uses Python in Cisco NX-OS guest shell to retrieve the configuration of the EIGRP ASN on interface eth1/1. The engineer has written this script: >>> import json >>> from cli import* Which command set must be used to retrieve the value of the 'asn' key?
Answer: A
