350-601 practice questions 1–10

1. Question 1 · 504 in bank

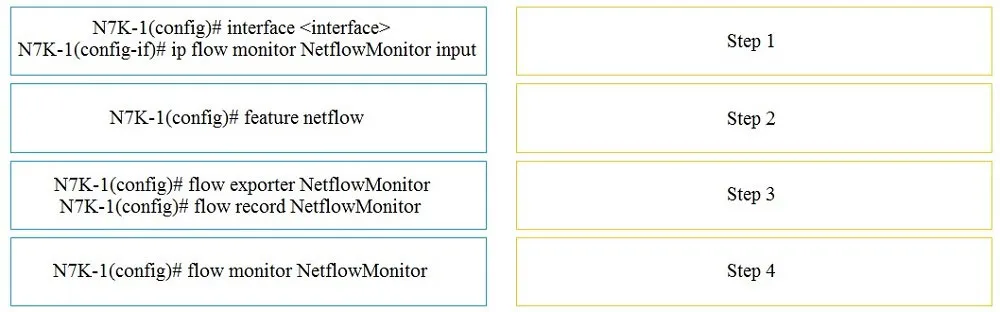

   DRAG DROP - An engineer is implementing NetFlow on a Cisco Nexus 7000 Series Switch. Drag and drop the NetFlow commands from the left into the correct order they must be entered on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

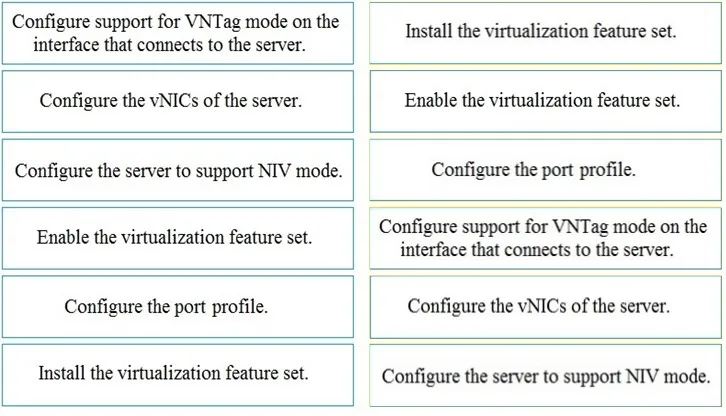

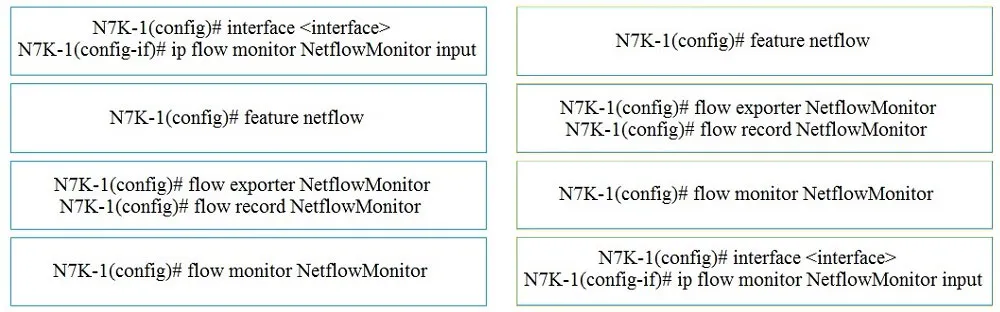

   Answer: See figure below

   Explanation

   Reference: https://www.cisco.com/c/en/us/support/docs/switches/nexus-7000-series-switches/112213-netflow-nexus7000-nsox-configex.html

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation



   Next question

2. Question 2 · 504 in bank

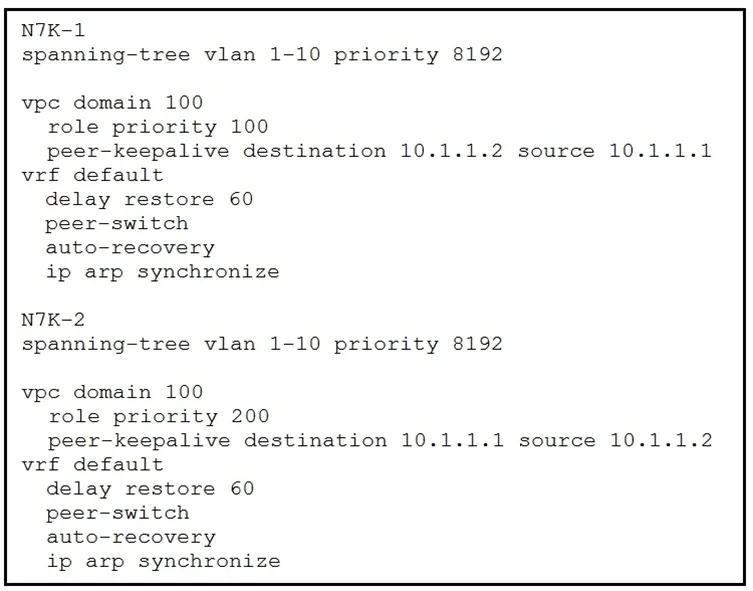

   Refer to the exhibit.



   The STP priority of N7K-1 and N7K-2 are the lowest in the network. Which statement describes STP on the vPC?

   • AN7K-1 and N7K-2 appear as a single STP root.
   • BN7K-1 appears as the STP root.
   • CN7K-1 preempts N7K-2 as the STP root.
   • DN7K-2 appears as the STP root.

   Show answer

   Answer: A

   Explanation

   Peer-switch - Enables the vPC switch pair to appear as a single STP root in the Layer 2 topology. Use the no form of the command to disable the peer switch vPC topology. If both switches do not have peer-switch enable, the question is not informing the bridge-ID (mac-address + priority) to see which switch would be the root anyway.

   Source: Adapted from community discussion — designated

   Next question

3. Question 3 · 504 in bank

   Select 2

   A network engineer is adding a Cisco HyperFlex data platform to the Cisco Intersight management portal. Which two components are required for Intersight to claim the Cisco HyperFlex data platform? (Choose two.)

   • Adevice FQDN
   • Bdevice claim code
   • Cdevice public IP address
   • Ddevice ID
   • Edevice serial number

   Show answer

   Answer: BD

   Explanation

   In UCS Manager, browse to Admin -> Device Connector. Enable Intersight Management toggle button and get the Device ID and the Claim Code. Reference: https://www.cisco.com/c/en/us/support/docs/hyperconverged-infrastructure/hyperflex-hx-data-platform/214268-cisco-intersight-hyperflex-installatio.html

   References

   • Cisco documentation

   Next question

4. Question 4 · 504 in bank

   Where is the witness deployed in a two-node Cisco HyperFlex Edge deployment?

   • Ato the HyperFlex Edge two-node cluster
   • Bto Cisco Intersight
   • Cto a third-party cloud provider
   • Dto an additional server with network access to HyperFlex Edge

   Show answer

   Answer: B

   Next question

5. Question 5 · 504 in bank

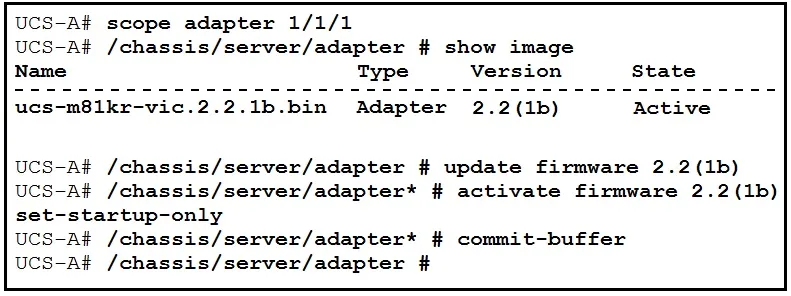

   Refer to the exhibit.



   What is the result of this series of commands?

   • AIt reboots the server immediately.
   • BIt activates the firmware on the next adapter boot.
   • CIt updates the firmware on adapter 1/1/1 immediately.
   • DIt verifies the firmware update on the server.

   Show answer

   Answer: B

   References

   • Cisco documentation
   • Cisco documentation

   Next question

6. Question 6 · 504 in bank

   What is the benefit of adding Cisco HyperFlex Hardware Acceleration Cards to a HyperFlex deployment?

   • Aincreased compression efficiency
   • Bincreased network throughput
   • CGPU acceleration
   • Doffline encryption acceleration

   Show answer

   Answer: A

   Explanation

   HyperFlex Hardware Acceleration Cards provide improved performance and compression efficiency for most storage workloads. Reference: https://www.cisco.com/c/en/us/td/docs/hyperconverged_systems/HyperFlex_HX_DataPlatformSoftware/Installation_VMWare_ESXi/3_5/ b_HyperFlexSystems_Installation_Guide_for_VMware_ESXi_3_5/m_configure_hyperflex_hardware_acceleration_cards.html

   References

   • Cisco documentation

   Next question

7. Question 7 · 504 in bank

   When the default firmware package is set to a new version, which type of policy determines the timing of server reboots during the firmware upgrade?

   • Adiagnostics
   • Bmaintenance
   • Clocal disk
   • DBIOS

   Show answer

   Answer: B

   Explanation

   This activation procedure causes the server to reboot. Depending upon whether the service profile associated with the server includes a maintenance policy, the reboot can occur immediately. Cisco recommends that you upgrade the board controller firmware through the host firmware package in the service profile as the last step of upgrading a Cisco UCS domain, along with upgrading the server BIOS. This reduces the number of times a server needs to reboot during the upgrade process. Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Firmware-Mgmt/3-1/ b_UCSM_GUI_Firmware_Management_Guide_3_1/b_UCSM_GUI_Firmware_Management_Guide_3_1_chapter_011.html

   Source: Adapted from community discussion — MaxG

   References

   • Cisco documentation

   Next question

8. Question 8 · 504 in bank

   Select 2

   Which two hypervisors does Cisco HyperFlex support? (Choose two.)

   • AOpenStack
   • BCitrix XenServer
   • CVMware vSphere
   • DRedHat KVM
   • EMicrosoft Hyper-V

   Show answer

   Answer: CE

   Explanation

   Cisco HyperFlex systems include a purpose-built, high-performance, low-latency hyperconverged platform that adapts to support any application, in any cloud, anywhere. The platform supports multiple hypervisors and virtualized environments (Microsoft Windows Server 2019 Hyper-V, VMware vSphere), Docker containers with Kubernetes, multicloud services, and edge deployments to efficiently and economically deploy, monitor, and manage applications. Reference: https://www.connection.com/~/media/pdfs/brands/c/cisco/hyperflex/1048176cnxnciscohyperflex40anywhereataglance.pdf?la=en#:~:text=The% 20platform%20supports%20multiple%20hypervisors,%2C%20monitor%2C%20and%20manage%20applications

   References

   • Cisco documentation

   Next question

9. Question 9 · 504 in bank

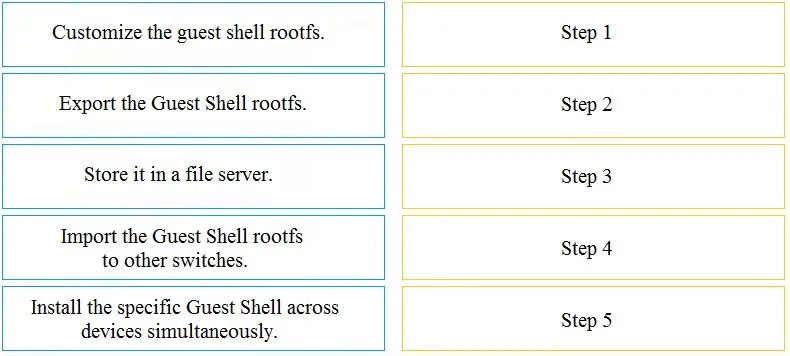

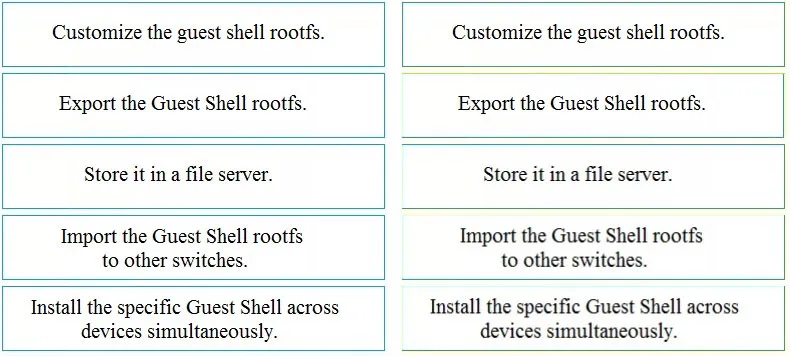

   DRAG DROP - An engineer deploys a custom guest shell rootfs onto multiple switches. Drag and drop the steps from the left into the correct order on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   References

   • Cisco documentation



   Next question

10. Question 10 · 504 in bank

    An engineer changed a configuration and must perform a rollback. Which statement applies to a Cisco Nexus 5600 Series Switch?

    • AThe configuration rollback functionality is disabled when FCoE is enabled.
    • BA system checkpoint is generated automatically when the running configuration is saved to NVRAM.
    • CA user who is assigned to the network-operator user role is allowed to perform a rollback.
    • DErrors are skipped when an atomic rollback type is triggered.

    Show answer

    Answer: A

    Explanation

    Guidelines and Limitations - Rollback has the following configuration guidelines and limitations: ג€¢ You can create up to ten checkpoint copies. ג€¢ You cannot apply the checkpoint file of one switch into another switch. ג€¢ Your checkpoint file names must be 75 characters or less. ג€¢ You cannot start a checkpoint filename with the word system ג€¢ When FCoE is enabled, the checkpoint and configuration rollback functionality are disabled. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/system_management/503_n1_1/ cisco_n5k_system_mgmt_cg_rel_503_n1_1_chapter11.pdf

    References

    • Cisco documentation

    Next question
