350-601 practice questions 371–380

1. Question 371 · 504 in bank

   An engineer configured an environment that contains the vPC and non-vPC switches. However, it was noticed that the downstream non-vPC switches do not receive the same STP bridge ID from the upstream vPC switch peers. Which vPC feature must be implemented to ensure that vPC and non-vPC switches receive the same STP bridge ID from the upstream vPC switch peers?

   • Avpc local role-priority 4000
   • Bpeer-switch
   • Csystem-mac 0123.4567.89ab
   • Dpeer-gateway

   Show answer

   Answer: B

   Explanation

   The correct is B. A = Define vPC role and the lowest value is the Master B = Peer-Switch feature allows the vPC peers use the same STP root ID as well as the same bridge ID. C = System MAC address of vPC domain, which is used for operations that are confined to the link-scope, such as LACP. D = The vPC peer-gateway capability allows a vPC switch to act as the active gateway for packets that are addressed to the router MAC address of the vPC peer.

   Source: Adapted from community discussion — designated

   Next question

2. Question 372 · 504 in bank

   A company plans to migrate some of its services to the cloud. The company does not want to manage or control the underlying cloud infrastructure. It also wants to maintain control over the deployment of its applications and configuration settings of the application-hosting environment. Which cloud service model meets these requirements?

   • ASoftware as a Service
   • BInfrastructure as a Service
   • CPlatform as a Service
   • DFunction as a Service

   Show answer

   Answer: C

   Next question

3. Question 373 · 504 in bank

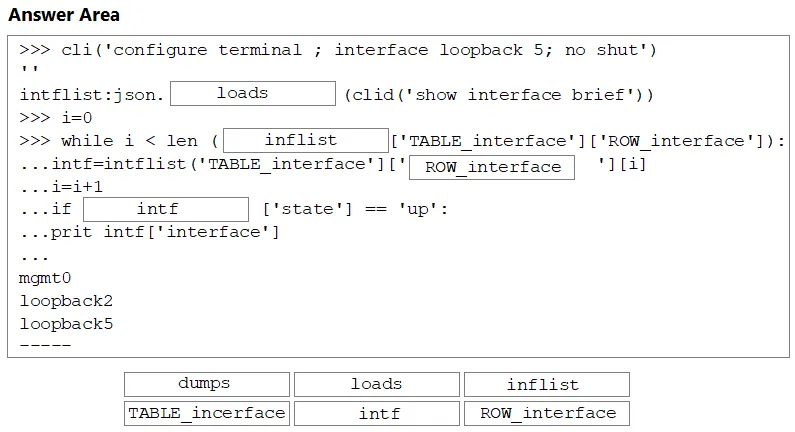

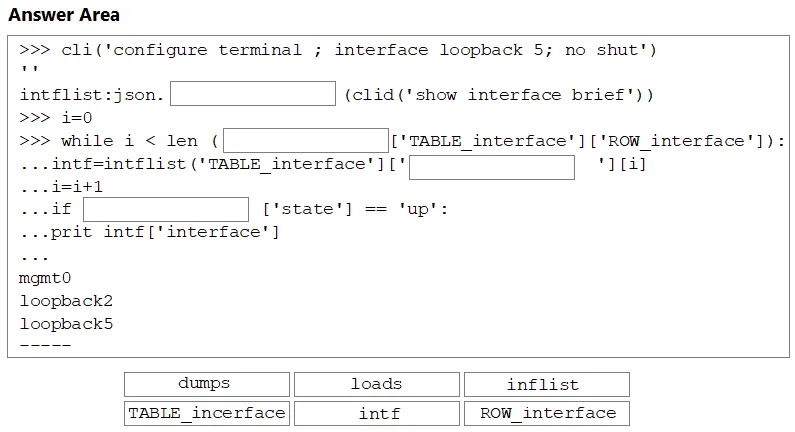

   DRAG DROP - Drag and drop the command snippets from the bottom onto the boxes in the code to complete a Python script that displays a list of interfaces on a Cisco Nexus 9000 Series Switch using on-box Python. Not all command snippets are used.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   References

   • Cisco documentation



   Next question

4. Question 374 · 504 in bank

   What is the benefit of using the Cisco Nexus Dashboard single sign-on feature?

   • AIt provides notifications about end of sale for the deployed switches.
   • BIt adds a security layer based on multifactor authentication.
   • CIt manages operations of the infrastructure using a single pane of glass.
   • DIt allows the user to switch seamlessly between the hosted services.

   Show answer

   Answer: D

   Next question

5. Question 375 · 504 in bank

   An engineer is implementing a Cisco ACI fabric and must use static VLAN range as part of a VMM deployment. The static VLAN must be incorporated into the dynamic VLAN pool. The existing VLAN pool is set for dynamic allocation. Which action accomplishes this goal?

   • ACreate a static reservation within the dynamic VLAN pool.
   • BChange the existing VLAN pool to static allocation mode.
   • CAdd the VLAN to the pool configured with Inherit Allocation Mode from parent.
   • DAdd a static VLAN allocation range to the VLAN pool.

   Show answer

   Answer: D

   Explanation

   ● Dynamic pool including static ranges: You can also define a dynamic pool that includes both a dynamic VLAN range and a static range. When associating such a pool to an EPG (using a VMM domain), this gives you the option to either let Cisco APIC pick a VLAN from the pool or to enter manually a VLAN for this EPG (from the static range). When entering a VLAN manually for an EPG associated with a VMM domain, Cisco APIC programs the VLAN that you entered on the virtualized host port group.

   Source: Adapted from community discussion — Rollizo

   References

   • Cisco documentation

   Next question

6. Question 376 · 504 in bank

   What is the impact of a nondisruptive upgrade on fabric and modular switches?

   • AThe upgrade disrupts the control plane for more than 120 seconds.
   • BDuring the upgrade, new devices cannot log in to the fabric.
   • CIf a zone server merge is in progress, the upgrade continues without interruption.
   • DWhen the installation is complete, the system BIOS must be updated.

   Show answer

   Answer: B

   References

   • cisco.com documentation

   Next question

7. Question 377 · 504 in bank

   DRAG DROP -



   Refer to the exhibit. An administrator is deploying BGP to geographically connect two data center sites. Both sites are configured for dual-stack routed protocols. The administrator must inject the IPv6 network 2001:AE4:1::/64 into the IPv6 unicast database. Drag and drop the SiteA commands from the right into the blanks in the configuration on the left. Commands are used more than once.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

8. Question 378 · 504 in bank

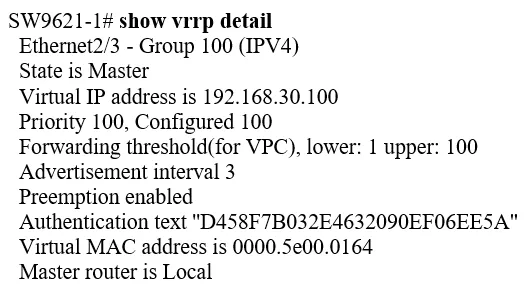

   Refer to the exhibit. What happens to the VRRP configuration when the router SW9621-2 becomes operational?



   • AThe SW9621-2 router becomes a new active master.
   • BThe SW9621-1 router becomes a new active master after 3 seconds.
   • CThe SW9621-1 router remains an active master.
   • DThe SW9621-2 router becomes an active master after 3 seconds.

   Show answer

   Answer: A

   Explanation

   I would choose A. https://www.cisco.com/assets/sol/sb/Switches_Emulators_v2_3_5_xx/help/350_550/index.html#page/tesla_350_550_olh/ts_vrrp_18_09.html 2nd switch has 160 priority and it will be active after it is powered up. Preemtion is enabled. Advertisement interval is meant of detection failed node and there are important metric - timeout interval for detecting down. its three times of advertisement. preemption delay is related to preemption.

   Source: Adapted from community discussion — JCGO

   References

   • Cisco documentation

   Next question

9. Question 379 · 504 in bank

   DRAG DROP -

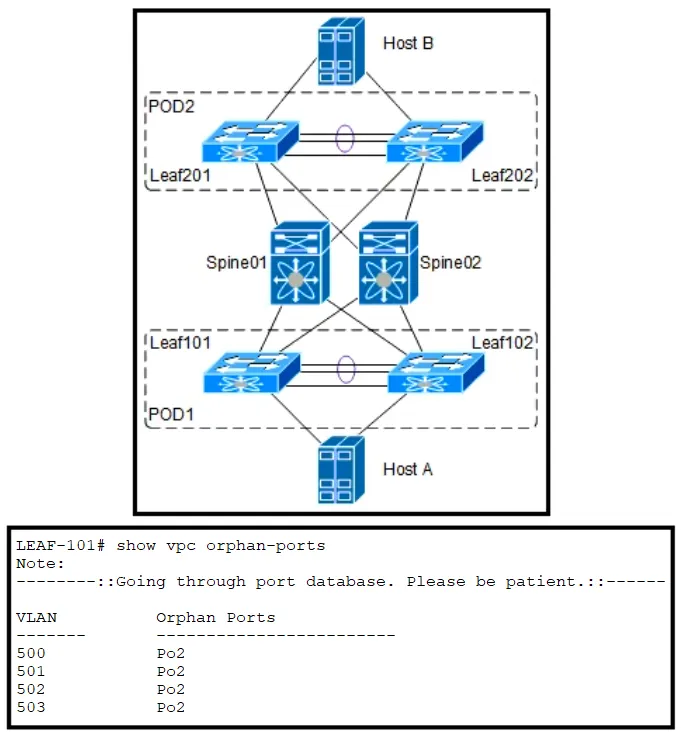

   Refer to the exhibit. During a recent outage, a network engineer discovered that host A started to experience intermittent connectivity, when Leaf102 was down. Drag and drop the code snippets from the bottom onto the boxes in the code to resolve the problem. Not all code snippets are used.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   SHOULDN'T BE VPC 2? VPC number needs to be same on both sides and can be any number; BUT since we have no idea of which is the VPC member number is used on the other side and by DEFAULT if the vpc number isnt specified it is assigned the same number as the portc-channel number in this case 2. So I will use 2 instead of 200 for last box Page 98 https://www.cisco.com/c/dam/en/us/td/docs/switches/datacenter/sw/design/vpc_design/vpc_best_practices_design_guide.pdf

   Source: Adapted from community discussion — P1Z7C

   References

   • Cisco documentation



   Next question

10. Question 380 · 504 in bank

    An engineer must integrate Cisco ACI with a VMware vSphere environment. The requirement is to use a VMware Distributed Virtual Switch and to assign the encapsulation VLAN of the EPG from the VLAN pool. Which configuration set accomplishes this goal?

    • ACreate a VMM domain association under the EPGs. Create a VLAN pool with static allocated VLANs.
    • BCreate a physical domain association under the EPGs. Create a VLAN pool with dynamic allocated VLANs.
    • CCreate a physical domain association under the EPGs. Create a VLAN pool with static allocated VLANs.
    • DCreate a VMM domain association under the EPGs. Create a VLAN pool with dynamic allocated VLANs.

    Show answer

    Answer: D

    References

    • Cisco documentation

    Next question
