Implementing and Operating Cisco Data Center Core Technologies (DCCOR)504 questions across 51 pages are complete and free, with no account or card.
504 questions in this bank
Free access · progress saved on this device
Refer to the exhibit.
An engineer implements an FCoE Unified Fabric where vPC exists between N9K-A and N9K-B. To avoid rate discards, bandwidth must be regulated to account for sent traffic that exceeds the access speed. Which set of commands completes the configuration?
Answer: C

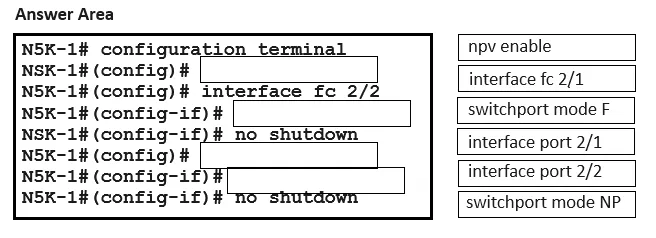

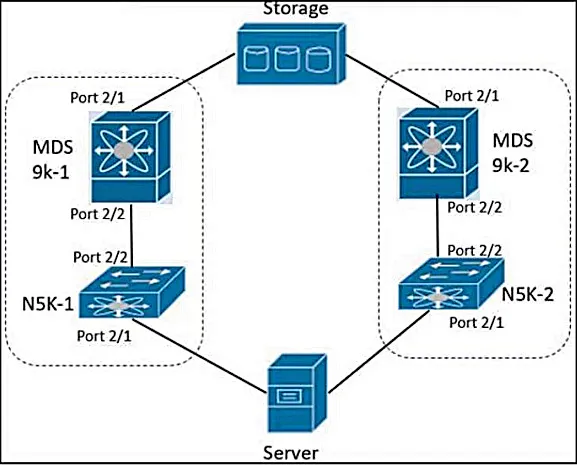

DRAG DROP - Refer to the exhibit.
The server is sending traffic to the storage server using Fiber Channel protocol. The requirement is for the N5K-1 to forward traffic to MDS9k-1. Drag and drop the configuration steps from the right to complete the configuration for N5K-1 on the left. Not all configuration steps are used.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
An engineer must configure OSPF routing on Cisco Nexus 9000 Series Switches. The IP subnet of the Eth1/2 interfaces for both switches must be advertised via OSPF. However, these interfaces must not establish OSPF adjacency or send routing updates. The current OSPF adjacency over the interfaces Eth1/1 on SW1 and Eth1/1 on SW2 must remain unaffected. Which configuration must be applied to both Nexus switches to meet these requirements? A.
B.
C.
D.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/unicast/configuration/guide/l3_cli_nxos/l3_ospf.html
Source: Adapted from community discussion — designated
Which Cisco UCS component does an infra bundle "A" software upgrade?
Answer: D
The infra bundle includes updates for the I/O modules, Fabric Interconnects, and UCS Manager, but not for the adapters, BIOS, or board controllers, which are updated through different bundles
Source: Adapted from community discussion — 8d00f64
An engineer must remove the running configuration of a Cisco Nexus 9000 Series Switch and replace it with a backup file without restarting the switch. The backup file is stored on an SFTP server that is reachable via the mgmt0 interface. Which set of commands accomplishes this task?
Answer: B
Here's a breakdown of what these commands do: copy sftp://admin@192.168.10.100/backup.cfg bootflash:///backup.cfg vrf management: This command copies the backup configuration file from the SFTP server to the switch's bootflash storage. configure replace bootflash:///backup.cfg: This command replaces the current running configuration with the configuration from the backup file stored in the bootflash.
Source: Adapted from community discussion — 8d00f64

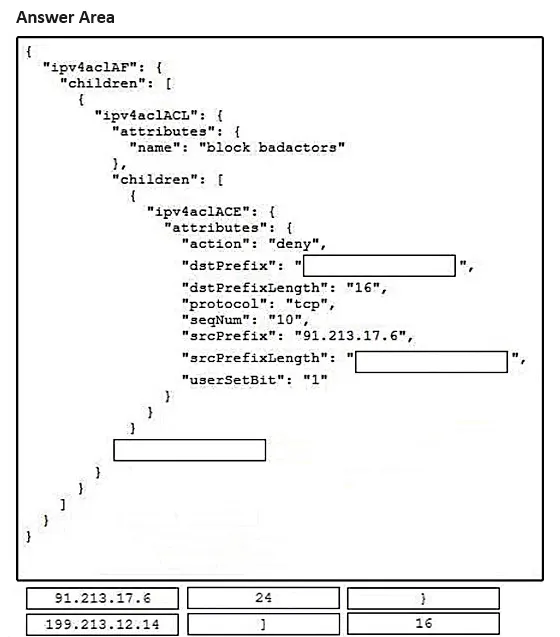

DRAG DROP - Refer to the exhibit.
Drag and drop the code snippets from the bottom onto the blanks in the code to complete the JSON request that implements the ACL presented. Not all code snippets are used.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

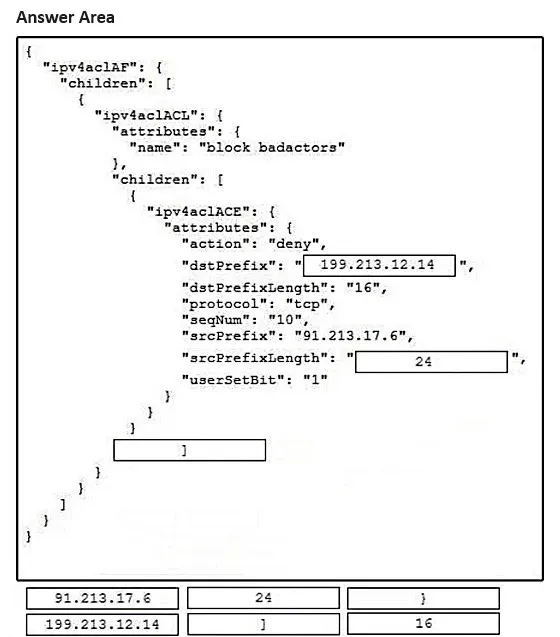

Answer: See figure below
A company with a small network team purchases 10 Cisco Nexus 9000 Series Switches for a network refresh. Some elements of the existing network infrastructure will be retained including DHCP and DNS servers. The company wants the network team to use PowerOn Auto Provisioning (POAP) to configure the switches, but the team only has experience with manual configuration. Which two additional network infrastructure components must be configured to use POAP? (Choose two.)
Answer: CD
Refer to the exhibit.
An engineer must configure Embedded Event Manager to output a message to syslog when the Cisco IOS write memory CLI command runs. Which command completes the script?
Answer: A
A network engineer must perform a backup and restore of the Cisco Nexus 5000 Series Switch configuration. The backup must be made to an external backup server. The only protocol permitted between the Cisco Nexus Series switch and the backup server is UDP. The backup must be used when the current working configuration of the switch gets corrupted. Which set of steps must be taken to meet these requirements?
Answer: B
Of the answer choices given, only TFTP uses UDP. SFTP runs on TCP 22 (but can be assigned whatever port you want, but only TCP). TFTP runs on UDP port 69. SCP runs on TCP port 22. FTP runs on TCP port 21 to establish connection and TCP 20 to transfer data.
Source: Adapted from community discussion — designated
An online retailer uses 200 cloud-hosted virtual machines (VMs). Currently, the configuration of each VM is performed manually. To support the growth strategy of the retailer, the retailer starts to automatically scale the VMs to meet demand and uses Ansible for configuration management. Which action must be performed in Ansible to meet the requirements before automation is performed?
Answer: D
Dynamic inventory allows Ansible to query external sources to obtain the list of hosts to manage, which is essential for environments where the number of VMs can change frequently, such as in an auto-scaling scenario. This way, Ansible can dynamically discover and manage the VMs without needing to manually update the inventory file.
Source: Adapted from community discussion — 8d00f64
