350-601 practice questions 471–480

1. Question 471 · 504 in bank

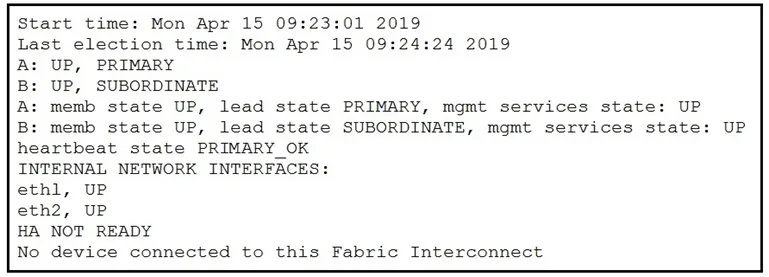

   Refer to the exhibit.



   What must be connected to clear the HA NOT READY status?

   • ALayer 1-Layer 2 ports
   • Bserver chassis
   • Cmanagement ports
   • Dnetwork uplinks

   Show answer

   Answer: B

   Explanation

   Reference: https://ucsguru.com/2012/11/07/ha-with-ucsm-integrated-rack-mounts/

   Next question

2. Question 472 · 504 in bank

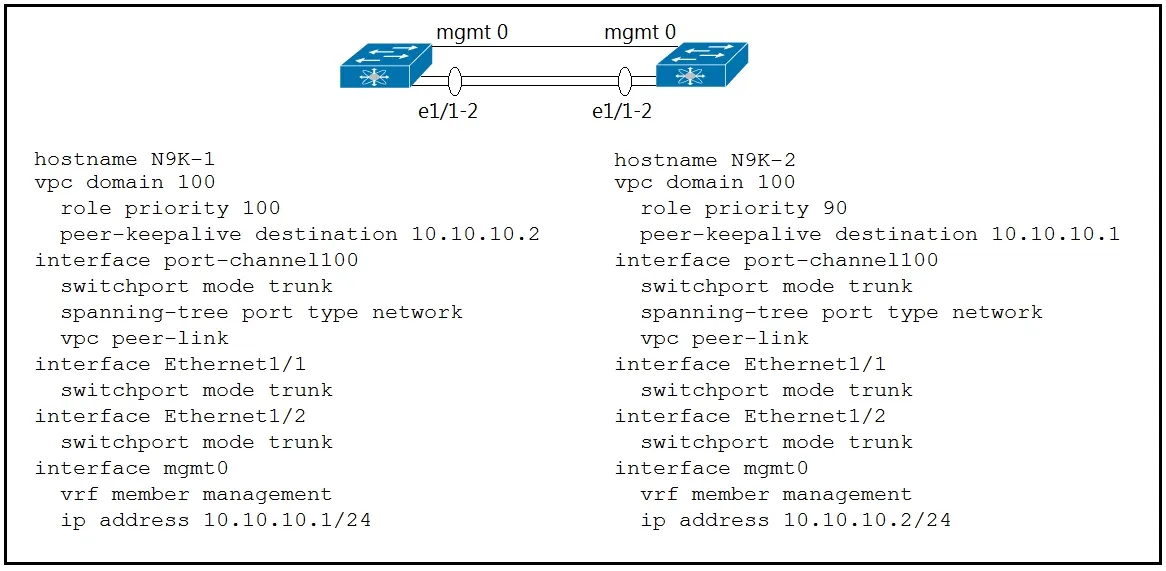

   Refer to the exhibit. Which action completes the vPC domain implementation?

   • AAdd the vPC member ports to the vPC channel group.
   • BConfigure the system MAC on the vPC domain.
   • CInclude the VRF management on the vPC domain.
   • DAllow VLANs on the vPC peer link member interfaces.

   Show answer

   Answer: A

   Explanation

   You don't need to create another VRF, VRF mgmt already exits for default and the int mgmt0 it's already a menber of the VRF, so C is incorrect. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/interfaces/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_Interfaces_Configuration_Guide/b_Cisco_Nexus_9000_Series_NX-OS_Interfaces_Configuration_Guide_chapter_0111.html

   Source: Adapted from community discussion — Ron_Berserker

   References

   • Cisco documentation
   • Cisco documentation

   Next question

3. Question 473 · 504 in bank



   Refer to the exhibit. A network engineer is implementing a configuration checkpoint on a Cisco Nexus 9000 Series Switch. The configuration must skip any existing vPC configuration errors and must complete if there are any configuration errors. The engineer finished the vPC domain configuration part. Which command completes the checkpoint implementation?

   • Abest-effort
   • Bstop-at-first-failure
   • Catomic
   • Dverbose

   Show answer

   Answer: A

   Explanation

   SP-03(config)# rollback running-config checkpoint zizu ? *** No matching command found in current mode, matching in (exec) mode *** atomic Stop rollback and revert to original configuration (default) best-effort Skip errors and proceed with rollback stop-at-first-failure Stop rollback at the first error verbose Show the execution log

   Source: Adapted from community discussion — Zi04

   References

   • Cisco documentation

   Next question

4. Question 474 · 504 in bank

   An engineer must implement a VXLAN-based data center interconnect. The long-distance transport provided by a service provider is IP-based, supports a maximum MTU of 1554 bytes, and does not support outbound traffic replication. Which action must be taken to build the data center interconnect?

   • AAnnounce host reachability over BGP.
   • BCreate an IP access list and associate it with VNI to replicate traffic to remote VTEPs.
   • CConfigure a route map to associate the IPs of the remote VTEPs.
   • DImplement BGP EVPN ingress replication.

   Show answer

   Answer: D

   Next question

5. Question 475 · 504 in bank

   An engineer must perform an initial configuration of VXLAN Tunnel End-Point functionality on the Cisco Nexus 9000 Series platform. All the necessary features are already enabled on the switch. Which configuration set must be used to accomplish this goal?

   • ANX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface VLAN10 NX9K(config-if)# ip unnumbered loopback0 NX9K(config)# interface nve1 NX9K(contig-if-nve)# source-interface loopback0
   • BNX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface overlay0 NX9K(config-if-overlay)# source-interface loopback0 NX9K(config)# interface VLAN10 NX9K(contig-if-nve)# source-interface loopback0
   • CNX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface tunnel1 NX9K(config-if)# tunnel source loopback0 NX9K(config)# interface ethernet1/1 NX9K(contig-if)# ip unnumbered loopback0
   • DNX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface nve1 NX9K(config-if-nve)# source-interface loopback0 NX9K(config)# interface ethernet1/1 NX9K(contig-if)# ip unnumbered loopback0

   Show answer

   Answer: D

   Explanation

   D is correct, bcs it's the only one which creates a NVE interface, which is the virtual interface in Nexus family which creates a VTEP (a vtep per vxlan)

   Source: Adapted from community discussion — mauchi

   References

   • Cisco documentation

   Next question

6. Question 476 · 504 in bank

   An engineer must perform a software upgrade on a production Cisco Nexus 7000 Series Switch. Before the upgrade activity, the requirement is for all ports to be shut down and routing protocols to terminate gracefully. Which feature must be used to meet these requirements?

   • ASwitch Profile
   • BService Profile Template
   • CMaintenance Mode Profile
   • DConfiguration Profile

   Show answer

   Answer: C

   Next question

7. Question 477 · 504 in bank

   DRAG DROP -

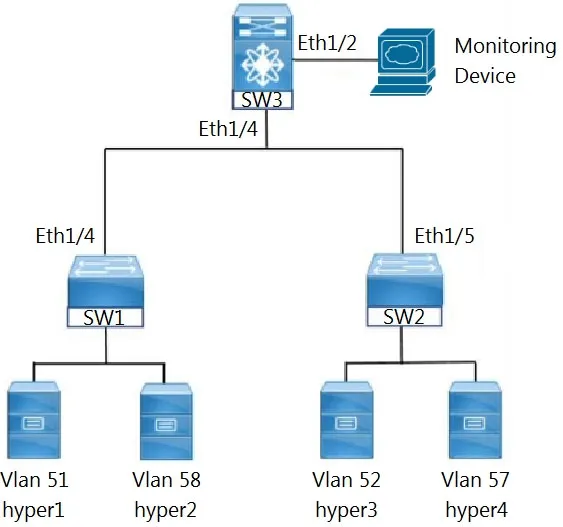

   Refer to the exhibit. An engineer must monitor the Ethernet port and the corresponding VLAN traffic for the hyper4 device. The SW3 device is a Cisco Nexus 7000 Series Switch. Drag and drop the code snippets from the right into the boxes in the configuration to meet these requirements. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

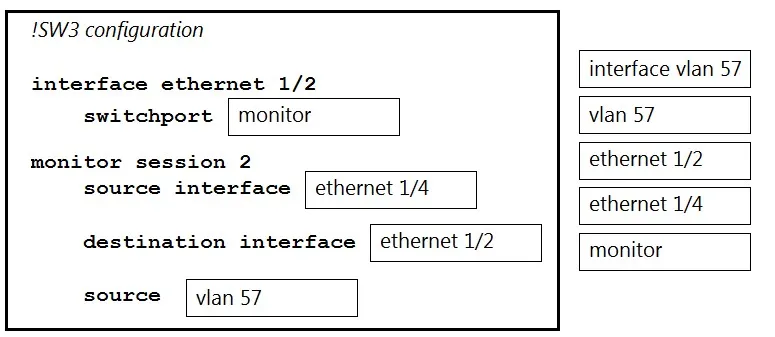

   Show the answer figure

   Answer: See figure below



   Next question

8. Question 478 · 504 in bank

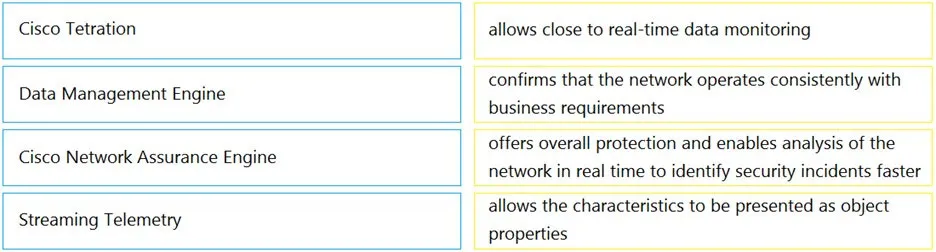

   DRAG DROP - Drag and drop the network assurance concepts from the left onto the corresponding benefits on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

9. Question 479 · 504 in bank

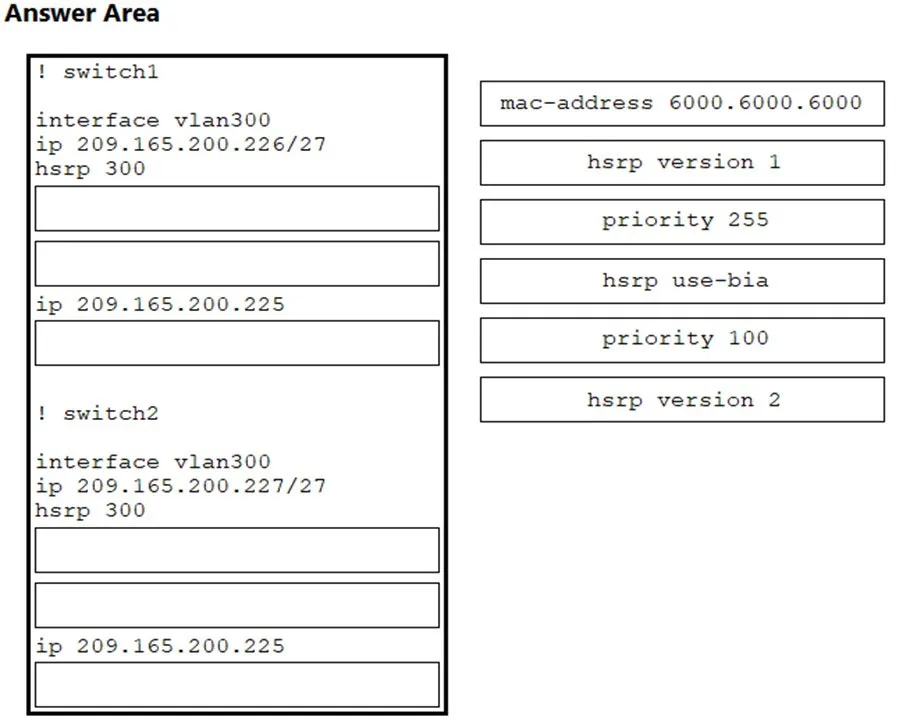

   DRAG DROP - An engineer must configure HSPR protocol on two Cisco Nexus 9000 Series Switches running a virtual port channel. In addition, the HSRP implementation must meet these requirements: ✑ It must allow more than 500 groups. ✑ switch1 must act as the primary switch. ✑ Both switches must use a user-defined hardware address. Drag and drop the commands from the right to complete a configuration of the HSRP on the left. The commands are used more than once. Not all commands are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

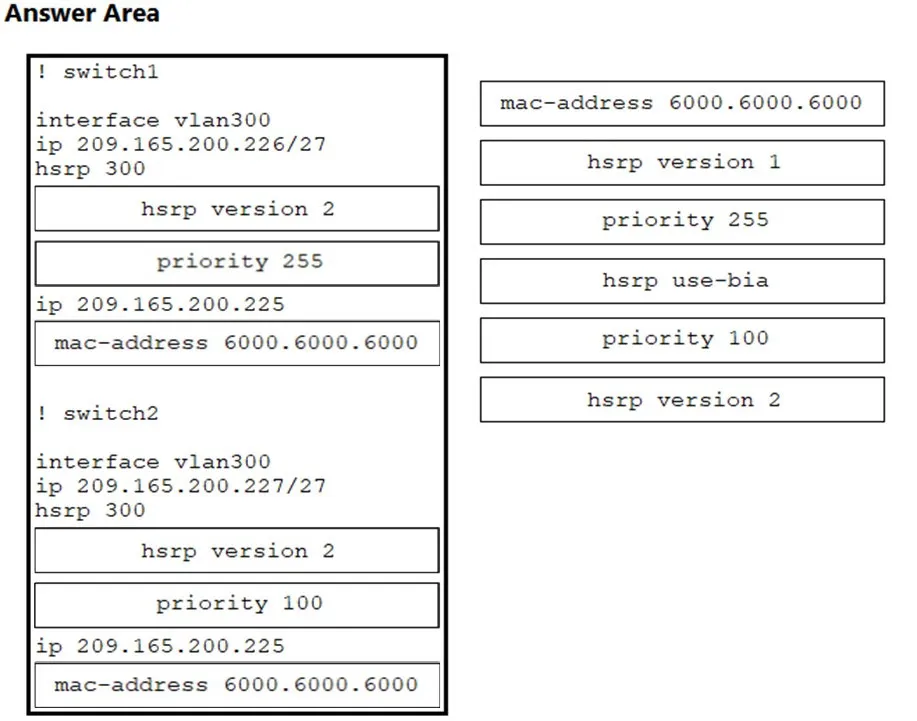

   Show the answer figure

   Answer: See figure below

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/unicast/configuration/guide/l3_cli_nxos/l3_hsrp.html



   Next question

10. Question 480 · 504 in bank

    An engineer must configure OSPFv2 connectivity between a pair of Cisco Nexus switches. The connection between the switches must meet these requirements: ✑ Use unicast for updates. ✑ Use decentralized communication of updates. ✑ Full adjacency between switches. Which configuration is needed to meet these requirements?

    • Afilter list between the neighbors
    • Bstub area between the neighbors
    • Cvirtual link between the neighbors
    • Dinterface with a type of p2p network

    Show answer

    Answer: C

    Explanation

    C is correct A Virtual Link is an OSPF tunnel, a multi-hop point-to-point unicast adjacency; it is, in essence, an extension of Area 0 across (transit area) another area.

    Source: Adapted from community discussion — GuyThatTakesDumps

    References

    • cisco.com documentation
    • Cisco documentation

    Next question
