350-601 practice questions 481–490

1. Question 481 · 504 in bank

   An infrastructure architect is analyzing the deployment type for an application. Several companies must be able to operate the application environment and integrate it with a third-party protocol. The development team also must have maximum control over their development environment, including the operating system used, Python interpreter, and corresponding libraries. Which cloud deployment solution meets these requirements?

   • Aprivate cloud Platform as a Service
   • Bpublic cloud Storage as a Service
   • Chybrid cloud Software as a Service
   • Dcommunity cloud Infrastructure as a Service

   Show answer

   Answer: D

   Explanation

   must be infra.. so D is the correct one.. IaaS - Control everything (VM resources, OS and app like cPanel) PasS - Control just the cPanel app for exemple (like the app that is installed in the vm for example) SaaS - Only consume the service that the app gives (for example a dashboard app... that is hosted in the cPanel :D)

   Source: Adapted from community discussion — GuyThatTakesDumps

   Next question

2. Question 482 · 504 in bank

   A small remote office is set to connect to the regional hub site via NSSA ASBR. Which type of LSA is sent to the remote office OSPF area?

   • Atype 7 LSA
   • Btype 1 LSA
   • Ctype 5 LSA
   • Dtype 3 LSA

   Show answer

   Answer: A

   Explanation

   The remote site is connected to the Hub site via an ASBR router. Hence, an ASBR router redistributes a non OSPF or an External route into the NSSA area which is a Type 7. There is no ABR router in the question.

   Source: Adapted from community discussion — Eyoun

   Next question

3. Question 483 · 504 in bank

   An engineer is performing an ISSU upgrade on the Cisco MDS 9000 Series Switch. What is the impact on the control plane of the switch?

   • AIt is down for less than 80 seconds.
   • BIt remains down for more than 80 seconds but less than 140 seconds.
   • CIt remains down until the next reboot.
   • DIt remains up throughout the update.

   Show answer

   Answer: A

   Explanation

   https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/upgrade/guides/nx-os/upgrade.html "Nondisruptive upgrades on these fabric switches disrupts the control plane for not more than 80 seconds. The software upgrade might be disruptive if the upgrade progresses beyond when it can be stopped gracefully or if a failure occurs."

   Source: Adapted from community discussion — harmann

   References

   • cisco.com documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

4. Question 484 · 504 in bank

   An engineer must implement a disaster recovery policy for the Cisco UCS infrastructure. The solution must meet these criteria: ✑ The Recovery Point Objective must be 48 hours. ✑ The backup must use encrypted transmission. The Recovery Time Objective must be 4 hours.



   Which configuration set must be used in the scheduled backup to meet these requirements?

   • AProtocol: FTP Schedule: Bi-Weekly
   • BProtocol: SFTP Schedule: Weekly
   • CProtocol: TFTP Schedule: Bi-Weekly
   • DProtocol: SCP Schedule: Daily

   Show answer

   Answer: D

   Next question

5. Question 485 · 504 in bank

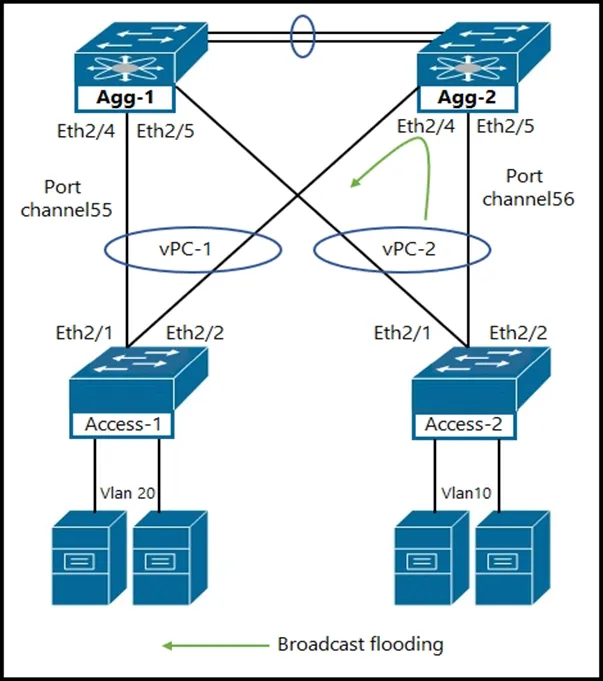

   Refer to the exhibit. What happens to the broadcast traffic when it reaches aggregation switches?

   • AAgg-2 switch receives broadcast packets and stops forwarding to the peer link on Agg-1 switch.
   • BAgg-1 switch prevents broadcast packets received on the vPC peer link from exiting the switch on ports Eth2/4 and Eth2/5.
   • CAgg-1 and Agg-2 switches receive broadcast packets and does not forward them to the peer link or the port channel.
   • DOnly Agg-1 switch receives broadcast packets and does not forward to the peer link on Agg-2 switch.

   Show answer

   Answer: B

   Next question

6. Question 486 · 504 in bank

   Which feature is supported with an In-Service Software Upgrade on a Cisco Nexus 9000 Series Switch?

   • Anondisruptive upgrades via nonstop forwarding
   • Bconfiguration changes during an upgrade
   • Cupgrades to individual modules and line cards
   • Dzero downtime downgrades via dual supervisor modules

   Show answer

   Answer: A

   Explanation

   https://www.cisco.com/c/en/us/td/docs/dcn/nx-os/nexus9000/101x/configuration/high-availability-and-redundancy/cisco-nexus-9000-series-nx-os-high-availability-and-redundancy-guide-101x/m-issu-and-ha.html "In a Cisco Nexus 9000 Series chassis with dual supervisors, you can use the in-service software upgrade (ISSU) feature to upgrade the system software while the system continues to forward traffic. An ISSU uses the existing features of nonstop forwarding (NSF) with stateful switchover (SSO) to perform the software upgrade with no system downtime."

   Source: Adapted from community discussion — mauchi

   References

   • Cisco documentation
   • Cisco documentation

   Next question

7. Question 487 · 504 in bank

   An engineer must configure a monitoring solution for a Cisco Nexus 9000 Series Switch based data center. The solution must provide real-time insight into the network health with subscription-based monitoring. The monitoring must be initiated from the client side, and the data must be sent via encryption. Which configuration steps complete the configuration?

   • AConfigure Grafana on the Nexus switch. Specify the logging certificate. Enable syslog level 7 export to Grafana.
   • BSet the telemetry feature on the Nexus switch. Specify a certificate for telemetry transport. Configure a sensor group and destination.
   • CActivate SNMPv3 on the Nexus switch. Set the globalEnforcePriv parameter. Configure an SNMP agent to poll information.
   • DEnable GRPC on the Nexus switch. Generate a certificate. Configure gNMI inputs in Telegraf and output to InfluxDB.

   Show answer

   Answer: B

   Explanation

   About Telemetry - Collecting data for analyzing and troubleshooting has always been an important aspect in monitoring the health of a network. Cisco NX-OS provides several mechanisms such as SNMP, CLI, and Syslog to collect data from a network. These mechanisms have limitations that restrict automation and scale. One limitation is the use of the pull model, where the initial request for data from network elements originates from the client. The pull model does not scale when there is more than one network management station (NMS) in the network. With this model, the server sends data only when clients request it. To initiate such requests, continual manual intervention is required. This continual manual intervention makes the pull model inefficient. A push model continuously streams data out of the network and notifies the client. Telemetry enables the push model, which provides near-real-time access to monitoring data. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/programmability/guide/b_Cisco_Nexus_9000_Series_NX- OS_Programmability_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_Programmability_Guide_7x_chapter_011000.html

   References

   • Cisco documentation
   • cisco.com documentation

   Next question

8. Question 488 · 504 in bank



   Refer to the exhibit. Software downgrade is required on a Cisco Nexus 7000 Series Switch. What is displayed when this command is executed?

   • Afeatures that are enabled automatically after the downgrade
   • Bimpact of a software upgrade in ISSU and chassis reload
   • Cfeatures and commands that are removed automatically from the configuration
   • Dcompatibility of software in the system bootflash file

   Show answer

   Answer: C

   Explanation

   I've changed my mind, I agree with C. You can see in here that the output shows which features will be disabled indeed. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/best_practices/cli_mgmt_guide/cli_mgmt_bp/nxos_upgrade.html

   Source: Adapted from community discussion — mauchi

   References

   • Cisco documentation

   Next question

9. Question 489 · 504 in bank

   The VMM domain is integrated between Cisco APICs and vCenter using a distributed vSwitch. The traffic must be blocked between a subset of endpoints in an EPG based on specific VM attributes and the rest of the VMs in that EPG. Which set of actions blocks this traffic?

   • A1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Trueג€ 2. Set Intra-EPG Isolation to ג€Unenforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Unenforcedג€ for the uSeg EPG
   • B1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Falseג€ 2. Set Intra-EPG Isolation to ג€Unenforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Enforcedג€ for the uSeg EPG
   • C1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Trueג€ 2. Set Intra-EPG Isolation to ג€Enforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Enforcedג€ for the uSeg EPG
   • D1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Trueג€ 2. Set Intra-EPG Isolation to ג€Enforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Unenforcedג€ for the uSeg EPG

   Show answer

   Answer: A

   Explanation

   The goal here is to block traffic between VMM attribute based EP and the rest EP in same EPG. We do not have to block traffic within the VMM based attribute EP group and the normal EP group. So we don't need to set the Intra-EPG isolation to enforce in the base EPG and the uEPG.

   Source: Adapted from community discussion — Ruzjio

   Next question

10. Question 490 · 504 in bank

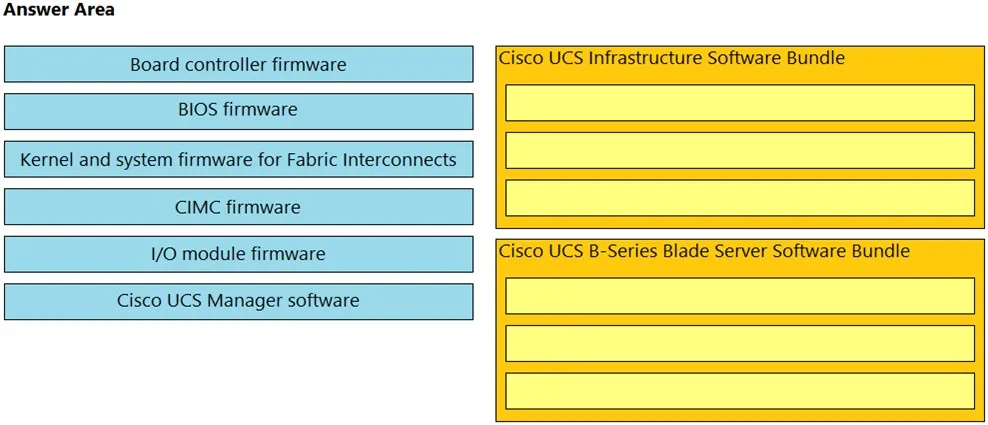

    DRAG DROP - Drag and drop the firmware packages from the left onto the software bundles they belong to on the right. Select and Place:



    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

    Show the answer figure

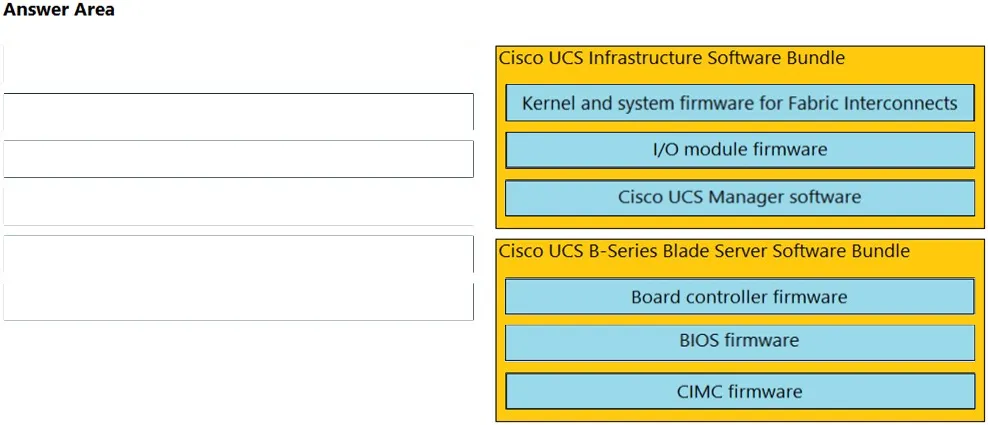

    Answer: See figure below

    Explanation

    Cisco UCS contains many different hardware components. Each component will have firmware. UCS firmware can be categorized as one of four types: ■Infrastructure software bundle: This bundle is also called the A bundle. It contains the firmware images that the fabric interconnects, I/O modules, and the Cisco UCS Manager require to function. ■B-Series server software bundle: Also called the B bundle, this bundle contains the firmware images that the B-Series blade servers require to function, such as adapter, BIOS, CIMC, and board controller firmware. The bundle contents for Cisco UCS Manager, Release 4.0, provide details about the contents of the B-Series server software bundle. Cert Guide - Chapter13: Cisco Unified Compute Software and Configuration Management

    Source: Adapted from community discussion — Sandman19



    Next question
