350-601 practice questions 341–350

1. Question 341 · 504 in bank

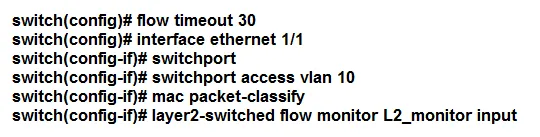

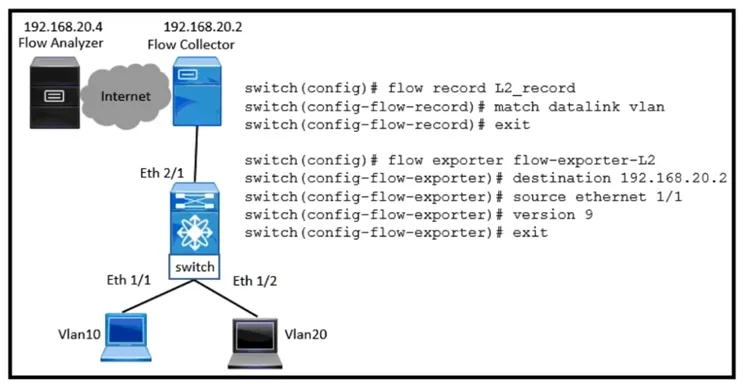

   Refer to the exhibit. VLAN 10 is experiencing delays and packet drops when the traffic is forwarded through the switch. The destination flow analyzer accepts traffic captures of not more than 30 seconds. Which configuration implements the traffic capture that meets the requirements? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX- OS_System_Management_Configuration_Guide_7x_chapter_011100.html

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 342 · 504 in bank



   Refer to the exhibit. An engineer must upgrade the N9K_2 device to the latest code. In preparation for the upgrade, the engineer wants to divert all data plane traffic between RTR_1 and RTR_2 to N9K_4 and N9K_5. The traffic redirection must happen without forcing any OSPFv2 adjacency change in the network. Which configuration set must be used on N9K_2 OSPF process 1 to accomplish these goals?

   • Aarea 0 stub no-summary
   • Bpassive-interface default
   • Cmax-metric router-lsa
   • Darea 0 filter-list route-map DENY_ALL out

   Show answer

   Answer: C

   Next question

3. Question 343 · 504 in bank

   A network architect must design an automation solution to initially support networking and also support the server infrastructure in the future. To keep configuration consistency, the network team requires a solution that enforces the desired state of the network and reverts any manual configuration. Which solution meets these goals?

   • ANX-API
   • BAnsible
   • CPuppet
   • DTerraform

   Show answer

   Answer: C

   Explanation

   Puppet components include a puppet agent that runs on the managed device (node) and a puppet master (server) that typically runs on a separate dedicated server and serves multiple devices. The operation of the puppet agent involves periodically connecting to the puppet master; which in turn compiles and sends a configuration manifest to the agent. The agent reconciles this manifest with the current state of the node and updates the state based on differences.

   Source: Adapted from community discussion — Scheldon

   References

   • Cisco documentation

   Next question

4. Question 344 · 504 in bank

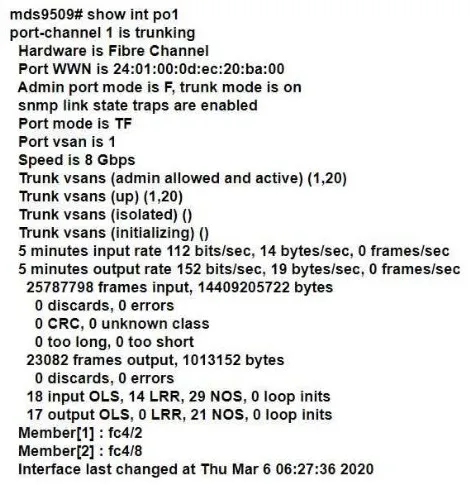

   An engineer troubleshoots a Fibre Channel deployment on a Cisco MDS 9000 Series Switch. What does this output indicate about port channel 1?



   • APort channel 1 is configured to be an ISL.
   • BPort channel 1 is configured to connect to an NPV switch.
   • CPort channel 1 is configured to connect to a host bus adapter.
   • DPort channel 1 is configured to connect to an NPIV switch.

   Show answer

   Answer: B

   Explanation

   The example of the question is taken from here: F-port-channel-trunk from MDS 9148 (NPV) to MDS 9509 (NPIV) Configuration Example https://www.cisco.com/c/en/us/support/docs/storage-networking/mds-9500-series-multilayer-directors/117781-config-mds-00.html

   Source: Adapted from community discussion — ed27

   References

   • Cisco documentation
   • Cisco documentation

   Next question

5. Question 345 · 504 in bank

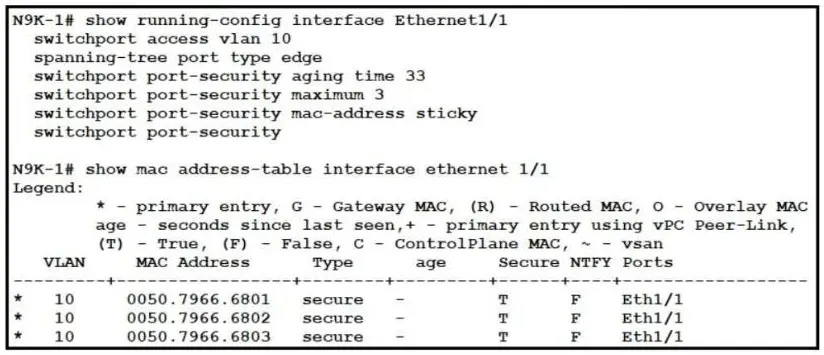

   Refer to the exhibit. An engineer configures port security on a Cisco Nexus 9000 Series Switch. The requirement is to prevent any newly learned MAC addresses from forwarding traffic on the interface. Also, the already learned MAC addresses must not be affected by the changes. Which configuration meets these requirements?

   • Aswitchport port-security violation restrict
   • Bswitchport port-security violation protect
   • Cswitchport port-security violation isolate
   • Dswitchport port-security violation shutdown

   Show answer

   Answer: B

   Next question

6. Question 346 · 504 in bank

   DRAG DROP - Drag and drop the streaming telemetry component on the left to its function on the right. Not all components are used.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   I think it should be: Transport telemetry data - Google remote procedure Determines nodes to be monitored - Sensor Group Link source and destination group - Suscripcion Streams data continuously - Push Model

   Source: Adapted from community discussion — niteg34

   References

   • Cisco documentation



   Next question

7. Question 347 · 504 in bank

   An engineer is implementing the Cisco ACI fabric and wants to reduce the amount of TCAM resources consumed by the fabric. The engineer also needs to ensure that all EPGs in a VRF consume the same services. Which action should be taken to meet these requirements?

   • AConfigure preferred groups in the VRF for all EPGs.
   • BImplement an unenforced VRF.
   • CImplement vzAny feature.
   • DConfigure a single contract provided and consumed in all EPGs.

   Show answer

   Answer: C

   References

   • Cisco documentation

   Next question

8. Question 348 · 504 in bank

   Cisco Nexus 9000 Series Switches are configured with LACP protocol and default aging timers. What is the impact on the LACP peer during an ISSU upgrade?

   • AThe LACP peer renegotiates the adjacency.
   • BThe LACP peer connection terminates.
   • CThe LACP peer connection resets.
   • DThe LACP peer session remains up.

   Show answer

   Answer: D

   Next question

9. Question 349 · 504 in bank

   Refer to the exhibit. An engineer must mirror the traffic on a switch. The engineer locates the server port that requires monitoring on switch1, but the packet sniffer is on switch2. The engineer must configure the source IP address on switch1. Which command accomplishes this goal?



   • Asource ip 209.165.200.225
   • Bmonitor session 10 type erspan-source
   • Csource interface vlan512
   • Dmonitor erspan origin ip-address 209.165.200.225

   Show answer

   Answer: D

   Explanation

   Can be configured without the "global". This example shows how to configure an IP address as the source for an ERSPAN session: switch# configure terminal switch(config)# monitor erspan origin ip-address 192.0.2.1 switch(config)# exit https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5500/sw/system_management/6x/b_5500_System_Mgmt_Config_6x/b_5500_System_Mgmt_Config_602N12_chapter_010001.pdf

   Source: Adapted from community discussion — ed27

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

10. Question 350 · 504 in bank

    Select 2

    Which two actions must be taken to directly connect a Fibre Channel storage array to a Cisco UCS domain? (Choose two.)

    • AConfigure a Fibre Channel port channel.
    • BConfigure the Fibre Channel port as a Fibre Channel storage port.
    • CCreate a new vHBA dedicated to the storage array.
    • DCreate a Storage Connection Policy.
    • EConfigure a new VSAN.

    Show answer

    Answer: BE

    Explanation

    I like your list and agree. But for me (9+ years UCS admin) I am going to say FC Storage Port and Storage connectivity policy. There is a default VSAN 1 that can be utilized, given you don't have other arrays or FC Uplinks using VSAN 1, otherwise you would have to create a new VSAN and correlate to the desired array so the vHBAs can pin to the correct uplink. Not necessarily a 'must' You definitely MUST configure a Storage FC interface for Directly attach array and must zone the array for them to communicate with the storage connectivity policy. You never know whoever wrote this what they read in a document and what answer they are looking for and how expert they are in EVERY technology on this exam. They may have deep level on some, but surely only going to have surface depth on others. Annoying these questions and answers are, especially when some are very subjective.

    Source: Adapted from community discussion — CoAsT_x

    References

    • Cisco documentation
    • Cisco documentation

    Next question
