350-601 practice questions 301–310

1. Question 301 · 504 in bank

   A network administrator must create a Linux container on a Cisco Nexus Series Switch. The container requires 10 percent of the CPU of the switch and 1024 MB of RAM to run successfully. Which task provides the necessary resources?

   • AEdit the container properties with the guestshell run command.
   • BIncrease the compute resources with the guestshell resize command
   • CModify resource allocation with the virtual-service resize command
   • DEnable the Bash shell of the switch with the feature bash command.

   Show answer

   Answer: B

   Explanation

   If the network-admin requires additional resources for the Guest Shell, the guestshell resize {cpu | memory | rootfs} command changes these limits. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/programmability/guide/b_Cisco_Nexus_9000_Series_NX-OS_Programmability_Guide_7x/Guest_Shell.html#concept_7CFE594913434A16AE3BB353B314898C:~:text=If%20the%20network%2Dadmin%20requires%20additional%20resources%20for%20the%20Guest%20Shell%2C%20the%20guestshell%20resize%20%7Bcpu%20%7C%20memory%20%7C%20rootfs%7D%20command%20changes%20these%20limits.

   Source: Adapted from community discussion — Scheldon

   References

   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 302 · 504 in bank

   A network engineer connects the CNA interface of a server to a switch. The switch must bring down all of the VLANs on the interface that are not enabled for FCoE, but the VLANs that are enabled for FCoE should continue to carry SAN traffic without interruption. Which configuration should be applied to the switch to achieve this objective?

   • Aswitch(config)# interface Ethernet 2/1 switch(config-if)# shutdown force
   • Bswitch(config)# interface Ethernet 2/1 switch(config-if)# shutdown lan
   • Cswitch(config)# interface Ethernet vfc 2 switch(config-if)# shutdown force
   • Dswitch(config)# interface vfc 2 switch(config-if)# shutdown lan

   Show answer

   Answer: B

   Explanation

   The Answer is "B" The shutdown lan command is only configurable on port-channel interfaces, FEX HIF ports, or on individual Ethernet interfaces that vFC interfaces are bound upon. The shutdown lan command is only configurable on port-channel interfaces or on individual Ethernet interfaces that are in an operational trunking state. The shutdown lan command cannot be enabled on the secondary vPC leg, if the vPC enabled shutdown lan is applied on the secondary vPC leg. xamples of Shutdown LAN Traffic Shutdown the LAN traffic on port-channel. switch(config)#interface port-channel 955 switch(config-if)# shutdown lan Shutdown the LAN traffic on individual Ethernet port. switch(config)#interface Ethernet 2/5 switch(config-if)# shutdown lan

   Source: Adapted from community discussion — Gayan84

   References

   • Cisco documentation

   Next question

3. Question 303 · 504 in bank

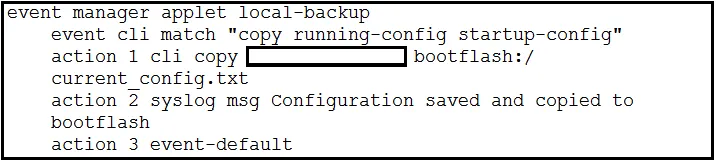

   Refer to the exhibit. A network engineer must create an EEM script that saves a copy of the running configuration to bootflash and writes a message to syslog when a user saves the configuration to a Cisco Nexus 9000 Series Switch. Which command completes the configuration set?

   • Apolicy-default
   • Bsyslog-config
   • Cevent-default
   • Drunning-config

   Show answer

   Answer: D

   References

   • Cisco documentation

   Next question

4. Question 304 · 504 in bank

   A network engineer must configure a Cisco MDS switch to use the local user database for console access if all AAA servers are unreachable. Which configuration should be applied to complete this task?

   • Aaaa authentication login console fallback error local
   • Baaa authentication login console local
   • Caaa authentication login default local
   • Daaa authentication login default fallback error local

   Show answer

   Answer: A

   References

   • Cisco documentation
   • Cisco documentation

   Next question

5. Question 305 · 504 in bank

   A new user with access privileges in the Finance department moves to a new Admin department. The user must have access privileges to the Admin department data and applications inside the Cisco UCS Manager. Which set of changes must be implemented in Cisco UCS Central for the user to acquire the privileges?

   • ADisable the Finance user account and add the authentication service for the Admin privileges.
   • BCreate a new locale Admin and add the Admin department to the Admin locale.
   • CCreate an Admin user account and remove the authentication service for the Finance privileges.
   • DDelete the old locale Finance and remove the Finance department from the Finance locale.

   Show answer

   Answer: B

   Explanation

   B. To provide the new user with access privileges to the Admin department data and applications in the Cisco UCS Manager, the following set of changes must be implemented in Cisco UCS Central: Create a new locale for the Admin department. Add the Admin department to the new Admin locale. Add the new user account to the Admin locale. This will allow the new user to access the data and applications in the Admin department.

   Source: Adapted from community discussion — Rocky_Truth

   Next question

6. Question 306 · 504 in bank

   An engineer configures a role for a new user in Cisco UCS Manager. The role should allow the user to configure vHBAs, vNICs, and server port types. Which role should be assigned to allow the engineer to complete this task?

   • Aoperations
   • Bnetwork administrator
   • Cserver-compute
   • DAAA administrator

   Show answer

   Answer: B

   Explanation

   Network Administrator Read-and-write access to fabric interconnect infrastructure and network security operations. Read access to the remaining system. Server Compute Read and write access to most aspects of service profiles. However, the user cannot create, modify or delete vNICs or vHBAs.

   Source: Adapted from community discussion — Clem7894

   References

   • Cisco documentation

   Next question

7. Question 307 · 504 in bank

   An engineer must affirm the identity of the Cisco UCS Manager after a valid CA-signed keyring for HTTPS access is created. Which action completes the configuration?

   • AImplement SSLv3.
   • BCreate a trusted point.
   • CSet Cipher Suite Mode.
   • DEnable TLSv1.2.

   Show answer

   Answer: B

   Explanation

   B. To affirm the identity of the Cisco UCS Manager after a valid CA-signed keyring for HTTPS access is created, the engineer must create a trusted point. When HTTPS is configured on the Cisco UCS Manager, the switch presents its SSL/TLS certificate to the connecting client. To ensure that the client trusts the certificate, a trusted point must be created on the client, pointing to the certificate in the keyring. The trusted point is configured with the certificate authority (CA) that signed the certificate, which allows the client to validate the certificate.

   Source: Adapted from community discussion — Rocky_Truth

   Next question

8. Question 308 · 504 in bank

   A network engineer must configure a Fibre Channel port monitoring for the local port. The source port should be monitored in the ingress direction. Which configuration should be implemented to achieve this objective?

   • Ainterface fc1/15 switchport mode SD switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 rx
   • Binterface fc1/15 switchport mode switchport switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 tx
   • Cinterface fc1/15 switchport mode fex-fabric switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 rx
   • Dinterface fc1/15 switchport mode SD switchport speed 2000 no shutdown span session 1 destination interface fc1/15 source interface fc1/16 tx

   Show answer

   Answer: A

   Next question

9. Question 309 · 504 in bank

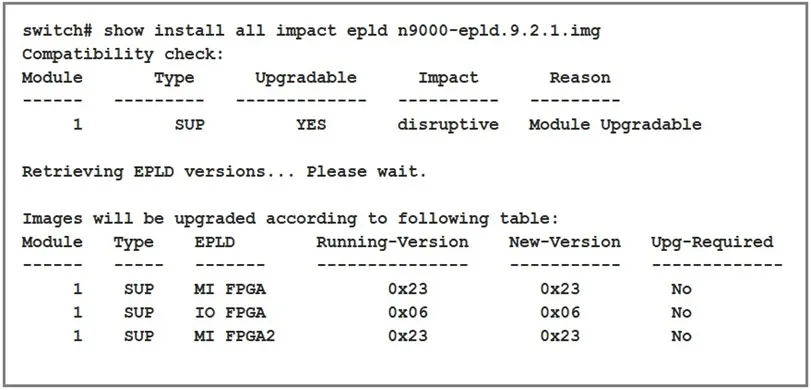

   Refer to the exhibit. A network engineer plans to upgrade the current software images of a Cisco Nexus switch. What is the impact of starting the EPLD upgrade?

   • AThe switch reboots one time for the new EPLD versions to take effect.
   • BThe switch reboots multiple times for the new EPLD versions to take effect.
   • CThe switch skips the EPLD upgrade for each EPLD device of the switch.
   • DThe switch skips the EPLD upgrade for MIFPGA and proceeds with the other EPLD devices.

   Show answer

   Answer: C

   Next question

10. Question 310 · 504 in bank



    Refer to the exhibit. The communication between the web server and the application server experiences poor performance. The network engineer must collect the traffic between the two servers, including the payload, for more investigation. The collected data must be sent from the remote site to the headquarters. Which action accomplishes this goal?

    • AConfigure NetFlow on N5K-1 to send the data to the monitor server.
    • BConfigure SNMP on N5K-1 to send the data to the monitor server.
    • CConfigure a SPAN session between N5K-1 and N5K-2.
    • DConfigure an ERSPAN session between N5K-1 and N5K-2.

    Show answer

    Answer: D

    Next question
