350-601 practice questions 281–290

1. Question 281 · 504 in bank

   A company plans to deploy a Cisco HyperFlex solution for data-intensive applications and databases. The proposed solution should offer the highest performance with high consistency and low latency. Which Cisco HyperFlex storage configuration should be used?

   • AAll-Flash
   • BAll-HDD
   • CHybrid
   • DAll-NVMe

   Show answer

   Answer: D

   Explanation

   All-NVMe storage configuration provides the highest performance and lowest latency compared to other storage configurations, making it the ideal choice for data-intensive applications and databases that require high consistency and low latency.

   Source: Adapted from community discussion — Rocky_Truth

   Next question

2. Question 282 · 504 in bank

   An engineer must implement private VLANs for a group of Cisco UCS B-Series servers. The primary VLAN is present, but the secondary VLAN must be added to both fabrics. Which configuration set accomplishes this task?

   • AUCS-A# scope eth-uplink - UCS-A /eth-uplink # create vlan vlan1981 1981 UCS-A /eth-uplink/vlan* # set sharing none
   • BUCS-A# scope eth-uplink - UCS-A /eth-uplink # create vlan vlan1981 1981 UCS-A /eth-uplink/vlan* # set sharing isolated
   • CUCS-A# scope eth-uplink - UCS-A /eth-uplink # scope fabric a UCS-A /eth-uplink/fabric # create vlan vlan1981 1981 UCS-A /eth-uplink/fabric/vlan* # set sharing secondary
   • DUCS-A# scope eth-uplink - UCS-A /eth-uplink # scope fabric a UCS-A /eth-uplink/fabric # create vlan vlan1981 1981 UCS-A /eth-uplink/fabric/vlan* # set sharing private

   Show answer

   Answer: B

   References

   • Cisco documentation

   Next question

3. Question 283 · 504 in bank

   A company must security harden its Cisco UCS C-Series servers. The security policy requires all out-of-band management to meet these requirements: • It must encrypt all traffic • It must use nondefault ports • It must provide private administrative sessions. Which Cisco IMC configuration meets the requirements?

   • Adata1# scope sol data1 /sol # set enabled yes data1 /sol *# set encrypted tls1.2 data1 /sol *# set port 3389 data1 /sol *# set session max 2 data1 /sol *# set deny-local yes
   • Bdata1# scope cimc data1 /cimc # set enabled yes data1 /cimc *# set encrypted tls data1 /cimc *# set kvm-port 1972 data1 /cimc *# set max-sessions 1 data1 /cimc *# set local-session deny
   • Cdata1# scope oob data1 /oob # set enabled no data1 /oob *# set encrypted yes data1 /oob *# set kvm-port 2068 data1 /oob *# set max-sessions 1 data1 /oob *# set local-access no
   • Ddata1# scope kvm data1 /kvm # set enabled yes data1 /kvm *# set encrypted yes data1 /kvm *# set kvm-port 3168 data1 /kvm *# set max-sessions 1 data1 /kvm *# set local-video no

   Show answer

   Answer: D

   References

   • Cisco documentation

   Next question

4. Question 284 · 504 in bank

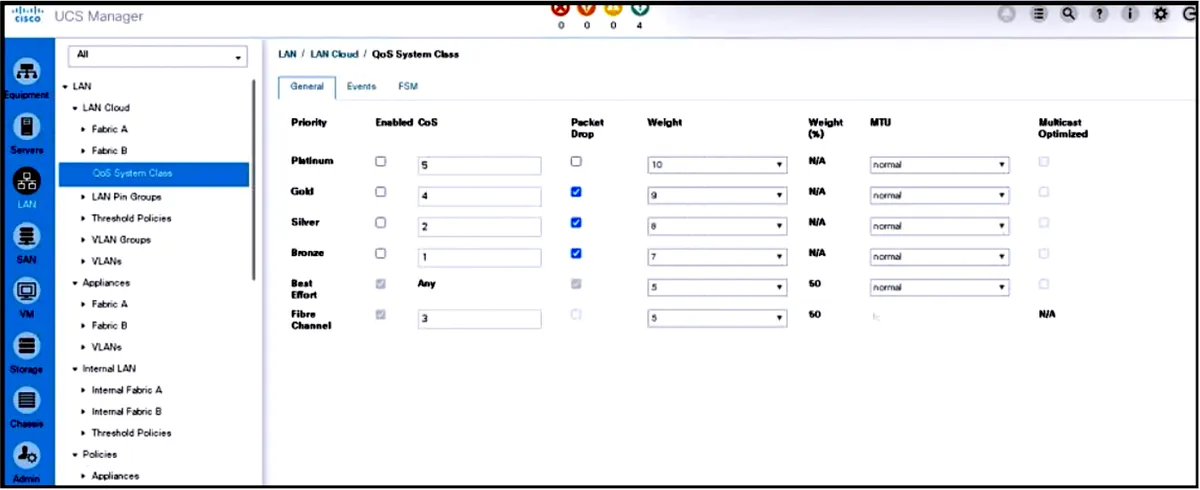

   Refer to the exhibit. An engineer must configure a QoS policy that controls only vHBA traffic. Which policy must be used to meet this requirement?

   • AFibre Channel
   • BGold
   • CPlatinum
   • DBest Effort

   Show answer

   Answer: A

   Next question

5. Question 285 · 504 in bank

   Which file service protocol allows the files to appear locally mapped to the client and provides view, store, and update capabilities on a remote Linux-based storage repository that also serves as a distributed file system standard for NAS?

   • ANFS
   • BCIFS
   • CiSCSI
   • DFTP

   Show answer

   Answer: A

   Next question

6. Question 286 · 504 in bank

   DRAG DROP -

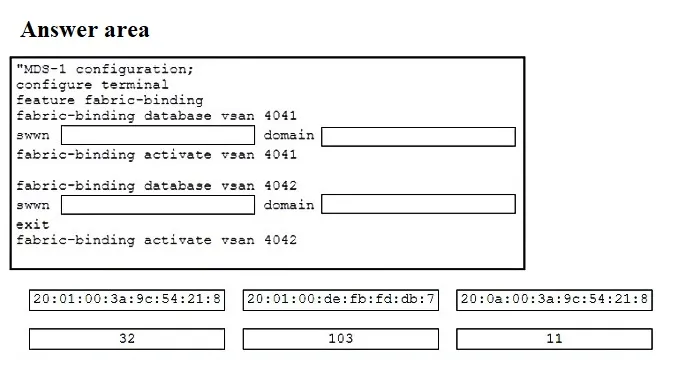

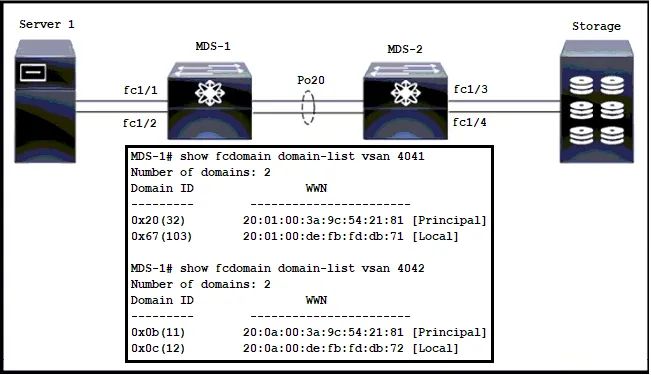

   Refer to the exhibit. The VSAN 4041 and 4042 are exchanged between two Cisco MDS 9000 Series Switches called MDS-1 and MDS-2. The objective is to deploy a security mechanism on MDS-1 to allow MDS-2 to join the fabric exclusively. Drag and drop the code snippets from the bottom onto the boxes in the code to complete the MDS-1 configuration. Not all code snippets are used.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

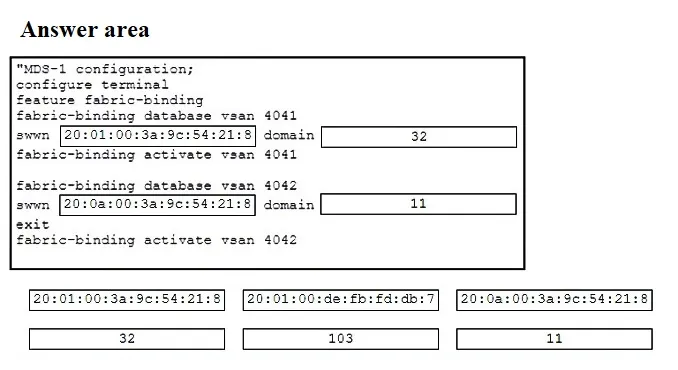

   Show the answer figure

   Answer: See figure below

   Explanation

   I believe that correct answer would be, but I would not give my head for that for vsan 4041 SWWN 20:0a:00.... domain 11 for vsan 4042 swwn 20:01:00... domain 32

   Source: Adapted from community discussion — Scheldon



   Next question

7. Question 287 · 504 in bank

   A network engineer must configure a Fibre Channel interface on the Cisco MDS 9000 Series Switch. The configuration must meet these requirements: • The interface must be disabled when the bit errors threshold is exceeded. • Buffer-to-buffer credits must be set to the maximum value. • The interface must have full bandwidth allocated for its port group. Which command set configures a Fibre Channel interface that meets these requirements?

   • Ainterface fc1/1 switchport bit-errors switchport fcrxbbcredit 220 mode Fx switchport rate-mode dedicated
   • Binterface fc1/1 switchport ignore bit-errors switchport fcrxbbcredit 255 mode Fx no switchport rate-mode
   • Cinterface fc1/1 no switchport ignore bit-errors switchport fcrxbbcredit 255 mode Fx switchport rate-mode dedicated
   • Dinterface fc1/1 no switchport bit-errors switchport fcrxbbcredit 220 mode Fx no switchport rate-mode

   Show answer

   Answer: C

   Explanation

   Correct Answer is A - https://www.cisco.com/c/en/us/support/docs/storage-networking/mds-9513-multilayer-director/210451-fc-port-down-due-to-error-disabled-bi.html You can configure the switch to not disable an interface using below command when the threshold is crossed. By default, the threshold disables the interface. no switchport ignore bit-errors

   Source: Adapted from community discussion — U_O

   References

   • Cisco documentation
   • Cisco documentation

   Next question

8. Question 288 · 504 in bank

   Select 2

   An engineer needs to create a new user in the local user database on Cisco UCS Fabric Interconnect. The user needs permissions to change the following configuration inside UCS Manager version 3.1: ✑ vNIC and vHBA profiles ✑ Fan speed and power redundancy profile of UCS Manager Which two roles must be assigned to a user to achieve this goal? (Choose two.)

   • Afacility-manager
   • Bserver-equipment
   • Coperations
   • Dserver-profile
   • Eserver-compute

   Show answer

   Answer: AD

   Explanation

   Should be A &D Facility Manager Read-and-write access to power management operations through the power management privilege.Read access to the remaining system. Server Compute Read and write access to most aspects of service profiles. However, the user cannot create, modify or delete vNICs or vHBAs. Server Profile Administrator Read-and-write access to logical server-related operations. Read access to the remaining system. from : https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-central/GUI-User-Guides/Authentication/1-5/b_CiscoUCSCentral_AuthenticationGuide_1-5/b_CiscoUCSCentral_AuthenticationGuide_1-5_chapter_010.pdf

   Source: Adapted from community discussion — Llitam

   References

   • Cisco documentation

   Next question

9. Question 289 · 504 in bank

   An engineer must connect a Cisco UCS appliance port directly to NFS and iSCSI storage devices. Which action should be taken to achieve this goal?

   • AConfigure the appliance ports in access mode and apply VLAN tagging on the storage.
   • BConfigure VLAN tagging on the storage and the Cisco UCS simultaneously.
   • CConfigure the appliance ports in trunk mode and apply VLAN tagging on the storage.
   • DConfigure NFS and iSCSI to use the same VLAN tag on the appliance port.

   Show answer

   Answer: C

   Explanation

   Cisco recommends that you configure the appliance ports in Trunk mode and configure the VLAN tagging on the storage side for maximum flexibility. https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-5100-series-blade-server-chassis/116075-ucs-app-connectivity-tshoot-00.html#anc6

   Source: Adapted from community discussion — asd248402

   References

   • Cisco documentation

   Next question

10. Question 290 · 504 in bank

    Select 2



    Refer to the exhibit. A network engineer must SPAN only the ingress traffic of a Cisco MDS 9000 Series Switch from interface fc 1/23 to interface fc 1/24. Which two configurations must be applied to complete this task? (Choose two.)

    • AMDS-A(config-span)# source interface fc 1/23
    • BMDS-A(config-if)# switchport mode SD
    • CMDS-A(config-span)# source interface fc 1/23 rx
    • DMDS-A(config-span)# source interface fc 1/23 tx
    • EMDS-A(config-if)# switchport mode TL

    Show answer

    Answer: BC

    Next question
