200-301 practice questions 311–320

1. Question 311 · 1334 in bank

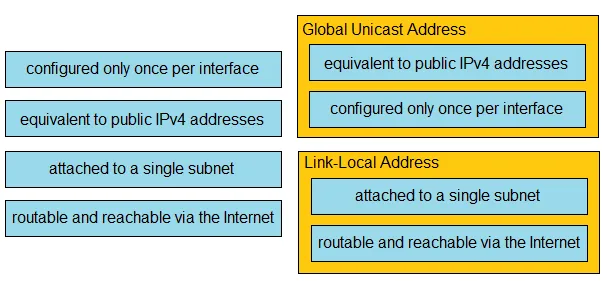

   DRAG DROP - Drag and drop the IPv6 address type characteristics from the left to the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Wrong. Link-local addresses are not routable nor reachable via Internet. And you can have only one link-local address per interface. So it should be : - Global Unicast Address : . equivalent to public IPv4 addresses . routable and reachable via the Internet - Link-Local Address : . configured only once per interface . attached to a single subnet Source : https://www.ciscopress.com/articles/article.asp?p=2803866&seqNum=4

   Source: Adapted from community discussion — foreach



   Next question

2. Question 312 · 1334 in bank

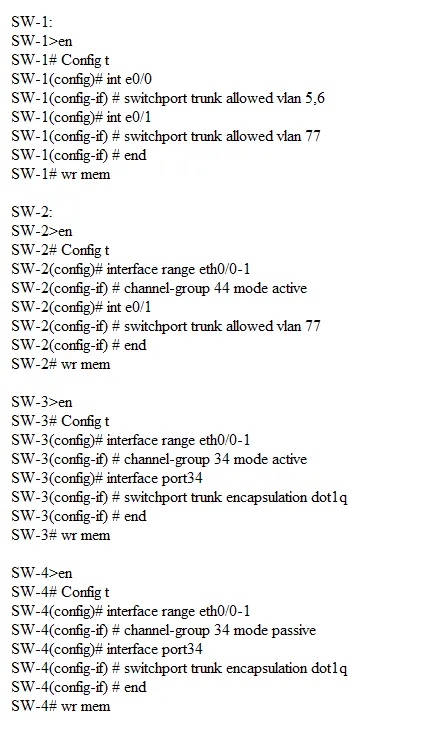

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices. • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology lab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked, the lab closes and cannot be reopened. Topology -



   Tasks - All physical cabling is in place and verified. Router R1 is configured and passing traffic for VLANs 5 and 6. All relevant ports are pre-configured as 802.1q trunks. 1. Configure SW-1 port E0/0 to permit only VLANS 5 and 6 2. Configure both SW-1 and SW-2's E0/1 ports to send and receive untagged traffic over VLAN 77 3. Configure SW-2 E0/2 port to permit only VLAN 6 4. Configure both SW-3 and SW-4 ports e0/0 and e0/1 for link aggregation using the industry standard protocol with the following requirements: o SW-3 ports must immediately negotiate the aggregation protocol o SW-4 ports must not initiate the negotiation for the aggregation protocol o Use the designated number assignment

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Task 1 SW-1(config)#int e0/0 SW-1(config-if)#switchport trunk encapsulation dot1q SW-1(config-if)#switchport mode trunk SW-1(config-if)#switchport trunk allowed vlan 5,6 Task 2 SW-1(config)#int e0/1 SW-1(config-if)#switchport mode trunk encapsulation dot1q SW-1(config-if)#switchport mode trunk SW-1(config-if)#switchport trunk native vlan 77 SW-2(config)#int e0/1 SW-2(config-if)#switchport trunk encapsulation dot1q SW-2(config-if)#switchport mode trunk SW-2(config-if)#switchport access vlan 77 Task 3 SW-2(config)#Int e0/2 SW-2(config-if)#switchport mode trunk encapsulation dot1q SW-2(config-if)#switchport mode trunk SW-2(config-if)#switchport trunk allowed vlan 6 Tsk 4 SW-3(config)#int range e0/0-1 SW-3(config-if-range)#channel-group 34 mode active SW-4(config)#int range e0/0-1 SW-4(config-if-range)#channel-group 34 mode passive Write memory

   Source: Adapted from community discussion — d5c03de



   Next question

3. Question 313 · 1334 in bank

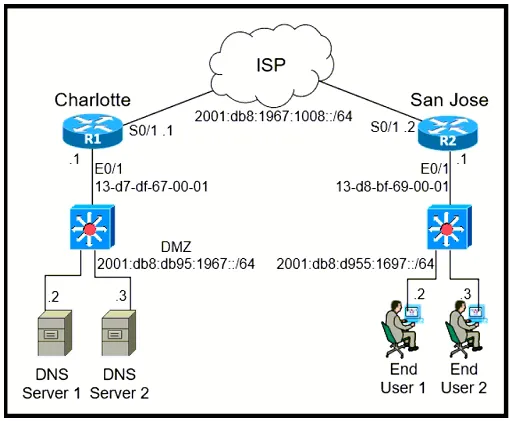

   Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

   • A2001:db8:d955:1697:1130:ABFF:FECC:1
   • B2001:db8:d955:1697:4657:149F:FE65:1
   • C2001:db8:d955:1697:11D8:BFFF:FE69:1
   • D2001:db8:d955:1697:12D8:BAFE:FF01:1

   Show answer

   Answer: C

   Explanation

   13:D8:BF:69:00:01 Convertion process: 1) Take the mac address: for example 13:D8:BF:69:00:01 2) Throw ff:fe in the middle: 13:D8:BF:ff:fe:69:00:01 3) Reformat to IPv6 notation 13D8:BFff:fe69:0001 4) Convert the first octet from hexadecimal to binary: 13 -> 00010011 Convert each hex digit to 4 binary digits (see conversion table below): 13 = 1 3 = 0001 0011 = 00010011 5) Invert the bit at index 6 (counting from 0): 00010011 -> 00010001 6) Convert octet back to hexadecimal: 00010001 -> 11 7) Replace first octet with newly calculated one: 11D8:BFFF:FE69:0001 8) Prepend the link-local prefix: fe80::11D8:BFFF:FE69:1

   Source: Adapted from community discussion — KuyaErik101

   Next question

4. Question 314 · 1334 in bank

   What is represented by the word "LB13" within this JSON schema?



   • Aarray
   • Bvalue
   • Cobject
   • Dkey

   Show answer

   Answer: B

   Next question

5. Question 315 · 1334 in bank



   Refer to the exhibit. Which type of JSON data is shown?

   • ABoolean
   • Bstring
   • Cobject
   • Dsequence

   Show answer

   Answer: C

   Next question

6. Question 316 · 1334 in bank

   A DHCP pool has been created with the name NOCC. The pool is using 192.168.20.0/24 and must use the next to last usable IP address as the default gateway for the DHCP clients. What is the next step in the process?

   • Anext-server 192.168.20.254
   • Bnetwork 192.168.20.254 255.255.255.0 secondary
   • Cdefault-router 192.168.20.253
   • Dip default-gateway 0.0.0.0 0.0.0.0 192.168.20.253

   Show answer

   Answer: C

   Explanation

   192.168.20.0/24 broadcast = 192.168.20.255 last usable IP = 192.168.20.254 next to last usable IP = 192.168.20.253 command for default gateway = default-router

   Source: Adapted from community discussion — ladarius01

   Next question

7. Question 317 · 1334 in bank

   Which Windows command is used instead of the route print command to display the contents of the IP routing table?

   • Aipconfig
   • Bnetstat -r
   • Cnetstat -n
   • Difconfig

   Show answer

   Answer: B

   Explanation

   B is correct netstat: it displays various network-related information including routing tables, active connections, and listening ports. -r option: it specifically instructs netstat to display the IP routing table.

   Source: Adapted from community discussion — [Removed]

   Next question

8. Question 318 · 1334 in bank

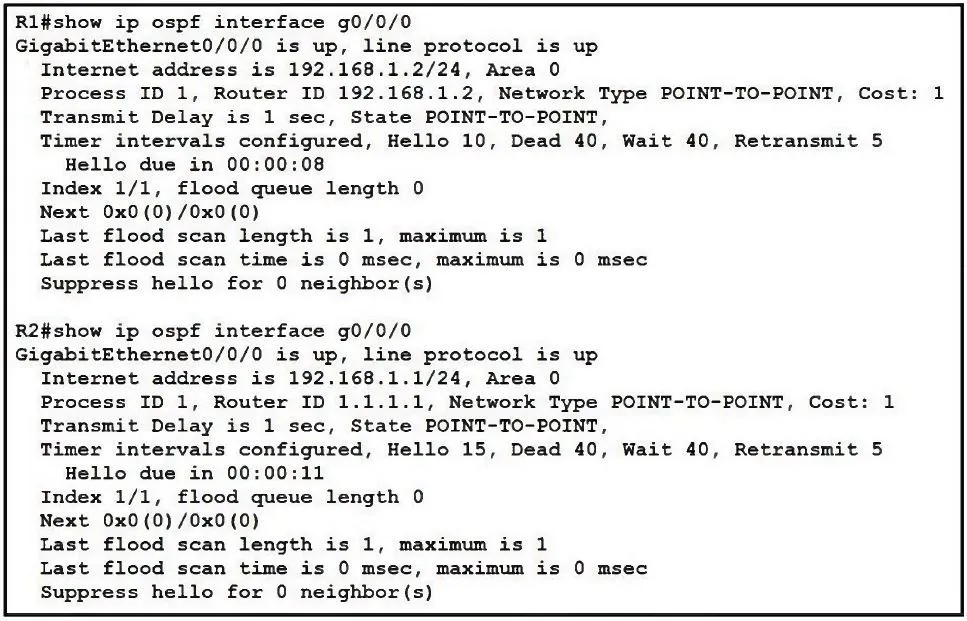

   Refer to the exhibit. The network engineer is confining router R2 as a replacement router on the network. After the initial configuration is applied, it is determined that R2 failed to show R1 as a neighbor. Which configuration must be applied to R2 to complete the OSPF configuration and enable it to establish the neighbor relationship with R1?

   • AR2(config)#interface g0/0/0 - R2(config-if)#ip ospf hello-interval 10
   • BR2(config)#router ospf 1 - R2(config-router)#router-id 192.168.1.1
   • CR2(config)#router ospf 1 - R2(config-router)#network 192.168.1.0 255.255.255.0 area 2
   • DR2(config)#interface g0/0/0 - R2(config-if)#ip ospf dead-interval 45

   Show answer

   Answer: A

   Next question

9. Question 319 · 1334 in bank

   DRAG DROP -

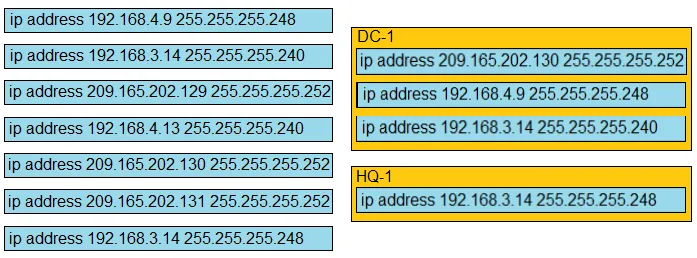

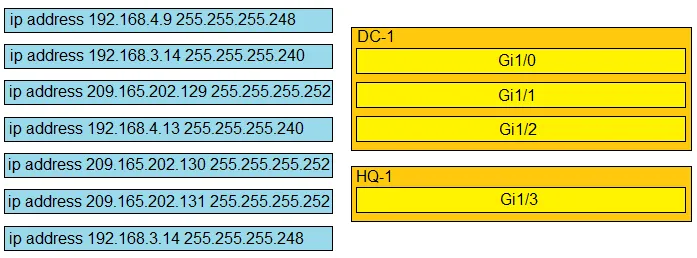

   Refer to the exhibit. The IP address configurations must be completed on the DC-1 and HQ-1 routers based on these requirements: ✑ DC-1 Gi1/0 must be the last usable address on a /30 ✑ DC-1 Gi1/1 must be the first usable address on a /29 ✑ DC-1 Gi1/2 must be the last usable address on a /28 ✑ HQ-1 Gi1/3 must be the last usable address on a /29 Drag and drop the commands from the left onto the destination interfaces on the right. Not all commands are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   This is the best answer here. This way you can resolve the question very fast without doing all the math, and save time.

   Source: Adapted from community discussion — jamesgavin



   Next question

10. Question 320 · 1334 in bank

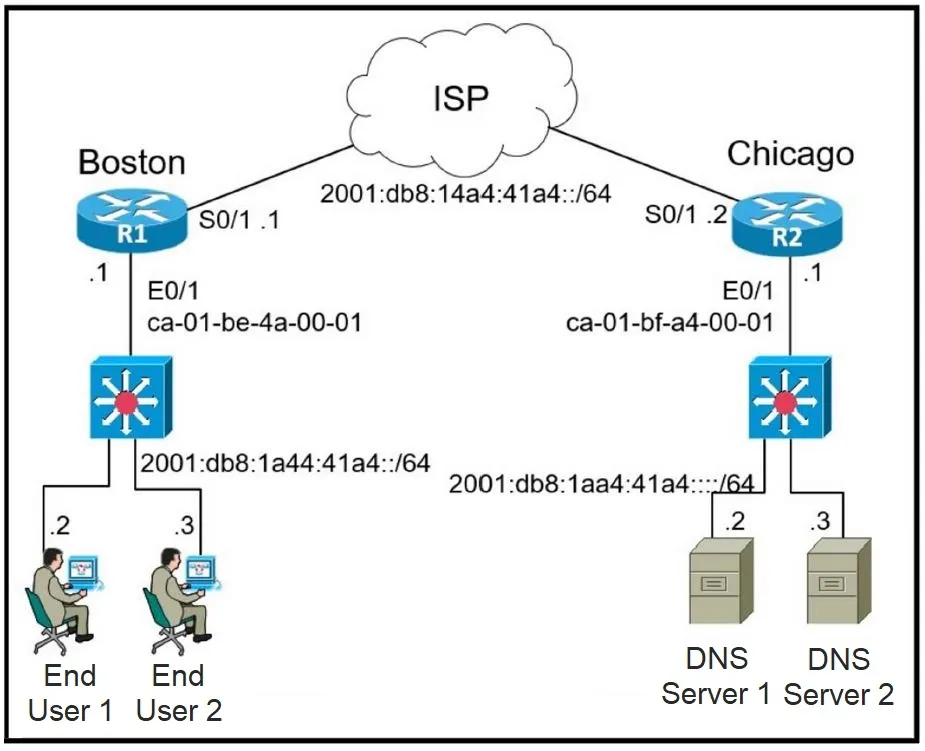

    Refer to the exhibit. The IPv6 address for the LAN segment on router R1 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

    • A2001:db8:1a44:41a4:C081:BFFF:FE4A:1
    • B2001:db8:1a44:41a4:C801:BEFF:FE4A:1
    • C2001:db8:1a44:41a4:4660:592F:FE65:1
    • D2001:db8:1a44:41a4:C800:BAFE:FF00:1

    Show answer

    Answer: B

    Explanation

    Comparing this with the options provided: A. 2001:db8:1a44:41a4:C081:BFFF:FE4A:1 - This is incorrect because C081 should be C201. B. 2001:db8:1a44:41a4:C801:BEFF:FE4A:1 - This is incorrect because C801 should be C201. C. 2001:db8:1a44:41a4:4660:592F:FE65:1 - This is incorrect as it doesn't correlate with the EUI-64 modification of the provided MAC address. D. 2001:db8:1a44:41a4:C800:BAFE:FF00:1 - This is incorrect because C800:BAFE doesn't match the MAC address after applying EUI-64 modification. However, none of the given options exactly matches the expected result. The closest option is B, but it has an incorrect octet C801 instead of C201. There could be a typo in the options or in the understanding of the MAC address manipulation. Please double-check the available options and the process to ensure accuracy.

    Source: Adapted from community discussion — lmmujsi

    Next question
