200-301 practice questions 261–270

1. Question 261 · 1334 in bank

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices. • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked, the lab doses and cannot be reopened. Topology -



   Tasks - R1 and R2 are pre-configured with all the necessary commands. All physical cabling is in place and verified. Connectivity for PC1 and PC2 must be established to the switches; each port must only allow one VLAN and be operational. 1. Configure SW-1 with VLAN 15 and label it exactly as OPS 2. Configure SW-2 with VLAN 66 and label it exactly as ENGINEERING 3. Configure the switch port connecting to PC1 4. Configure the switch port connecting to PC2 5. Configure the E0/2 connections on SW-1 and SW-2 for neighbor discovery using the vendor-neutral standard protocol and ensure that E0/0 on both switches uses the Cisco proprietary protocol



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

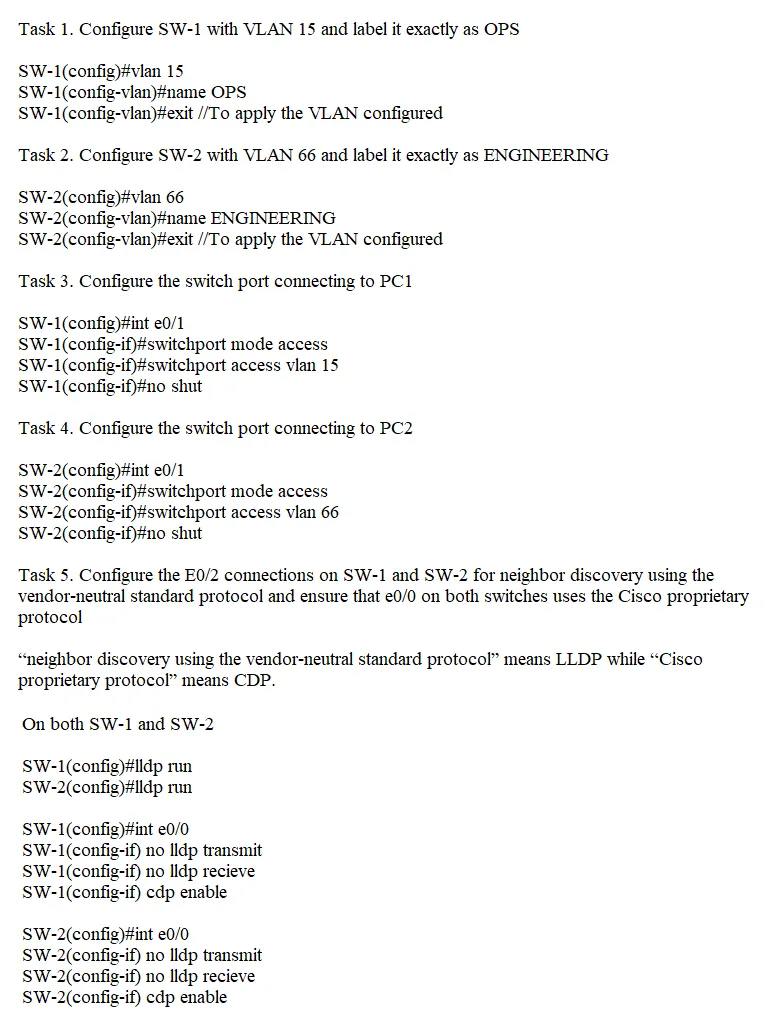

   Show the answer figure

   Answer: See figure below

   Explanation

   CDP is enabled by default on switches and routers. CDP is enabled globally on all interfaces by default, this means that we don't need to use "cdp enable" command to enable it on the interface. LLDP is disabled by default on all interfaces. LLDP run command enables LLDP but it doesn't we have to manually enable it on each interface using "lldp transmit" and "lldp receive" commands.

   Source: Adapted from community discussion — AbdullahMohammad251



   Next question

2. Question 262 · 1334 in bank

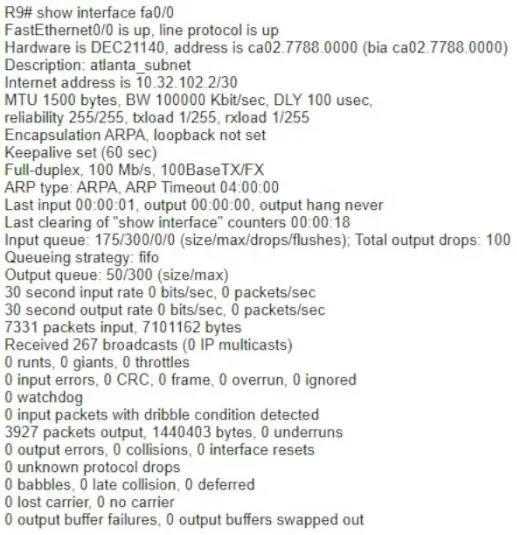

   Which interface condition is occurring in this output?



   • Abroadcast storm
   • Bqueueing
   • Cbad NIC
   • Dduplex mismatch

   Show answer

   Answer: B

   Explanation

   If the input rate is consistently double the output rate, it may indicate a potential issue or an asymmetry in the traffic flow. This could lead to a queueing condition, where the input queue is building up because the rate of incoming packets is higher than the rate at which they are being processed and sent out. In this case, "B. queueing" becomes a more relevant option. The input queue is shown as 175/300, indicating that the input queue is at 175, with a maximum size of 300. The higher input rate compared to the output rate could contribute to the input queue filling up. Therefore, considering the input rate being double the output rate, "B. queueing" would be a suitable choice in this context.

   Source: Adapted from community discussion — 16BitRun

   References

   • Cisco documentation

   Next question

3. Question 263 · 1334 in bank

   Select 2

   What are the two functions of SSIDs? (Choose two.)

   • Auses the maximum of 32 alphanumeric characters
   • Bcontrols the speed of the Wi-Fi network
   • Cused exclusively with controller-based Wi-Fi networks
   • Dsupports a single access point
   • Ebroadcasts by default

   Show answer

   Answer: AE

   Explanation

   Terrible question A. uses the maximum of 32 alphanumeric characters This is not a function, its a requirement, but it is true. B. controls the speed of the Wi-Fi network SSID has nothing to do with speed. C. used exclusively with controller-based Wi-Fi networks Any WLAN can have an SSID including autonomous which are not controller based. D. supports a single access point Multiple access points can share the same SSID. E. broadcasts by default The checkbox for broadcast is checked by default so this is true, still not a function. A and E are true but are not functions.

   Source: Adapted from community discussion — DixieNormus

   Next question

4. Question 264 · 1334 in bank

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices. • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked, the lab doses and cannot be reopened. Topology -



   Tasks - R1 has been pre-configured with all the necessary commands. All physical cabling is in place and verified. Connectivity for PC1 and PC2 must be established to the switches, and each port must only allow one VLAN. 1. Configure SW-1 with VLAN 35 and label it exactly as SALES 2. Configure SW-2 with VLAN 39 and label it exactly as MARKETING 3. Configure the switch port connecting to PC1 4. Configure the switch port connecting to PC2 5. Configure SW-1 and SW-2 for universal neighbor discovery using the industry standard protocol and disable it on the interface connecting to PC1



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

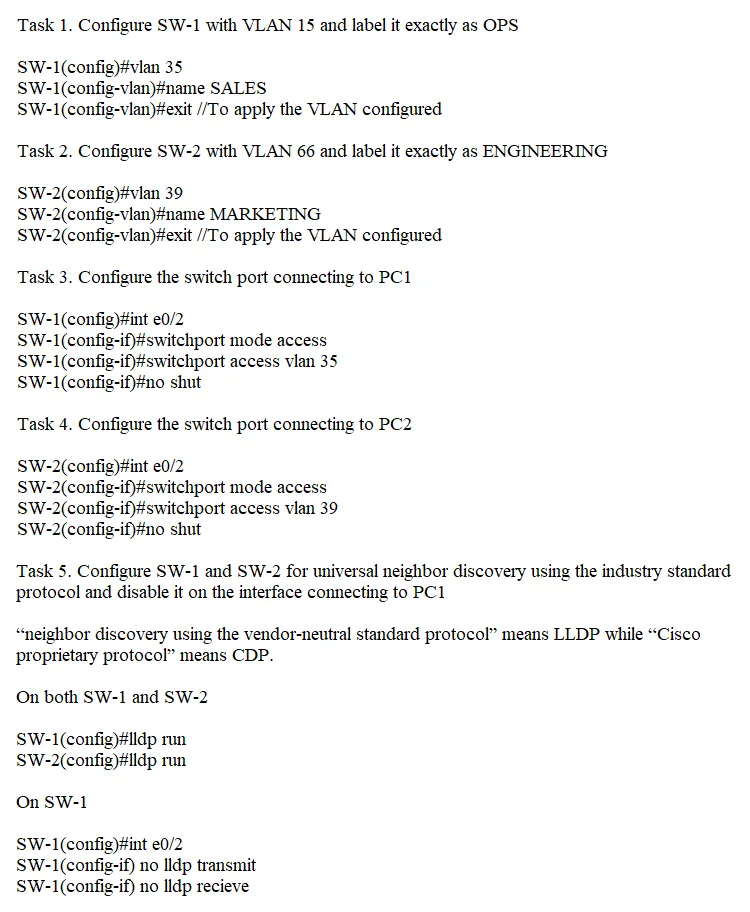

   Show the answer figure

   Answer: See figure below

   Explanation

   Task 1 SW-1(config)#vlan 35 SW-1(config-vlan)#name SALES Task 2 SW-2(config)#vlan 39 SW-2(config-vlan)#name MARKETING Task 3 SW-1(config)#interface gigabitEthernet 0/2 SW-1(config-if)#switchport mode access SW-1(config-if)#switchport access vlan 35 Task 4 SW-2(config)#interface gigabitEthernet 0/2 SW-2(config-if)#switchport mode access SW-2(config-if)#switchport access vlan 39 Task 5 SW-1(config)#interface gigabitEthernet 0/2 SW-1(config-if)#no lldp receive SW-1(config-if)#no lldp transmit SW-2(config)#lldp run

   Source: Adapted from community discussion — picho707



   Next question

5. Question 265 · 1334 in bank

   What is represented in line 3 within this JSON schema?



   • Aobject
   • Bkey
   • Cvalue
   • Darray

   Show answer

   Answer: A

   Explanation

   The provided JSON data appears to be an array of objects. In JSON, an array is an ordered list of values, and each value can be of any valid JSON data type, including objects. The entire structure enclosed by square brackets [ ] represents an array. Therefore, in line 3: {"load balancer": "LB_munich", "port": "te0/26"} This is an object within the array, where "load balancer" and "port" are keys, and "LB_munich" and "te0/26" are their respective values. So, the correct answer is: A. object

   Source: Adapted from community discussion — 16BitRun

   Next question

6. Question 266 · 1334 in bank

   How does MAC learning function?

   • Arestricts ports to a maximum of 10 dynamically-learned addresses
   • Bincreases security on the management VLAN
   • Cdrops received MAC addresses not listed in the address table
   • Dassociates the MAC address with the port on which it is received

   Show answer

   Answer: D

   Explanation

   D. associates the MAC address with the port on which it is received Explanation: The primary purpose of MAC learning is to associate MAC addresses with the specific switch port on which they are received. This process allows the switch to make informed forwarding decisions based on MAC addresses. So, the accurate description is: D. associates the MAC address with the port on which it is received The other options are not accurate: A. MAC learning does not typically restrict the number of dynamically-learned addresses on a port; it dynamically learns and associates MAC addresses as traffic is received. B. MAC learning itself does not directly increase security on the management VLAN. Security on the management VLAN is typically handled through other means such as access control lists (ACLs), secure management protocols, etc. C. MAC learning does not drop received MAC addresses not listed in the address table; instead, it dynamically learns and adds these addresses to the table.

   Source: Adapted from community discussion — 16BitRun

   Next question

7. Question 267 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the IPv6 address type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

8. Question 268 · 1334 in bank

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices. • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked, the lab doses and cannot be reopened. Topology -



   Tasks - VLANS 35 and 45 have been configured in all three switches. All physical connectivity has been installed and verified All inter-switch links must be operational. 1. Configure SW-1 and SW-2 switch ports e0/0 and e0/1 for 802.1q trunking allowing all VLANS 2. Configure the inter-switch links on SW-1 e0/2, SW-2 e0/2, and SW-3 e0/0 and e0/1 to use native VLAN 35 3. Configure SW-1 and SW-2 switch ports e0/0 and e0/1 for link aggregation SW-1 should immediately negotiate LACP and SW-2 must only respond to LACP requests



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

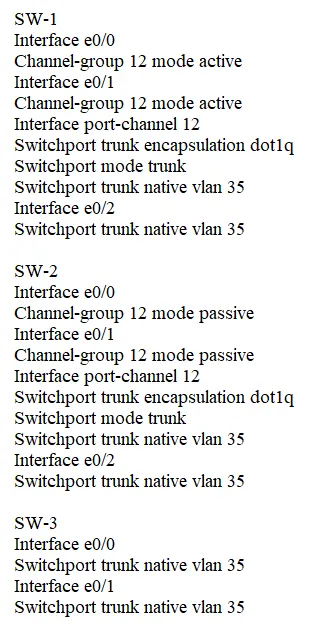

   Show the answer figure

   Answer: See figure below

   Explanation

   can anyone check my configuration TASK#1 SW-1 en conf t int range e0/0 - 1 switchport trunk encapsulation dot1q switchport mode trunk ! ! SW-2 en conf t int range e0/0 - 1 switchport trunk encapsulation dot1q switchport mode trunk TASK #2 SW-1 int e0/2 switchport mode trunk switchport trunk native vlan 35 ! ! SW-2 int e0/2 switchport mode trunk switchport trunk native vlan 35 ! ! SW-3 int range e0/0 - 1 switchport mode trunk switchport trunk native vlan 35 TASK #3 SW-1 int range e0/0 - 1 channel-group 12 mode active exit ! ! ! SW-2 int range e0/0 - 1 channel-group 12 mode passive exit

   Source: Adapted from community discussion — JunsK1e



   Next question

9. Question 269 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   given answers are correct an optical fiber consists of three concentric elements, the core, the cladding and the outer coating, often called the buffer. http://labman.phys.utk.edu/phys222core/modules/m7/optical-fibers.html#:~:text=An%20optical%20fiber%20consists%20of,The%20cladding%20surrounds%20the%20core. https://en.wikipedia.org/wiki/Cladding_(fiber_optics)

   Source: Adapted from community discussion — [Removed]



   Next question

10. Question 270 · 1334 in bank

    Select 2

    Which two tasks support the physical access control element of a security program? (Choose two.)

    • ADeploy a video surveillance system
    • BRun a workshop on corporate security policies
    • CImplement badge access to critical locations
    • DDevelop slideshows about new security regulations
    • EDisperse information about how to protect the organization's confidential data

    Show answer

    Answer: AC

    Next question
