Question 301 · 1334 in bank
Which physical component is distributed among multiple virtual machines running on the same hypervisor?
Show answer
Answer: D
200-301AssociateCiscoAll questions freePage 31 of 134
200-301 practice questions 301–310
Cisco Certified Network Associate (CCNA)1,334 questions across 134 pages are complete and free, with no account or card.
Official study references
1334 questions in this bank
Free access · progress saved on this device
Question 302 · 1334 in bank
What is the default behavior of a Layer 2 switch when a frame with an unknown destination MAC address is received?
Show answer
Answer: C
Explanation
Sometimes called BUM traffic - Broadcast, Unknown Unicast, Multicast. These forms of traffic are "flooded" out all ports except the port the packet was received on.
Source: Adapted from community discussion — therandman
Question 303 · 1334 in bank
Refer to the exhibit. Configurations for the switch and PCs are complete. Which configuration must be applied so that VLANs 2 and 3 communicate back and forth?
Show answer
Answer: B
Explanation
B is correct. Question gave 3 hints to work on. (RoS, VLAN 3, and /23) RoS require matching VLAN ID which is 3 and /23 = 254. So dot1Q=3 and 255.255.254.0 = B Hope this help
Source: Adapted from community discussion — HMaw
Question 304 · 1334 in bank

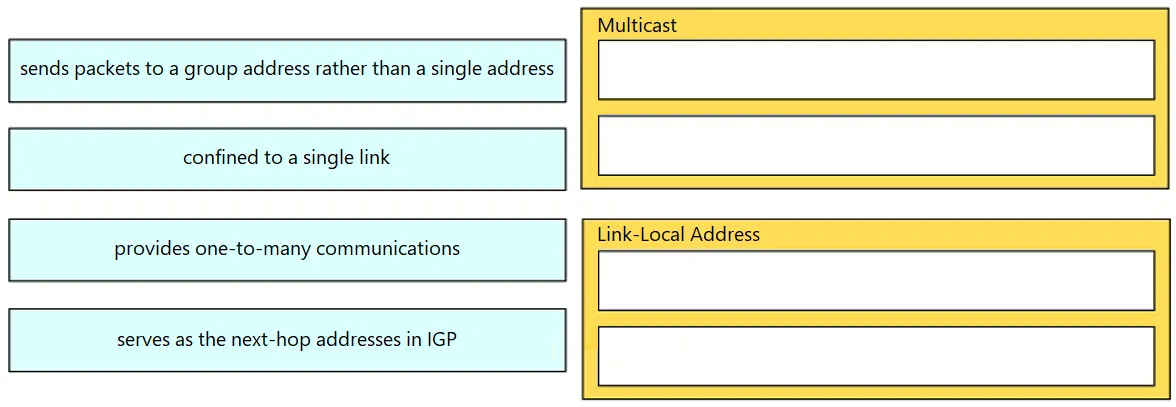

DRAG DROP - Drag and drop the characteristic from the left onto the IPv6 address type on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Question 305 · 1334 in bank
What causes a port to be placed in the err-disabled state?
Show answer
Answer: B
Explanation
B. port security violation When port security is configured on a switch port and a security violation occurs (such as an unauthorized MAC address being detected), the port can be placed into the err-disabled state as a protective measure. This state effectively shuts down the port and prevents any traffic from passing through until the issue is resolved and the port is manually re-enabled. Other incorrect Options: - A. the shutdown command on a port will disable the port, but it does not place it in the err-disabled state. The port is administratively down but can be brought back up with the no shutdown command. - C. nothing plugged into the port: does not cause it to be placed in the err-disabled state. The port will simply be in an "up/down" or "notconnected" state. - D. Latency is typically a performance issue and not a reason for disabling a port.
Source: Adapted from community discussion — KAM2023
Question 306 · 1334 in bank

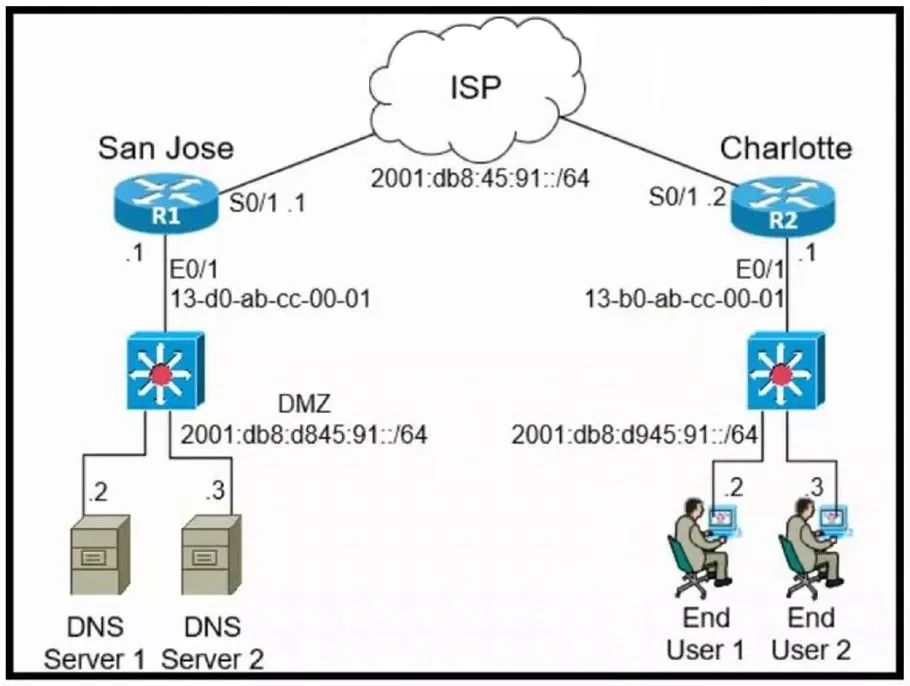

Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
Show answer
Answer: B
Explanation
13:B0:AB:CC:00:01 Convertion process: 1) Take the mac address: for example 13:B0:AB:CC:00:01 2) Throw ff:fe in the middle: 13:B0:AB:ff:fe:CC:00:01 3) Reformat to IPv6 notation 13B0:ABff:feCC:0001 4) Convert the first octet from hexadecimal to binary: 13 -> 00010011 5) Invert the bit at index 6 (counting from 0): 00010011 -> 00010001 6) Convert octet back to hexadecimal: 00010001 -> 11 7) Replace first octet with newly calculated one: 11B0:ABff:feCC:0001 8) Prepend the link-local prefix: fe80::11B0:ABff:feCC:1
Source: Adapted from community discussion — KuyaErik101
Question 307 · 1334 in bank
Refer to the exhibit. Which switch becomes the root bridge?
Show answer
Answer: A
Question 308 · 1334 in bank
What is represented by the word "switch" within this JSON schema?
Show answer
Answer: A
Question 309 · 1334 in bank
How does encryption protect the wireless network?
Show answer
Answer: B
Question 310 · 1334 in bank

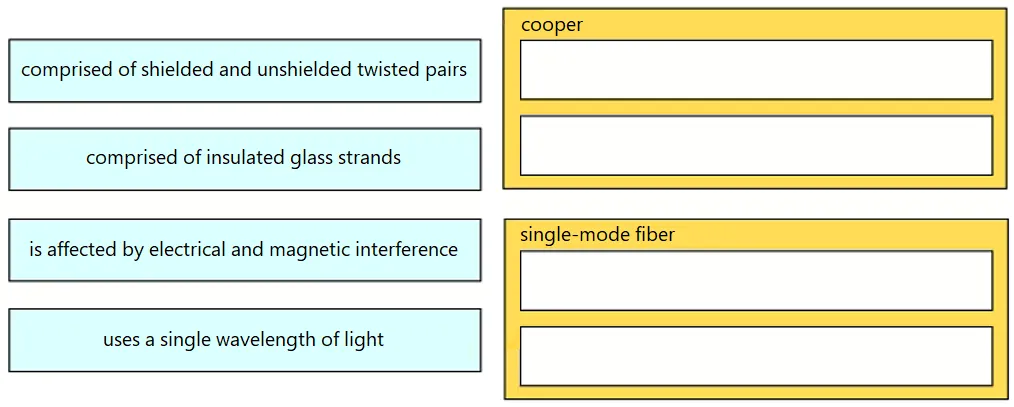

DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

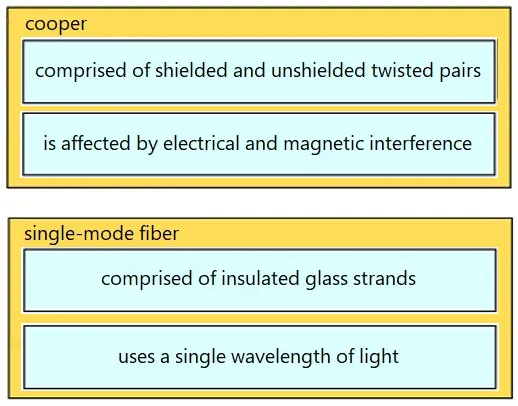

Show the answer figure
Answer: See figure below
