200-301 practice questions 291–300

1. Question 291 · 1334 in bank



   Refer to the exhibit. The router has been configured with a super net to accommodate the requirements for 380 users on a Subnet. The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?

   • ASubnet: 10.7.54.0 Subnet mask: 255.255.128.0 Broadcast address: 10.5.55.255 Usable IP address range: 10.7.54.1 ג€" 10.7.55.254
   • BSubnet: 10.7.54.0 Subnet mask: 255.255.255.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1 ג€" 10.7.55.254
   • CSubnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1 ג€" 10.7.55.254
   • DSubnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.55.255 Usable IP address range: 10.7.54.1 ג€" 10.7.55.254

   Show answer

   Answer: D

   Explanation

   Questions like this can be process of elimination. I highly recommend watching Subnetting Mastery playlist by Practical Networking on Youtube. You learn a very handy chart. Need 380 users. A /23 works. /23 is 254. So either C or D. Broadcast address is always odd. So D.

   Source: Adapted from community discussion — Customexit

   Next question

2. Question 292 · 1334 in bank

   Which port-security violation mode drops traffic from unknown MAC addresses and forwards an SNMP trap?

   • Ashutdown VLAN
   • Bprotect
   • Crestrict
   • Dshutdown

   Show answer

   Answer: C

   Explanation

   C. restrict Explanation: In port-security on a Cisco switch, there are three violation modes: shutdown, protect, and restrict. Shutdown: This mode will put the interface into an error-disabled state if a security violation occurs, effectively shutting down the port. Protect: In this mode, the switch drops traffic from unknown MAC addresses but does not send any SNMP trap. Restrict: This mode drops traffic from unknown MAC addresses and generates an SNMP trap. Therefore, the correct answer is "C. restrict" because it both drops traffic from unknown MAC addresses and forwards an SNMP trap.

   Source: Adapted from community discussion — 16BitRun

   Next question

3. Question 293 · 1334 in bank

   What is the purpose of an ESSID?

   • AIt allows multiple access points to provide a common network for client connections.
   • BIt supports fast roaming features such as 802.11 r, 802.11k, and 802.11v.
   • CIt serves as the wireless MAC address of the access point.
   • DIt provides greater security than a standard SSID.

   Show answer

   Answer: A

   Explanation

   Explanation: ESSID stands for Extended Service Set Identifier. It is essentially the name of a wireless network. When multiple access points are used to cover a larger area or provide better coverage, they can be configured with the same ESSID to allow client devices to seamlessly roam between them while maintaining a continuous connection to the network. This helps create a common network for client connections, enabling devices to switch between access points without losing connectivity. The ESSID serves as a way for clients to identify and connect to the desired wireless network. The other options (B, C, and D) do not accurately describe the purpose of an ESSID.

   Source: Adapted from community discussion — 16BitRun

   Next question

4. Question 294 · 1334 in bank

   DRAG DROP -

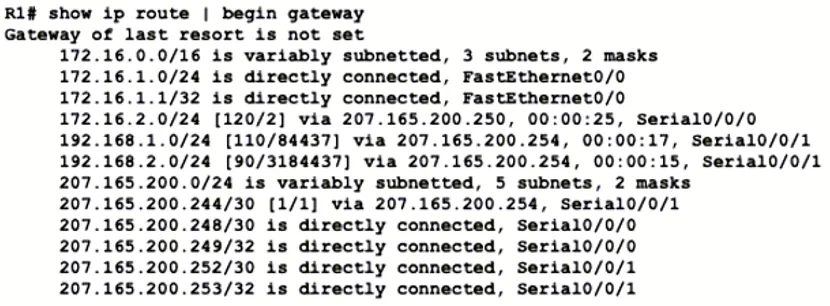

   Refer to the exhibit. Drag and drop the learned prefixes from the left onto the preferred route methods from which they were learned on the right. Not all prefixes are used.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Look at the Administrative distances. These are: Connected - 0 Static route - 1 EBGP - 20 EIGRP - 90 OSPF - 110 RIP - 120

   Source: Adapted from community discussion — 16BitRun



   Next question

5. Question 295 · 1334 in bank

   How does a hub handle a frame traveling to a known destination MAC address differently than a switch?

   • AThe hub forwards the frame to all ports, and a switch forwards the frame to the known destination.
   • BThe hub forwards the frame to all ports in the FIB table, and a switch forwards the frame the destination MAC is known.
   • CThe hub forwards the frame using the information in the MAC table, and a switch uses data in its routing table.
   • DThe hub forwards the frame only to the port connected to the known MAC address, and a switch forwards the frame to all ports.

   Show answer

   Answer: A

   Next question

6. Question 296 · 1334 in bank



   Refer to the exhibit. Which switch becomes the root bridge?

   • ASW 1 - Bridge Priority - 20480 - mac-address 00:10:a1:71 :e3:35
   • BSW 2 - Bridge Priority - 20480 - mac-address 00:10:a1:54:4e:50
   • CSW 3 - Bridge Priority - 57344 - mac-address 00:10:a1:93:09:2d
   • DSW 4 - Bridge Priority - 57344 - mac-address 00:10:a1:57:61:80

   Show answer

   Answer: B

   Next question

7. Question 297 · 1334 in bank

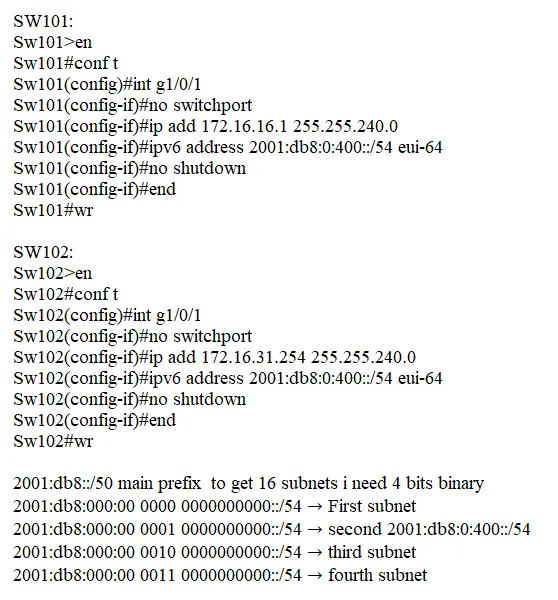

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window • All necessary preconfigurations have been applied • Do not change the enable password or hostname for any device • Save your configurations to NVRAM before moving to the next item • Click Next at the bottom of the screen to submit this lab and move to the next question • When Next is clicked the lab closes and cannot be reopened Topology -



   Tasks - All physical cabling is in place. A company plans to deploy 16 new sites. The sites will utilize both IPv4 and IPv6 networks. 1. Subnet 10.20.0.0/16 to meet the subnet requirements and maximize the number of hosts • Using the second subnet - Assign the first usable IP address to e0/0 on Sw101 - Assign the last usable IP address to e0/0 on Sw102 2. Subnet 2001:db8::/52 to meet the subnet requirements and maximize the number of hosts • Using the second subnet - Assign an IPv6 GUA using a unique 64-Bit interface identifier on e0/0 on Sw101 - Assign an IPv6 GUA using a unique 64-Bit interface identifier on e0/0 on Sw102

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   SB: 10.20.0.0/16 Network ID: 10.20.16.0 Broadcast ID: 10.20.31.255 Subnet: 255.255.240.0 Usable IPs in the subnet = 10.20.16.1 - 10.20.31.254 SW101(config)#ipv6 unicast-routing SW101(config)#interface gigabitEthernet 0/0 SW101(config-if)#no switchport SW101(config-if)#ip address 10.20.16.1 255.255.240.0 SW101(config-if)#ipv6 address 2001:DB8:0:100::1/64 SW101(config-if)#no shutdown SW102(config)#ipv6 unicast-routing SW102(config)#interface gigabitEthernet 0/0 SW102(config-if)#no switchport SW102(config-if)#ip address 10.20.31.254 255.255.240.0 SW102(config-if)#ipv6 address 2001:DB8:0:100::2/64 SW102(config-if)#no shutdown So, the new prefix length will be 52 + 4 = 56. Therefore, the subnets will have a prefix of /56. The subnets will be: 1. 2001:DB8:0:0000::/56 2. 2001:DB8:0:0100::/56 3. 2001:DB8:0:0200::/56 and so on.

   Source: Adapted from community discussion — picho707



   Next question

8. Question 298 · 1334 in bank

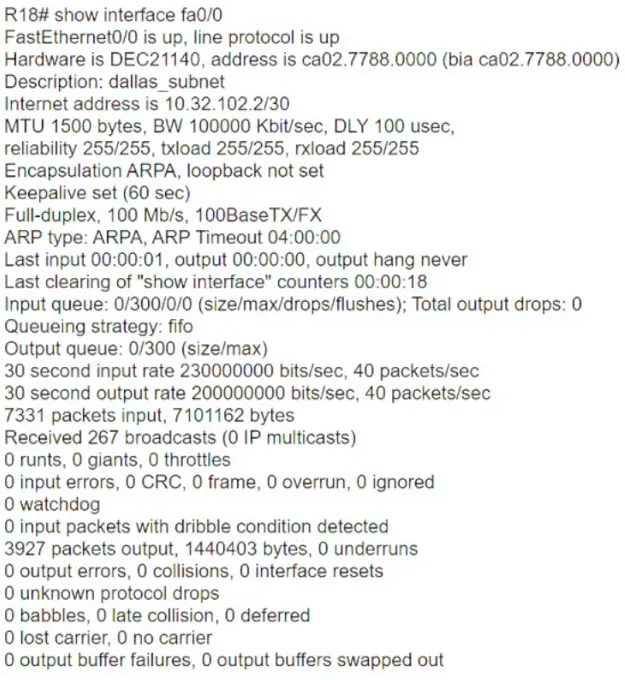

   Which interface condition is occurring in this output?



   • Abad NIC
   • Bbroadcast storm
   • Cduplex mismatch
   • Dhigh throughput

   Show answer

   Answer: D

   Next question

9. Question 299 · 1334 in bank

   Which interface is used to send traffic to the destination network?



   • AF0/7
   • BF0/6
   • CF0/4
   • DF0/5

   Show answer

   Answer: A

   Next question

10. Question 300 · 1334 in bank

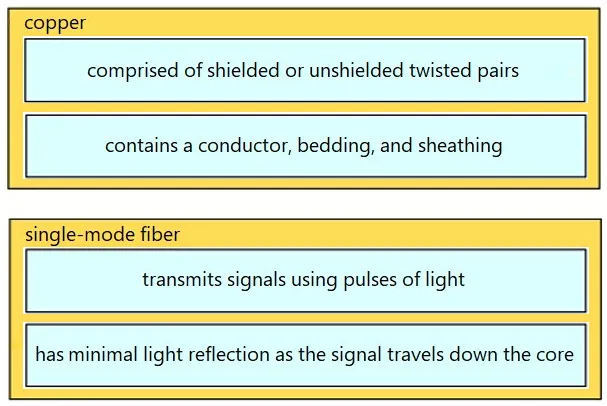

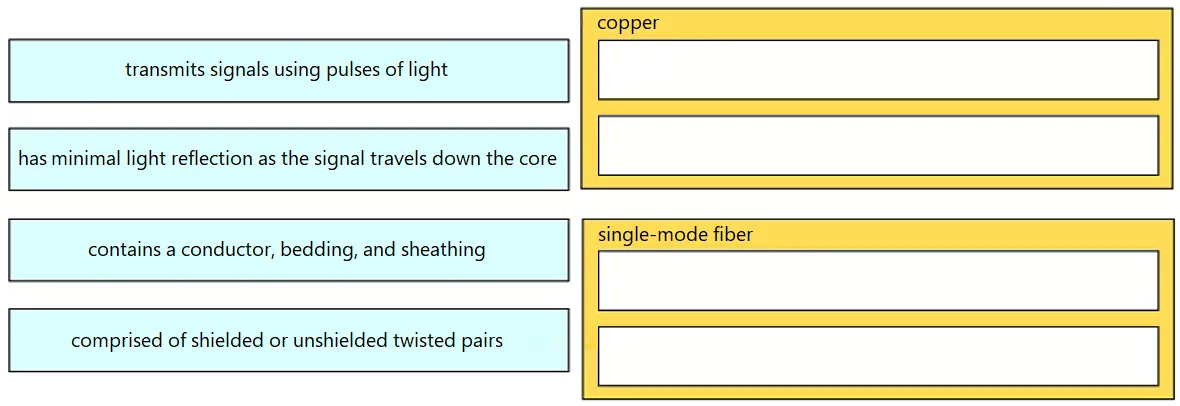

    DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.



    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

    Show the answer figure

    Answer: See figure below



    Next question
