1. Question 341 · 1334 in bank

   SIMULATION -



   R1 has been pre-configured with all the necessary commands. All physical cabling is in place and verified. Connectivity to the end devices must be configured. 1. Configure SW-1 switch port 0/1 to carry traffic for the Cisco IP phone and PC 2. Configure SW-2 E0/1 to carry traffic for PC2 3. Configure VLAN 10 with the name “Engineering” on SW-1 4. Configure the link between SW-1 and SW-2 to use the vendor neutral neighbor discovery protocol 5. Configure the link on SW-1 to R1 so that it does not allow the Cisco neighbor discovery protocol to pass

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

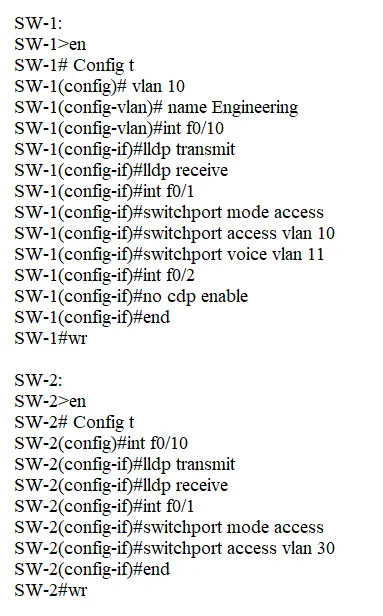

   Answer: See figure below

   Explanation

   1. Configure SW-1 switch port 0/1 to carry traffic for the Cisco IP phone and PC 2. Configure SW-2 E0/1 to carry traffic for PC2 3. Configure VLAN 10 with the name “Engineering” on SW-1 4. Configure the link between SW-1 and SW-2 to use the vendor neutral neighbor discovery protocol 5. Configure the link on SW-1 to R1 so that it does not allow the Cisco neighbor discovery protocol to pass Task 1: SW-1(Config)#int e0/1 SW-1(Config-if)#switchport mode access SW-1(Config-if)#switchport access vlan 10 SW-1(Config-if)#switchport voice vlan 11 Task 2: SW-2(Config)#int e0/1 SW-2(Config-if)#switchport mode access SW-2(Config-if)#switchport access vlan 30 Task 3: SW-1(Config)#int vlan 10 SW-1(Config-vlan)#name Engineering Task 4: SW-1(Config)#lddp run SW-1(Config)#int range e0/1-2 SW-1(Config-if-range)#no lldp transmit SW-1(Config-if-range)#no lldp receive SW-2(Config)#lddp run SW-2(Config)#int e0/1 SW-2(Config-if)#no lldp transmit SW-2(Config-if)#no lldp receive Task 5: SW-1(Config)# int e0/1 Sw-1(Config-if)#no cdp enable write memory

   Source: Adapted from community discussion — d5c03de



   Next question

2. Question 342 · 1334 in bank

   How is noise defined in Wi-Fi?

   • Ameasured difference between the desired Wi-Fi signal and an interfering Wi-Fi signal
   • Bany interference that is not Wi-Fi traffic that degrades the desired signal
   • Csignals from other Wi-Fi networks that interfere with the local signal
   • Dratio of signal-to-noise rating supplied by the wireless device

   Show answer

   Answer: B

   Next question

3. Question 343 · 1334 in bank

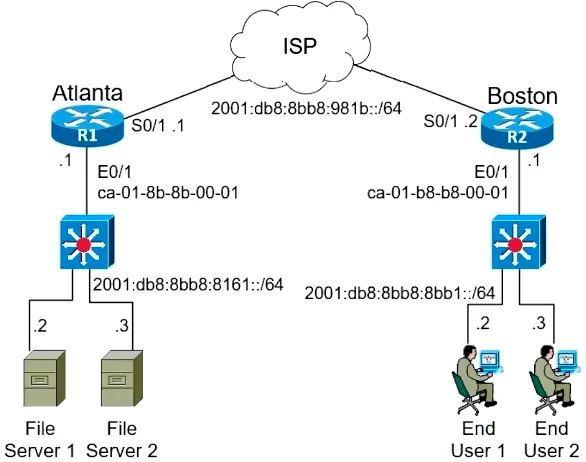

   Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

   • A2001:db8:8bb8:8bb1:C081:B8FF:FF4B:1
   • B2001:db8:8bb8:8bb1:C001:8BFE:FF01:1
   • C2001:db8:8bb8:8bb4:6792:43FF:EF87:1
   • D2001:db8:8bb8:8bb1:C801:B8FF:FEB8:1

   Show answer

   Answer: D

   Next question

4. Question 344 · 1334 in bank

   What is a characteristics of frame switching?

   • Afloods unknown destinations to all ports except the receiving port
   • Binspects and drops frames from unknown destinations
   • Cforwards frames to a neighbor port using CDP
   • Dprotects against denial of service attacks

   Show answer

   Answer: A

   Explanation

   A. floods unknown destinations to all ports except the receiving port In a switched Ethernet network, when a switch receives a frame with an unknown destination MAC address (one that is not in its MAC address table), it will “flood” the frame. This means the switch will send the frame out of all ports except the one on which it was received. This flooding behavior allows the frame to reach its intended destination if the device is connected to one of the other ports. Once the destination device responds, the switch learns the MAC address and port association, adding it to its MAC address table to avoid flooding future frames destined for that MAC address. incorrect Options: B. Switches do not drop frames from unknown destinations; they flood them.

   Source: Adapted from community discussion — KAM2023

   Next question

5. Question 345 · 1334 in bank

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked the lab closes and cannot be reopened. Topology -



   Tasks - All physical cabling is in place and verified. Connectivity for the Switches on ports E0/1, E0/2, and E0/3 must be configured and available for voice and data capabilities. 1. Configure Sw1 and Sw2 with both VLANS, naming them according to the VLAN Name provided in the topology. 2. Configure the E0/1, E0/2, and E0/3 ports on both switches for both VLANS and ensure that Cisco IP phones and PCs pass traffic. 3. Configure Sw1 and Sw2 to allow neighbor discovery via the vendor-neutral protocol on e0/0.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

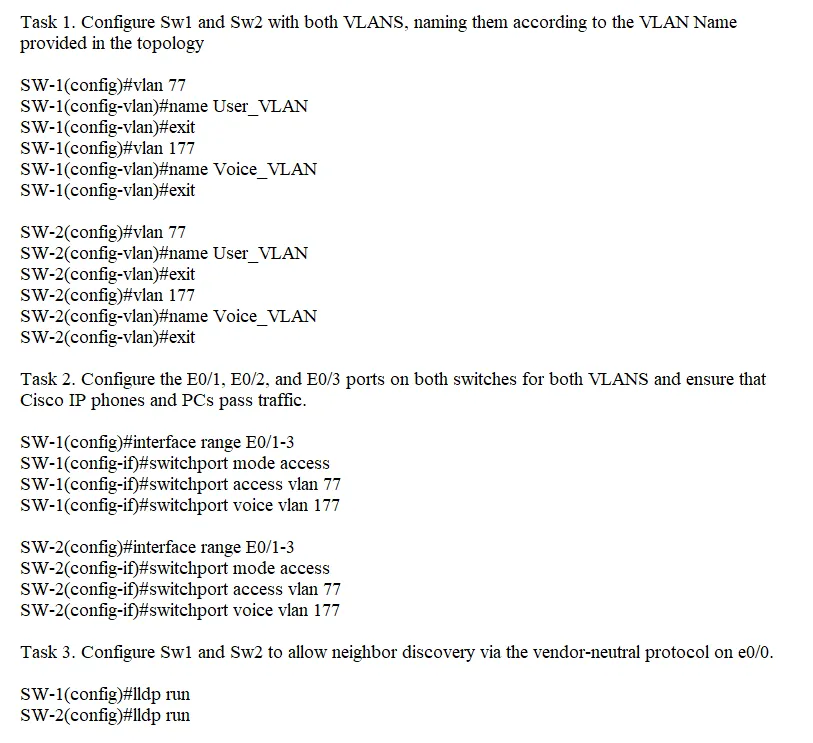

   Answer: See figure below

   Explanation

   Task 1: Sw1(Config)#vlan 77 Sw1(Config-vlan)#name User_VLAN Sw1(Config)#vlan 177 Sw1(Config-vlan)#name Voice_VLAN Sw2(Config)#vlan 77 Sw2(Config-vlan)#name User_VLAN Sw2(Config)#vlan 177 Sw2(Config-vlan)#name Voice_VLAN Task 2: Sw1(Config)#int range e0/1-3 Sw1(Config-if-range)#switchport mode access Sw1(Config-if-range)#switchport access vlan 77 Sw1(Config-if-range)# switchport voice vlan 177 Sw2(Config)#int range e0/1-3 Sw2(Config-if-range)#switchport mode access Sw2(Config-if-range)#switchport access vlan 77 Sw2(Config-if-range)# switchport voice vlan 177 Task 3: Sw1(Config)#lldp run Sw1(Config)#int range e0/1 - 3 Sw1(Config)#no lldp transmit Sw1(Config)#no lldp receive wr mem Sw2(Config)#lldp run Sw2(Config)#int range e0/1 - 3 Sw2(Config)#no lldp transmit Sw2(Config)#no lldp receive write memory

   Source: Adapted from community discussion — KuyaErik101



   Next question

6. Question 346 · 1334 in bank

   Select 2

   What are two reasons to implement DHCP in a network? (Choose two.)

   • Amanually control and configure IP addresses on network devices
   • Bcontrol the length of time an IP address is used by a network device
   • Creduce administration time in managing IP address ranges for clients
   • Ddynamic control over the best path to reach an IP address
   • Eaccess a website by name instead of by IP address

   Show answer

   Answer: BC

   Explanation

   I know a lot of people said this already but this dump is legit. I had 90 questions including 3 labs. My suggestion is review all 1300 questions and focus on the ones you got wrong. For me I missed 328 questions out 1349. I study those and cram 24 hrs before my test. Once you study everything and learn the concept you will do just fine. The labs I got were not exactly like the ones on here but they were very similar. I skipped one lab, completed one and partially completed the last one. I was running out of time but I finished the exam with 10 minutes left. Most importantly I passed :). Good luck everyone! On to the next one!!!

   Source: Adapted from community discussion — Boulet_Dude

   Next question

7. Question 347 · 1334 in bank

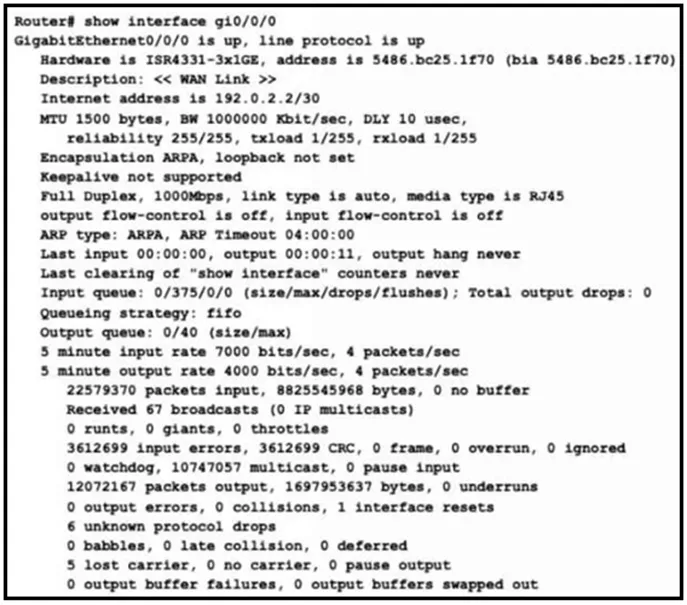

   Refer to the exhibit. What is a reason for poor performance on the network interface?

   • AThe interface is receiving excessive broadcast traffic.
   • BThe bandwidth setting of the interface is misconfigured.
   • CThe cable connection between the two devices is faulty.
   • DThe interface is operating at a different speed than the connected device.

   Show answer

   Answer: C

   Explanation

   What does lost carrier mean Cisco? The "lost carrier" is when we do sense "something" coming towards the local receiver, but we cannot see our own data looped back on the medium. This is also detected by the local receiver and probably indicates a problem in the transmit direction of the cable or the loopback circuitry at the remote side. Since we have 5 lost carriers as shown on the show interface command, this is indicative of a bad cable. Ref: https://community.cisco.com/t5/switching/the-difference-between-quot-lost-carrier-quot-and-quot-no/td-p/1242625

   Source: Adapted from community discussion — [Removed]

   References

   • cisco.com documentation
   • Cisco documentation

   Next question

8. Question 348 · 1334 in bank

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices. • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked, the lab doses and cannot be reopened. Topology -



   Tasks - SW-3 and SW-4 are preconfigured with all necessary commands. All physical cabling is in place and verified. All connectivity must be operational. 1. Configure both SW-1 and SW-2 switch ports e0/0 and e0/1 for 802.1q trunking with only VLANS 1, 12, and 22 permitted. 2. Configure SW-1 port e0/2 for 802.1q trunking and include only VLANS 12 and 22. 3. Configure both SW-1 and SW-2 switch ports e0/0 and e0/1 for link aggregation using the industry standard protocol. All ports must be configured so that they immediately negotiate the link.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

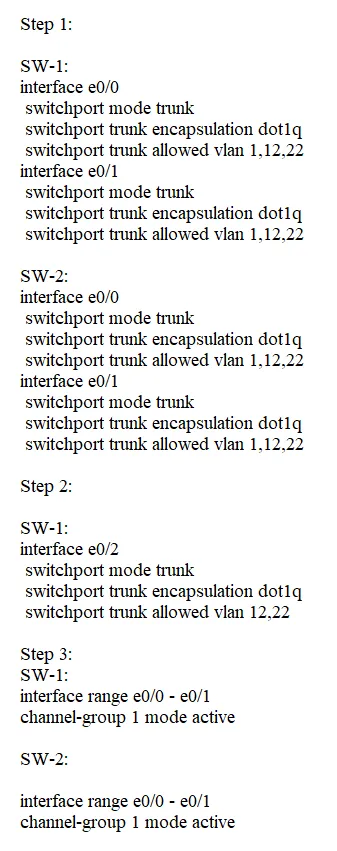

   Answer: See figure below

   Explanation

   Task-1 SW-1 conf t interface range e0/0-1 switchport trunk encapsulation dot1q switchport mode trunk switchport trunk alloed vlan 1,12,22 end wr SW-2 conf t interface range e0/0-1 switchport trunk encapsulation dot1q switchport mode trunk switchport trunk alloed vlan 1,12,22 end wr Task-2 SW-1 conf t interface e0/2 switchport trunk encapsulation dot1q switchport mode trunk switchport trunk alloed vlan 12,22 end wr Task-3 SW-1 conf t interface range e0/0-1 channel-group 12 mode active end wr SW-2 conf t interface range e0/0-1 channel-group 12 mode active end wr

   Source: Adapted from community discussion — dasand



   Next question

9. Question 349 · 1334 in bank

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices. • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked, the lab doses and cannot be reopened. Topology -



   Tasks - Refer to the topology. All physical cabling is in place. Configure a local user account, a Named ACL (NACL) and security. 1. Configure a local account on Sw101 with telnet access only on virtual ports 0-4. Use the following information: o Username: netops o Password: ipsec4all o Algorithm: "Vigenere" o Privilege level: Exec mode 2. Configure and apply a single NACL on Sw103 using the following: o name: ENT_ACL o Restrict only PC1 on VLAN 10 from pinging PC2 o Allow only PC1 on VLAN 10 to telnet to R1 (172.16.30.2) o Prevent all other devices from telnetting from VLAN 10 o Allow all other network traffic from VLAN 10 3. Configure security on interface Ethernet 0/0 of Sw102: o Set the maximum number of secure MAC addresses to two o Ensure that the port discards the packet, counts the number of violations and sends a syslog message o Allow secure mac addresses to be learned dynamically

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

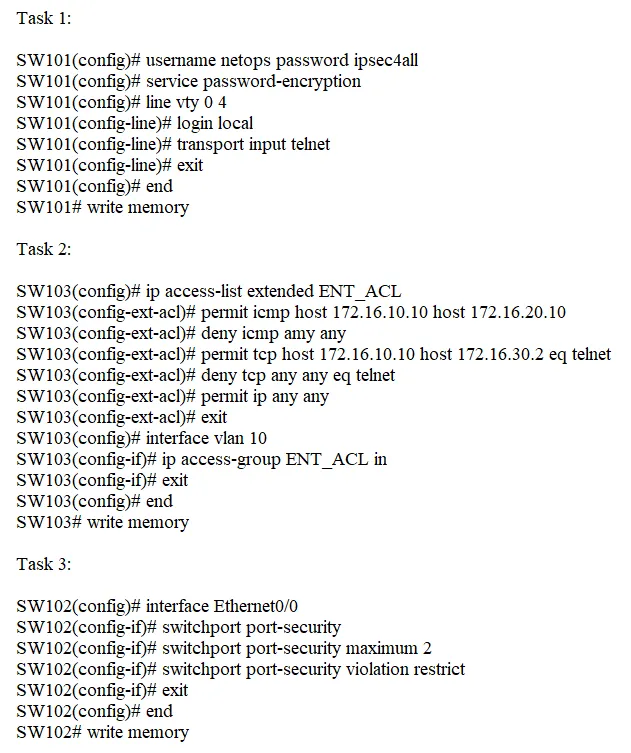

   Answer: See figure below

   Explanation

   Task 1) [vigerence means use 'service password-encryption', no cryptokeys/domain cause its telnet not ssh] en conf t username netops password ipsec4all service password-encrption line vty 0 4 login local transport input telnet Task 2) ["restrict only pc1" is worded weird but I believe SnowWhiteYeti is correct and we are meant to use a deny statement] ip access-list extended ENT_ACL deny icmp host 172.16.10.10 host 172.16.20.10 permit tcp host 172.16.10.10 host 172.16.30.2 eq 23 deny tcp any any eq 23 permit ip any any exit int vlan 10 ip acces0gr ENT_ACL in ex Task 3) int e0/0 switchport port-security max 2 sw port-sec violation restrict sw port-sec mac sticky This makes sense to me but let me know your thoughts

   Source: Adapted from community discussion — exiledwl



   Next question

10. Question 350 · 1334 in bank

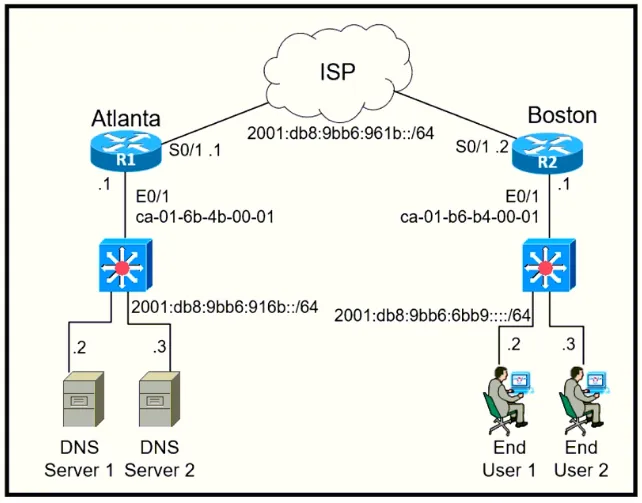

    Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

    • A2001:db8:9bb6:6bb9:C801:B6FF:FEB4:1
    • B2001:db8:9bb6:6bb9:C001:6BFE:FF01:1
    • C2001:db8:9bb6:6bb9:C081:B6FF:FF4B:1
    • D2001:db8:9bb6:6bb9:4736:931F:FE37:1

    Show answer

    Answer: A

    Next question
