200-301 practice questions 271–280

1. Question 271 · 1334 in bank

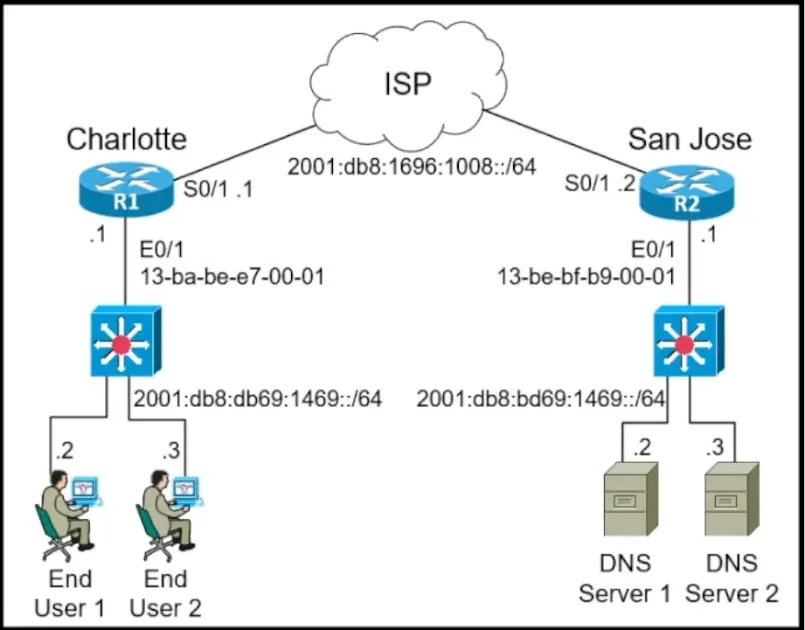

   Refer to the exhibit The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

   • A2001:db8:bd69:1469:12D8:BAFE:FF01:1
   • B2001:db8:bd69:1469:1130:ABFF:FECC:1
   • C2001:db8:bd69:1469:4628:255F:FE32:1
   • D2001:db8:bd69:1469:11BE:BFFF:FEB9:1

   Show answer

   Answer: D

   Explanation

   The answer is D. It is correct. You have to flip the sevens bit found on the second hexadecimal of the MAC Address of Router R2. The second hexadecimal is 3. When you flip the bit, the hexadecimal coverts into a 1. Which is why the new modified MAC address now is 11-BE-BF-B9-00-01. If you don't know how to flip the bit and modify a MAC Address to make a EUI-64, watch this video... https://youtu.be/mCo7Zg_0PP0?si=Q6RdouJ0_caKo2zX

   Source: Adapted from community discussion — 16BitRun

   Next question

2. Question 272 · 1334 in bank

   Select 2

   Which two characteristics describe the access layer in a three-tier network architecture? (Choose two.)

   • Aserves as the network aggregation point
   • Bphysical connection point for a LAN printer
   • Cdesigned to meet continuous redundant uptime requirements
   • Dlayer at which a wireless access point connects to the wired network
   • Eprovides a boundary between Layer 2 and Layer 3 communications

   Show answer

   Answer: BD

   Explanation

   Incorrect, distribution layer is the network aggregation point. The aggregation (or distribution) layer aggregates the uplinks from the access layer to the data center core. From CCNA Data Center DCICT 640-916 Official Cert Guide https://learning.oreilly.com/library/view/ccna-data-center/9780133860429/ch01lev3sec2.html#ch01lev3sec2

   Source: Adapted from community discussion — RougePotatoe

   Next question

3. Question 273 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

4. Question 274 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the IPv6 address type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

5. Question 275 · 1334 in bank



   Refer to the exhibit. Which switch becomes the root bridge?

   • ASW 1 - Bridge Priority - 61440 - mac-address 00:10:a1:69:c9:28
   • BSW2 - Bndge Priority - 61440 - mac address 00:10:a1:27:81:6c
   • CSW 3 - Bridge Priority - 53248 - mac-address 00:10:a1:35:d9:86
   • DSW 4 - Bridge Priority 53248 - mac-address 00:10:a1:22:11:63

   Show answer

   Answer: D

   Next question

6. Question 276 · 1334 in bank

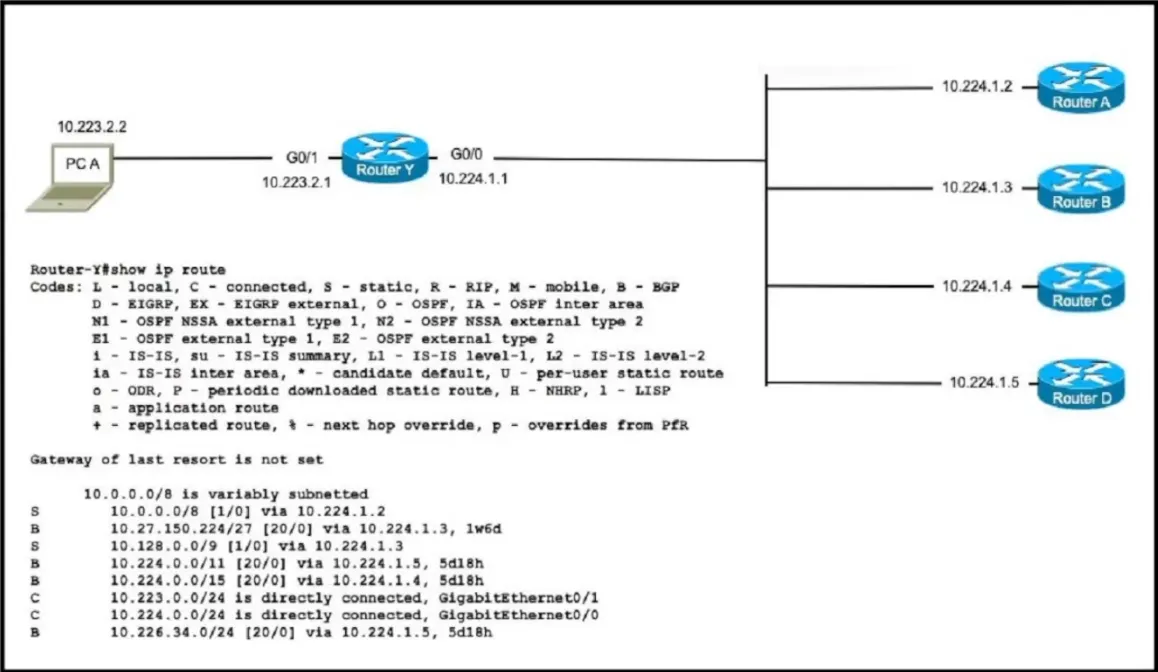

   Refer to the exhibit. PC A is communicating with another device at IP address 10.225.34.225. Through which router does router Y route the traffic?

   • Arouter A
   • Brouter B
   • Crouter C
   • Drouter D

   Show answer

   Answer: C

   Explanation

   CORRECT. C 10.128.0.0/9 Obviously is included, but not the longest match. 10.224.0.0/15 Starts: 10.224.0.0 Ends: 10.225.255.255 10.255.34.255 IS included 10.224.0.0/11 Starts: 10.224.0.0 Ends: 10.255.255.255 10.255.34.255 IS NOT included

   Source: Adapted from community discussion — AA4534

   Next question

7. Question 277 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the device type on the right Not all characteristics are used.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Access Point: - Supports both 802.11 and 802.3 standards (how else would an AP be able to traffic data between the wireless and wired network?) - Formats an Ethernet frame and forwards it to a destination (think in terms of encapsulation; the AP receives Layer 1 wireless signals and converts them into Layer 2 frames) WLC: - Used on-prem and/or cloud-based (think WLC deployment models; unified being a hardware appliance deployed in a central location of the network, and cloud-based being a VM running in a server, typically in a private cloud in a data center) - provides centralized management and security Regarding the misconception of AP's being on-prem and/or cloud-based... although an AP's management can be cloud-based (Cisco Meraki being a cloud-based AP management solution), the AP itself is a physical device. Source: trust me bro

   Source: Adapted from community discussion — JamesThe3rd



   Next question

8. Question 278 · 1334 in bank

   Which interface is used to send traffic to the destination network?



   • AG0/6
   • BG0/3
   • CG0/16
   • DG0/23

   Show answer

   Answer: A

   Explanation

   The decision on which route to use first is based on the route's administrative distance (AD) and the route's metric, where a lower administrative distance is preferred. In the provided routing table entries, the administrative distance is indicated in square brackets. In this case, the first factor to consider is the administrative distance: - OSPF (O): Administrative distance of 110. - RIP (R): Administrative distance of 120. Now, comparing OSPF routes: - Entry 1 has an administrative distance of 110 and a metric of 6906. - Entry 2 has an administrative distance of 110 and a higher metric of 23018. Between the OSPF routes, Entry 1 would be used first because it has a lower metric. Therefore, the route via G0/6 (Entry 1) would be used first for the destination network 10.18.75.113/27. If both routes were from the same routing protocol, the metric would be the tiebreaker, with the lower metric being preferred.

   Source: Adapted from community discussion — 16BitRun

   Next question

9. Question 279 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

10. Question 280 · 1334 in bank

    Which is a fact related to FTP?

    • AIt uses two separate connections for control and data traffic.
    • BIt uses block numbers to identify and mitigate data-transfer errors.
    • CIt always operates without user authentication.
    • DIt relies on the well-known UDP port 69.

    Show answer

    Answer: A

    Explanation

    A. It uses two separate connections for control and data traffic. Explanation: The FTP protocol typically uses two separate connections: 1. **Control Connection:** This connection is used for sending commands from the client to the server and receiving responses. It is usually established on well-known port 21. 2. **Data Connection:** This connection is used for the actual transfer of data files. Depending on the mode (active or passive) and the specific implementation, the data connection can be established on a different port. Options B, C, and D are not accurate: - B. FTP does use a simple form of error checking, but it does not use block numbers in the same way that some other protocols (e.g., TFTP) do. - C. FTP typically requires user authentication, which involves providing a username and password to access files on the server. - D. FTP traditionally uses TCP for its connections, and the well-known port for FTP control is 21, not UDP port 69. UDP port 69 is associated with TFTP (Trivial File Transfer Protocol).

    Source: Adapted from community discussion — 16BitRun

    Next question
