350-601 practice questions 81–90

1. Question 81 · 504 in bank

   Select 2



   Refer to the exhibit. An engineer must configure FCoE on a Cisco Nexus switch. Which two command sets complete this configuration? (Choose two.)

   • Avsan database vsan 10 interface vfc 10
   • Binterface vfc 10 bind interface ethernet 1/3 no shut
   • Cvsan database vsan 10 interface ethernet 1/3
   • Dinterface vfc 10 bind interface fcoe-vfc 1/3 no shut
   • Einterface fcoe 10 bind interface ethernet 1/3 no shut

   Show answer

   Answer: AB

   Next question

2. Question 82 · 504 in bank

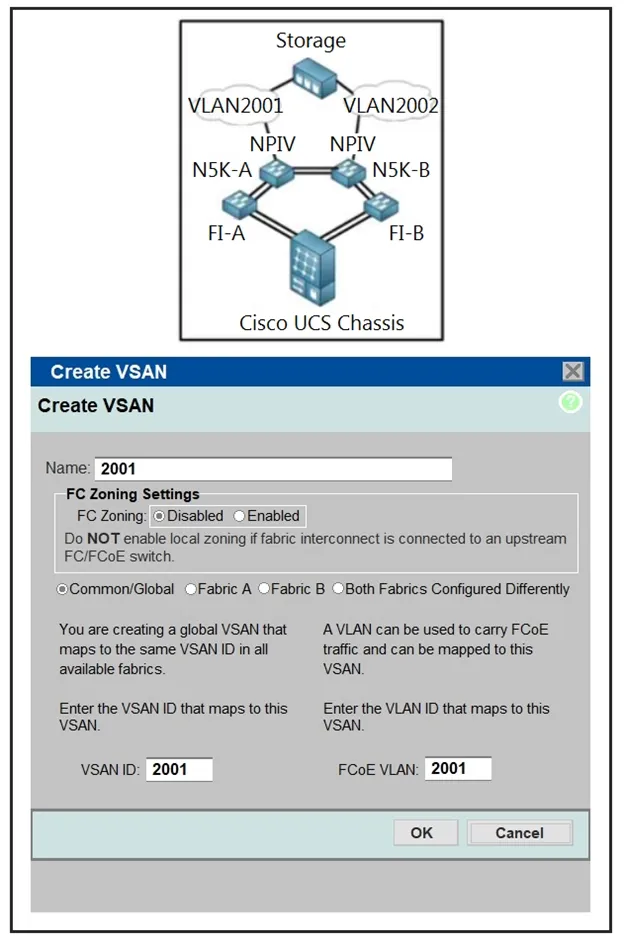

   Refer to the exhibit. An engineer is configuring a VSAN on the network. Which option must be selected to create the VSAN?

   • ACommon/Global
   • BFabric B
   • CFC Zoning Enabled
   • DFabric A

   Show answer

   Answer: D

   Explanation

   The answer is D. Choice C is incorrect because the config screen shown is from UCS Manager, referenced as FI-A and FI-B devices on the topology diagram, which uplink to the Nexus switches for FC or FCoE traffic.

   Source: Adapted from community discussion — lex2021

   References

   • Cisco documentation
   • Cisco documentation

   Next question

3. Question 83 · 504 in bank

   Select 2

   An engineer is configuring a vHBA template in UCS Manager. The engineer needs to specify the logical addresses used by the vHBA and the path through which the SAN traffic flows. Which two resources must be specified in the vHBA template? (Choose two.)

   • AMAC addresses
   • BWWPN Pool
   • CWWNN
   • DFabric ID
   • EVLAN ID

   Show answer

   Answer: BD

   Explanation

   Reference: https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-manager/whitepaper_c11-697337.html

   References

   • Cisco documentation

   Next question

4. Question 84 · 504 in bank

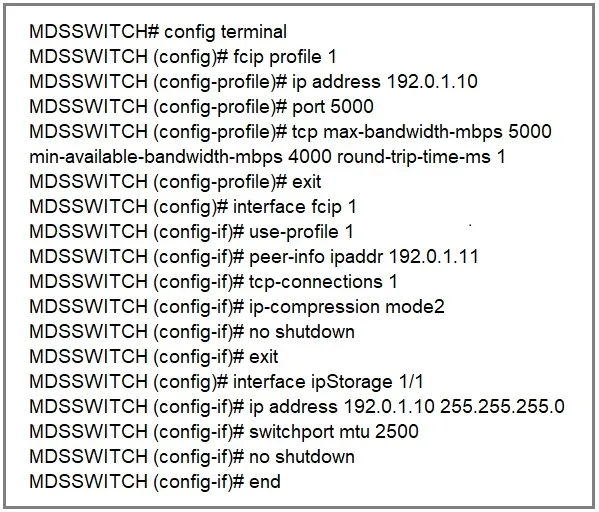

   Refer to the exhibit. An engineer configures FCIP on a Cisco MDS 9000 Series switch. What is the result of implementing the configuration?

   • AThe switch attempts to make two TCP connections.
   • BCompression is performed by using hardware.
   • CCompression is performed by using software.
   • DMode2 is enabled by default.

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/ip_services/ipsvc/cfcip.html

   Source: Adapted from community discussion — MaxG

   References

   • Cisco documentation

   Next question

5. Question 85 · 504 in bank

   The FCoE technology is used in a data center and the MDS switches are configured as Fibre Channel Forwarders. Which configuration should be applied to an MDS switch in order to be used as the best switch to connect by the CNAs in the fabric?

   • Afcoe fcf-priority 512
   • Bfcoe fcf-priority 0
   • Cno fcoe fcf-priority
   • Dfcoe fcf-priority 1024

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/fcoe/521n11/b_5k_FCoE_Config_521N11/ b_5k_FCoE_Config_521N11_chapter_011.pdf

   Next question

6. Question 86 · 504 in bank

   Select 2

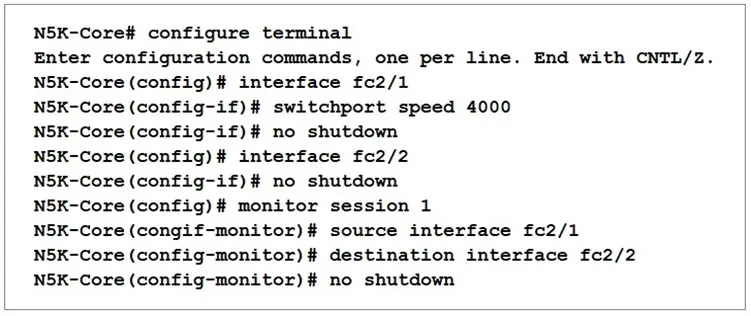

   Refer to the exhibit. An engineer implements SPAN configuration on an Nexus 5000 series switch. Which two commands are necessary to complete the SPAN session configuration?

   • AConfigure switchport speed 4000 under interface fc2/2.
   • BConfigure the switchport monitor under interface fc2/2.
   • CConfigure session type fc under monitor session 1.
   • DConfigure the switchport mode SD under interface fc2/1.
   • EConfigure the switchport mode SD under interface fc2/2.

   Show answer

   Answer: AE

   Explanation

   Correct. Example config from provided link: switch# configure terminal switch(config)# interface fc 2/4 switch(config-if)# switchport mode SD switch(config-if)# switchport speed 1000 switch(config-if)# exit switch(config)# monitor session 2 switch(config-monitor)# destination interface fc 2/4

   Source: Adapted from community discussion — RTL_dude

   Next question

7. Question 87 · 504 in bank

   What is a recommended design choice in a topology for multipathing iSCSI traffic?

   • Asingle initiator to dual targets
   • Btwo NICs bonded together on the initiator
   • Cdual initiators to a single target with bonded interfaces
   • Dinitiators and targets in separate subnets

   Show answer

   Answer: C

   Explanation

   You can create multiple paths by configuring multiple ports and target portals on different IP subnets. By keeping initiator and target ports in different subnets, you can force ESXi to create paths through specific ports. In this configuration, you do not use port binding because port binding requires that all initiator and target ports are on the same subnet. Reference: https://docs.vmware.com/en/VMware-vSphere/7.0/com.vmware.vsphere.storage.doc/GUID-4C19E34E-764C-4069-9D9F-D0F779F2A96C.html

   Source: Adapted from community discussion — Scheldon

   References

   • Cisco documentation
   • docs.vmware.com documentation
   • Cisco documentation

   Next question

8. Question 88 · 504 in bank

   Select 2

   Which two actions should be taken before an upgrade is started on a Cisco MDS switch? (Choose two.)

   • Adisable Cisco Fabric Services
   • Bcheck the impact of the upgrade using the show install all impact command
   • Cfree up space on the USB3 device by deleting old Cisco NX-OS image files
   • Dmake the primary supervisor the active supervisor
   • Eback up the configuration

   Show answer

   Answer: BE

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_2/upgrade/guides/nx-os/upgrade.html

   Next question

9. Question 89 · 504 in bank

   Which solution provides remote and direct file-level access to users and systems?

   • Adirect-attached storage
   • BFibre Channel over Ethernet
   • Cnetwork-attached storage
   • Dstorage area network

   Show answer

   Answer: C

   Explanation

   The purpose of NAS is to enable users to collaborate and share data more effectively. It is useful to distributed teams that need remote access or work in different time zones.

   Next question

10. Question 90 · 504 in bank

    Select 2

    Due to a major version change, an engineer must perform a software upgrade on a Cisco Nexus Series switch. Which two technologies should be implemented to reduce disruptions to the network during the upgrade? (Choose two.)

    • AvPC
    • BHSRP
    • CVDC
    • DMLAG
    • EPAgP

    Show answer

    Answer: AB

    Explanation

    The correct answer should be "A and B" since you cannot perform upgrade on individual VDC. Upgrade is performed simultaneously for all VDCs on the same physical node..

    Source: Adapted from community discussion — Netdude

    References

    • Cisco documentation

    Next question
