350-601 practice questions 71–80

1. Question 71 · 504 in bank

   Select 2

   Which two statements describe modifying Cisco UCS user accounts? (Choose two.)

   • ADisabling a user account maintains all of the data in the Cisco UCS Fabric Interconnect.
   • BThe admin account is used only to log on by using SSH.
   • CThe password of the user account must contain a minimum of 10 characters.
   • DLocal user accounts override the same account on a remote authentication server, such as TACACS, RADIUS, or LDAP.
   • EThe password of the user account expires in 30 days.

   Show answer

   Answer: AD

   Explanation

   A locally authenticated user account is authenticated directly through the fabric interconnect and can be enabled or disabled by anyone with admin or aaa privileges. After a local user account is disabled, the user cannot log in. The database does not delete the configuration details for disabled local user accounts. If you re-enable a disabled local user account, the account becomes active with the existing configuration, including the username and password. A remotely authenticated user account is any user account that is authenticated through LDAP, RADIUS, or TACACS+. If a user maintains a local user account and a remote user account simultaneously, the roles defined in the local user account override those maintained in the remote user account. Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Admin-Management/3-1/ b_Cisco_UCS_Admin_Mgmt_Guide_3_1/b_UCSM_Admin_Mgmt_Guide_chapter_01.html

   References

   • Cisco documentation

   Next question

2. Question 72 · 504 in bank

   An engineer must ensure fabric redundancy when implementing NPV mode on a Cisco MDS 9000 Series Switch. Which action enables fabric redundancy?

   • AUse TE ports to connect to upstream switches.
   • BAdd a port channel to upstream switches.
   • CConfigure the NPV devices to use an external FLOGI database.
   • DConnect the NPV devices to multiple upstream switches.

   Show answer

   Answer: D

   Explanation

   D seems to be the only logical answer to me. Port-channel only helps with link level redundancy between the NPV and NPIV switches, it won't help when you need to reboot the NPV switch after enabling the NPV mode. A single NPV device can be attached to multiple upstream switches based on the documentation, but this also wouldn't help the downstream hosts, except if they are connected to both fabrics and only one of the NPV switches was restarted at a time. https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/rel_3_x/configuration/guides/fm_3_3_1/npv.html

   Source: Adapted from community discussion — RTL_dude

   References

   • Cisco documentation

   Next question

3. Question 73 · 504 in bank

   An engineer is converting a Cisco MDS switch to support NPIV mode. What should be considered when implementing the solution?

   • AIt requires mapping of external interface traffic.
   • BIt must be enabled on VSAN 1 only.
   • CIt must be enabled globally on all VSANs.
   • DIt requires the FLOGI database to be disabled.

   Show answer

   Answer: C

   Explanation

   About N Port Identifier Virtualization N port identifier virtualization (NPIV) provides a means to assign multiple FC IDs to a single N port. This feature allows multiple applications on the N port to use different identifiers and allows access control, zoning, and port security to be implemented at the application level. Figure 1-1 shows an ex-ample application using NPIV. Figure 1-1 NPIV Example - You must globally enable NPIV for all VSANs on the MDS switch to allow the NPIV-enabled applica-tions to use multiple N port identifiers. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_0/configuration/guides/int/nxos/cli_interfaces/npv.html

   References

   • Cisco documentation



   Next question

4. Question 74 · 504 in bank

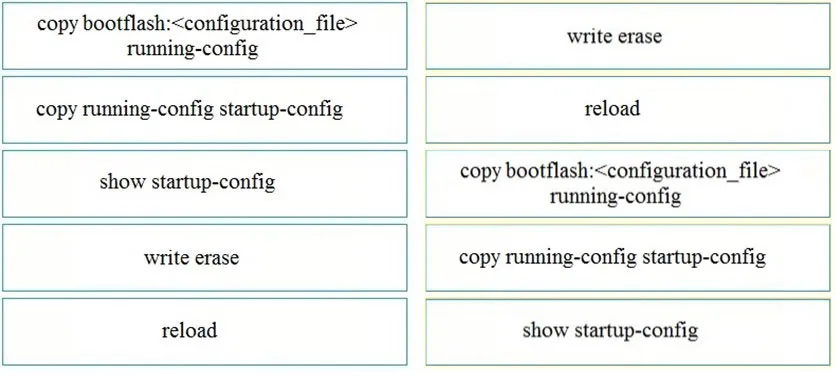

   DRAG DROP - An engineer must recover configuration on a Cisco MDS 9000 Series switch from a previous version that was backed up to bootflash and then verify the restoration. Drag and drop the commands on the left to the correct order on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   if you do not erase the running config first, when copying the saved config (in bootflash) to the running cofig it will merge the actual running config with the saved config which is not what the question is asking for and not recommended if you want my advice :)

   Source: Adapted from community discussion — mendieta

   References

   • Cisco documentation



   Next question

5. Question 75 · 504 in bank

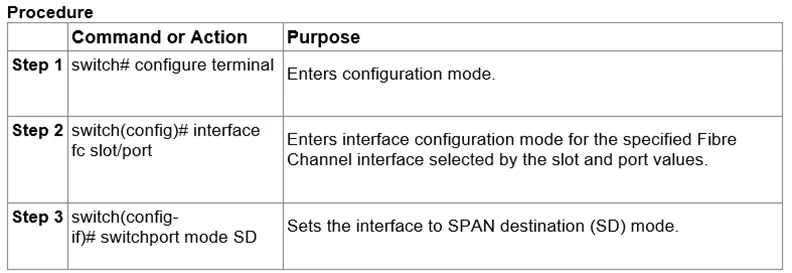

   Refer to the exhibit.



   What is the result of implementing this configuration?

   • AThe Fibre Channel interface is configured for SPAN.
   • BThe Fibre Channel interface is configured for source distribution.
   • CThe Fibre Channel interface is configured for FSPF.
   • DThe Fibre Channel interface is configured for synchronization distribution.

   Show answer

   Answer: A

   Explanation

   You can configure a Fibre Channel port as a SPAN destination port. Reference: https://www.cisco.com/en/US/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli_rel_4_1/ Cisco_Nexus_5000_Series_Switch_CLI_Software_Configuration_Guide_chapter50.html#task_1168696



   Next question

6. Question 76 · 504 in bank

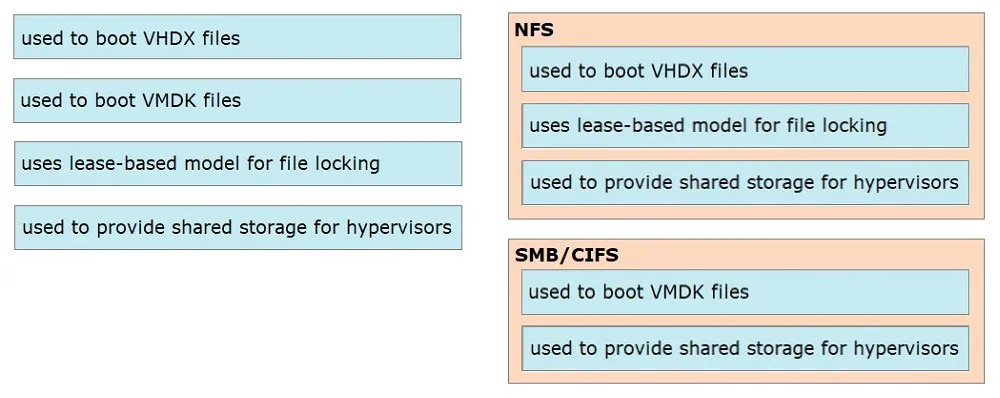

   DRAG DROP - Drag and drop the characteristics from the left onto the NAS protocols on the right. Some characteristics are used more than once. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   NFS: -Used to boot VMDK files -Uses lease-based model for file locking -Used to provide shared storage for hypervisors SMB/CIFS: -Used to boot VHDX files -Used to provide shared storage for hypervisors

   Source: Adapted from community discussion — Daeh



   Next question

7. Question 77 · 504 in bank

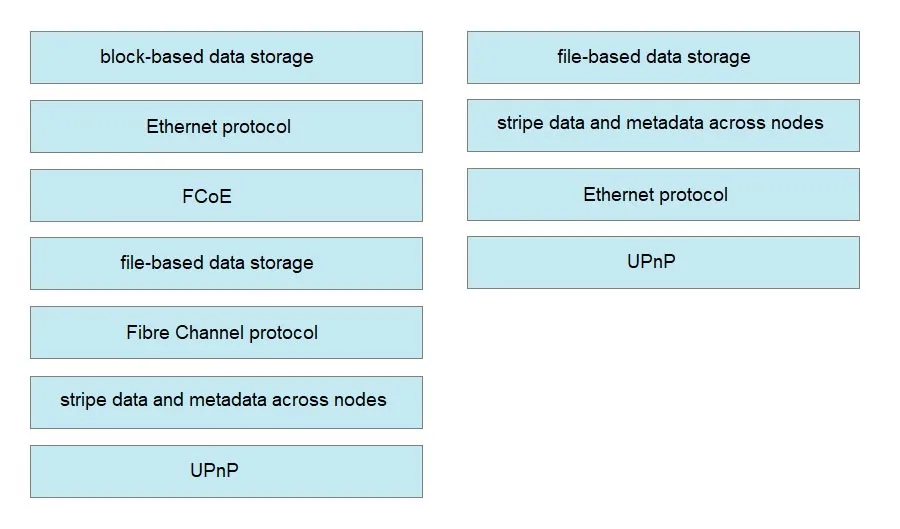

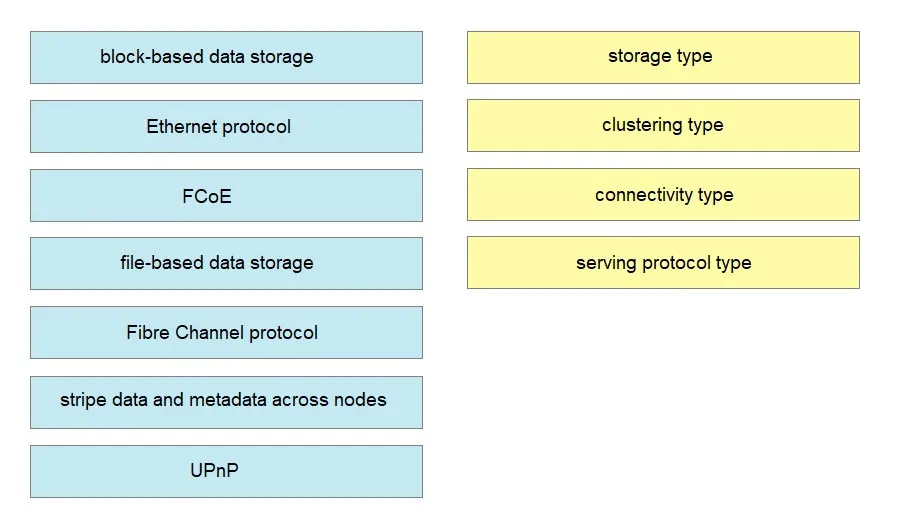

   DRAG DROP - Drag and drop the NAS features from the left onto the NAS descriptions on the right. Not all features are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Reference: https://en.wikipedia.org/wiki/Network-attached_storage

   Source: Adapted from community discussion — RTL_dude



   Next question

8. Question 78 · 504 in bank

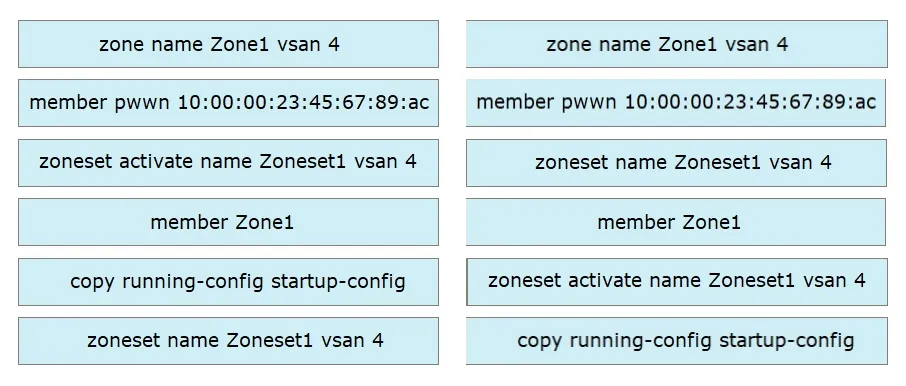

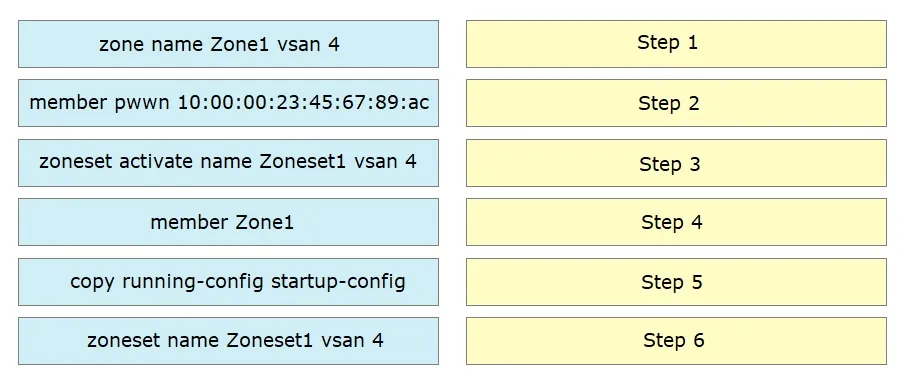

   DRAG DROP - A storage engineer must configure zoning on a Cisco MDS 9000 Series switch. Drag and drop the actions from the left into the order on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/configuration/guides/fabric/nx-os/nx_os_fabric/zone.html

   References

   • Cisco documentation



   Next question

9. Question 79 · 504 in bank

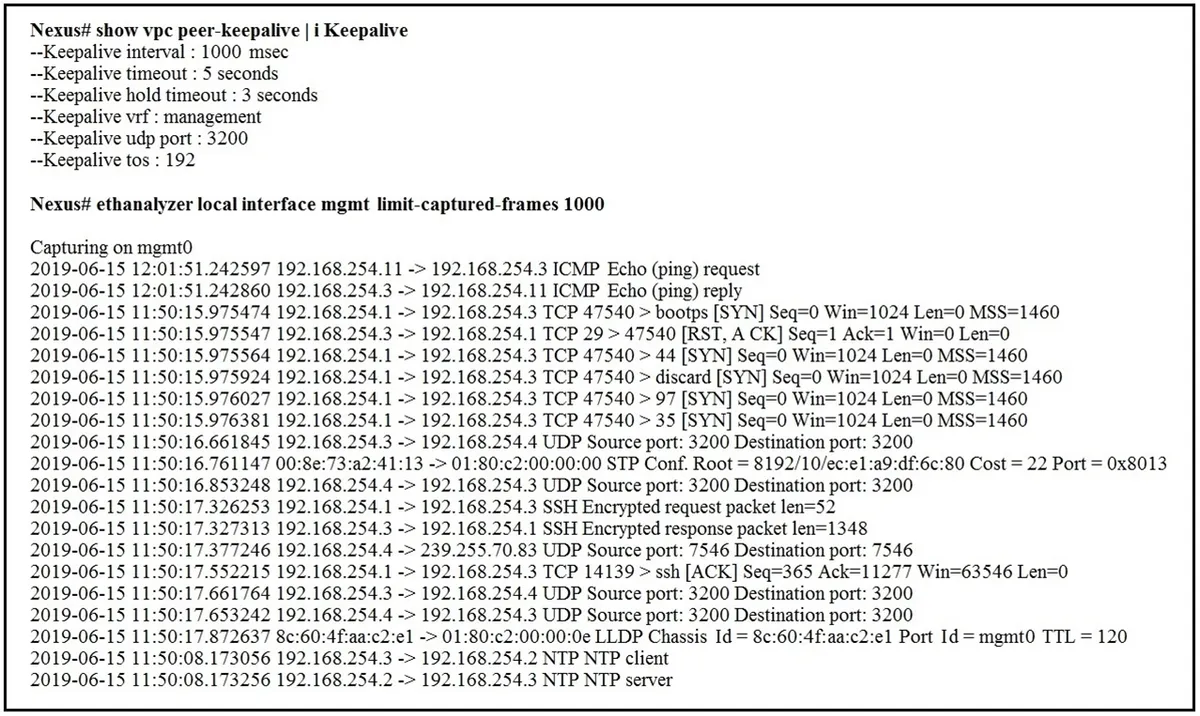

   Refer to the exhibit.



   A flapping link issue has been reported on the vPC keepalive link. A packet capture has been activated on the Cisco Nexus switch. What is the destination IP address of the vPC keepalive packets that are sent by the switch?

   • A192.168.254.4
   • B192.168.254.1
   • C192.168.254.2
   • D239.255.70.83

   Show answer

   Answer: A

   Explanation

   3200 is the default UDP port for keepalive packets. Just look for the first line with port 3200 and note the destination IP, which is 192.168.254.4. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus3000/sw/interfaces/92x/b-cisco-nexus-3000-nx-os-interfaces-configuration-guide- 92x/b-cisco-nexus-3000-nx-os-interfaces-configuration-guide-92x_chapter_0110.html

   Source: Adapted from community discussion — MaxG

   References

   • Cisco documentation

   Next question

10. Question 80 · 504 in bank

    Which configuration statically assigns VSAN membership to a virtual Fibre Channel interface?

    • Aswitch(config-vsan-db)# vsan 100 interface vfc 31
    • Bswitch(config-vsan-db)# vsan 100 fc 3/1
    • Cswitch(config-vsan-db)# vsan 100 bind interface fc 3/1
    • Dswitch(config-vsan-db)# vsan 100 bind interface vfc 31

    Show answer

    Answer: A

    Explanation

    Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli/CLIConfigurationGuide/vsan.html

    Next question
