1. Question 141 · 504 in bank

   The Cisco Nexus switch Generic Online Diagnostics policy for a PortLoopback test requires 10 consecutive failures to error disable the port. The customer wants to change it to 5 consecutive failures. Which configuration applies the changes for module 1 only?

   • ANexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod all test PortLoopback testing-type bootup consecutive-failure 5 Nexus(config-applet)# action 1 publish-event
   • BNexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod 1 test PortLoopback testing-type monitoring consecutive-failure 5 Nexus(config-applet)# action 1 publish-default
   • CNexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod all test PortLoopback testing-type monitoring consecutive-failure 5 Nexus(config-applet)# action 1 policy-default
   • DNexus(config)# event manager applet custom-PortLoopback override __PortLoopback Nexus(config-applet)# event gold mod 1 test PortLoopback testing-type bootup consecutive-failure 5 Nexus(config-applet)# action 1 policy-event

   Show answer

   Answer: C

   Explanation

   C should be the answer https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/system-management/cisco_mds9000_system_management_config_guide_8x/configuring_the_embedded_event_manager.html#con_1000285 Note If you want to allow the triggered event to process the default actions also, you must explicitly configure an EEM action with event-default or policy-default, based on the type of policy. For example, if you match a CLI command in a match statement, you must add the event-default action statement to the EEM policy. If the event-default action statement is not added, EEM will not allow the CLI command to execute.

   Source: Adapted from community discussion — g_kuchima

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 142 · 504 in bank



   Refer to the exhibit. Which command needs to be added to the line starting with the `file` keyword to have the generated running-config file with the name 'fusion- config_' and current date?

   • Astr.('fusion-config_') + date
   • B('fusion-config_') + date
   • C('fusion-config_ + date')
   • Dstring(('fusion-config_') + date

   Show answer

   Answer: B

   Explanation

   See below for an example: nxos9kv# python Python 2.7.11 (default, Feb 26 2018, 03:34:16) [GCC 4.6.3] on linux2 Type "help", "copyright", "credits" or "license" for more information. >>> import time >>> import cli >>> date = time.strftime('%Y%m%d') >>> file = ("fusion-config_') + date >>> print(file) fusion-config_20210329 >>> print('copy running-config ftp://10.183.249.182/FusionSW/' + file) copy running-config ftp://10.183.249.182/FusionSW/fusion-config_20210329

   Next question

3. Question 143 · 504 in bank

   A network engineer must create an EEM script that saves a copy of the running configuration on bootflash and writes a message to syslog when a user saves the configuration to a Cisco Nexus Series switch. Which configuration set should be applied to complete this task? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX- OS_System_Management_Configuration_Guide_7x_chapter_01110.html

   Source: Adapted from community discussion — RTL_dude

   References

   • Cisco documentation

   Next question

4. Question 144 · 504 in bank

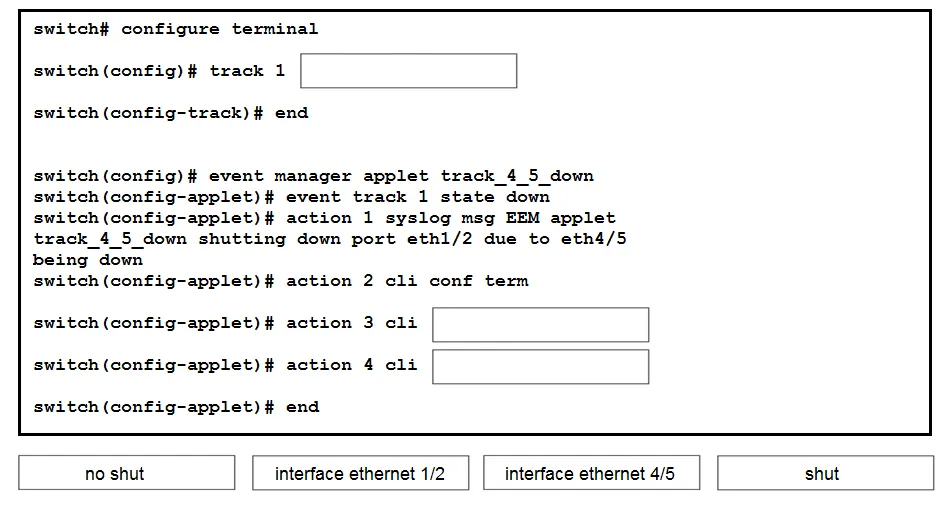

   DRAG DROP - An engineer must shut down the Ethernet 1/2 interface when the Ethernet 4/5 interface state is down. Drag and drop the CLI commands from the bottom onto the blanks in the exhibit to implement this EEM. Not all commands are used. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

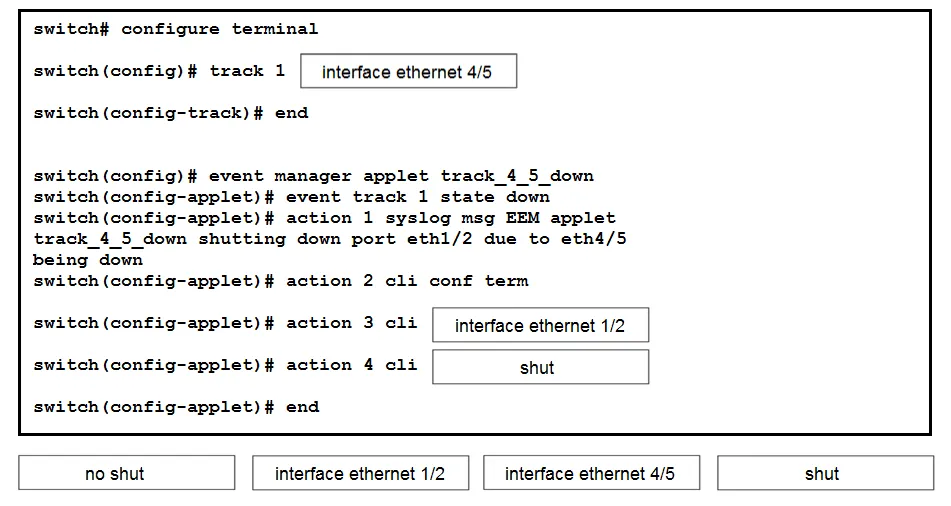

   Show the answer figure

   Answer: See figure below



   Next question

5. Question 145 · 504 in bank

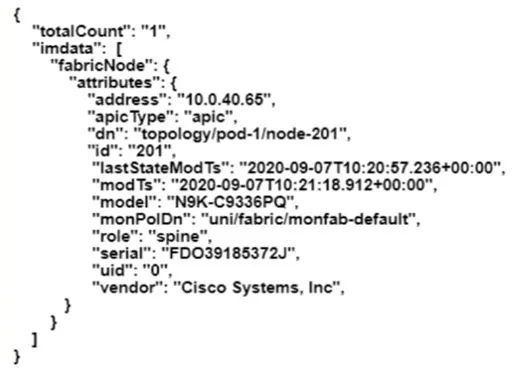

   Which data interchange format is presented in this output?



   • ACSS
   • BYAML
   • CXML
   • DJSON

   Show answer

   Answer: D

   Next question

6. Question 146 · 504 in bank

   APIC EPG Resolution Immediacy is set to "Immediate". Which statement is true about the Deployment Immediacy for VMM domains associated to EPGs?

   • AIf "On demand" is selected, the policy is programmed in the hardware only when the first packet is received through the data path.
   • BIf "Immediate" is selected, the policy is programmed in the hardware as soon as the leaf is booted.
   • CThe "Immediate" and "On demand" options require a port group to be created on the VDS.
   • DIf "On demand" is selected, the policy is programmed in the hardware only when the APIC detects a VM created in the EPG.

   Show answer

   Answer: A

   Next question

7. Question 147 · 504 in bank

   An engineer requires a solution to automate the configuration and deployment of remote network devices for a customer. The engineer must keep these considerations in mind: ✑ The customer's environment is based on industry-accepted standards and requires a solution that meets these standards. ✑ The security requirements mandate the use of a secure transport mechanism between the automation software and target devices such as SSH or TLS. ✑ The solution must be implemented using a human-readable language and provide the functionality to format data in XML or JSON. Which solution must be used to meet these requirements?

   • AAnsible
   • BREST API
   • CNETCONF
   • DSNMP

   Show answer

   Answer: C

   Explanation

   While Ansible and REST API are also powerful automation tools, NETCONF is specifically designed for network device configuration, making it a more targeted and suitable choice for this scenario.

   Source: Adapted from community discussion — groblok

   Next question

8. Question 148 · 504 in bank

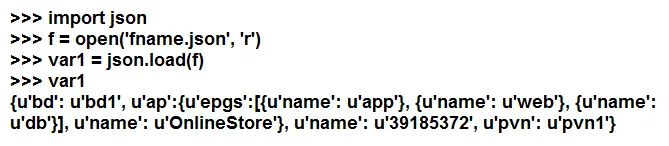

   Which data structure results from running this Python code?



   • Atuple
   • Bdictionary
   • Cset
   • Dlist

   Show answer

   Answer: B

   Explanation

   Reference: https://www.geeksforgeeks.org/read-json-file-using-python/

   Source: Adapted from community discussion — designated

   Next question

9. Question 149 · 504 in bank



   Refer to the exhibit. What is the result of executing this Python code?

   • AIt sends the switch configuration to Cisco TAC
   • BIt sends a Cisco device backup to a remote destination
   • CIt schedules a backup on a Cisco switch using EEM
   • DIt backs up Cisco switches to Cisco Prime Infrastructure

   Show answer

   Answer: B

   Explanation

   This will send a copy of the running configuration to an FTP server at 10.83.249.182.

   Next question

10. Question 150 · 504 in bank

    An engineer must use the Embedded Event Manager to monitor events that occur on a Cisco Nexus 9000 Series Switch. An environment variable needs to be created so that several policies use the monitored events in their actions. The external email server is represented by IP address 10.10.10.10. Which command sets the environment variable?

    • An9k2# event manager environment mailserver "10.10.10.10"
    • Bn9k2(config)# event manager environment mailserver "10.10.10.10"
    • Cn9k2(config-applet)# environment mailserver "10.10.10.10"
    • Dn9k2(config)# event manager policy environment mailserver "10.10.10.10"

    Show answer

    Answer: B

    Explanation

    To set an Embedded Event Manager (EEM) environment variable, use the event manager environment command in global configuration mode. To disable an EEM environment variable, use the no form of this command. https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/eem/command/eem-cr-book/eem-cr-e1.html

    Source: Adapted from community discussion — GG345

    References

    • Cisco documentation

    Next question
