350-601 practice questions 51–60

1. Question 51 · 504 in bank

   Which component is disrupted when the Cisco Integrated Management Controller is upgraded on a Cisco UCS Series Server?

   • ASAN traffic
   • BCisco UCS Manager
   • CKVM sessions
   • Ddata traffic

   Show answer

   Answer: C

   Explanation

   If you are using KVM to login to the Linux server or the EFI shell to update the firmware version of CIMC, when you run the activate command, the connection to CIMC is reset. As a result, the network connection is interrupted and the KVM window closes. https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/fwp/user/guide/Firmware_Upgrade_Utility/Using.html answer should be C I guess

   Source: Adapted from community discussion — Gopz28

   References

   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 52 · 504 in bank

   Select 2

   Which two configuration settings are available in the Cisco UCS Firmware Auto Sync Server policy? (Choose two.)

   • AImmediate Action
   • BUser Notification
   • CUser Acknowledge
   • DDelayed Action
   • ENo Action

   Show answer

   Answer: CE

   Explanation

   You can use the Firmware Auto Sync Server policy in Cisco UCS Manager to determine wheth-er firmware versions on recently discovered servers must be upgraded or not. With this policy, you can upgrade the firmware versions of recently discovered unassociated servers to match the firmware version defined in the default host firmware pack. In addition, you can determine if the firmware upgrade process should run immediately after the server is discovered, or run at a later time. Following are the values for the Firmware Auto Sync Server policy: ג€¢ No Action ג€" No firmware upgrade is initiated on the server. This value is selected by default. ג€¢ User Acknowledge ג€" Firmware on the server is not synchronized until the administrator acknowledges the upgrade in the Pending Activities dialog box. Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Firmware-Mgmt/3-1/ b_UCSM_CLI_Firmware_Management_Guide_3_1/b_UCSM_GUI_Firmware_Management_Guide_3_1_chapter_011.html

   Source: Adapted from community discussion — Smoothey

   References

   • Cisco documentation

   Next question

3. Question 53 · 504 in bank

   A Cisco Nexus 9000 Series Switch experiences a startup configuration corruption. The engineer must implement a procedure to recover the backup configuration file from the switch. Which command set must be used?

   • A1. Clear the current configuration of the switch 2. Restart the device 3. Copy a previously saved configuration file to the running-configuration 4. Copy the running-configuration to the startup configuration
   • B1. Clear the current configuration of the switch 2. Restart the device 3. Copy the running configuration to the startup configuration 4. Copy a previously saved configuration file to the running configuration
   • C1. Copy the running-configuration to the startup configuration 2. Clear the current configuration of the switch 3. Restart the device 4. Copy a previously saved configuration file to the running configuration
   • D1. Restart the device 2. Copy the running-configuration file to a remote server 3. Clear the current configuration of the switch 4. Copy the running configuration to the startup configuration

   Show answer

   Answer: A

   Explanation

   Rolling Back to a Previous Configuration To roll back your configuration to a snapshot copy of a previously saved configuration, you need to perform the following steps: 1. Clear the current running image with the write erase command. 2. Restart the device with the reload command. 3. Copy the previously saved configuration file to the running configuration with the copy configuration-file running-configuration command. 4. Copy the running configuration to the start-up configuration with the copy running-config startup-config command. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/fundamentals/configuration/guide/b_Cisco_Nexus_9000_Series_NX- OS_Fundamentals_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_Fundamentals_Configuration_Guide_7x_chapter_01001.html

   Source: Adapted from community discussion — lex2021

   References

   • Cisco documentation

   Next question

4. Question 54 · 504 in bank

   An engineer configures the properties of a Cisco UCS Cisco Integrated Management Controller network adapter for a standalone Cisco C-Series Server. The Failback Timeout in the vNIC was set to 600. When the failure occurs, the secondary interfaces must be used and then failback when the primary interface becomes available again. Which action must be taken to meet these requirements?

   • ASet default VLAN on the adapters.
   • BIncrease CoS to 6.
   • CEnable Uplink Failover.
   • DDisable VNTAG mode.

   Show answer

   Answer: C

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/gui/config/guide/4_2/b_cisco_ucs_c-series_gui_configuration_guide_42/ b_Cisco_UCS_C-series_GUI_Configuration_Guide_41_chapter_01011.html#task_1696A32C1FD640688DE706384B9A1E76



   Next question

5. Question 55 · 504 in bank

   An engineer must perform a backup operation of the Cisco UCS system. The backup must be transferred to a secure location using UDP and must contain information about VLANs, VSANs, and other policies. Also, the operations team requires the backup file to be in a human-readable format. Which configuration set meets these requirements?

   • AType: All configuration Protocol: FTP
   • BType: Full state Protocol: SFTP
   • CType: Logical configuration Protocol: TFTP
   • DType: System configuration Protocol: SCP

   Show answer

   Answer: C

   Explanation

   TFTP is the only protocol that uses UDP port 69. Logical State backup includes all logical configuration contains settings such as service profiles, VLANs, VSANs, pools, and policies. Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/1-0-2/b_CLI_Config_Guide_1-0-2/CLI_Config_Guide_1-0-2_chapter29.pdf

   Source: Adapted from community discussion — Brute_Wane

   References

   • Cisco documentation

   Next question

6. Question 56 · 504 in bank

   When deploying a Cisco HyperFlex edge with a pair of switches, what is the minimum number of interfaces in trunk mode required on each HX node?

   • A1
   • B2
   • C4
   • D6

   Show answer

   Answer: B

   Explanation

   2 is correct! https://www.cisco.com/c/en/us/td/docs/hyperconverged_systems/HyperFlex_HX_DataPlatformSoftware/Edge_Deployment_Guide/5-0/b-hx-edge-deployment-guide-5-0/m-2-node-preinstall-chklist.html#id_102126 "Dual switch configuration provides a slightly more complex topology with full redundancy that protects against: switch failure, link failure, and port failure. It requires two switches that may be standalone or stacked, and two 10/25GE ports, one 1GE port for CIMC management, and one Cisco VIC 1457 per server. Trunk ports are the only supported network port configuration. Single switch configuration provides a simple topology requiring only a single switch, and two 10/25GE ports, one 1GE port for CIMC management, and one Cisco VIC 1457 per server. Switch level redundancy is not provided, however all links/ports and associated network services are fully redundant and can tolerate failures." B is the one

   Source: Adapted from community discussion — GuyThatTakesDumps

   References

   • Cisco documentation
   • Cisco documentation

   Next question

7. Question 57 · 504 in bank

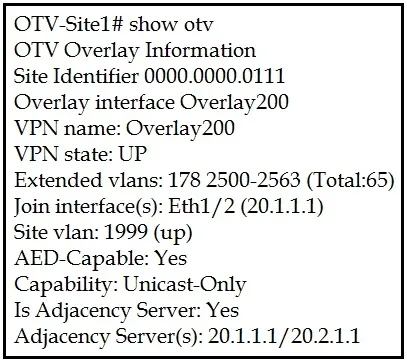

   Refer to the exhibit.



   A network engineer is setting up a multihomed OTV network. The first site has been set up with a primary and secondary adjacency server. Which configuration must be added on the remote OTV AEDs site? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   We need to add both IP's for the primary and secondary adjacency server when using a unicast only design.

   Next question

8. Question 58 · 504 in bank

   What is a benefit of independent resource scaling in Cisco HyperFlex hybrid architecture?

   • Aremote booting of converged servers
   • Bflexible expansion of compute, caching, and capacity
   • Cmultivendor converged node hardware support
   • Dsupport for compute nodes with third-party storage

   Show answer

   Answer: B

   References

   • cisco.com documentation

   Next question

9. Question 59 · 504 in bank

   Which method must a network engineer use to upgrade the BIOS firmware or a Cisco UCS standalone C-Series rack-mount server?

   • AUse the U-ACPI Interface.
   • BUse the Cisco host upgrade utility.
   • CUse the Cisco hardware upgrade utility.
   • DUse the Cisco host firmware policy.

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/lomug/2-0-x/3_0/b_huu_3_0_1/b_huu_2_0_13_chapter_011.html

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation

   Next question

10. Question 60 · 504 in bank

    An engineer must configure the order in which the server attempts to boot from available boot device types using Cisco Integrated Management Controller (Cisco IMC). The engineer must change the boot order configuration during the setup and apply the new requirements multiple times. The requirement is to change the Cisco IMC actual boot order so it is different from the configured boot order. Which setting accomplishes this goal?

    • AEnable the system to boot with the configured boot order.
    • BSet the boot configuration directly through BIOS.
    • CApply UEFI Secure Boot for a nonsupported operating system.
    • DConfigure the legacy and precision boot order to be mutually exclusive.

    Show answer

    Answer: B

    Explanation

    Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/gui/config/guide/1.5/b_Cisco_UCS_C- series_GUI_Configuration_Guide.151_chapter_011.html#d66929e662a1635

    Source: Adapted from community discussion — akm88

    References

    • Cisco documentation

    Next question
