350-601 practice questions 41–50

1. Question 41 · 504 in bank

   A network engineer plans to upgrade the firmware of a Cisco UCS B-Series chassis by using the Auto Install feature. Which component is upgraded during the infrastructure firmware upgrade stage?

   • AAdapter
   • BCisco IMC
   • CI/O Modules
   • DBIOS

   Show answer

   Answer: C

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/firmware-mgmt/gui/2-2/b_GUI_Firmware_Management_22/ b_GUI_Firmware_Management_22_chapter_0101.html#task_8F47F9CA290F447589F9384E0B55DC30

   Source: Adapted from community discussion — crosillo30

   References

   • Cisco documentation

   Next question

2. Question 42 · 504 in bank

   Select 2

   An engineer must build a lab replica of a Cisco UCS production environment. The file must be imported into a new Cisco UCS cluster using a Cisco UCS Manager GUI. The file must be in XML format and be exported from Cisco UCS Manager using an encrypted method. Which two configuration parameters should be selected to meet these requirements? (Choose two.)

   • AType: Full state
   • BType: Logical configuration
   • CProtocol: TFTP
   • DType: All configuration
   • EProtocol: SCP

   Show answer

   Answer: DE

   Explanation

   Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration_Guide_141_chapter43.html

   Source: Adapted from community discussion — MaxG

   References

   • Cisco documentation

   Next question

3. Question 43 · 504 in bank

   A network engineer must configure a power redundancy policy on a Cisco UCS C-Series Rack Server. The power redundancy must support two power sources being used to power the server. Which configuration should be applied to meet the requirement? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/cli/config/guide/1.4.1/CLI_Config_Guide_1_4_1_chapter28.html

   Source: Adapted from community discussion — MaxG

   References

   • Cisco documentation

   Next question

4. Question 44 · 504 in bank

   A Cisco UCS user called `Employee1` accidentally changed the boot policy of the Cisco UCS server at the Cisco UCS Manager root level. This change impacted all service profiles, and their storage connectivity was lost. The system administrator wants to prevent this issue from recurring in the future. The new security policy mandates that access must be restricted up to the organization level and prevent other users from modifying root policies. Which action must be taken to meet these requirements?

   • AModify the privilege level assigned to the user
   • BAssign users to a specific Cisco UCS locale
   • CAssign the user ג€Employee1ג€ the network-operator role
   • DDefine a custom user role and assign it to users

   Show answer

   Answer: B

   Explanation

   As the solution should restrict access up to the organization level, the right answer is B. https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Admin-Management/4-1/b_Cisco_UCS_Admin_Mgmt_Guide_4-1/m_role-based_access_control_conflguration.html#d18994e1993a1635 User Locales You can assign a user to one or more locales. Each locale defines one or more organizations (domains) to which a user can access. Access is usually limited to the organizations specified in the locale.

   Source: Adapted from community discussion — CactusJoe

   References

   • Cisco documentation

   Next question

5. Question 45 · 504 in bank

   Select 2

   A new employee must be granted access to add VLANs into an existing Cisco UCS Manager and configure NTP synchronization with date and time zone settings. Which two privileges must be granted to the employee to complete the task? (Choose two.)

   • AService Profile Compute (ls-compute)
   • BExt LAN Policy (ext-lan-policy)
   • CService Profile Network Policy (ls-network-policy)
   • DService Profile Config (ls-config)
   • EExt LAN Config (ext-lan-security)

   Show answer

   Answer: BE

   Explanation

   Answer is B and E Ext Lan Security (ext-lan-security) This privilege allows a user to configure NTP providers, and date and time zone settings. Ext Lan Policy (ext-lan-policy) This privilege allows a user to configure LAN settings on a fabric interconnect, including Ethernet border ports, VLANs, LAN PIN groups, Ethernet SPAN sessions, LAN policies, and vNIC/vHBA placement policies. Service profiles can add VLANs to vNICs that are configured in UCS Manager. So service profile is not valid solution.

   Source: Adapted from community discussion — CactusJoe

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

6. Question 46 · 504 in bank

   Which configuration implements static ingress replication? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

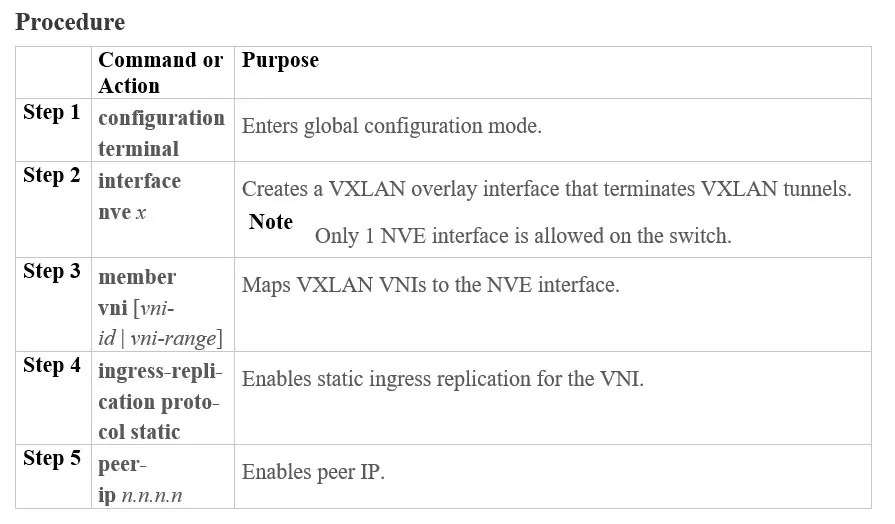

   The following enables static ingress replication for peers. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/vxlan/configuration/guide/b_Cisco_Nexus_9000_Series_NX- OS_VXLAN_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x_chapter_011.html

   References

   • Cisco documentation



   Next question

7. Question 47 · 504 in bank

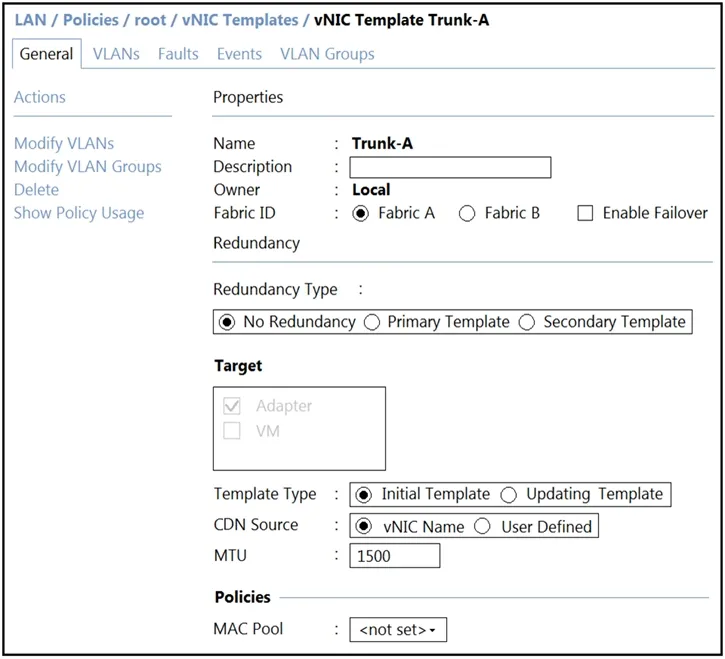

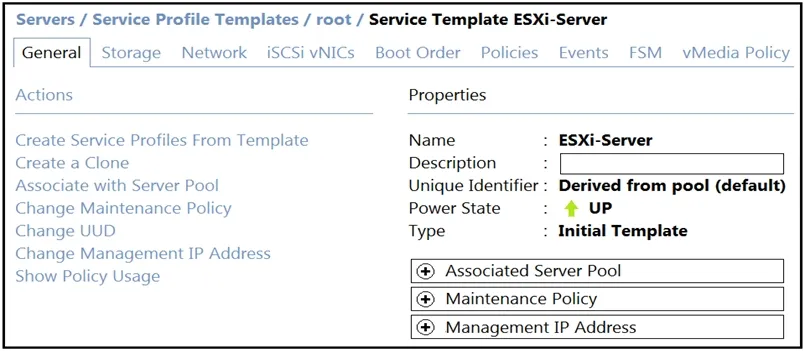

   Refer to the exhibits. ESXi-Server is associated to the blade server. A VLAN is added to Trunk-A. The VLAN is missing on the vNIC of ESXi-Server. Which action should be taken to add the VLAN to the vNIC?



   • AChange the template type of Trunk-A to an updating template.
   • BRemove the VLAN from the Trunk-A template and add the VLAN again.
   • CChange the template type of ESXi-Server to an updating template.
   • DRemove both templates and recreate them as updating templates.

   Show answer

   Answer: A

   Explanation

   right answer could be B. as once the profile has been created from template with 'initial template' enabled, it no longer is associated with the template. so we can't move it from initial to updating and expect changes to reflect in service profile.

   Source: Adapted from community discussion — GG345

   References

   • Cisco documentation

   Next question

8. Question 48 · 504 in bank

   A network engineer is deploying a Cisco All-Flash HyperFlex solution. Which local storage configuration is required for the operating system and persistent logging?

   • Aone solid state drive
   • Btwo SATA drives
   • Cone SATA drive
   • Dtwo solid state drives

   Show answer

   Answer: D

   Explanation

   Using persistent logging allows to write logged messages to file(s) on router's flash disk. The advantage is unlike memory buffer (DRAM) contents these files persist when the router reboots (DRAM contents are erased during a reboot.) Hence if you writing to disk it can run the OS and must wait. So 2 disks as a miniumum.

   Source: Adapted from community discussion — Smoothey

   References

   • cisco.com documentation
   • Cisco documentation

   Next question

9. Question 49 · 504 in bank

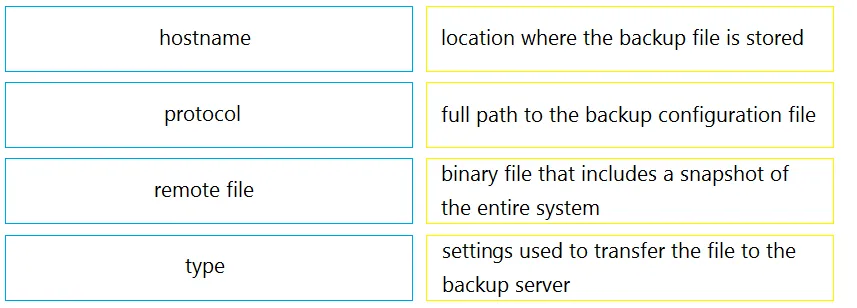

   DRAG DROP - Drag and drop the fields for configuring a full state backup file of the Cisco UCS Manager from the left onto the descriptions on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Hostname field: The hostname or IP address of the location where the backup file is stored. This can be a server, storage array, local drive, or any read/write media that the fabric interconnect can access through the network. Remote File field: The full path to the backup configuration file. This field can contain the filename as well as the path. If you omit the filename, the backup procedure assigns a name to the file. Type field: The information saved in the backup configuration file. This can be a binary file that includes a snapshot of the entire system. Protocol field: The protocol to use when communicating with the remote server. This can be FTP,TFTP,SCP,SFTP

   Source: Adapted from community discussion — 7korn7

   References

   • Cisco documentation



   Next question

10. Question 50 · 504 in bank

    An engineer configures an Intersight Virtual Appliance and must claim over 200 targets. The engineer starts the Claim New Target Procedure. The engineer has prepared this initial comma-separated value file to provision the targets: UCSFI,10.1.1.3,user-1,pwd5516b917 IMC,10.1.1.5/26,user-2,pwdc65b1c43f HX,10.1.2.1/30,user-3,pwd39913690 UCSD,1.1.1.1.user-4,pwd5003e9d5 - Which information must be included in the comma-separated value file to provision the targets?

    • Atarget type, hostname or IP address, user name, password
    • Blocation, address, name, password
    • CFQDN, AD name, IP address, email
    • Dcertificate, user name, password, email

    Show answer

    Answer: A

    Explanation

    For each target, add a line containing Target Type, Hostname or IP Address, User Name, and Password. Use the CIDR notation to specify the IP Range. You can add as many lines with these details in the .csv file. The following example shows the format to add target details in a .csv file: https://intersight.com/help/appliance/getting_started/claim_targets

    Source: Adapted from community discussion — designated

    References

    • Cisco documentation

    Next question
