350-601 practice questions 111–120

1. Question 111 · 504 in bank

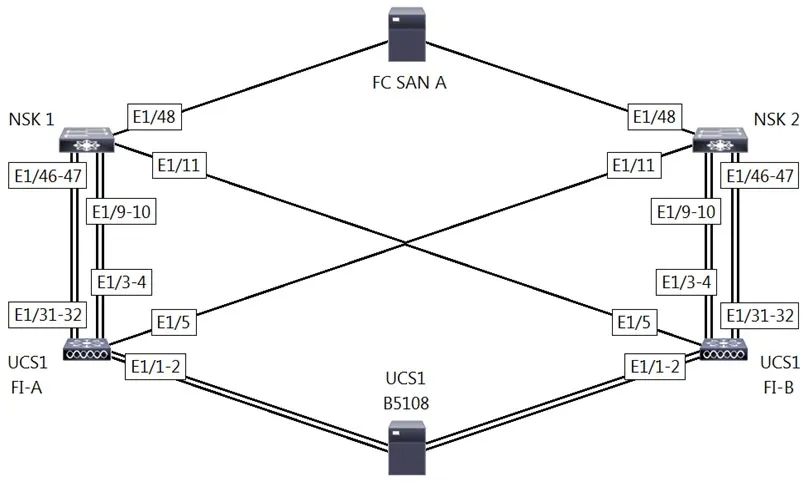

   Refer to the exhibit. A network engineer must configure port E1/31-32 to forward only storage server traffic of VLAN 200 on Cisco fabric interconnects A and B. Port E1/31-32 is not reserved for any other traffic. Which port type must be configured to accomplish this goal?

   • AFCoE storage
   • Buplink
   • Cunified uplink
   • DFCoE uplink

   Show answer

   Answer: D

   Explanation

   I think D is correct https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Network-Mgmt/4-1/b_UCSM_Network_Mgmt_Guide_4_1/b_UCSM_Network_Mgmt_Guide_4_1_chapter_0100.html#concept_D71DD6D9521543B6AF88365C560623B0 You can configure the same Ethernet port as any of the following: FCoE uplink port—As an FCoE uplink port for only Fibre Channel traffic. Uplink port—As an Ethernet port for only Ethernet traffic. Unified uplink port—As a unified uplink port to carry both Ethernet and Fibre Channel traffic. According to question I understand you need FC traffic only in these ports

   Source: Adapted from community discussion — Cevel

   References

   • Cisco documentation
   • Cisco documentation

   Next question

2. Question 112 · 504 in bank

   Which virtual MAC address is the default for HSRP version 2 group 10?

   • A0000.5E00.0110
   • B0000.0C9F.F00A
   • C3784.0898.1C0A
   • D0000.0C9F.F010

   Show answer

   Answer: B

   Explanation

   In HSRP version 1, group numbers are restricted to the range from 0 to 255. HSRP version 2 expands the group number range from 0 to 4095. HSRP version 2 permits an expanded group number range, 0 to 4095, and consequently uses a new MAC address range 0000.0C9F.F000 to 0000.0C9F.FFFF. The increased group number range does not imply that an interface can, or should, support that many HSRPgroups. The expanded group number range was changed to allow the group number to match the VLAN number on subinterfaces. The last digits of the MAC address is the HSRP group, in hex. 10 in hex is A. Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipapp_fhrp/configuration/15-mt/fhp-15-mt-book/fhp-hsrp-v2.pdf

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation

   Next question

3. Question 113 · 504 in bank

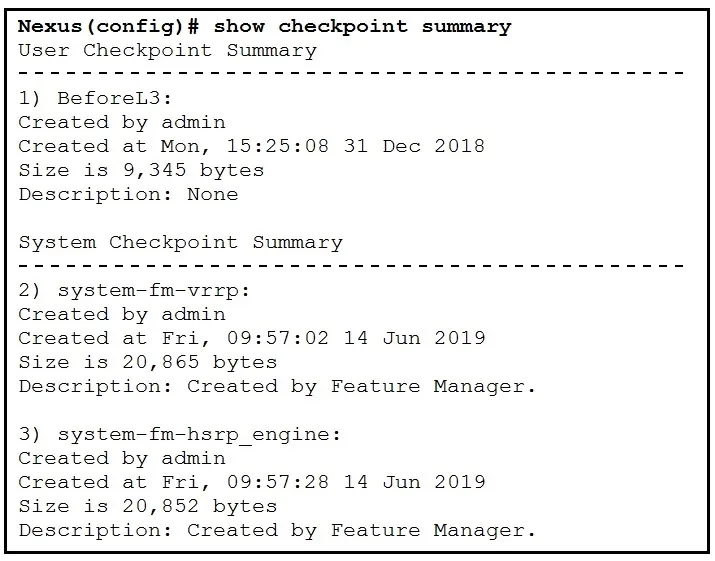

   Refer to the exhibit.



   What is the reason the system-fm-vrrp checkpoint was created?

   • AThe VRRP process crashed and the checkpoint was automatically created.
   • BThe VRRP service restarted and the checkpoint was automatically created.
   • CThe network administrator manually created it.
   • DThe VRRP-enabled feature has been disabled.

   Show answer

   Answer: D

   Next question

4. Question 114 · 504 in bank

   What is an advantage of NFS as compared to Fibre Channel?

   • ANFS removes the impact of IP overhead.
   • BNFS enables thin provisioning for LUNs.
   • CNFS provides direct access to the underlying storage hardware.
   • DNFS provides the dynamic allocation of storage capacity.

   Show answer

   Answer: D

   Explanation

   NFS is a file-level storage protocol that allows for flexible and dynamic allocation of storage capacity. It enables the sharing of files across a network and allows for easy expansion and contraction of storage space as needed.

   Source: Adapted from community discussion — groblok

   References

   • Cisco documentation

   Next question

5. Question 115 · 504 in bank

   Which statement is true about upgrading the firmware on a Cisco MDS storage switch with dual supervisors?

   • ASupervisors can be upgraded independently to test the new firmware.
   • BThe new firmware is loaded on the standby supervisor first.
   • CBoth supervisors load the new firmware and then the active supervisor reboots.
   • DThe standby supervisor must be offline before the firmware upgrade begins.

   Show answer

   Answer: B

   Explanation

   Non-Disruptive Upgrades Overview All MDS switches support non-disruptive upgrades and downgrade subject to limitations listed in the MDS release notes. On a 95xx or 97xx Series MDS with dual supervisors, during the firmware upgrade, the new code is loaded on the standby supervisor. A switchover then occurs in order to make the supervisor that runs the new code active. The code is then loaded on the previously active supervisor, and it becomes the new standby supervisor. The data plane continues to pass fibre channel traffic. The modules then non-disruptively start at the lowest numbered module and proceed to the highest. On a 91xx, 92xx, or 93xx Series MDS, which has only one supervisor, the supervisor (control plane) is reloaded. The data plane continues to pass fibre channel traffic. Reference: https://www.cisco.com/c/en/us/support/docs/storage-networking/mds-9000-nx-os-san-os-software/118952-technote-mds9k-00.html

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation

   Next question

6. Question 116 · 504 in bank

   A Cisco MDS 9000 Series Storage Switch has reloaded unexpectedly. Where does the engineer look for the latest core dump file?

   • A/mnt/recovery
   • B/mnt/core
   • C/mnt/logs
   • D/mnt/pss

   Show answer

   Answer: D

   Explanation

   Saving the Last Core to Bootflash This last core dump is automatically saved to bootflash in the /mnt/pss/ partition before the switchover or reboot occurs. Three minutes after the supervisor module reboots, the saved last core is restored from the flash partition (/mnt/pss) back to its original RAM location. This restoration is a background process and is not visible to the user. Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/configuration/guides/system_management/nx-os/sysmgmt_cli_6-x/ sys.html#37039

   Source: Adapted from community discussion — MaxG

   References

   • Cisco documentation

   Next question

7. Question 117 · 504 in bank

   An engineer must implement a Cisco UCS system at a customer site. One of the requirements is to implement SAN boot. The storage system maps the source WWPN to a unique LUN. Which method does Cisco recommend to configure the SAN boot?

   • ADefine the vHBAs as bootable and leave the boot target definition empty.
   • BCreate a SAN boot policy in which every initiator is mapped to a different target LUN.
   • CDefine the vHBAs as bootable and leave the default values on the boot target definition.
   • DCreate a SAN boot policy in which every initiator is mapped to the same target LUN.

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Server-Mgmt/3-1/ b_Cisco_UCS_Manager_Server_Mgmt_CLI_Guide/server_boot.html#concept_8AD0577BC71F495B88BAF4335C4EF348

   Source: Adapted from community discussion — lex2021

   Next question

8. Question 118 · 504 in bank



   Refer to the exhibit. Which feature set must be used to configure on switch 2 to establish a VSAN trunk between switch 1 and switch 2? A. ✑ F Port ✑ Trunk Mode Passive B. ✑ N Port ✑ Trunk Mode Active C. ✑ NP Port ✑ Trunk Mode Auto D. ✑ E Port ✑ Trunk Mode On

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

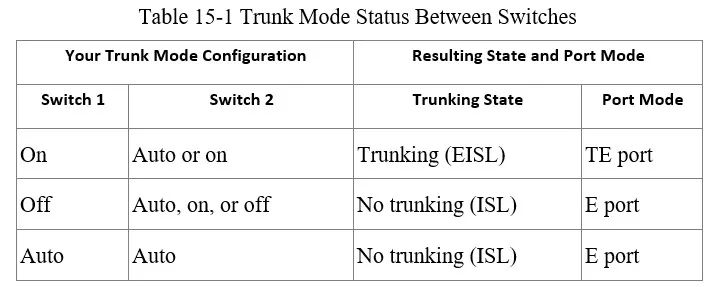

   Show the answer figure

   Answer: See figure below

   Explanation

   By default, trunk mode is enabled in all Fibre Channel interfaces. However, trunk mode configuration takes effect only in E-port mode. You can configure trunk mode as on (enabled), off (disabled), or auto (automatic). The default trunk mode is on. The trunk mode configuration at the two ends of an ISL, between two switches, determine the trunking state of the link and the port modes at both ends (see Table 15-1). Reference: https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/rel_3_x/configuration/guides/cli_3_2/trnk.html



   Next question

9. Question 119 · 504 in bank

   An engineer is performing a configuration on a Cisco Nexus 5000 Series Switch. The requirement is for the current Fibre Channel IDs in VSAN 120 to be saved across reboots. The Cisco environment also must integrate with a third-party solution that requires persistent Fibre Channel IDs for the VSAN. The WWN of the Cisco switch must be 33:e8:00:05:30:00:16:df and its Fibre Channel ID 0x070128. Which command set meets these requirements?

   • Afcdomain fcid database vsan 120 wwn 33:e8:00:05:30:00:16:df fcid 0x070128 fcdomain fcid persistent vsan 120
   • Bfabric-binding database vsan 120 vsan 120 wwn 33:e8:00:05:30:00:16:df fcid 0x070128
   • Cvsan 120 wwn 33:e8:00:05:30:00:16:df fcid 0x070128 fabric-binding activate vsan 120 purge fcdomain fcid vsan 4
   • Dysan 120 wwn 33:e8:00:05:30:00:16:df fcid 0x070128 fcdomain fcid preserve vsan 120

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/rel_1_x/1_0_2a/san-os/configuration/guide/Domains.pdf

   References

   • Cisco documentation

   Next question

10. Question 120 · 504 in bank

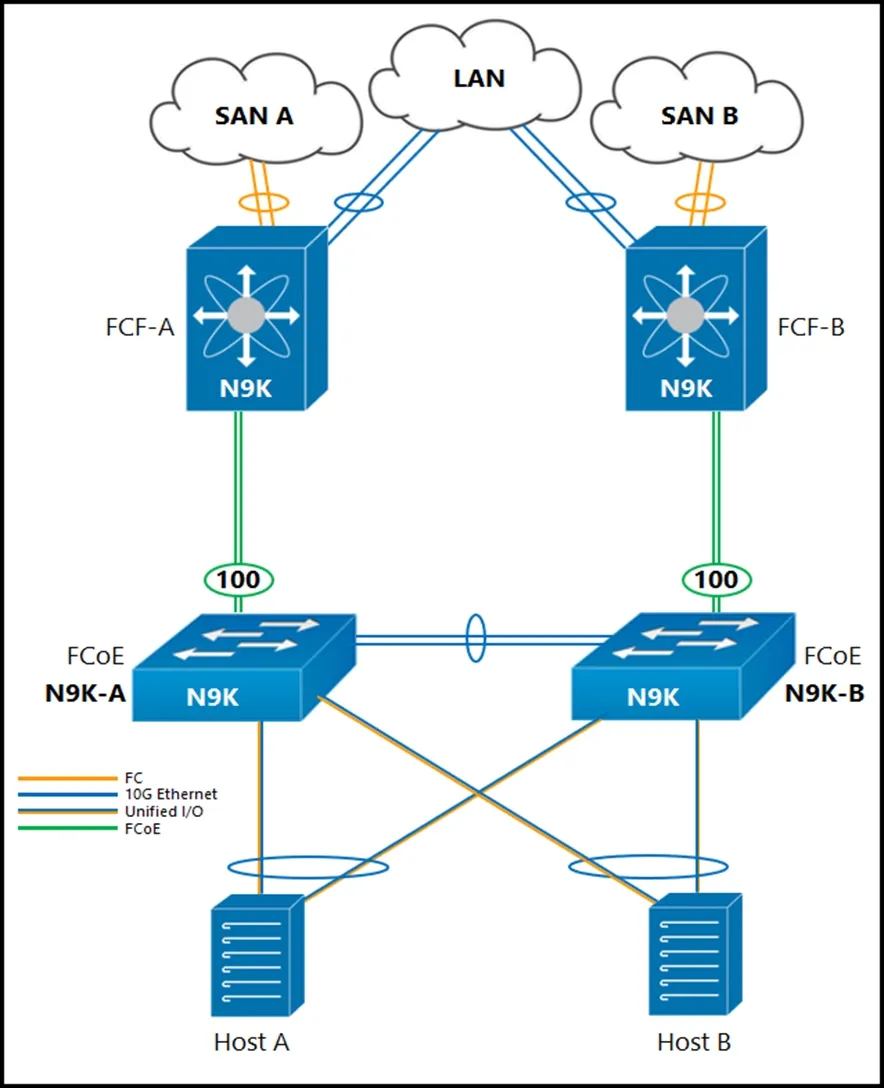

    Refer to the exhibit. An engineer must configure FCoE between the N9K-A switch and the FCF-A Nexus 9000 core switch. The deployment has these characteristics: ✑ The N9K-A and N9K-B top-of-rack switches share the domain ID of the core switches. ✑ The hosts are equipped with converged network adapters. ✑ The only VSAN that is used is permitted to traverse port-channel 100 is VSAN 20. Which configuration completes the FCoE configuration on the N9K-A device?

    • AN9K-A(config)# feature-set fcoe-npv N9K-A(config)# interface vfc-port-channel 100 N9K-A(config-if)# switchport mode E N9K-A(config-if)# switchport trunk allowed vsan 1, 20
    • BN9K-A(config)# feature-set fcoe-npv N9K-A(config)# interface vfc-port-channel 100 N9K-A(config-if)# switchport mode NP N9K-A(config-if)# switchport trunk allowed vsan 20
    • CN9K-A(config)# feature fcoe N9K-A(config)# feature npv N9K-A(config)# interface vfc 100 N9K-A(config-if)# bind interface port-channel 100 N9K-A(config-if)# switchport mode N N9K-A(config-if)# switchport trunk allowed vsan 1, 20
    • DN9K-A(config)# feature fcoe N9K-A(config)# feature npv N9K-A(config)# interface vfc 100 N9K-A(config-if)# bind interface port-channel 100 N9K-A(config-if)# switchport mode F N9K-A(config-if)# switchport trunk allowed vsan 20

    Show answer

    Answer: B

    Explanation

    N9K-A and N9K-B are sharing the domain id of the core switches, which indicates they're acting as NPV devices. Their uplink to the core switches must be configured using the command "switchport mode NP".

    Source: Adapted from community discussion — elper

    Next question
