Question 221 · 1334 in bank

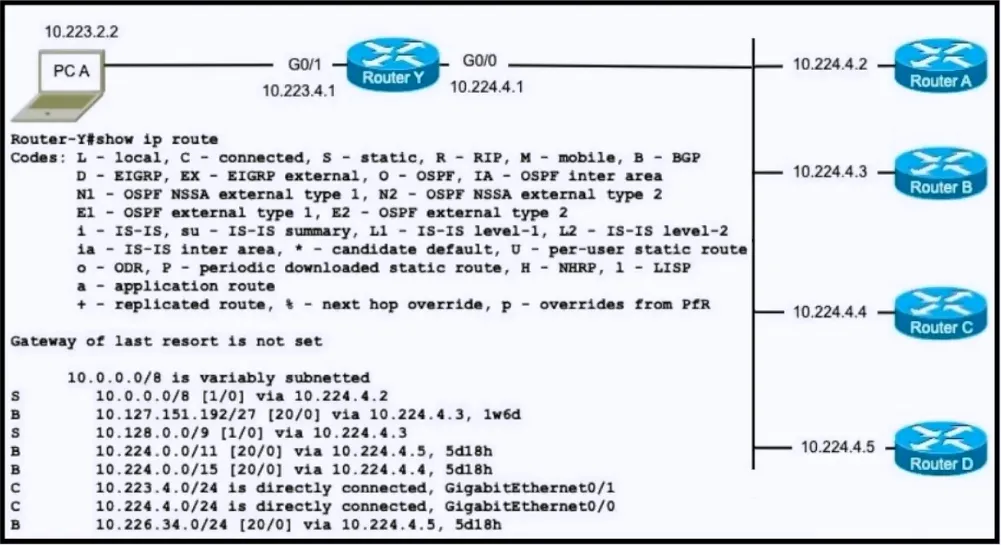

Refer to the exhibit. PC A is communicating with another device at IP address 10.227.151.255. Through which router does router Y route the traffic?
Show answer
Answer: D
Explanation
This BGP entry for the 10.224.0.0/11 network is more specific to the destination IP address 10.227.151.255 than the 10.0.0.0/8 supernet and the 10.227.0.0/16 network. Since the /11 subnet mask encompasses IP addresses from 10.224.0.0 to 10.239.255.255, the destination IP address 10.227.151.255 falls within this range. The next-hop IP address for this BGP route is 10.224.4.5, which corresponds to Router D. The correct answer, taking into account the most specific route, is: D. router D
Source: Adapted from community discussion — lmmujsi
Permanent link to question 221 Report an issue
Question 222 · 1334 in bank

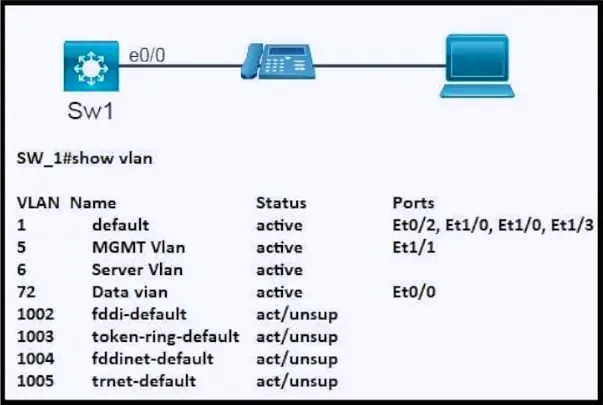

Refer to the exhibit. VoIP is being implemented in the network using VLAN ID 73 and named "VoIP". Each user needs a Cisco IP phone at their desk. Switchport e0/0 has been configured as an access port in the data VLAN. Cisco Discovery Protocol is enabled globally. Which command sequence completed the configuration?
Show answer
Answer: D
Permanent link to question 222 Report an issue
Question 223 · 1334 in bank

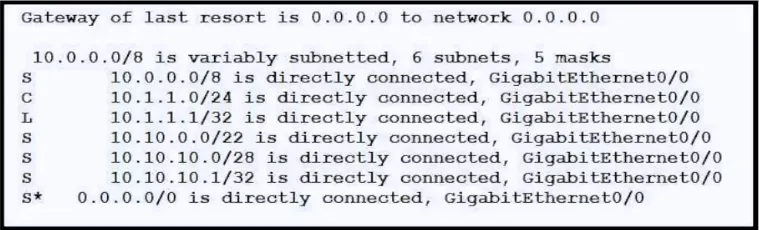

Refer to the exhibit. Which IP route command created the best path for a packet destined for 10.10.10.3?
Show answer
Answer: B
Permanent link to question 223 Report an issue
Question 224 · 1334 in bank
Which cable type must be used when connecting a router and switch together using these criteria? • Pins 1 and 2 are receivers and pins 3 and 6 are transmitters. • Auto detection MDI-X is unavailable.
Show answer
Answer: D
Explanation
Weird question. The given criteria don't apply to both devices; a switch receives on pins 1 & 2, and transmits on 3 & 6. A router does the opposite, transmitting on pins 1 & 2 and receiving on 3 & 6. Conventionally, a router to switch is always a straight-through. Crossover is only for similar devices, such as connecting multiple switches together, or connecting two routers together. If we assume the question is just asking us what cable type we need to connect a switch and router together, the answer is invariably a straight-through cable. However, if we are supposed to assume the given criteria apply to *both* devices, then the answer is of course a crossover. I'll assume Cisco isn't asking us to envision such a bizarre parallel reality. D it is.
Source: Adapted from community discussion — [Removed]
Permanent link to question 224 Report an issue
Question 225 · 1334 in bank
Which protocol does a REST API use to communicate?
Show answer
Answer: D
Permanent link to question 225 Report an issue
Question 226 · 1334 in bank
Which interface on the WLC is limited to one when LAG is in use?
Show answer
Answer: D
Explanation
D is correct. When you enable LAG, you can configure only one AP-manager interface because only one logical port is needed. LAG removes the requirement for supporting multiple AP-manager interfaces. https://community.cisco.com/t5/wireless-mobility-knowledge-base/lag-link-aggregation/ta-p/3128669
Source: Adapted from community discussion — bada32
References
cisco.com documentation
Permanent link to question 226 Report an issue
Question 227 · 1334 in bank

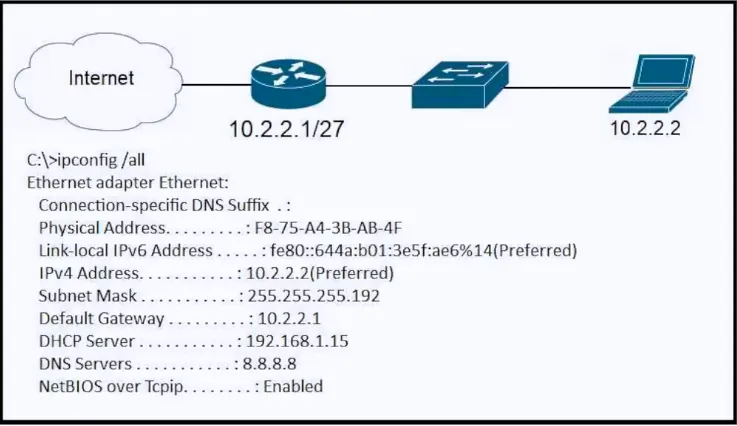

Refer to the exhibit. A newly configured PC fails to connect to the internet by using TCP port 80 to www.cisco.com. Which setting must be modified for the connection to work?
Show answer
Answer: A
Explanation
The answer is probably a Subnet mask. But with this configuration on the PC, you should have internet connectivity, regardless of the subnet mask not matching.
Source: Adapted from community discussion — ricky1802
Permanent link to question 227 Report an issue
Question 228 · 1334 in bank
Which fact must the engineer consider when implementing syslog on a new network?
Show answer
Answer: C
Explanation
0 - Emergency 1 - Alert 2 - Critical 3 - Warning 4 - Event 5 - Warning 6 - Notice 7 - Information 8 - Debug Emergencies Are Critical Even When No-one Is Dying (This helps me memorize the levels)
Source: Adapted from community discussion — sy0_061
Permanent link to question 228 Report an issue
Question 229 · 1334 in bank
In what way does a network supervisor reduce maintenance costs while maintaining network integrity on a traditionally managed network?
Show answer
Answer: C
Explanation
Answer is C C. They use automation to centralize network-management tasks.** This approach reduces maintenance costs and maintains network integrity by streamlining and automating repetitive tasks.
Source: Adapted from community discussion — [Removed]
Permanent link to question 229 Report an issue
Question 230 · 1334 in bank

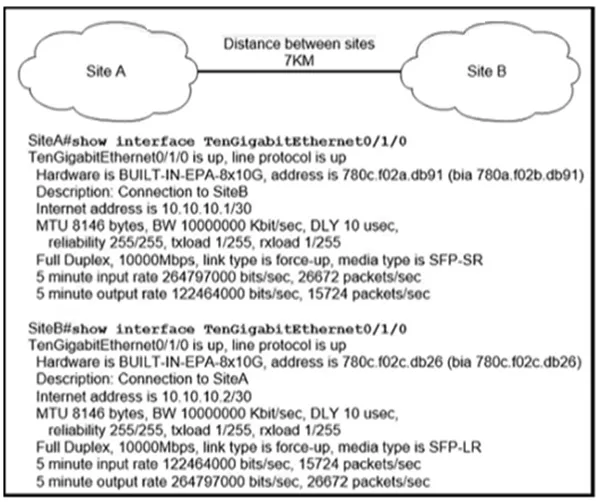

Refer to the exhibit. Site A was recently connected to site B over a new single-mode fiber path. Users at site A report intermittent connectivity issues with applications hosted at site B. What is the reason for the problem?
Show answer
Answer: D
Explanation
D is correct. The -SR stands for a short reach transceiver and is used for short range applications up to 300 meters, while the -LR can achieve up to 10km
Source: Adapted from community discussion — Bonesaw
Permanent link to question 230 Report an issue
