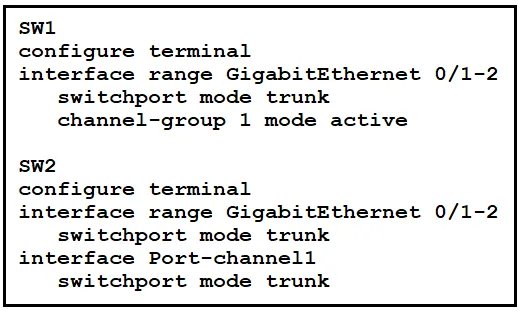

Refer to the exhibit. An LACP EtherChannel between two directly connected switches is in the configuration process. Which command must be configured on switch SW2s Gi0/1-2 interfaces to establish the channel to SW1?
Answer: C
Refer to the exhibit. An administrator must connect SW_1 and the printer to the network. SW_2 requires DTP to be used for the connection to SW_1. The printer is configured as an access port with VLAN 5. Which set of commands completes the connectivity?
Answer: C
* SW2 Et0/2 is configured with dynamic auto mode. Interface (Et0/2) of SW1 should be configured in either trunk or dynamic desirable mode to establish a trunk link. * The "Pruning VLAN" command is the opposite of the "allowed VLAN" command, it excludes certain VLANs from being allowed on a trunk link. Option A is incorrect, mode can't be auto Option B is incorrect, mode is correct, but "switchport allowed vlan add 5" command should be used instead. Option C is correct option D is incorrect. The mode must be set to dynamic desirable or trunk
Source: Adapted from community discussion — AbdullahMohammad251
Refer to the exhibit. Which per-hop QoS behavior is R1 applying to incoming packets?
Answer: C
After revisiting this, I think queuing is probably the most appropriate: 1. The packets arrive simultaneously on G0/0. 2. The packets are placed into individual queues. 3. The packets are removed from their queues, in an order dictated by the underlying queue mechanism, which *isn't necessarily dependent on their priority*. For example: "WFQ places packets of the various conversations in the fair queues before transmission. The order of removal from the fair queues is determined by the virtual time of the delivery of the last bit of each arriving packet. " https://content.cisco.com/chapter.sjs?uri=/searchable/chapter/content/en/us/td/docs/ios-xml/ios/qos_conmgt/configuration/xe-17/qos-conmgt-xe-17-book/qos-conmgt-oview.html.xml So it's probably C, queuing.
Source: Adapted from community discussion — [Removed]
What is the role of the root port in a switched network?
Answer: C
What is the temporary state that switch ports always enter immediately after the boot process when Rapid PVST+ is used?
Answer: D
When Rapid PVST+ is used, switch ports always enter the blocking state immediately after the boot process 1. The blocking state is the first of the five possible port states in the Rapid PVST+ protocol. In this state, the port does not forward frames but listens to BPDUs to determine the location of the root bridge and the best path to reach it 12. After a port enters the blocking state, it transitions to the listening state and then to the learning state before finally entering the forwarding state. When Rapid PVST+ (Per-VLAN Spanning Tree Plus) is used, switch ports go through a specific state immediately after the boot process. This state is known as the "discarding" state. So, the correct answer is: D. discarding
Source: Adapted from community discussion — Ayo_Sam
What is used to identify spurious DHCP servers?
Answer: D
"You can detect spurious DHCP servers by sending dummy DHCPDISCOVER packets out to all of the DHCP servers so that a response is sent back to the switch." Ref: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst6500/ios/15-4SY/config_guide/sup6T/15_3_sy_swcg_6T/dhcp_snooping.html Under Section: Trusted and Untrusted Sources D is correct
Source: Adapted from community discussion — cedc60e

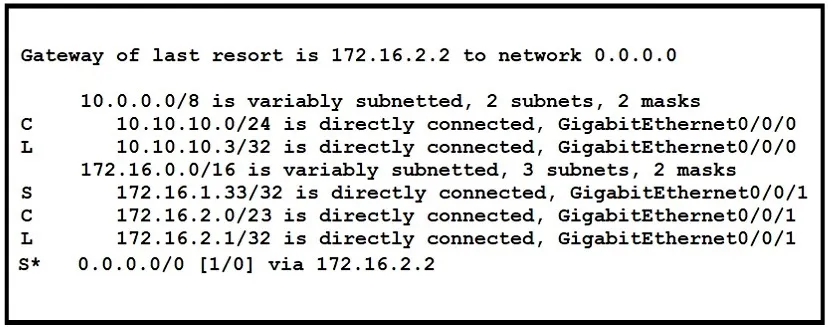

Refer to the exhibit. A packet sourced from 10.10.10.1 is destined for 172.16.3.254. What is the subnet mask of the destination route?
Answer: B
Seems people are confused. Let's break it down: There's only one subnet that potentially matches (the /23); the other two are host routes and since they don't match the destination they're automatically excluded. First, break the last 2 octets of the IPv4 address into binary: 172.16.3.254 -> 172.16.[00000011].[11111110] Then, do the same for the network address: 172.16.2.0 -> 172.16.[00000010].[00000000] The prefix-length is /23, meaning the first 2 octets + the first 7 bits of the third octet need to match, which they do. So, the packet takes this route. A /23 prefix-length is equivalent to a 255.255.254.0 subnet mask, which is B.
Source: Adapted from community discussion — [Removed]
What is the role of disaggregation in controller-based networking?
Answer: A
Disaggregation in controller-based networking refers to the separation or division of control-plane and data-plane functions in a network architecture. In traditional networking, these functions are often tightly integrated into single devices like routers or switches. However, with disaggregation, the control-plane functions, responsible for making routing decisions and maintaining network information, are centralized in a controller, while the data-plane functions, which handle actual data forwarding, are distributed across the network devices.
Source: Adapted from community discussion — Cynthia2023

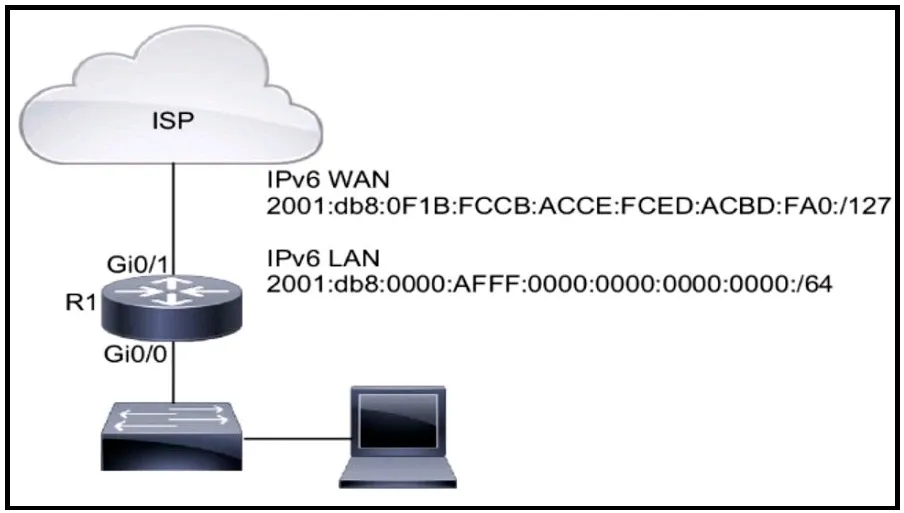

Refer to the exhibit. IPv6 must be implemented on R1 to the ISP. The uplink between R1 and the ISP must be configured with a manual assignment, and the LAN interface must be self-provisioned. Both connections must use the applicable IPv6 networks. Which two configurations must be applied to R1? (Choose two.)
Answer: BE
I did not understood why it's E at start because i was thinking ok IPv6 we got Hexazecimal so my last Hex can have 15 values 0 - 9 A -F but that would mean 16 bits , in a /127 we only have the last Bit for host portion so it can only be 0 or 1 , that's why A and C are wrong because FA02 and FA03 are not in our range . FA00 FA01 would be in our /127 , we can only have 2 possible host address .
Source: Adapted from community discussion — matass_md

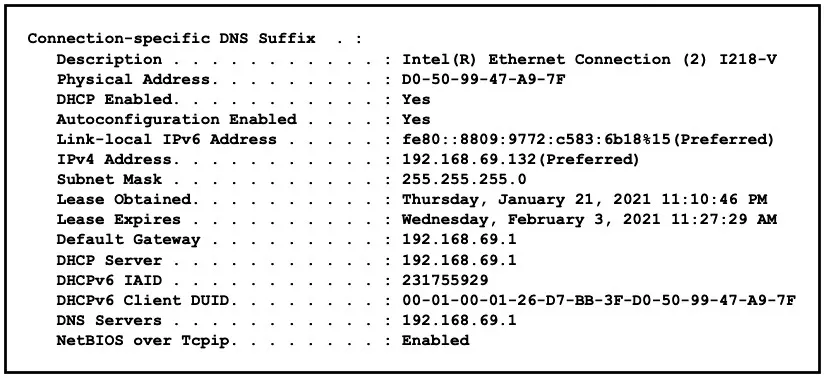

Refer to the exhibit. What does the host do when using the IPv4 Preferred function?
Answer: B
Yes, correct. Answer is B. **It requests the same IPv4 address when it renews its lease with the DHCP server.** When a host is configured with the IPv4 Preferred function, it indicates to the DHCP server that it prefers to keep the same IPv4 address when renewing its lease. This is part of the DHCP (Dynamic Host Configuration Protocol) process, where a host requests to retain its current IP address when the lease is up for renewal.
Source: Adapted from community discussion — 16BitRun
