200-301 practice questions 191–200

1. Question 191 · 1334 in bank

   A network architect is deciding whether to implement Cisco autonomous access points or lightweight access points. Which fact about firmware updates must the architect consider?

   • AUnlike lightweight access points, which require redundant WLCs to support firmware upgrades, autonomous access points require only one WLC.
   • BUnlike autonomous access points, lightweight access points require a WLC to implement remote firmware updates.
   • CUnlike lightweight access points, autonomous access points can recover automatically from a corrupt firmware update.
   • DUnlike autonomous access points, lightweight access points store a complete copy of the current firmware for backup.

   Show answer

   Answer: B

   Explanation

   You might find this note interesting: To change a Cisco Access Point (AP) from lightweight mode to autonomous mode, you need to perform a firmware update. Here’s a general outline of the steps involved: Download the correct autonomous firmware from the Cisco website for your specific AP model. Connect to the AP using a console cable. Set up a TFTP server on your computer and ensure it can communicate with the AP. Use the AP’s console interface to configure the AP with a static IP address, subnet mask, and default gateway that matches your network configuration. Use the archive download-sw command on the AP to download and install the autonomous firmware from the TFTP server. After the firmware is installed, the AP will restart, and you should be able to log in and verify that it is now running in autonomous mode by checking the version information.

   Source: Adapted from community discussion — lmmujsi

   Next question

2. Question 192 · 1334 in bank

   What is the role of SNMP in the network?

   • Ato monitor and manage network devices using a UDP underlay that operates on the application layer
   • Bto collect data directly from network devices using an SSL underlay that operates on the transport layer
   • Cto monitor network devices and functions using a TCP underlay that operates on the presentation layer
   • Dto collect telemetry and critical information from network devices using an SSH underlay that operates on the network layer

   Show answer

   Answer: A

   Explanation

   Remember, SNMP operates primarily over UDP port 161/162 and is used to monitor the network, detect faults, and configure remote devices

   Source: Adapted from community discussion — lmmujsi

   Next question

3. Question 193 · 1334 in bank

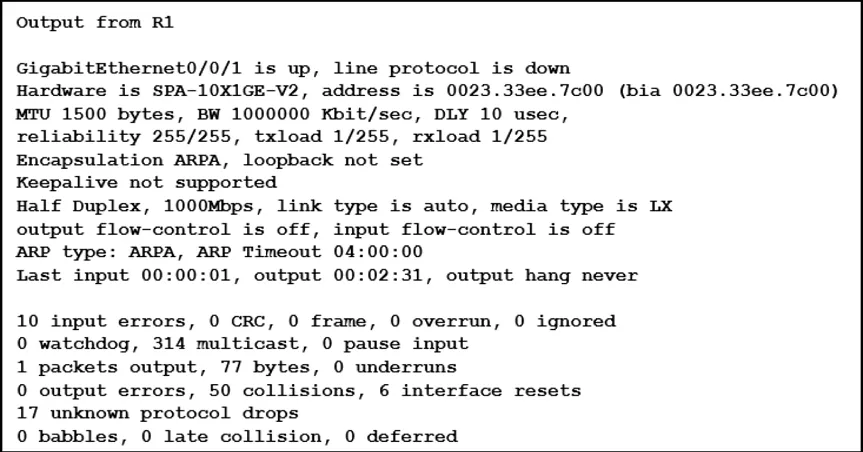

   Refer to the exhibit. What is the issue with the interface GigabitEthernet0/0/1?

   • Aport security
   • Bcable disconnect
   • Chigh throughput
   • Dduplex mismatch

   Show answer

   Answer: D

   Explanation

   A. Port security: There’s no indication that port security is causing the issue. B. Cable disconnect: The interface is up, so the cable is likely connected. If the cable were disconnected, the interface would likely be down. C. High throughput: There’s no indication of high throughput issues; the output rate is low. D. Duplex mismatch: The interface is set to half-duplex, which is unusual for a Gigabit Ethernet connection (which typically runs in full-duplex). The presence of collisions also suggests a duplex mismatch, as collisions are common in half-duplex environments when one side is configured incorrectly. Based on the provided information and the common symptoms of duplex mismatches (e.g., collisions, line protocol down), the most likely issue with the interface GigabitEthernet0/0/1 is: D. Duplex mismatch

   Source: Adapted from community discussion — KAM2023

   Next question

4. Question 194 · 1334 in bank

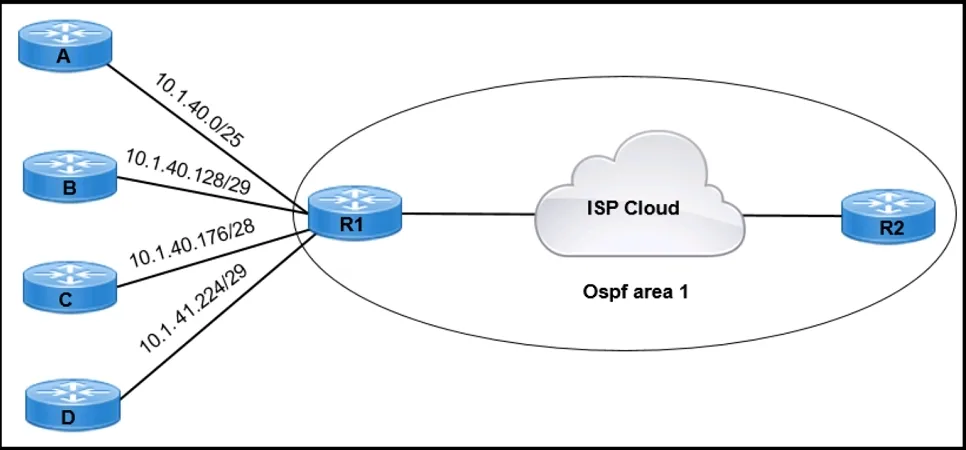

   Refer to the exhibit. Router R1 receives static routing updates from routers A, B, C, and D. The network engineer wants R1 to advertise static routes in OSPF area 1. Which summary address must be advertised in OSPF?

   • A10.1.41.0/25
   • B10.1.40.0/24
   • C10.1.40.0/25
   • D10.1.40.0/23

   Show answer

   Answer: D

   Explanation

   D is correct 10.1.40.0/25 covers addresses from 10.1.40.0 to 10.1.40.127 10.1.40.128/29 covers addresses from 10.1.40.128 to 10.1.40.135 10.1.40.176/28 covers addresses from 10.1.40.176 to 10.1.40.191 10.1.41.224/29 covers addresses from 10.1.41.224 to 10.1.41.231 The longest prefix that covers all the given routes is /23. This means that the summarized address should cover the range from 10.1.40.0 to 10.1.41.255

   Source: Adapted from community discussion — [Removed]

   Next question

5. Question 195 · 1334 in bank

   An on-site service desk technician must verify the IP address and DNS server information on a user’s Windows computer. Which command must the technician enter at the command prompt on the user’s computer?

   • Ashow interface
   • Bipconfig /all
   • Cnetstat -r
   • Difconfig -a

   Show answer

   Answer: B

   Explanation

   B is correct This command displays detailed information about the computers IP configuration, default gateway, DHCP server, DNS server, and more.

   Source: Adapted from community discussion — [Removed]

   Next question

6. Question 196 · 1334 in bank

   DRAG DROP -

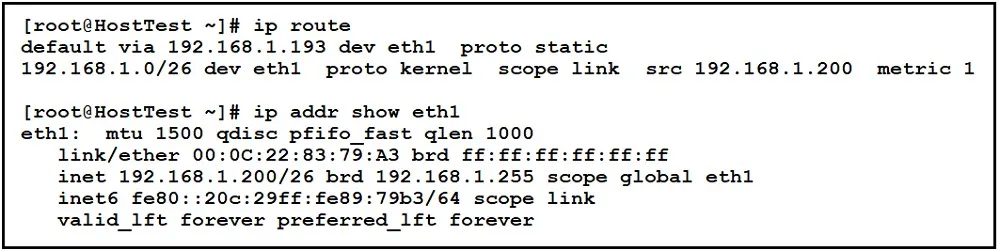

   Refer to the exhibit. Drag and drop the networking parameters from the left onto the correct values on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   The ג€ip routeג€ and ג€ip addr show eth1ג€ are Linux commands. ג€¢ ג€ip routeג€: display the routing table ג€¢ ג€ip addr show eth1ג€: get depth information (only on eth1 interface) about your network interfaces like IP Address, MAC Address information

   Source: Adapted from community discussion — christian321



   Next question

7. Question 197 · 1334 in bank

   What is a characteristic of a SOHO network?

   • Aincludes at least three tiers of devices to provide load balancing and redundancy
   • Bconnects each switch to every other switch in the network
   • Cenables multiple users to share a single broadband connection
   • Dprovides high throughput access for 1000 or more users

   Show answer

   Answer: C

   Explanation

   SOHO stands for Small Office/Home Office, and a SOHO network refers to a network set up for a small office or home environment. It typically consists of a few computers, printers, and other devices connected together to allow for local file sharing, internet access, and other networking needs. A SOHO network can be set up using wired or wireless connections and can include a router, switch, and/or access point to manage the network and control access to resources. The main goal of a SOHO network is to provide a simple and cost-effective solution for small businesses or home users to connect their devices and share resources.

   Source: Adapted from community discussion — ricky1802

   References

   • Cisco documentation

   Next question

8. Question 198 · 1334 in bank

   Which type of IPv4 address must be assigned to a server to protect it from external access and allow only internal users access while restricting internet access?

   • Aprivate
   • Bpublic
   • Cglobal unicast
   • Dmulticast

   Show answer

   Answer: A

   Explanation

   It must be A and this is the last question. I'm so bored. 225 incorrect ansswer of 1200 questions. Now I have to fix them :)

   Source: Adapted from community discussion — [Removed]

   Next question

9. Question 199 · 1334 in bank

   What differentiates the Cisco OfficeExtend AP mode from the Cisco FlexConnect AP mode?

   • AFlexConnect allows a personal SSID to be configured on the AP, and personal SSIDs are not supported with OfficeExtend.
   • BOfficeExtend does not support DTLS tunneling of traffic to the WLC, and FlexConnect tunnels traffic to the WLC with DTLS.
   • CFlexConnect must be deployed behind a router that NATs the client traffic, and OfficeExtend uses public IP sources.
   • DOfficeExtend mode requires indoor APs with internal antennas, and indoor and outdoor APs use FlexConnect mode.

   Show answer

   Answer: D

   Explanation

   A wrong : All OfficeExtend access points should be in the same access point group, and that group should contain no more than 15 WLANs. A controller with OfficeExtend access points in an access point group publishes only up to 15 WLANs to each connected OfficeExtend access point because it reserves one WLAN for the personal SSID. B wrong: Datagram Transport Layer Security (DTLS) encryption between the access point and the controller ensures that all communications have the highest level of security. DTLS is permanently enabled on the Cisco OEAP. You cannot disable DTLS on this access point. C worng: Cisco OEAPs are designed to work behind a router or other gateway device that is using network address translation (NAT). D correct: The OfficeExtend AP feature is supported on all internal antenna AP models. https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-1/configuration-guide/b_cg81/configuring_officeextend_access_points.html

   Source: Adapted from community discussion — [Removed]

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

10. Question 200 · 1334 in bank



    Refer to the exhibit. A network engineer is configuring a WLAN to connect with the 172.16.10.0/24 network on VLAN 20. The engineer wants to limit the number of devices that connect to the WLAN on the USERWL SSID to 125. Which configuration must the engineer perform on the WLC?

    • AIn the Controller IPv6 configuration, set the Throttle value to 125.
    • BIn the WLAN configuration, set the Maximum Allowed Clients value to 125.
    • CIn the Management Software activation configuration, set the Clients value to 125.
    • DIn the Advanced configuration, set the DTIM value to 125.

    Show answer

    Answer: B

    References

    • Cisco documentation

    Next question
