200-301 practice questions 161–170

1. Question 161 · 1334 in bank

   Select 2

   What are two characteristics of an SSID? (Choose two.)

   • AIt uniquely identifies a client in a WLAN.
   • BIt is at most 32 characters long
   • CIt uniquely identifies an access point in a WLAN
   • DIt provides secured access to a WLAN.
   • EIt can be hidden or broadcast in a WLAN.

   Show answer

   Answer: BE

   Explanation

   Agree with B, E https://www.cisco.com/c/en/us/td/docs/wireless/access_point/1300/12-2_15_JA/configuration/guide/o13ssid.html States they contain up to 32 alphanumeric characters which supports B. States multiple access points can use the same SSID so C is wrong. The OCG on page 681 explains that an SSID can be broadcast or hidden by checking the "Broadcast SSID" checkbox.

   Source: Adapted from community discussion — DixieNormus

   References

   • Cisco documentation

   Next question

2. Question 162 · 1334 in bank

   What is represented by the word "ge3/36" within this JSON schema?



   • Avalue
   • Barray
   • Cobject
   • Dkey

   Show answer

   Answer: A

   Next question

3. Question 163 · 1334 in bank

   Which SNMP message type is reliable and precedes an acknowledgment response from the SNMP manager?

   • AGet
   • BInform
   • CTraps
   • DSet

   Show answer

   Answer: B

   Explanation

   From the official cert guide: Inform messages are like Trap messages but with reliability added. Added to the protocol with SNMP Version 2 (SNMPv2), Informs still use UDP but add application layer reliability. The NMS must acknowledge receipt of the Inform with an SNMP Response message, or the SNMP agent will time out and resend the Inform. The answer is B.

   Source: Adapted from community discussion — NewJeans

   Next question

4. Question 164 · 1334 in bank

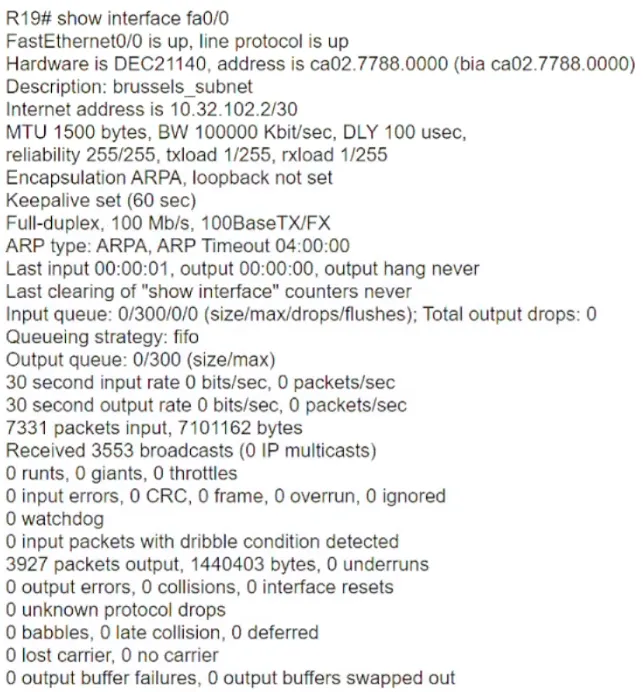

   Which interface condition is occurring in this output?



   • Acollisions
   • Bbad NIC
   • Cduplex mismatch
   • Dbroadcast storm

   Show answer

   Answer: B

   Explanation

   How is anyone saying broadcast storm?? Input errors, CRC errors, frame errors, overrun, dropped packets all 0 and not even high utilization...if the question is adamant about an issue which we can't perceive from "show int g0/0" command then it's prob just a bad NIC

   Source: Adapted from community discussion — exiledwl

   Next question

5. Question 165 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

6. Question 166 · 1334 in bank

   Which interface is used to send traffic to the destination network?



   • AF0/9
   • BF0/16
   • CF0/7
   • DF0/24

   Show answer

   Answer: A

   Next question

7. Question 167 · 1334 in bank

   What is represented by the word "firewall" within this JSON schema?



   • Avalue
   • Bkey
   • Cobject
   • Darray

   Show answer

   Answer: B

   Next question

8. Question 168 · 1334 in bank

   When a switch receives a frame for a known destination MAC address, how is the frame handled?

   • Aflooded to all ports except the one from which it originated
   • Bforwarded to the first available port
   • Csent to the port identified for the known MAC address
   • Dbroadcast to all ports

   Show answer

   Answer: C

   Explanation

   erm, actually A would be wrong too because the switch would forward it to all ports in the same vlan exept the one it came from🤓☝️.

   Source: Adapted from community discussion — Algiopada1

   Next question

9. Question 169 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the IPv6 address type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

10. Question 170 · 1334 in bank

    DRAG DROP - Drag and drop the IPv6 address from the left onto the type on the right.



    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

    Show the answer figure

    Answer: See figure below



    Next question
