Question 111 · 1334 in bank

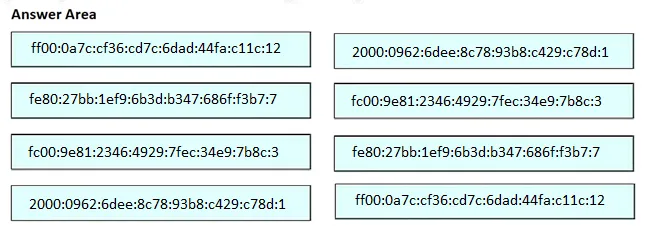

DRAG DROP - Drag and drop the IPv6 address from the left onto the type on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
Answers are correct. Global Unicast Address: 2000::/3 (2000 to 3FFF) Link-Local Address: FE80::/10. Unique Local Address: FC00::/7 or FD00::/8. Multicast addresses: FF00::/8.
Source: Adapted from community discussion — NeoSam999
Permanent link to question 111 Report an issue
Question 112 · 1334 in bank

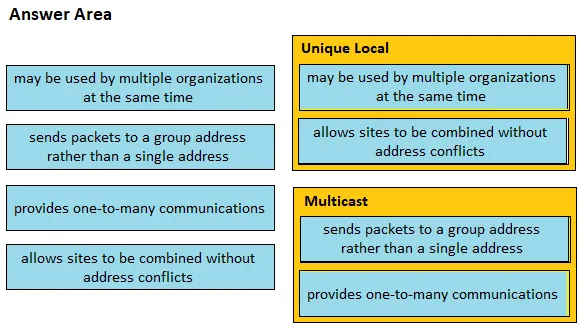

DRAG DROP - Drag and drop the characteristic from the left onto the IPv6 address type on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Permanent link to question 112 Report an issue
Question 113 · 1334 in bank

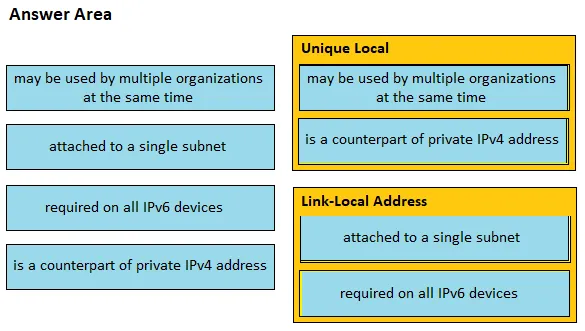

DRAG DROP - Drag and drop the characteristic from the left onto the IPv6 address type on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Permanent link to question 113 Report an issue
Question 114 · 1334 in bank
What is a characteristic of an SSID in wireless networks?
Show answer
Answer: D
Explanation
The answer could be A or D because while it does help with security it not specific defining characteristic of it. Really I go with D because that more of a characteristic
Source: Adapted from community discussion — Bhrino
Permanent link to question 114 Report an issue
Question 115 · 1334 in bank
What is a characteristic of encryption in wireless networks?
Show answer
Answer: C
Explanation
A. Incorrect. This is an SSID. B. Incorrect. This doesn't describe encryption, something that uses a password to connect to an access point is a client. So it's C or D. I don't think it's D because encryption doesn't "use authentication protocols", that's something like 802.1x. Which leaves us with C; but this isn't really a good description of encryption either. Still, I think it's the right answer. Why? Because Cisco refers to *cryptographic protocols* CCMP and GCMP as simply "encryption". These protocols involve integrity checks; CBC-MAC and GMAC respectively. Sources: https://www.cisco.com/c/en/us/support/docs/wireless/catalyst-9800-series-wireless-controllers/220712-configure-and-verify-wi-fi-6e-wlan-layer.html#toc-hId-394597201 https://en.wikipedia.org/wiki/Galois/Counter_Mode https://en.wikipedia.org/wiki/CCMP_(cryptography)
Source: Adapted from community discussion — [Removed]
References
Cisco documentation
Permanent link to question 115 Report an issue
Question 116 · 1334 in bank
What provides centralized control of authentication and roaming in an enterprise network?
Show answer
Answer: B
Explanation
The correct answer to the question "What provides centralized control of authentication and roaming in an enterprise network?" is B - a wireless LAN controller. A wireless LAN (Local Area Network) controller (WLC) is a device that provides centralized control and management of multiple wireless access points (APs) in a wireless network . It is responsible for configuring and monitoring the access points, managing the wireless traffic, and providing security protocols such as authentication and encryption. The WLC also enables seamless roaming between the access points without the need for reauthentication, as it maintains a centralized database of user credentials and authentication information. Therefore, in an enterprise network, a wireless LAN controller provides centralized control of authentication and roaming for wireless clients .
Source: Adapted from community discussion — dearc
Permanent link to question 116 Report an issue
Question 117 · 1334 in bank

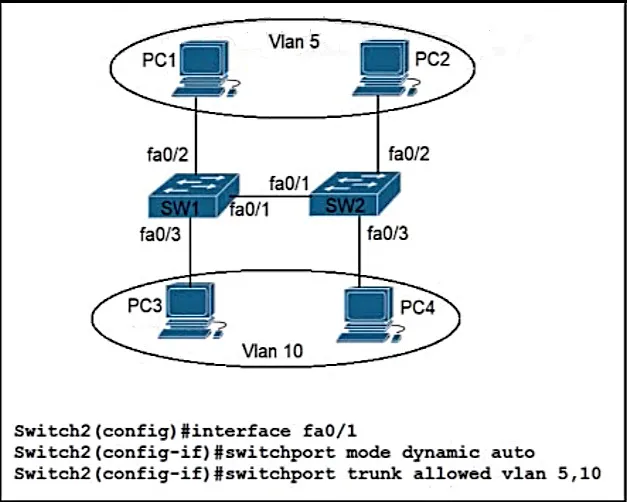

Refer to the exhibit. SW2 is replaced because of a hardware failure. A network engineer starts to configure SW2 by copying the fa0/1 interface configuration from SW1. Which command must be configured on the fa0/1 interface of SW2 to enable PC1 to connect to PC2?
Show answer
Answer: A
Permanent link to question 117 Report an issue
Question 118 · 1334 in bank

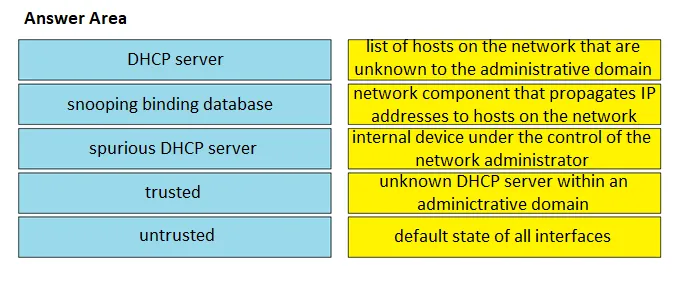

DRAG DROP - Drag and drop the DHCP snooping terms from the left onto the descriptions on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
is there a typo with "list of hosts on a network that are UNKNOWN to the admin domain" shouldn't these be known if the matching attribute is "snooping binding database". To my understanding the snooping binding database tracks legitimate ip-mac relationships
Source: Adapted from community discussion — exiledwl
References
Cisco documentation
Permanent link to question 118 Report an issue
Question 119 · 1334 in bank

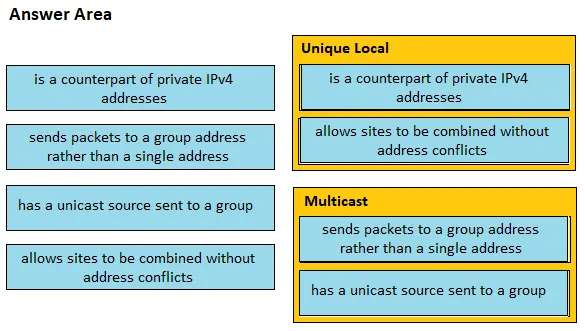

DRAG DROP - Drag and drop the characteristic from the left onto the IPv6 address type on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
Answer is correct Ip v6 (unicast address) = Ip v4 (private addresses) meaning there will be no problems with over lapping ips with different networks
Source: Adapted from community discussion — Bhrino
Permanent link to question 119 Report an issue
Question 120 · 1334 in bank
DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Show the answer figure
Answer: See figure below
Explanation
answer is correct a single mode goes further because its one light and doesn't get reflected or distorted while with multimode while cheaper with the extra lights after a certain range can get weaker
Source: Adapted from community discussion — Bhrino
Permanent link to question 120 Report an issue
