200-301 practice questions 151–160

1. Question 151 · 1334 in bank

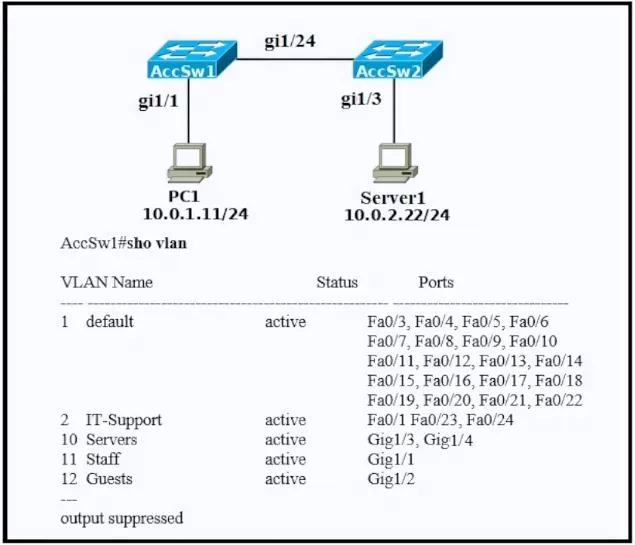

   Refer to the exhibit. The engineer configured the VLANs on the new AccSw2 switch. A router-on-a-stick is connected to both switches. How must the ports be configured on AccSw2 to establish full connectivity between the two switches and for Server1?

   • Ainterface GigabitEthernet1/1 switchport access vlan 11 ! interface GigabitEthernet1/24 switchport mode trunk switchport trunk allowed vlan 10,11
   • Binterface GigabitEthernet1/3 switchport mode access switchport access vlan 10 ! interface GigabitEthernet1/24 switchport mode trunk switchport trunk allowed vlan 2,10
   • Cinterface GigabitEthernet1/3 switchport mode access switchport access vlan 10 ! interface GigabitEthernet1/24 switchport mode trunk
   • Dinterface GigabitEthernet1/1 switchport mode access switchport access vlan 11 ! interface GigabitEthernet1/24 switchport mode trunk

   Show answer

   Answer: C

   Explanation

   This question only ask for the config of ports in AccSw2 to establish full conn between 2 switches and server1 Answer A. is wrong, because int Gig1/1 is in AccSw1. "switchport mode access" is also missing in the int Gig1/1 config. Answer B. is wrong Also, keep an eye that Gig1/1 is in vlan 11 (staff) so switchport trunk allowed vlan "11",10 not vlan 2 Answer C. correct and make sense since only 2 switches and Server1 need to establish full connectivity. But for best practices, we shall include "switchport trunk allowed vlan 11,10" Answer D. is wrong also because AccSw2 is need to config. But for Accsw1 perspective the config is correct. Hope this things clarify for the newbie like me :)

   Source: Adapted from community discussion — JomButler

   Next question

2. Question 152 · 1334 in bank

   A network engineer must implement an IPv6 configuration on the vlan 2000 interface to create a routable locally-unique unicast address that is blocked from being advertised to the internet. Which configuration must the engineer apply?

   • Ainterface vlan 2000 ipv6 address ff00:0000:aaaa::1234:2343/64
   • Binterface vlan 2000 ipv6 address fd00::1234:2343/64
   • Cinterface vlan 2000 ipv6 address fe80:0000:aaaa::1234:2343/64
   • Dinterface vlan 2000 ipv6 address fc00:0000:aaaa::a15d:1234:2343:8aca/64

   Show answer

   Answer: B

   Explanation

   Unique local addresses use prefix fc00::/7. The first bit following the prefix indicates, if set, that the address is locally assigned. This splits the address block in two equally sized halves, fc00::/8 and fd00::/8. The block with L = 0, fc00::/8, is currently not defined.[1] It has been proposed that an allocation authority manage it, but this has not gained acceptance in the IETF.[8][9][10] The block with L = 1, fd00::/8 follows the following format. https://en.wikipedia.org/wiki/Unique_local_address#:~:text=unique%20local%20addresses.-,Definition,8%20and%20fd00%3A%3A%2F8. SO, Unique Local Addresses (ULAs) are defined in RFC 4193, and the prefix range for ULA is indeed fd00::/8 to fdff::/8.

   Source: Adapted from community discussion — Cynthia2023

   References

   • RFC Editor

   Next question

3. Question 153 · 1334 in bank

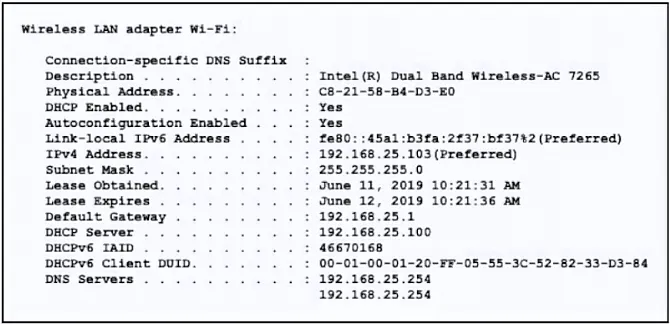

   Refer to the exhibit. Which address will the client contact to renew their IP address when the current lease expires?

   • A192.168.25.103
   • B192.168.25.1
   • C192.168.25.100
   • D192.168.25.254

   Show answer

   Answer: C

   Next question

4. Question 154 · 1334 in bank

   DRAG DROP - Drag and drop the characteristic from the left onto the cable type on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

5. Question 155 · 1334 in bank

   How is a configuration change made to a wireless AP in lightweight mode?

   • ASSH connection to the management IP of the AP
   • BCAPWAP/LWAPP connection via the parent WLC
   • CEoIP connection via the parent WLC
   • DHTTPS connection directly to the out-of-band address of the AP

   Show answer

   Answer: B

   Next question

6. Question 156 · 1334 in bank

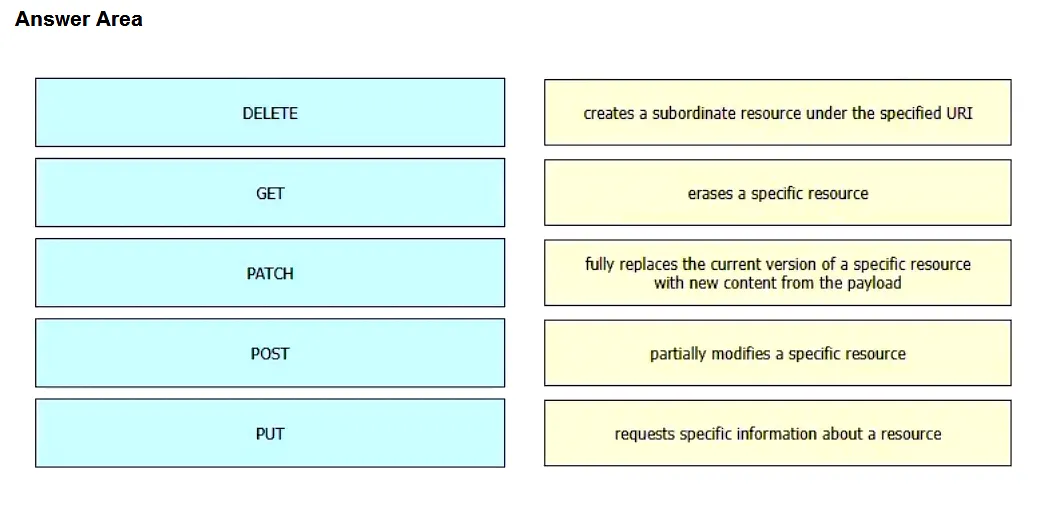

   DRAG DROP - Drag and drop the HTTP verbs from the left onto the API operations on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

7. Question 157 · 1334 in bank

   Which plane is centralized in software-defined networking?

   • Aapplication
   • Bservices
   • Cdata
   • Dcontrol

   Show answer

   Answer: D

   Explanation

   ChatGPT answer's So, the correct answer is: D. control The control plane in SDN is responsible for making decisions about how network traffic should be forwarded and configuring the network devices accordingly. It centralizes the control and management of network resources, allowing for dynamic and programmable network management, traffic optimization, and the implementation of network policies. This separation of the control plane from the data plane (which is responsible for actually forwarding packets) is a key concept in SDN and enables greater flexibility and agility in network management.

   Source: Adapted from community discussion — picho707

   Next question

8. Question 158 · 1334 in bank

   What is a service that is provided by a wireless controller?

   • AIt mitigates threats from the internet.
   • BIt manages interference in a dense network.
   • CIt provides Layer 3 routing between wired and wireless devices.
   • DIt issues IP addresses to wired devices.

   Show answer

   Answer: B

   Explanation

   answer A is the role of a firewall....the kind of security offered by a controller is for threats from clients within the wlans.

   Source: Adapted from community discussion — kalitwol

   Next question

9. Question 159 · 1334 in bank

   When more than one AP-Manager interface is provisioned on a wireless LAN controller, how is the request handled by the AP?

   • AThe discovery response from the AP to the AP-Manager interface disables the WLAN port.
   • BThe AP join request fails and must be configured statically on the AP-Manager interface.
   • CThe AP-Manager with the fewest number of APs is used by the AP to join.
   • DThe first AP-Manager interface to respond is chosen by the AP.

   Show answer

   Answer: C

   Explanation

   "Before an access point joins a controller, it sends out a discovery request. From the discovery response that it receives, the access point can tell the number of AP-manager interfaces on the controller and the number of access points on each AP-manager interface. The access point generally joins the AP-manager with the least number of access points. In this way, the access point load is dynamically distributed across the multiple AP-manager interfaces. " Source: https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-4/configuration/guides/consolidated/b_cg74_CONSOLIDATED/m_configuring_multiple_ap_manager_interfaces.html

   Source: Adapted from community discussion — [Removed]

   References

   • Cisco documentation
   • Cisco documentation
   • cisco.com documentation

   Next question

10. Question 160 · 1334 in bank

    What is represented in line 2 within this JSON schema?



    • Aobject
    • Bvalue
    • Ckey
    • Darray

    Show answer

    Answer: A

    Next question
