Question 1181 · 1334 in bank
When a switch receives a frame from an unknown source MAC address, which action does the switch take with the frame?
Show answer
Answer: C
200-301AssociateCiscoAll questions freePage 119 of 134
200-301 practice questions 1,181–1,190
Cisco Certified Network Associate (CCNA)1,334 questions across 134 pages are complete and free, with no account or card.
Official study references
1334 questions in this bank
Free access · progress saved on this device
Question 1182 · 1334 in bank
When the LAG configuration is updated on a Cisco WLC, which additional task must be performed when changes are complete?
Show answer
Answer: A
References
Question 1183 · 1334 in bank

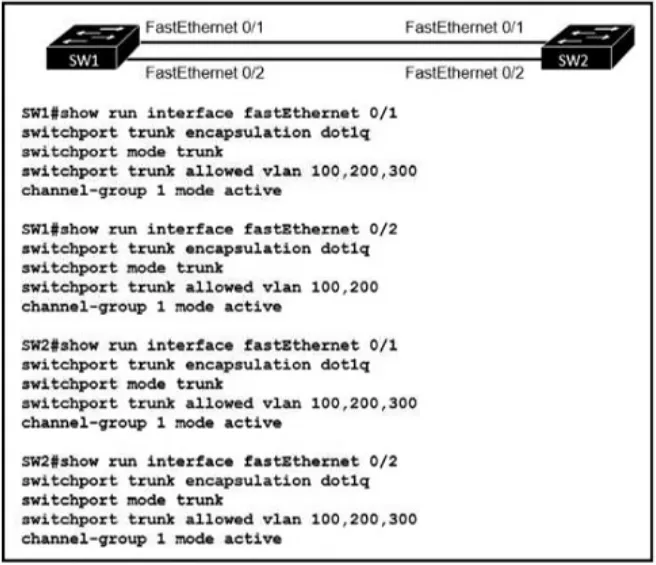

Refer to the exhibit. An engineer ts building a new Layer 2 LACP EtherChannel between SW1 and SW2, and they executed the given show commands to verify the work. Which additional task must be performed so that the switches successfully bundle the second member in the LACP port-channel?
Show answer
Answer: C
Explanation
Wrong, if we do switchport trunk allowed vlan 300 that replaces the previous allowed vlans so they are no longer allowed. You have to "add" vlan 300
Source: Adapted from community discussion — oatmealturkey
Question 1184 · 1334 in bank
What is the maximum bandwidth of a T1 point-to-point connection?
Show answer
Answer: A
Explanation
a T1 link supports 1.544 Mbps, an E1 supports 2.048 Mbps, a T3 supports 43.7 Mbps, and an E3 connection supports 34.368 Mbps. Optical Carrier (OC) transmission rates are used to define the digital transmitting capacity of a fiber-optic network.
Source: Adapted from community discussion — Yasin_Alsabah
Question 1185 · 1334 in bank

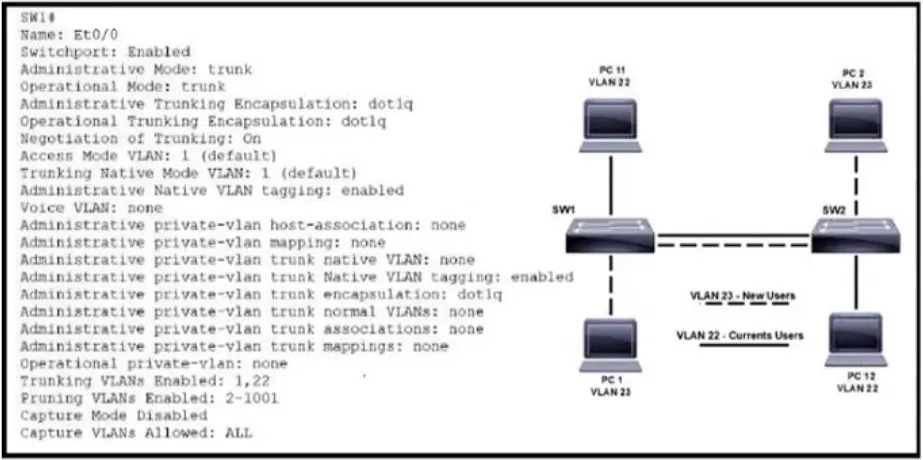

Refer to the exhibit. VLAN 23 is being implemented between SW1 and SW2. The command show interface ethernet0/0 switchport has been issued on SW1. Ethernet0/0 on SW1 is the uplink to SW2. Which command when entered on the uplink interface allows PC 1 and PC 2 to communicate without impact to the communication between PC 11 and PC 12?
Show answer
Answer: C
Explanation
Answer is C, we need to 'add' vlan 23 to the already existing 1 & 22 vlan trunk. All the other answers will overwrite the allowed vlan range.
Source: Adapted from community discussion — no_blink404
References
Question 1186 · 1334 in bank
A network engineer starts to implement a new wireless LAN by configuring the authentication server and creating the dynamic interface. What must be performed next to complete the basic configuration?
Show answer
Answer: A
Explanation
The correct answer is A because after configuring the authentication server and creating the dynamic interface, the next step in configuring a new WLAN is to create the WLAN and bind the dynamic interface to it. This will allow the wireless clients to connect to the WLAN and authenticate using the configured authentication server. Configuring high availability and redundancy for the access points, enabling Telnet and RADIUS access on the management interface, and installing the management interface and adding the management IP are all important steps in configuring a wireless LAN, but they come after creating the WLAN and binding the dynamic interface to it.
Source: Adapted from community discussion — Simon_1103
Question 1187 · 1334 in bank

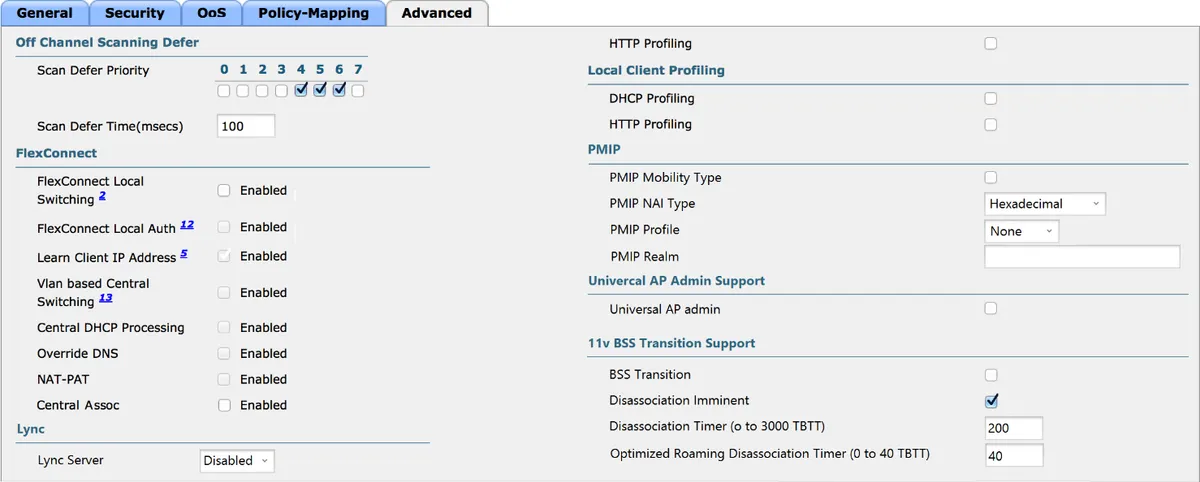

Refer to the exhibit. An architect is managing a wireless network with APs from several branch offices connecting to the WLC in the data center. There is a new requirement for a single WLAN to process the client data traffic without sending it to the WLC. Which action must be taken to complete the request?
Show answer
Answer: B
Explanation
Resposta B parece correta! "When a FlexConnect access point can reach the controller (referred to as the connected mode), the controller assists in client authentication. When a FlexConnect access point cannot access the controller, the access point enters the standalone mode (local authentication) and authenticates clients by itself." ... "In the Advanced tab, select the FlexConnect Local Switching check box to enable local switching for the WLAN." https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-2/configuration/guide/cg/cg_flexconnect.html#21265:~:text=tab%2C%20select%20the-,FlexConnect%20Local%20Switching,-check%20box%20to
Source: Adapted from community discussion — dropspablo
References
Question 1188 · 1334 in bank
What must be considered for a locally switched FlexConnect AP if the VLANs that are used by the AP and client access are different?
Show answer
Answer: C
Explanation
C. The switch port mode must be set to trunk. In a locally switched FlexConnect AP, the APs are connected to the switch port in trunk mode. This allows multiple VLANs to be used and traffic to be separated based on the VLAN tags.
Source: Adapted from community discussion — picho707
Question 1189 · 1334 in bank
Which command configures the Cisco WLC to prevent a serial session with the WLC CLI from being automatically logged out?
Show answer
Answer: C
References
Question 1190 · 1334 in bank
A Cisco engineer at a new branch office is configuring a wireless network with access points that connect to a controller that is based at corporate headquarters. Wireless client traffic must terminate at the branch office and access-point survivability is required in the event of a WAN outage. Which access point mode must be selected?
Show answer
Answer: B
Explanation
FlexConnect is a feature in Cisco wireless networks that allows access points to operate in a distributed manner, providing local switching capabilities at the branch office. In this mode, the access points can continue to serve wireless clients even if the WAN connection to the controller at the corporate headquarters is lost.
Source: Adapted from community discussion — Cynthia2023
