200-301 practice questions 1,221–1,230

1. Question 1221 · 1334 in bank



   Refer to the exhibit. Router R14 is in the process of being configured. Which configuration must be used to establish a host route to a PC 10?

   • Aip route 10.80.65.10 255.255.255.254 10.80.65.1
   • Bip route 10.80.65.10 255.255.255.255 10.73.65.66
   • Cip route 10.73.65.66 0.0.0.255 10.80.65.10
   • Dip route 10.73.65.66 255.0.0.0 10.80.65.10

   Show answer

   Answer: B

   Explanation

   A host route always uses /32 (=255.255.255.255) subnet mask and it's syntax is: ip route 255.255.255.255 For example, to create a host route for the host with IP address 192.168.1.100 with a next-hop router IP address of 10.1.1.1, the following command can be used: ip route 192.168.1.100 255.255.255.255 10.1.1.1

   Source: Adapted from community discussion — Vikramaditya_J

   Next question

2. Question 1222 · 1334 in bank

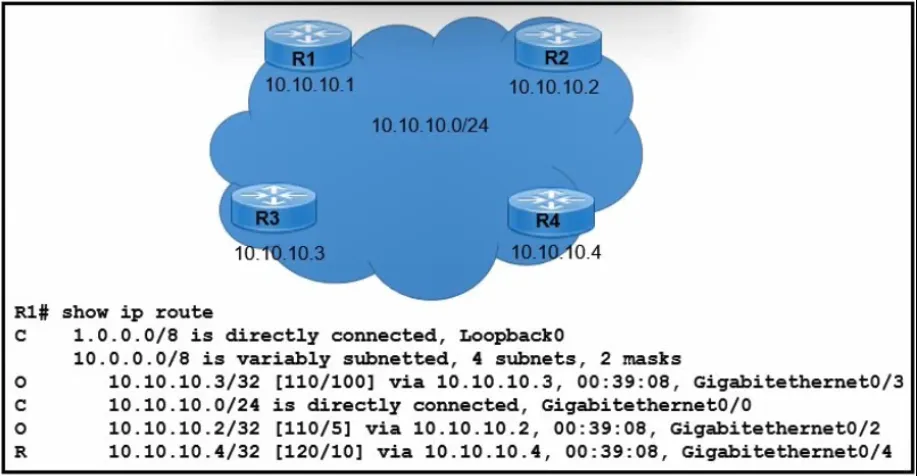

   Refer to the exhibit. Which next-hop IP address has the least desirable metric when sourced from R1?

   • A10.10.10.4
   • B10.10.10.5
   • C10.10.10.3
   • D10.10.10.2

   Show answer

   Answer: C

   Explanation

   [110/100] = 100 = AD, 100 = metric the more we think about it the more it doesn't make much sense. least should be the one with the highest Metric... all we wanted was to much a normal revision with less debate its so unfortunate that ITEXAMS completes things

   Source: Adapted from community discussion — Njavwa

   Next question

3. Question 1223 · 1334 in bank

   Select 2

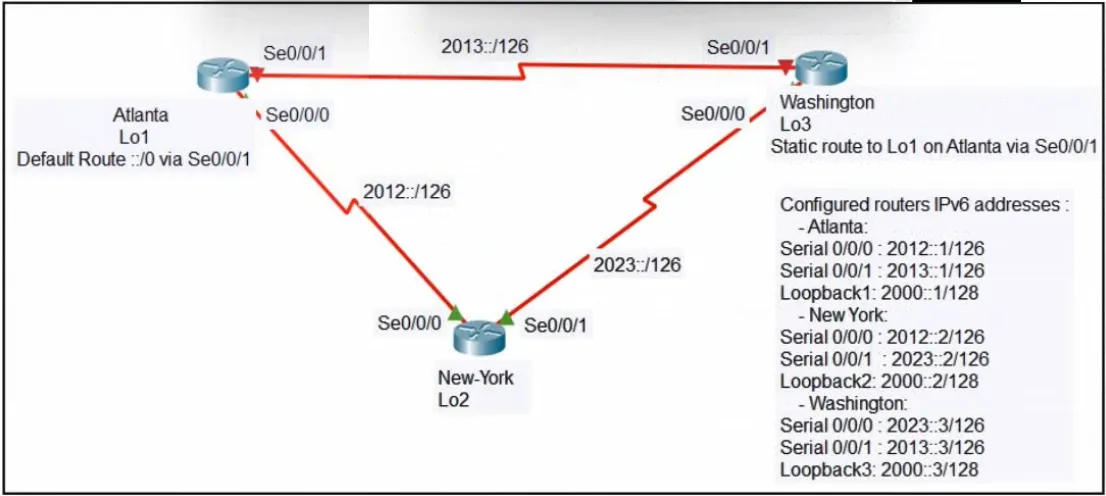

   Refer to the exhibit. The New York router must be configured so that traffic to 2000::1 is sent primarily via the Atlanta site, with a secondary path via Washington that has an administrative distance of 2. Which two commands must be configured on the New York router? (Choose two.)

   • Aipv6 route 2000::1/128 2012::1
   • Bipv6 route 2000::1/128 2012::1 5
   • Cipv6 route 2000::1/128 2012::2
   • Dipv6 route 2000::1/128 2023::2 5
   • Eipv6 route 2000::1/128 2023::3 2

   Show answer

   Answer: AE

   Explanation

   If you configure the static route you will use the exit interface or next hop ip address. In the case of letter "C" uses it's own ip address

   Source: Adapted from community discussion — JunsK1e

   Next question

4. Question 1224 · 1334 in bank

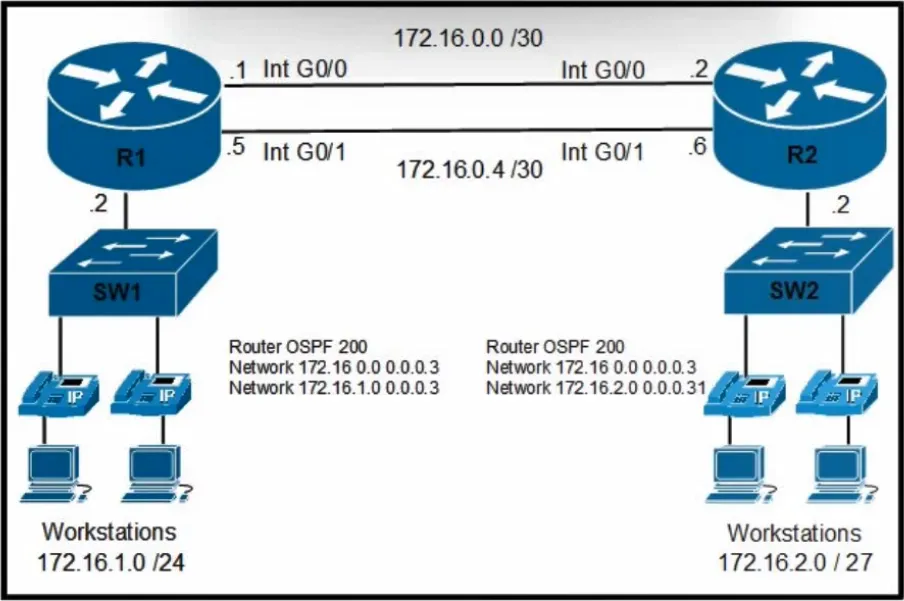

   Refer to the exhibit. The primary route across Gi0/0 is configured on both routers. A secondary route must be configured to establish connectivity between the workstation networks. Which command set must be configured to complete this task?

   • AR1 - ip route 172.16.2.0 255.255.255.248 172.16.0.5 110 R2 - ip route 172.16.1.0 255.255.255.0 172.16.0.6 110
   • BR1 - ip route 172.16.2.0 255.255.255.240 172.16.0.2 113 R2 - ip route 172.16.1.0 255.255.255.0 172.16.0.1 114
   • CR1 - ip route 172.16.2.0 255.255.255.224 172.16.0.6 111 R2 - ip route 172.16.1.0 255.255.255.0 172.16.0.5 112
   • DR1 - ip route 172.16.2.0 255.255.255.240 172.16.0.5 89 R2 - ip route 172.16.1.0 255.255.255.0 172.16.0.6 89

   Show answer

   Answer: C

   Next question

5. Question 1225 · 1334 in bank

   DRAG DROP -

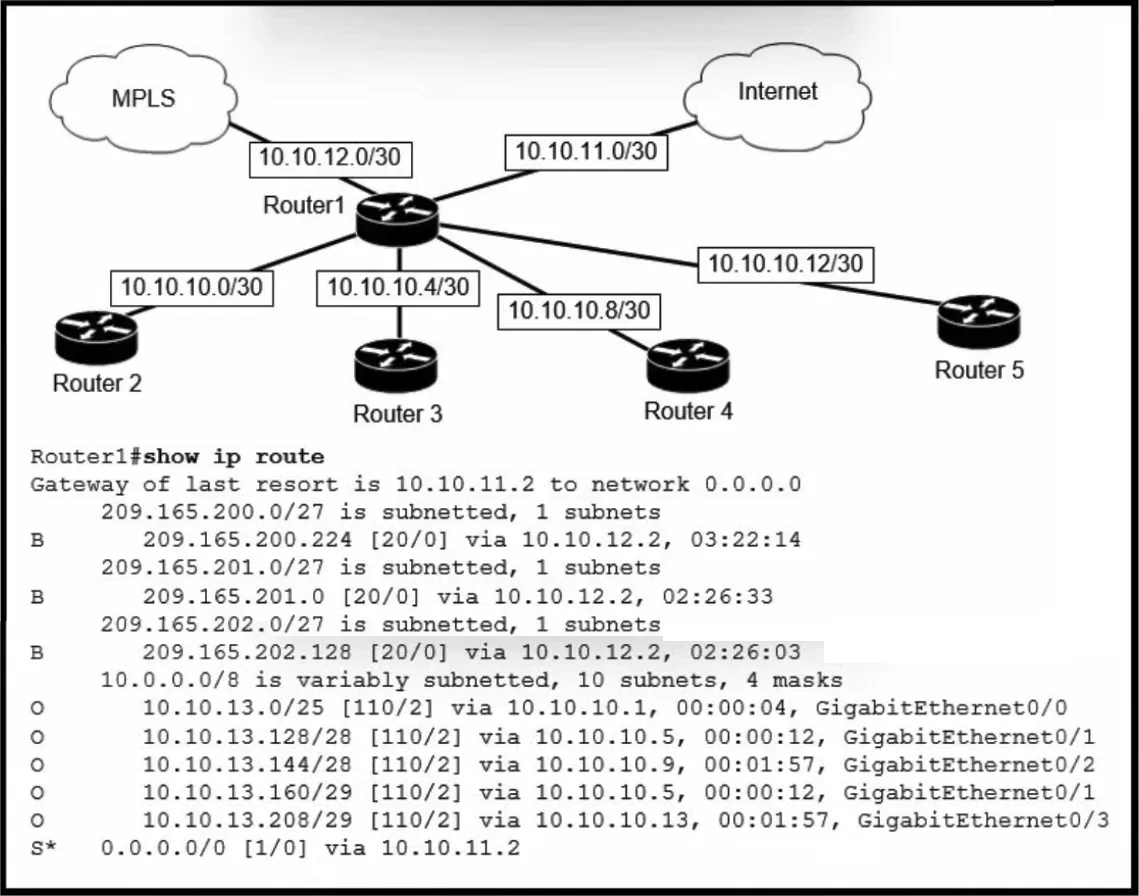

   Refer to the exhibit. Drag and drop the destination IPs from the left pnto the paths to reach those destinations on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Not really. The route to 209.165.200.30 would go through Internet again, check out the routing table. The parent network C-class netw is subneted with one subnet mask/27 and therefore is writen 209.165.200.0/27 but actually the netw which leads to MPLS cloud is 209.165.200.224/27. I hope not to see such errors on the exam.

   Source: Adapted from community discussion — rogi2023



   Next question

6. Question 1226 · 1334 in bank

   Select 2

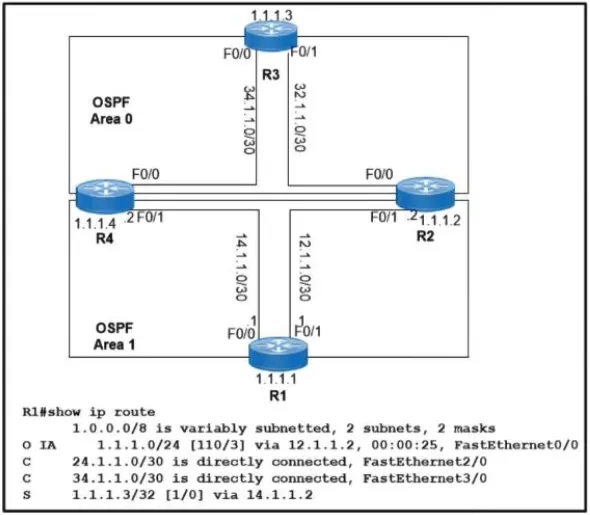

   Refer to the exhibit. Which two values does router R1 use to determine the best path to reach destinations in network 1.0.0.0/8? (Choose two.)

   • Alowest cost to reach the next hop
   • Bhighest administrative distance
   • Clowest metric
   • Dhighest metric
   • Elongest prefix match

   Show answer

   Answer: CE

   Explanation

   C & E is the correct answer The route to the rest of the routers will be learned through OSPF since it's the only match for the IP addresses for routers R2, R3 & R4. OSPF uses the lowest cumulative cost from the source to the destination not just the cost to the next hop. B & D are wrong since the lower the AD and the metric are, the better. A is wrong since we use the cumulative cost to the destination not just the next hop.

   Source: Adapted from community discussion — AbdullahMohammad251

   Next question

7. Question 1227 · 1334 in bank

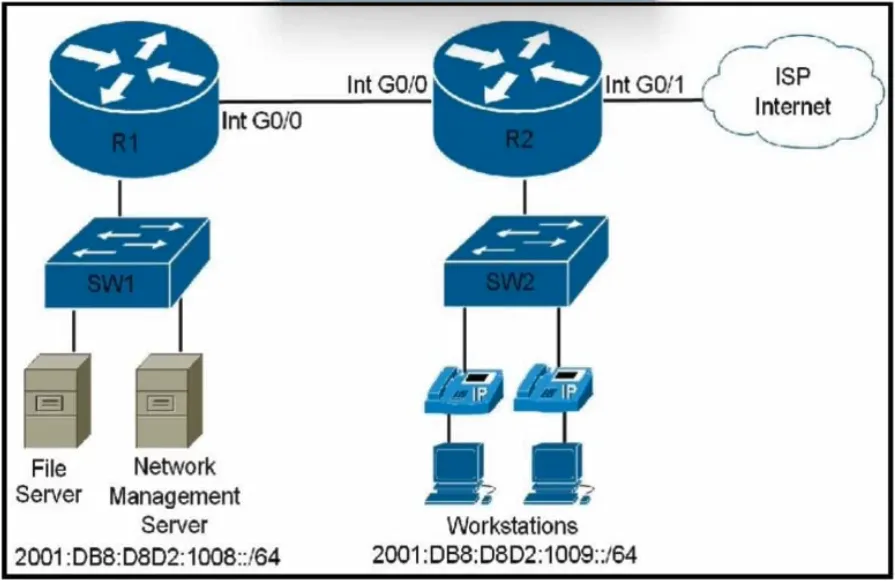

   Refer to the exhibit. A public IPv6 address must be configured for internet access. Which command must be configured on the R2 WAN interface to the service provider?

   • Aipv6 address fe80::/10
   • Bipv6 address 2001:db8:433:37:7710:ffff:ffff:ffff/64 anycast
   • Cipv6 address 2001:db8:123:45::4/64
   • Dipv6 address fe80::260:3EFF:FE11:6770 link-local

   Show answer

   Answer: C

   Next question

8. Question 1228 · 1334 in bank

   What identifies the functionality of virtual machines?

   • AThe hypervisor communicates on Layer 3 without the need for additional resources.
   • BEach hypervisor supports a single virtual machine and a single software switch.
   • CThe hypervisor virtualizes physical components including CPU, memory, and storage.
   • DVirtualized servers run efficiently when physically connected to a switch that is separate from the hypervisor.

   Show answer

   Answer: C

   Explanation

   The hypervisor virtualizes physical components including CPU, memory, and storage. The hypervisor is a software layer that sits between the physical hardware of a computer and the operating system. It virtualizes physical components such as CPU, memory, and storage, allowing for multiple operating systems to run on a single physical machine. This allows for improved scalability, flexibility, and resource utilization.

   Source: Adapted from community discussion — Masquerade

   Next question

9. Question 1229 · 1334 in bank

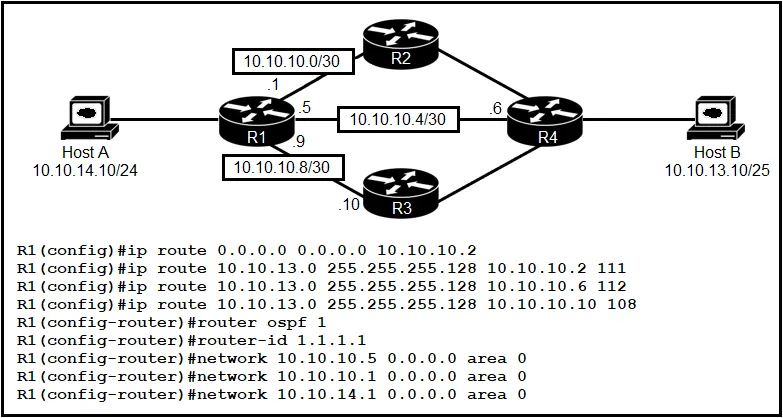

   Refer to the exhibit. R1 has just received a packet from host A that is destined to host B. Which route in the routing table is used by R1 to reach host B?

   • A10.10.13.0/25 [1/0] via 10.10.10.2
   • B10.10.13.0/25 [108/0] via 10.10.10.10
   • C10.10.13.0/25 [110/2] via 10.10.10.6
   • D10.10.13.0/25 [110/2] via 10.10.10.2

   Show answer

   Answer: B

   Explanation

   B is correct; it uses the lowest AD out of all the routes presented that go to the 10.10.13.0/25 subnet. A is a default route and would only be used if there wasn't a route to that subnet in the routing table.

   Source: Adapted from community discussion — Jbcrggddfhh

   Next question

10. Question 1230 · 1334 in bank

    DRAG DROP -

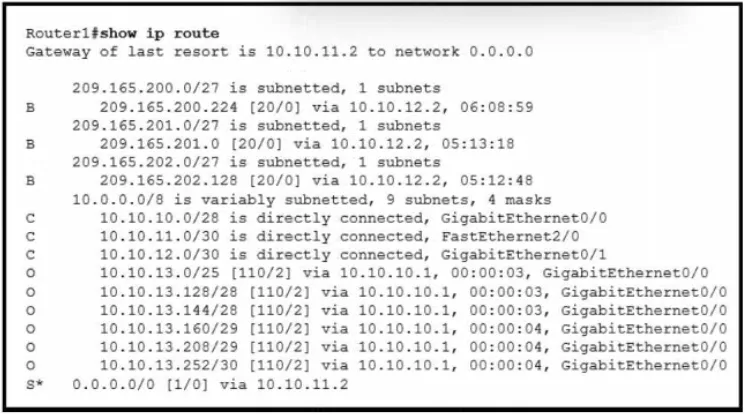

    Refer to the exhibit. Drag and drop the subnet masks from the left onto the corresponding subnets on the right. Not all subnet masks are used.



    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

    Show the answer figure

    Answer: See figure below

    Explanation

    I am just wondering, if someone would just memorize the answers provided by authors/admins of the page if they would successfully pass the exam. Here are just to many errors.

    Source: Adapted from community discussion — rogi2023



    Next question
