200-301 practice questions 1,191–1,200

1. Question 1191 · 1334 in bank

   What is an advantage of using auto mode versus static mode for power allocation when an access point is connected to a PoE switch port?

   • APower policing is enabled at the same time.
   • BThe default level is used for the access point.
   • CAll four pairs of the cable are used.
   • DIt detects the device is a powered device.

   Show answer

   Answer: D

   Explanation

   When considering the advantages of using auto mode versus static mode for power allocation when an access point is connected to a Power over Ethernet (PoE) switch port, the correct answer to highlight the benefit of auto mode is: D. It detects the device is a powered device. Explanation: Auto Mode: In this mode, the PoE switch can automatically detect whether the connected device (in this case, an access point) is a powered device (PD) and negotiate the amount of power required. This dynamic detection helps ensure that only the necessary amount of power is supplied, which can be beneficial for energy efficiency and preserving available power for other devices. Static Mode: In static mode, the power level must be manually configured. The switch does not automatically detect the power requirements of the connected device, which can lead to inefficient power allocation.

   Source: Adapted from community discussion — d8ed180

   References

   • Cisco documentation

   Next question

2. Question 1192 · 1334 in bank

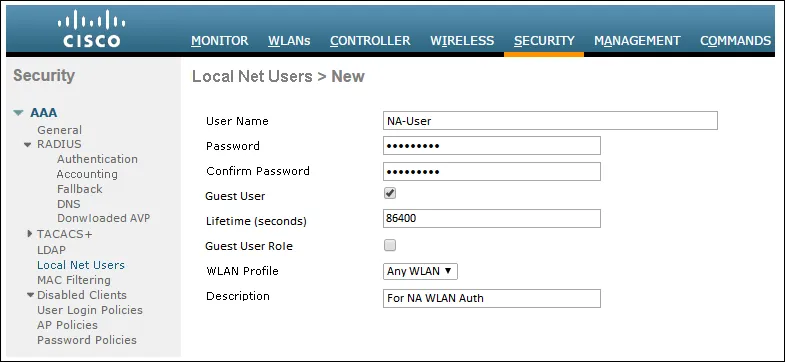

   Refer to the exhibit. Wireless LAN access must be set up to force all clients from the NA WLAN to authenticate against the local database. The WLAN is configured for local EAP authentication. The time that users access the network must not be limited. Which action completes this configuration?

   • ACheck the Guest User Role check box.
   • BUncheck the Guest User check box.
   • CSet the Lifetime (seconds) value to 0.
   • DClear the Lifetime (seconds) value.

   Show answer

   Answer: B

   Explanation

   I'm studying more than 6 months for ccna... When i started to work on dumps i think i saw cisco wireless device more than switch and router in total...

   Source: Adapted from community discussion — xbololi

   References

   • Cisco documentation
   • Cisco documentation
   • Cisco documentation

   Next question

3. Question 1193 · 1334 in bank

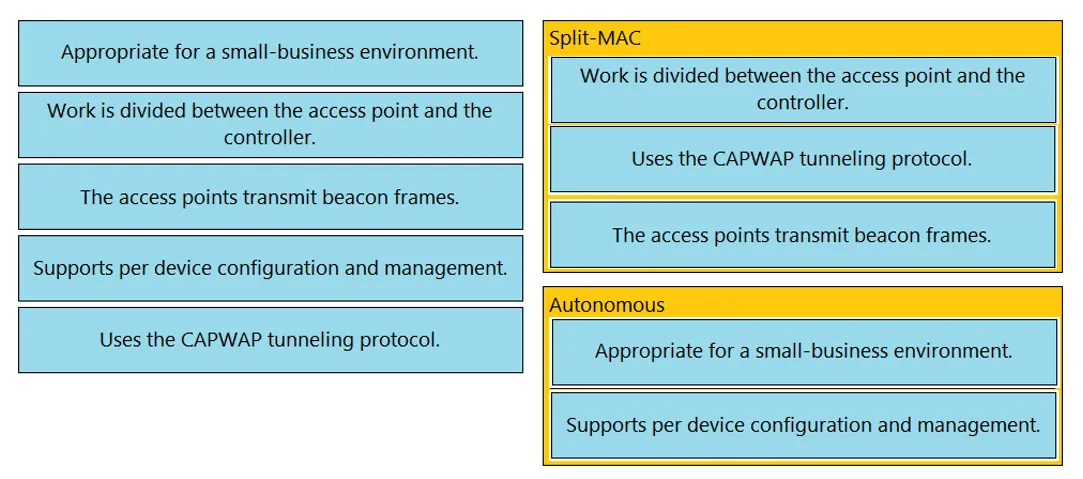

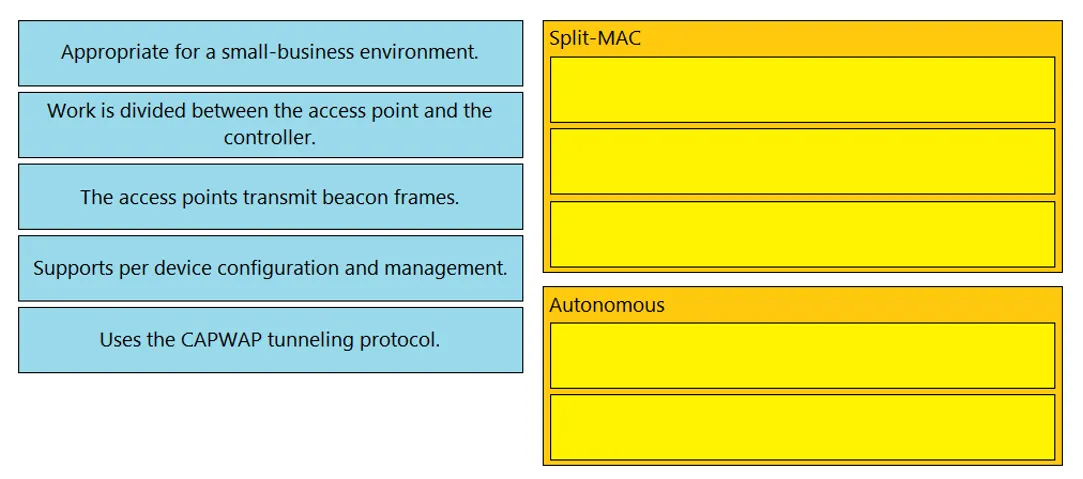

   DRAG DROP - Drag and drop the wireless architecture benefits from the left onto the architecture types on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Beacons are always transmitted by access points, regardless of what architecture. CCNA does not test your networking knowledge and skills; it tests your mechanical memorisation of textbook words. Disappointed.

   Source: Adapted from community discussion — Joshua25

   References

   • Cisco documentation



   Next question

4. Question 1194 · 1334 in bank

   What is a specification for SSIDs?

   • AThey must include one number and one letter.
   • BThey are a Cisco proprietary security feature.
   • CThey are case sensitive.
   • DThey define the VLAN on a switch.

   Show answer

   Answer: C

   Next question

5. Question 1195 · 1334 in bank

   Select 2

   What are two similarities between UTP Cat 5e and Cat 6a cabling? (Choose two.)

   • ABoth support speeds up to 10 Gigabit.
   • BBoth support speeds of at least 1 Gigabit.
   • CBoth support runs of up to 55 meters.
   • DBoth support runs of up to 100 meters.
   • EBoth operate at a frequency of 500 MHz.

   Show answer

   Answer: BD

   Explanation

   Here are the common specifications for some popular UTP categories: Cat5: Frequency: Up to 100 MHz Bandwidth: 100 Mbps (Fast Ethernet) Max Distance: 100 meters (328 feet) Cat5e: Frequency: Up to 100 MHz Bandwidth: 1 Gbps (Gigabit Ethernet) Max Distance: 100 meters (328 feet) Cat6: Frequency: Up to 250 MHz Bandwidth: 10 Gbps (10 Gigabit Ethernet) Max Distance: 55 meters (180 feet) for 10 Gbps, 100 meters (328 feet) for 1 Gbps Cat6a: Frequency: Up to 500 MHz Bandwidth: 10 Gbps (10 Gigabit Ethernet) Max Distance: 100 meters (328 feet) Cat7: Frequency: Up to 600 MHz Bandwidth: 10 Gbps (10 Gigabit Ethernet) Max Distance: 100 meters (328 feet) Cat8: Frequency: Up to 2 GHz Bandwidth: 25/40 Gbps (25/40 Gigabit Ethernet) Max Distance: 30 meters (98 feet)

   Source: Adapted from community discussion — ricky1802

   Next question

6. Question 1196 · 1334 in bank

   What is a reason to configure a trunk port that connects to a WLC distribution port?

   • AProvide redundancy if there is a link failure for out-of-band management.
   • BAllow multiple VLANs to be used in the data path.
   • CPermit multiple VLANs to provide out-of-band management.
   • DEliminate redundancy with a link failure in the data path.

   Show answer

   Answer: B

   Explanation

   answer is correct, distribution port is connected to the wired network( distribution system) and used for data traffic, and usually it's trunk which allows multiple vlans

   Source: Adapted from community discussion — studying_1

   Next question

7. Question 1197 · 1334 in bank

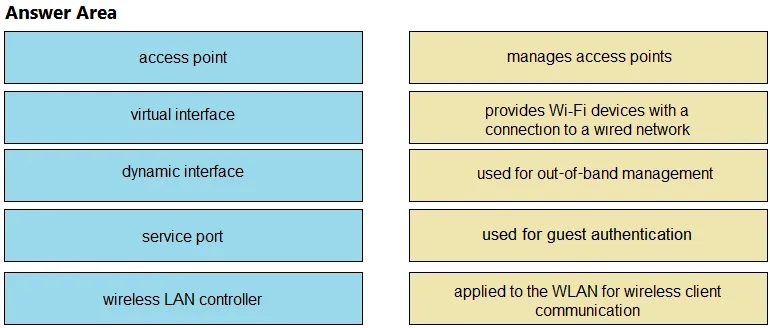

   DRAG DROP - Drag and drop the WLAN components from the left onto the correct descriptions on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   The WLC has a virtual interface that it uses for mobility management. This includes DHCP relay, guest web authentication, VPN termination, and some other features.

   Source: Adapted from community discussion — gewe

   References

   • Cisco documentation



   Next question

8. Question 1198 · 1334 in bank

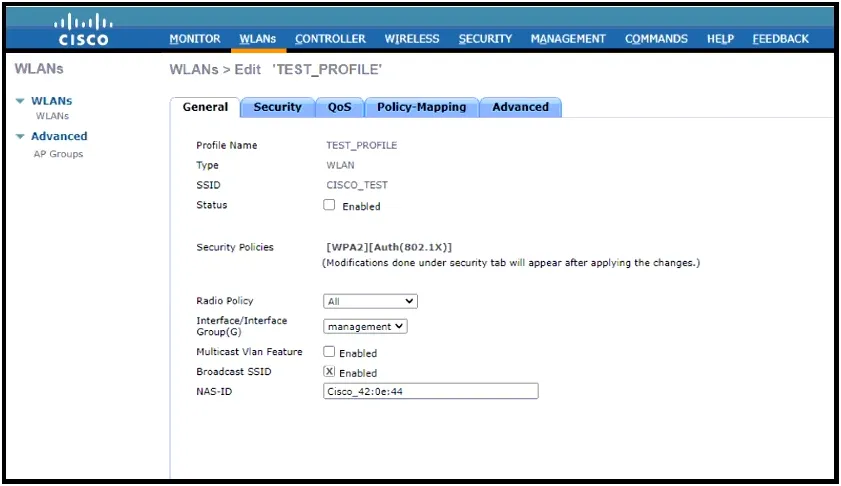

   Refer to the exhibit. A Cisco WLC administrator is creating a new wireless network with enhanced SSID security. The new network must operate at 2.4 Ghz with 54 Mbps of throughput. Which set of tasks must the administrator perform to complete the configuration?

   • AUncheck the Broadcast SSID check box and set the Radio Policy to 802.11a/g only.
   • BCheck the Broadcast SSID check box and set the Radio Policy to 802.11g only.
   • CUncheck the Broadcast SSID check box and set the Radio Policy to 802.11g only.
   • DCheck the Broadcast SSID check box and set the Radio Policy to 802.11a only.

   Show answer

   Answer: C

   Explanation

   Should be "C". 802.11g uses 2.4GHz and throughput up to 54 Mbit/s. “enhanced SSID security” = hiding SSID, so we must uncheck Broadcast SSID option

   Source: Adapted from community discussion — Rynurr

   References

   • Cisco documentation

   Next question

9. Question 1199 · 1334 in bank

   Which switching feature removes unused MAC addresses from the MAC address table, which allows new MAC addresses to be added?

   • AMAC address aging
   • BMAC move
   • CMAC address auto purge
   • Ddynamic MAC address learning

   Show answer

   Answer: A

   Explanation

   A. MAC address aging MAC address aging is a switching feature that removes unused MAC addresses from the MAC address table after a certain period of inactivity. This frees up space in the MAC address table, allowing new MAC addresses to be added when new devices are connected to the network. The aging time determines how long a MAC address can remain in the table without any activity before it is considered unused and eligible for removal. This feature helps optimize the usage of MAC address table resources in a switch.

   Source: Adapted from community discussion — StingVN

   References

   • Cisco documentation

   Next question

10. Question 1200 · 1334 in bank

    Select 2

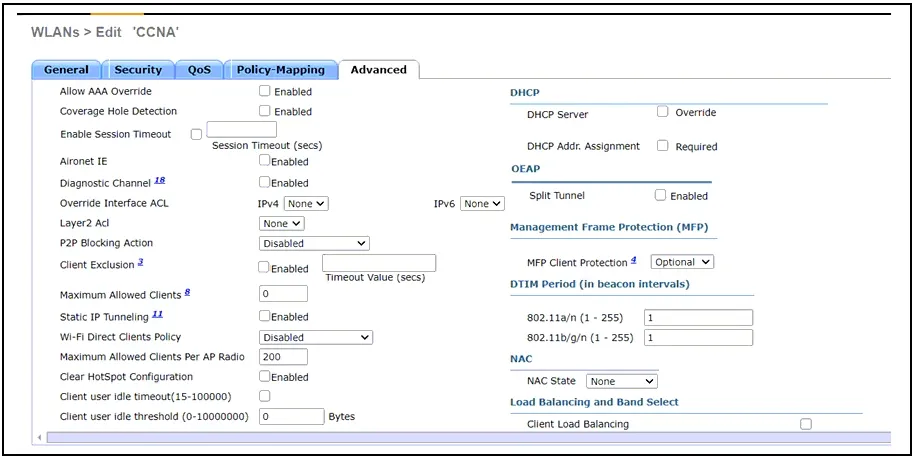

    Refer to the exhibit. A network engineer configures the CCNA WLAN so that clients must reauthenticate hourly and to limit the number of simultaneous connections to the WLAN to 10. Which two actions complete this configuration? (Choose two.)

    • AEnable the Wi-Fi Direct Clients Policy option
    • BEnable the Enable Session Timeout option and set the value to 3600.
    • CEnable the Client Exclusion option and set the value to 3600.
    • DSet the Maximum Allowed Clients value to 10.
    • ESet the Maximum Allowed Clients Per AP Radio value to 10.

    Show answer

    Answer: BD

    Next question
