200-301 practice questions 1,151–1,160

1. Question 1151 · 1334 in bank

   Which 802.11 frame type is indicated by a probe response after a client sends a probe request?

   • Adata
   • Bmanagement
   • Ccontrol
   • Daction

   Show answer

   Answer: B

   Explanation

   B is correct Management frames: Used for joining and leaving a wireless cell. Management frame types include association request, association response, and reassociation request, just to name a few. (See Table 7-2 for a complete list.) Control frames: Used to acknowledge when data frames are received. Data frames: Frames that contain data.

   Source: Adapted from community discussion — ZUMY

   References

   • cisco.com documentation

   Next question

2. Question 1152 · 1334 in bank

   What occurs when overlapping Wi-Fi channels are implemented?

   • AUsers experience poor wireless network performance.
   • BWireless devices are unable to distinguish between different SSIDs.
   • CThe wireless network becomes vulnerable to unauthorized access.
   • DNetwork communications are open to eavesdropping.

   Show answer

   Answer: A

   Next question

3. Question 1153 · 1334 in bank

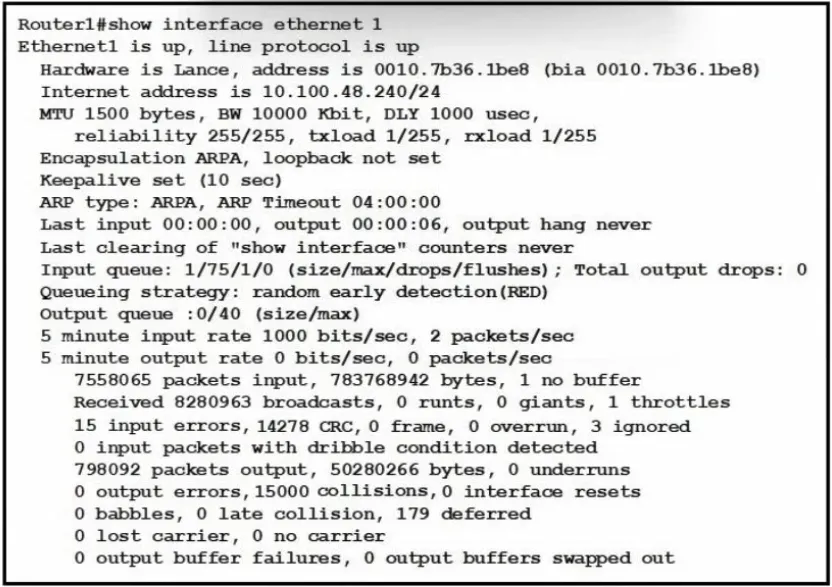

   Refer to the exhibit. An administrator received a call from a branch office regarding poor application performance hosted at the headquarters. Ethernet 1 is connected between Router1 and the LAN switch. What identifies the issue?

   • AThe MTU is not set to the default value.
   • BThere is a duplex mismatch.
   • CThe QoS policy is dropping traffic.
   • DThe link is over utilized.

   Show answer

   Answer: B

   Explanation

   The output shows that there are 15000 collisions on the interface, indicating a duplex mismatch issue between Router1 and the switch. Therefore, the correct answer is B.

   Source: Adapted from community discussion — JJY888

   Next question

4. Question 1154 · 1334 in bank

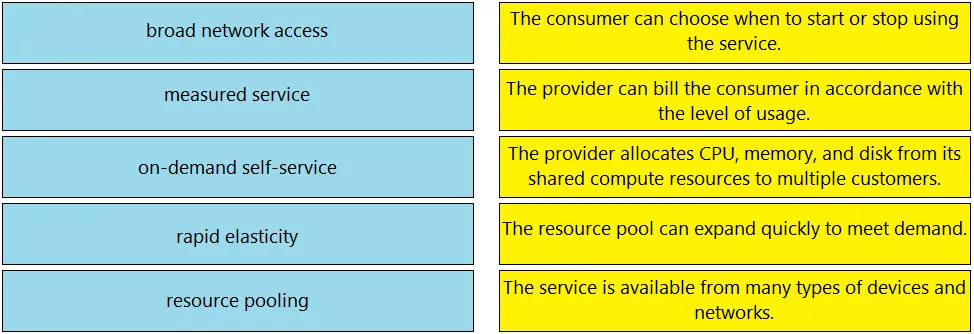

   DRAG DROP - Drag and drop the cloud-computing components from the left onto the correct descriptions on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below



   Next question

5. Question 1155 · 1334 in bank

   What is the functionality of the Cisco DNA Center?

   • AIP address pool distribution scheduler
   • Bdata center network policy controller
   • Cconsole server that permits secure access to all network devices
   • Dsoftware-defined controller for automation of devices and services

   Show answer

   Answer: D

   Explanation

   D is correct. The Cisco DNA Center (Digital Network Architecture Center) is a software-defined network (SDN) controller that provides automation, orchestration, and management capabilities.

   Source: Adapted from community discussion — KAM2023

   Next question

6. Question 1156 · 1334 in bank



   Refer to the exhibit. Which configuration enables an EtherChannel to form dynamically between SW1 and SW2 by using an industry-standard protocol, and to support full IP connectivity between all PCs?

   • ASW1# interface Gi0/1 switchport switchport mode access channel-group 1 mode active ! interface Gi0/2 switchport switchport mode access channel-group 1 mode active SW2# interface Gi0/1 switchport switchport mode access channel-group 1 mode desirable ! interface Gi0/2 switchport switchport mode access channel-group 1 mode desirable
   • BSW1# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode on ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode auto SW2# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode auto ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode on interface port-channel 1 switchport switchport mode trunk
   • CSW1# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode active ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode active SW2# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode passive ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode passive
   • DSW1# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode auto ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode auto SW2# interface Gi0/1 switchport switchport mode trunk channel-group 1 mode desirable ! interface Gi0/2 switchport switchport mode trunk channel-group 1 mode desirable

   Show answer

   Answer: C

   Explanation

   Correct answer line c. PAGP is the standard protocol uses mode: on --- on desirable/auto -- desirable LACP is not standard uses: on --- on passive/active -- active The question is asking the standard protocol

   Source: Adapted from community discussion — Matalongo

   Next question

7. Question 1157 · 1334 in bank

   Which functionality is provided by the console connection on a Cisco WLC?

   • AHTTP-based GUI connectivity
   • Bsecure in-band connectivity for device administration
   • Cout-of-band management
   • Dunencrypted in-band connectivity for file transfers

   Show answer

   Answer: C

   Explanation

   Console port dedicated for out-of-band management and local access. The management interface is the default interface for in-band management/administration of the controller. The service interface is reserved for out-of-band management of the controller. To access WLC GUI, we can use HTTP/HTTPS over a browser. Here, service port interface or the management interface is used to access GUI. https://www.lantronix.com/blog/whats-difference-console-port-management-port/

   Source: Adapted from community discussion — AbdullahMohammad251

   References

   • Cisco documentation
   • Cisco documentation

   Next question

8. Question 1158 · 1334 in bank

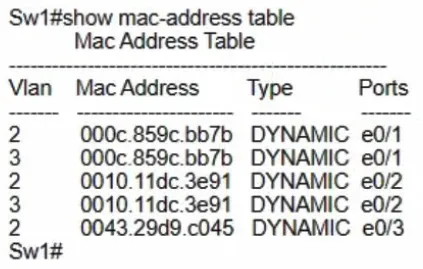

   Refer to the exhibit. Host A switch interface is configured in VLAN 2. Host D sends a unicast packet destined for the IP address of host A.



   What does the switch do when it receives the frame from host D?

   • AIt floods the frame out of every ports except the source port.
   • BIt creates a broadcast storm.
   • CIt shuts down the source port and places it in err-disable mode.
   • DIt drops the frame from the MAC table of the switch.

   Show answer

   Answer: A

   Explanation

   Technically Host D should send an ARP request, which the switch will then flood out of all other interfaces on the same VLAN. Host A will reply and the switch will update its MAC address table based on the ARP reply, allowing the subsequent unicast frame to be forwarded immediately to Host A. But if it sent the unicast frame directly, it would simply be flooded out of all interfaces other than the one it was received on, but only those in the same VLAN. So in this case the e0/0 and e0/2 interfaces. So technically no answer is correct.

   Source: Adapted from community discussion — [Removed]

   Next question

9. Question 1159 · 1334 in bank

   Select 2

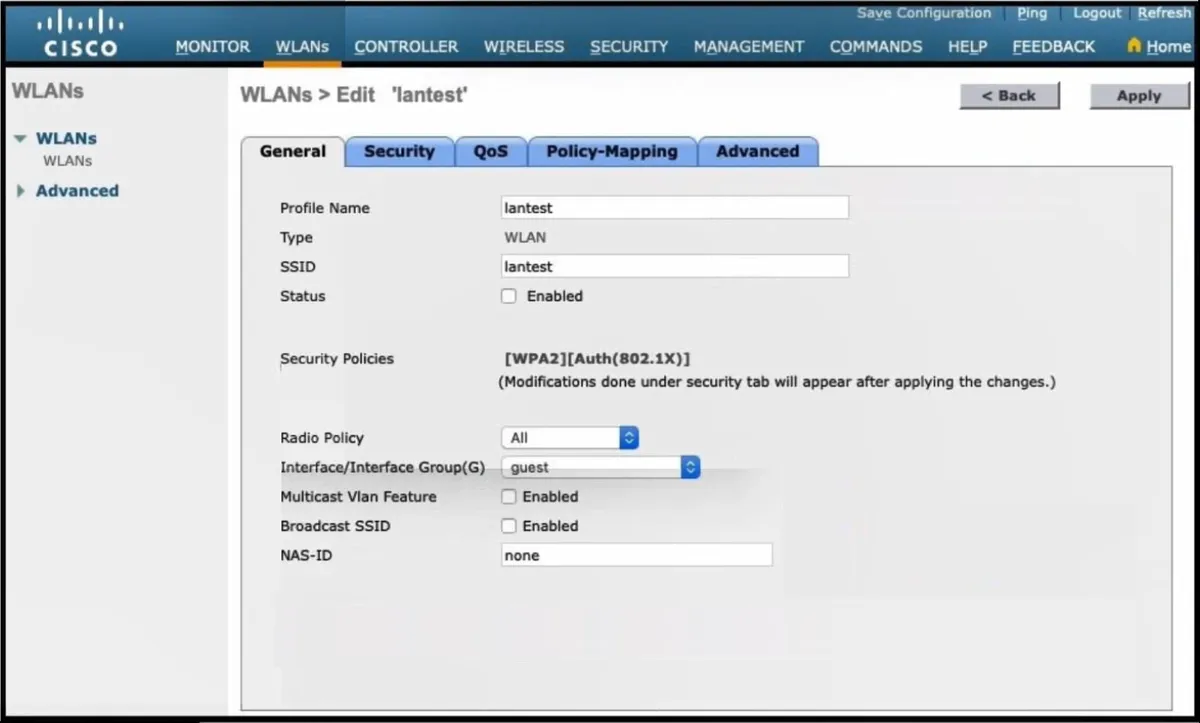

   Refer to the exhibit. A Cisco engineer creates a new WLAN called lantest. Which two actions must be performed so that only high-speed 2.4-Ghz clients connect? (Choose two.)

   • AEnable the Status option.
   • BSet the Radio Policy option to 802.11g Only.
   • CSet the Radio Policy option to 802.11a Only.
   • DSet the Interface/Interface Group(G) to an interface other than guest.
   • EEnable the Broadcast SSID option.

   Show answer

   Answer: AB

   Explanation

   A is correct since the status option needs to be checked to enable the wireless LAN B is correct since 802.11g only allows 2.4Ghz client to connect to the network C is incorrect since 802.11a will enable 5Ghz clients to connect to the network. D vlan groups/interfaces is used to associate traffic with a specific vlan in the wired network and it is not relevant to our question. E is incorrect, the question didn't ask us to broadcast the network

   Source: Adapted from community discussion — AbdullahMohammad251

   Next question

10. Question 1160 · 1334 in bank

    How does Rapid PVST+ create a fast loop-free network topology?

    • AIt uses multiple active paths between end stations.
    • BIt requires multiple links between core switches.
    • CIt maps multiple VLANs into the same spanning-tree instance.
    • DIt generates one spanning-tree instance for each VLAN.

    Show answer

    Answer: D

    Explanation

    The correct answer is D A is incorrect having multiple active paths between end stations causes loops in the network. B I couldn't find how is it related to the question C is done through MST (Multiple spanning tree) protocol https://networklessons.com/spanning-tree/multiple-spanning-tree-mst https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n1_1/Cisco_n5k_layer2_config_gd_rel_503_N1_1_chapter9.html

    Source: Adapted from community discussion — AbdullahMohammad251

    References

    • Cisco documentation

    Next question
