200-301 practice questions 1,131–1,140

1. Question 1131 · 1334 in bank

   DRAG DROP - Drag and drop the wireless standards from the left onto the number of nonoverlapping channels they support on the right.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   3 Non-Overlapping Channels: - 802.11b - 802.11g - 802.11n (2.4 GHz) 23 Non-Overlapping Channels: - 802.11a - 802.11n (5 GHz)

   Source: Adapted from community discussion — iMo7ed



   Next question

2. Question 1132 · 1334 in bank

   Which technology allows for multiple operating systems to be run on a single host computer?

   • Avirtual routing and forwarding
   • Bvirtual device contexts
   • Cnetwork port ID virtualization
   • Dserver virtualization

   Show answer

   Answer: D

   Next question

3. Question 1133 · 1334 in bank

   Why would an administrator choose to implement an automated network management solution?

   • Ato reduce operational costs
   • Bto support simpler password policies
   • Cto enable “box by box” configuration and deployment
   • Dto limit recurrent management costs

   Show answer

   Answer: A

   Explanation

   answer D is currect as per well known mock exam engine Upon reconsideration, option D, "to limit recurrent management costs," also aligns closely with the benefits of implementing an automated network management solution. These solutions can help minimize the need for manual intervention and ongoing management tasks, thereby reducing recurring management costs over time.

   Source: Adapted from community discussion — Jamseer

   References

   • Cisco documentation

   Next question

4. Question 1134 · 1334 in bank

   What is a function of the core and distribution layers in a collapsed-core architecture?

   • AThe router can support HSRP for Layer 2 redundancy in an IPv6 network.
   • BThe core and distribution layers are deployed on two different devices to enable failover.
   • CThe router operates on a single device or a redundant pair.
   • DThe router must use IPv4 and IPv6 addresses at Layer 3.

   Show answer

   Answer: C

   Explanation

   In a collapsed-core architecture, the core and distribution layers are combined and implemented by a single device or a redundant pair. The core layer is responsible for forwarding large amounts of packets both reliably and quickly. The distribution layer, on the other hand, manages connectivity between the core and access layers, based on policies and boundaries worked into the network. Therefore, the correct answer is **C. The router operates on a single device or a redundant pair**.

   Source: Adapted from community discussion — NewJeans

   Next question

5. Question 1135 · 1334 in bank

   What must be considered before deploying virtual machines?

   • Aresource limitations, such as the number of CPU cores and the amount of memory
   • Bsupport for physical peripherals, such as monitors, keyboards, and mice
   • Cwhether to leverage VSM to map multiple virtual processors to two or more virtual machines
   • Dlocation of the virtual machines within the data center environment

   Show answer

   Answer: A

   Next question

6. Question 1136 · 1334 in bank

   Select 2

   What are two facts that differentiate optical-fiber cabling from copper cabling? (Choose two.)

   • AIt is less expensive when purchasing patch cables.
   • BIt carries electrical current further distances for PoE devices.
   • CIt provides greater throughput options.
   • DIt has a greater sensitivity to changes in temperature and moisture.
   • EIt carries signals for longer distances.

   Show answer

   Answer: CE

   Explanation

   A. It is less expensive when purchasing patch cables. - No, fiber is more expensive B. It carries electrical current further distances for PoE devices. - No, fiber cables transmit data via light C. It provides greater throughput options. - Yes, copper ethernet cables can transfer data around 300 Mpbs while fiber can transfer data up to 10Gbps D. It has a greater sensitivity to changes in temperature and moisture. - No, fiber cables have more pressure resistance and are less susceptible to EMI E. It carries signals for longer distances. - Yes, copper cables can carry signals for 330 feet/100m while fiber can carry 1000 feet for multi-mode and up to 25 miles for single-mode

   Source: Adapted from community discussion — kncappy

   Next question

7. Question 1137 · 1334 in bank

   Select 2

   What are two behaviors of a point-to-point WAN topology? (Choose two.)

   • AIt leverages a dedicated connection.
   • BIt provides direct connections betwaen each router in the topology.
   • CIt delivers redundancy between the central office and branch offices.
   • DIt uses a single router to route traffic between sites.
   • EIt connects remote networks through a single line.

   Show answer

   Answer: AE

   Explanation

   Why do I even pay money for the question catalogue if so many questions are answered incorrectly? You still learn the wrong things if you don‘t pay attention. That sucks!!!

   Source: Adapted from community discussion — MorpheusX

   Next question

8. Question 1138 · 1334 in bank

   What is a link-local all-nodes IPv6 multicast address?

   • Aff02:0:0:0:0:0:0:1
   • B2004:33c:94d9:431e:255::
   • Cfffe:034:0dd:45d6:789e::
   • Dfe80:4433:034:0dd::2

   Show answer

   Answer: A

   Explanation

   A -> Multicast address, link-local scope. It's just not in the abbreviated format of FF02::1. Correct answer. B -> Global Unicast Address C -> Technically a multicast address (FF00::/8) but the scope is invalid. Invalid address? D -> Link local address.

   Source: Adapted from community discussion — [Removed]

   Next question

9. Question 1139 · 1334 in bank

   Which is a reason to implement IPv4 private addressing?

   • AComply with PCI regulations.
   • BReduce the size of the forwarding table on network routers.
   • CReduce the risk of a network security breach.
   • DComply with local law.

   Show answer

   Answer: C

   Explanation

   B. Reduce the size of the forwarding table on network routers. Implementing IPv4 private addressing, also known as Network Address Translation (NAT), can help reduce the size of the forwarding table on network routers. NAT allows multiple devices within a private network to share a single public IP address for communication with external networks. This conserves public IP addresses and reduces the size of the routing table, as routers only need to manage the translation of private IP addresses to the single public IP address.

   Source: Adapted from community discussion — shaney67

   Next question

10. Question 1140 · 1334 in bank

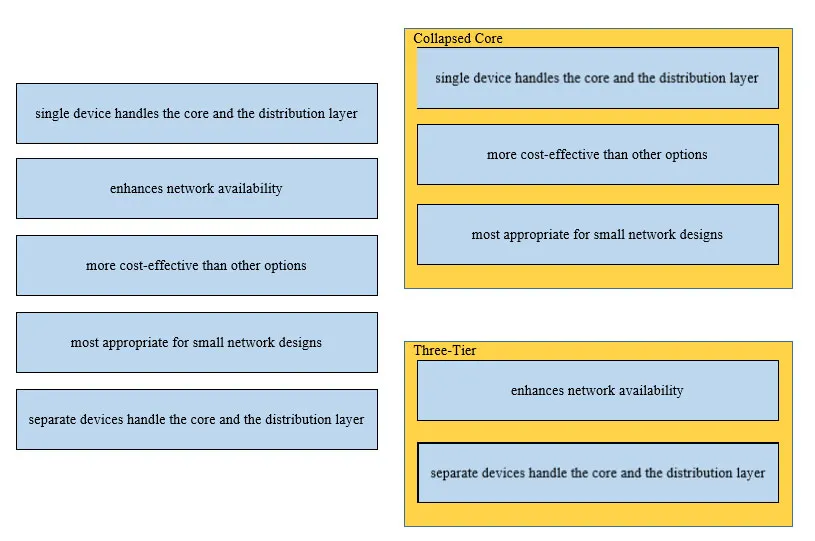

    DRAG DROP - Drag and drop the characteristics of network architectures from the left onto the type of architecture on the right. Select and Place:



    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

    Show the answer figure

    Answer: See figure below

    Explanation

    Collapsed core : Single device handles the core and the distribution layer more cost-effective than other opton most appropriate for small network designs Tree-Thier: enhances network availability separate devices handles the core and the distribution layer

    Source: Adapted from community discussion — ELHAZ



    Next question
