Cisco Certified Network Associate (CCNA)1,334 questions across 134 pages are complete and free, with no account or card.
1334 questions in this bank
Free access · progress saved on this device
What is a benefit of a point-to-point leased line?
Answer: C
Point-to-point leased line simplifies the configuration as the circuit is available on a permanent basis and does not require a connection to be set up before traffic is passed. It does not require to define a permanent virtual circuit (PVC) in the configuration either ...C is correct
Source: Adapted from community discussion — Da_Costa
Why is TCP desired over UDP for applications that require extensive error checking, such as HTTPS?
Answer: D
UDP does not use sequence numbers or windowing, so there is no need for a three-way handshake to set initial values. If a device using UDP becomes swamped by an excessive number of datagrams, it will simply drop those that it cannot process
Source: Adapted from community discussion — JJY888
Which component controls and distributes physical resources for each virtual machine?
Answer: A
What is the role of nonoverlapping channels in a wireless environment?
Answer: D
Why do I even pay money for the question catalogue if so many questions are answered incorrectly? You still learn the wrong things if you don‘t pay attention. That sucks!!!
Source: Adapted from community discussion — MorpheusX
What are two advantages of implementing a controller-based architecture instead of traditional network architecture? (Choose two.)
Answer: DE
The two advantages of implementing a controller-based architecture instead of traditional network architecture are: D. It enables configuration task automation. E. It provides increased scalability and management options. Controller-based architectures use a central controller to manage and configure network devices. This allows network administrators to automate configuration tasks, which can save time and reduce errors. Controller-based architectures also provide increased scalability and management options, as the controller can be used to manage a large number of network devices.
Source: Adapted from community discussion — matteodd90
What is the purpose of the service-set identifier?
Answer: D
Correct, the service-set identifier (SSID) is a unique identifier for a wireless local area network (WLAN). It is used to identify the wireless network to which a mobile device, such as a laptop or smartphone, can connect.
Source: Adapted from community discussion — DaimonANCC
SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked the lab closes and cannot be reopened. Topology -
Tasks - All physical cabling is in place and verified. Connectivity between all four switches must be established and operational. All ports are pre-configured as 802.1q trunks. 1. Configure both SW-1 and SW-2 ports e0/1 and e0/2 to permit only the allowed VLANs 2. Configure both SW-3 and SW-4 ports e0/2 to permit only the allowed VLANs 3. Configure both SW-1 and SW-2 e0/1 ports to send and receive untagged traffic over VLAN 99 4. Configure both SW-3 and SW-4 ports e0/0 and e0/1 for link aggregation using the industry standard protocol. All ports must immediately negotiate the link aggregation 5. Permit only the allowed VLANs on the new link
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

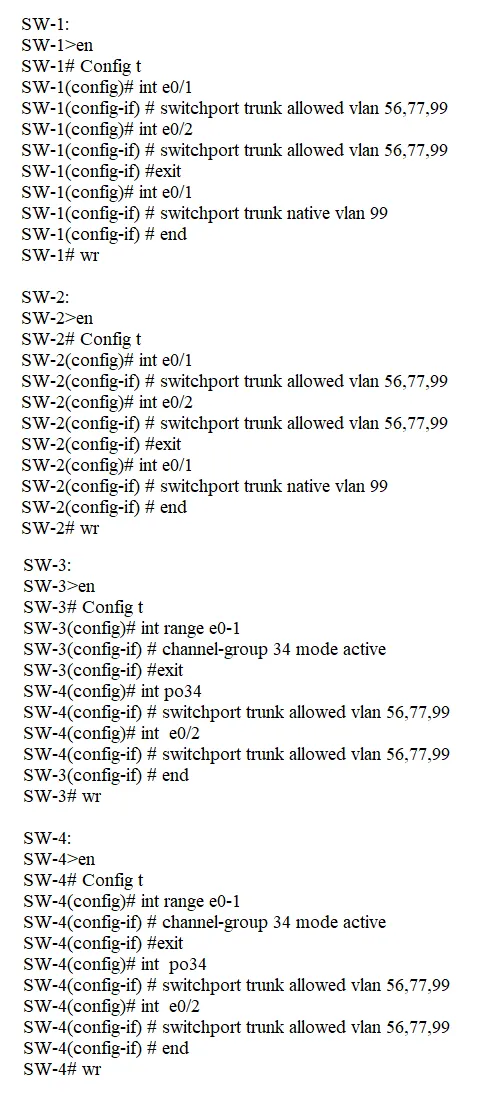

Answer: See figure below
Task 1 SW-1(config)#interface range gigabitEthernet 0/1-2 SW-1(config-if-range)#switchport trunk allowed vlan 56,77 SW-2(config)#interface range gigabitEthernet 0/1-2 SW-2(config-if-range)#switchport trunk allowed vlan 56,77 Task 2 SW-3(config)#interface gigabitEthernet 0/2 SW-3(config-if)#switchport trunk allowed vlan 56,77 SW-4(config)#interface gigabitEthernet 0/2 SW-4(config-if)#switchport trunk allowed vlan 56,77 Task 3 SW-1(config)#interface gigabitEthernet 0/1 SW-1(config-if)#switchport trunk native vlan 99 SW-2(config)#interface gigabitEthernet 0/1 SW-2(config-if)#switchport trunk native vlan 99
Source: Adapted from community discussion — picho707
How do UTP and STP cables compare?
Answer: B
B. Shielded cables (STP) are used to reduce electromagnetic and radio frequency interference. Unshielded cables (UTP) are cheaper and easier to install.
Source: Adapted from community discussion — kncappy
In which situation is private IPv4 addressing appropriate for a new subnet on the network of an organization?
Answer: C
A. Use separate VLAN to reduce broadcast traffic. C. Use separate subnet to conserve address space. So for this question C.
Source: Adapted from community discussion — babaKazoo
What are two disadvantages of a full-mesh topology? (Choose two.)
Answer: AD
