350-601 practice questions 251–260

1. Question 251 · 504 in bank

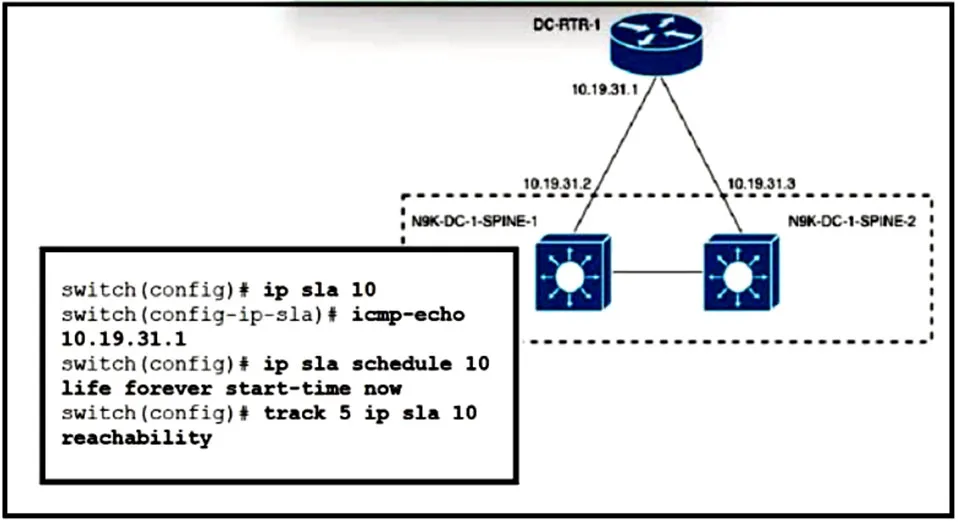

   Refer to the exhibit. An engineer must invoke a Python script that alerts the operations team when the router DC-RTR-1 becomes unreachable. Which configuration set accomplishes this task?

   • Aevent scheduler name DOWN-ROUTER event track 2 state 1 not up event action 1.0 command source routerdown.py event start 0:00 repeat 0:05
   • Btrack 3 ip sla 10 reachability event name GATEWAY-DOWN event state down action cli command routerdown.py
   • Cevent manager applet ROUTER-DOWN-SLA event track 5 state down action 1.0 event-default action 2.0 cli command source routerdown.py
   • Dscheduler job name ROUTER-DOWN job track 9 state down action 1.0 cli source routerdown.py schedule 10

   Show answer

   Answer: C

   Next question

2. Question 252 · 504 in bank

   An engineer must configure two Cisco Nexus 7000 Series switches in the same data center to support OTV. Which command set completes the join interface configuration? feature otv otv site-identifier 256 interface overlay 1 otv control-group 239.1.1.1 otv data-group 239.1.1.0/29 otv join-interface ethernet 2/1 otv extend-vlan 5-10 no shutdown

   • AEdge Device 1 interface ethernet 2/1 ip address 192.0.2.1/24 ip igmp version 3 ip pim sparse-mode Edge Device 2 interface ethernet 2/1 ip address 192.0.2.16/24 ip igmp version 3 ip pim sparse-mode
   • BEdge Device 1 interface ethernet 2/1 ip address 192.0.2.1/24 ip igmp version 3 Edge Device 2 interface ethernet 2/1 ip address 192.0.2.1/24 ip igmp version 3
   • CEdge Device 1 interface ethernet 2/1 ip address 192.0.2.1/24 ip igmp version 3 Edge Device 2 interface ethernet 2/1 ip address 192.0.2.16/24 ip igmp version 3
   • DEdge Device 1 interface ethernet 2/1 ip address 192.0.2.1/24 Edge Device 2 interface ethernet 2/1 ip address 192.0.2.16/24

   Show answer

   Answer: C

   References

   • Cisco documentation

   Next question

3. Question 253 · 504 in bank

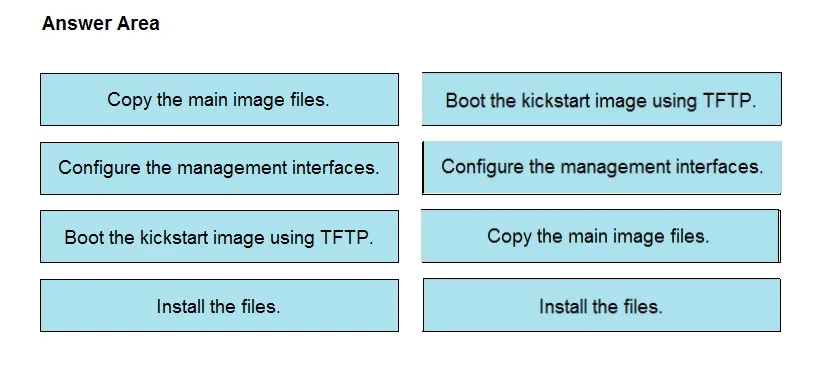

   DRAG DROP - Drag and drop the steps on the left onto the order that they must be implemented on the right for recover a fabric interconnect when there is no working image on the bootflash. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   References

   • cisco.com documentation
   • Cisco documentation



   Next question

4. Question 254 · 504 in bank

   An engineer must perform a nondisruptive software upgrade on a dual supervisor Cisco Nexus 7000 Series Switch. What is the cause of the upgrade being disruptive?

   • AAttempt to simultaneously upgrade more than thee cards
   • BChange to the configuration settings or the network connections during the upgrade process
   • CThe show install all impact command is not issued before the upgrade
   • DThe kickstart image is installed by using the install all kickstart image system image command

   Show answer

   Answer: B

   References

   • Cisco documentation

   Next question

5. Question 255 · 504 in bank

   An engineer must export the Cisco UCS Manager configuration for backup purposes. The requirement is to export the configuration that contains the AAA and RBAC configuration. Also, the file must be stores in a human-readable format. Which backup type must be selected to meet these requirements?

   • Afull state
   • Blogical configuration
   • Csystem configuration
   • Dall configuration

   Show answer

   Answer: C

   References

   • Cisco documentation

   Next question

6. Question 256 · 504 in bank

   Select 2

   An engineer must configure SAN connectivity in Cisco UCS Manager. The requirement is to specify the WWPN of the storage array and set the zoning type to Single Initiator Multiple Targets. The engineer must also configure interrupt handing and queues of the vHBA interface. Which two Cisco UCS polices should be used to configure the settings? (Choose two.)

   • Aboot policy
   • BFibre Channel adapter policy
   • Cstorage connection policy
   • DvHBA policy
   • ESAN connectivity policy

   Show answer

   Answer: BC

   References

   • Cisco documentation
   • Cisco documentation

   Next question

7. Question 257 · 504 in bank

   A DNS server with IP address 192.168.1.1 is deployed in a data center. A network engineer must configure a Cisco UCS Fabric Interconnect to use this DNS. Which configuration should be applied?

   • Aficl-mgmt-A# scope fabric-interconnect a ficl-mgmt-A /fabric-interconnect # set name 192.168.1.1 ficl-mgmt-A /fabric-interconnect # scope system ficl-mgmt-A /system # commit-buffer
   • Bficl-mgmt-A# scope system ficl-mgmt-A /system # create dns 192.168.1.1 ficl-mgmt-A /system* # commit-buffer
   • Cficl-mgmt-A# scope fabric-interconnect a ficl-mgmt-A /fabric-interconnect # set name 192.168.1.1 ficl-mgmt-A /fabric-interconnect* # commit-buffer
   • Dficl-mgmt-A# scope system ficl-mgmt-A /system # scope services ficl-mgmt-A /system/services # create dns 192.168.1.1 ficl-mgmt-A /system/services* # commit-buffer

   Show answer

   Answer: D

   Explanation

   B is correct UCS-A# scope system UCS-A /system # scope services UCS-A /system/services # create dns 192.168.200.105 UCS-A /system/services* # commit-buffer UCS-A /system/services #

   Source: Adapted from community discussion — designated

   References

   • Cisco documentation

   Next question

8. Question 258 · 504 in bank

   A network engineer must restore the running configuration on a Cisco Nexus 5000 Series Switch to an existing snapshot called `stable1`. The restore procedure should proceed only if no errors occur. Which configuration should be used to accomplish this goal?

   • Arollback running-config checkpoint stable1 best-effort
   • Brollback running-config checkpoint stable1 atomic
   • Crollback checkpoint stable1 best-effort running-config best-effort
   • Drollback checkpoint stable1 best-effort running-config atomic

   Show answer

   Answer: B

   Explanation

   B is the one Based on Guidelines the available options are : 1. atomic(default) Rollback only if there are no errors 2.Best-Effort: Rollback and skip any errors 3. Stop at First Failure : Rollback and stop if an error occurs

   Source: Adapted from community discussion — GuyThatTakesDumps

   Next question

9. Question 259 · 504 in bank

   DRAG DROP -

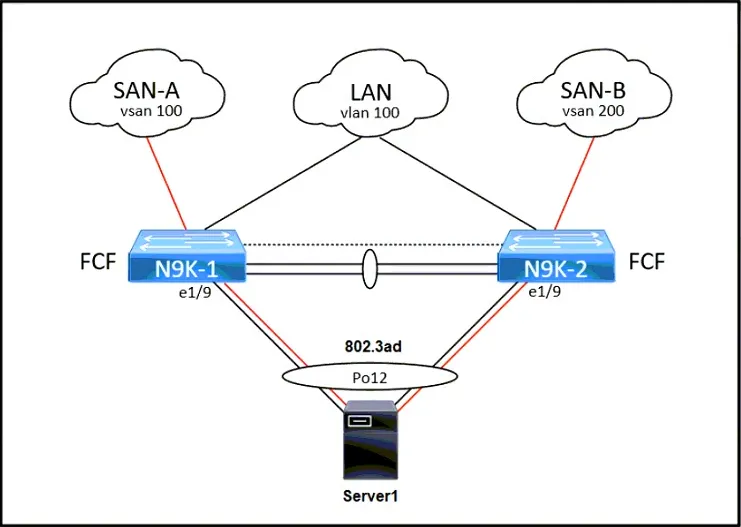

   Refer to the exhibit. An administrator must complete the unified fabric configuration between Server1 and a pair of Cisco Nexus 9000 Series Switches. Drag and drop the code snippets from the right onto the blanks in the code on the left to complete the N9K-1 configuration. Code snippets may be used more than once.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   1 - Po12 2 - vlan 3 - vfc 1 4 - po12 The following example shows how to configure the VLAN on a physical Ethernet address, create virtual Fibre Channel interface 4, bind vfc 4 to the physical Ethernet interface, enable associated VLAN 200, and map VLAN 200 to VSAN 2: switch# configure terminal switch(config)# interface ethernet 1/2 switch(config-if)# switchport mode trunk switch(config-if)# switchport trunk allowed vlan 1,200 switch(config)# interface vfc 4 switch(config-if)# bind interface ethernet 1/2 switch(config-if)# exit

   Source: Adapted from community discussion — Gayan84



   Next question

10. Question 260 · 504 in bank



    Refer to the exhibit. A network administrator experiences these issues with the network: • PC1 is experiencing a buffering problem for video applications. • The servers that are connected to SW2 are experiencing packet drops when they connect to the Internet. The engineer wants to configure the required traffic capture to investigate the issue further. Which configuration must be implemented to monitor the traffic?

    • AN9K(config)# monitor session 5 tx N9K(config-monitor)# description Span_session_5 N9K(config-monitor)# source vlan 10-15 rx N9K(config-monitor)# source interface ethernet 1/2 N9K(config-monitor)# destination interface ethernet 2/3
    • BN9K(config)# monitor session 5 rx N9K(config)# monitor session 5 tx N9K(config-monitor)# description Span_session_5 N9K(config-monitor)# source interface ethernet 1/1 N9K(config-monitor)# source interface ethernet 1/2 N9K(config-monitor)# destination interface ethernet 2/3
    • CN9K(config)# monitor session 5 tx N9K(config-monitor)# description Span_session_5 N9K(config-monitor)# source interface ethernet 1/1 N9K (config-monitor)# source interface ethernet 1/2 N9K(config-monitor)# destination interface ethernet 2/3
    • DN9K(config)# monitor session 5 rx N9K(config-monitor)# description Span_session_5 N9K(config-monitor)# source vlan 10 rx N9K(config-monitor)# source interface ethernet 1/2 N9K(config-monitor)# destination interface ethernet 2/3

    Show answer

    Answer: D

    Explanation

    All answer would allow to for traffic monitoring to check what is the issue. But per task we should monitor only PC1 (VLan10) and both servers connected via switch on Eth1/2. Based on that I think that correct answer is D D. N9K(config)# monitor session 5 rx N9K(config-monitor)# description Span_session_5 N9K(config-monitor)# source vlan 10 rx N9K(config-monitor)# source interface ethernet 1/2 N9K(config-monitor)# destination interface ethernet 2/3

    Source: Adapted from community discussion — Scheldon

    Next question
