200-301 practice questions 51–60

1. Question 51 · 1334 in bank

   SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window • All necessary preconfigurations have been applied • Do not change the enable password or hostname for any device • Save your configurations to NVRAM before moving to the next item • Click Next at the bottom of the screen to submit this lab and move to the next question • When Next is clicked, the lab closes and cannot be reopened Topology -



   Tasks - Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included. 1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230. 2. Configure an IPv4 default route on router R2 destined for router R4. 3. Configure an IPv6 default router on router R2 destined for router R4.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   actually, if cisco asks you to check ping, then you add back route if needed. if they did not ask, don be smart as*, they will fail you.

   Source: Adapted from community discussion — ac89l



   Next question

2. Question 52 · 1334 in bank

   Which interface or port on the WLC is the default for in-band device administration and communications between the controller and access points?

   • Aconsole port
   • Bmanagement interface
   • Cvirtual interface
   • Dservice port

   Show answer

   Answer: B

   Explanation

   B is correct: The management interface is the default interface for in-band management of the controller and connectivity to enterprise services such as AAA servers. It is also used for communications between the controller and access points, for all CAPWAP or intercontroller mobility messaging and tunneling traffic.

   Source: Adapted from community discussion — Goena

   Next question

3. Question 53 · 1334 in bank



   Refer to the exhibit. A network administrator configures the CPE to provide internet access to the company headquarters. Traffic must be load-balanced via ISP1 and ISP2 to ensure redundancy. Which two command sets must be configured on the CPE router? (Choose two.)

   • Aip route 0.0.0.0 0.0.0.0 198.51.100.1 255 ip route 0.0.0.0 0.0.0.0 203.0.113.1 255 ip route 128.0.0.0 128.0.0.0 203.0.113.1
   • Bip route 0.0.0.0 128.0.0.0 198.51.100.1 ip route 128.0.0.0 128.0.0.0 203.0.113.1 ip route 0.0.0.0 0.0.0.0 198.51.100.1 ip route 0.0.0.0 0.0.0.0 203.0.113.1
   • Cip route 0.0.0.0 0.0.0.0 198.51.100.1 ip route 0.0.0.0 0.0.0.0 203.0.113.1
   • Dip route 0.0.0.0 128.0.0.0 198.51.100.1 ip route 128.0.0.0 128.0.0.0 203.0.113.1
   • Eip route 0.0.0.0 0.0.0.0 198.51.100.1 ip route 0.0.0.0 0.0.0.0 203.0.113.1 2

   Show answer

   Answer: C

   Explanation

   Helpful reminder, if you didn't understand what the heck is this; Answer B is equal to C+D soooo Just memorize this and you will answer this sh!t question at exam without any problem. You welcome.

   Source: Adapted from community discussion — xbololi

   Next question

4. Question 54 · 1334 in bank



   Refer to the exhibit. A network engineer updates the existing configuration on interface fastethernet1/1 switch SW1. It must establish an EtherChannel by using the same group designation with another vendor switch. Which configuration must be performed to complete the process?

   • Ainterface port-channel 2 channel-group 2 mode desirable
   • Binterface fastethernet 1/1 channel-group 2 mode on
   • Cinterface fastethernet 1/1 channel-group 2 mode active
   • Dinterface port-channel 2 channel-group 2 mode auto

   Show answer

   Answer: C

   Explanation

   This is why I got out of cisco administration. After 25 years they could never have 1 standard... There are three options for configuring an EtherChannel: PAgP: A Cisco proprietary protocol LACP: An IEEE standard Manual: Bundle multiple physical interfaces without any protocol PAgP has two modes: Auto mode: The interface can respond to PAgP packet negotiation but will never start one on its own. Desirable mode: The interface actively attempts a negotiating state for PAgP packet negotiation. LACP has two modes: Active: The interface actively sends LACP packets in its attempt to form an LACP connection. Passive: The interface can respond to LACP negotiation but will never initiate on its own.

   Source: Adapted from community discussion — Techpro30

   Next question

5. Question 55 · 1334 in bank

   Select 2

   Which two characteristics are representative of virtual machines (VMs)? (Choose two.)

   • Amultiple VMs operate on the same underlying hardware
   • BEach VMs operating system depends on its hypervisor
   • CA VM on a hypervisor is automatically interconnected to other VMs
   • DA VM on an individual hypervisor shares resources equally
   • EEach VM runs independently of any other VM in the same hypervisor

   Show answer

   Answer: AE

   Explanation

   I hate the bogus questions. It could be AB or AE. It shows that whoever wrote these questions does not know about OS support based the on Hypervisor version.

   Source: Adapted from community discussion — picho707

   Next question

6. Question 56 · 1334 in bank

   What is the recommended switch load-balancing mode for Cisco WLCs?

   • Asource-destination IP address
   • Bdestination IP address
   • Cdestination MAC address
   • Dsource-destination MAC address

   Show answer

   Answer: A

   Explanation

   When using EtherChannel with Cisco WLCs, the recommended load-balancing mode is the source-destination IP address mode. This mode distributes traffic based on the source and destination IP addresses, which ensures that all traffic between a specific client and the WLC is sent over the same physical link. This is important for maintaining client connectivity and optimizing network performance, as it helps to minimize latency, packet loss, and other network issues.

   Source: Adapted from community discussion — mageknight

   References

   • Cisco documentation

   Next question

7. Question 57 · 1334 in bank

   What must be considered when using 802.11a?

   • AIt is chosen over 802.11b when a lower-cost solution is necessary
   • BIt is susceptible to interference from 2.4 GHz devices such as microwave ovens
   • CIt is compatible with 802.11b- and 802 11g-compliant wireless devices
   • DIt is used in place of 802.11b/g when many nonoverlapping channels are required

   Show answer

   Answer: D

   Explanation

   I hear you. This is my sixth time sitting this exam (five recertifications all up over the last 20-odd years). 802.11a is a 5 GHz radio network, so it is incompatible with 802.11b/g. It has nothing to do with costs. Whilst the 2.4 GHz range has three non-overlapping channels (1,6, and 11) - if you exclude Japan, the 5.0 GHz range has, I seem to remember, 23. For this reason, option 'd' is correct.

   Source: Adapted from community discussion — PaddyInNZ

   Next question

8. Question 58 · 1334 in bank

   Which type of IPv6 address is similar to a unicast address but is assigned to multiple devices on the same network at the same time?

   • Aglobal unicast address
   • Blink-local address
   • Canycast address
   • Dmulticast address

   Show answer

   Answer: C

   Explanation

   An anycast address is similar to a unicast address but is assigned to multiple devices on the same network at the same time. When a device sends a packet to an anycast address, it is delivered to one of the devices with that address, selected based on the routing protocol's best-effort algorithm. This is useful for applications like load balancing and failover, where multiple devices provide the same service and it doesn't matter which one handles a particular request.

   Source: Adapted from community discussion — ricky1802

   Next question

9. Question 59 · 1334 in bank



   Refer to the exhibit. An engineer configures interface fa0/1 on SW1 and SW2 to pass traffic from two different VLANs. For security reasons, company policy requires the native VLAN to be set to a nondefault value. Which configuration meets this requirement?

   • ASwitch(config-if)#switchport mode trunk Switch(config-if)#switchport trunk encapsulation dot1q Switch(config-if)#switchport trunk allowed vlan 100,105 Switch(config-if)#switchport trunk native vlan 3
   • BSwitch(config-if)#switchport mode trunk Switch(config-if)#switchport trunk encapsulation isl Switch(config-if)#switchport trunk allowed vlan 100,105 Switch(config-if)#switchport trunk native vlan 1
   • CSwitch(config-if)#switchport mode dynamic Switch(config-if)#switchport access vlan 100,105 Switch(config-if)#switchport trunk native vlan 1
   • DSwitch(config-if)#switchport mode access Switch(config-if)#switchport trunk encapsulation dot1q Switch(config-if)#switchport access vlan 100,105 Switch(config-if)#switchport trunk native vlan 3

   Show answer

   Answer: A

   Explanation

   Yes, it is, B & C wrong, because native vlan is 1 but the requirement is to use a nondefault vlan (not vlan1), and C configuration is wrong, but just by looking at the native vlan1 can exclude both, D is wrong because it should be trunk not access( access allows only one vlan)

   Source: Adapted from community discussion — studying_1

   Next question

10. Question 60 · 1334 in bank

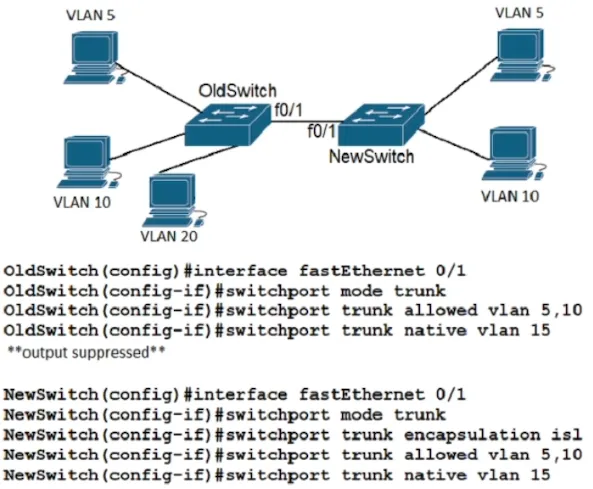

    Refer to the exhibit A new VLAN and switch are added to the network. A remote engineer configures OldSwitch and must ensure that the configuration meets these requirements: • accommodates current configured VLANs • expands the range to include VLAN 20 • allows for IEEE standard support for virtual LANs Which configuration on the NewSwitch side of the link meets these requirements?

    • Aswitch port mode dynamic channel group 1 mode active switchport trunk allowed vlan 5,10,15, 20
    • Bno switchport mode trunk switchport trunk encapsulation isl switchport mode access vlan 20
    • Cswitchport nonegotiate no switchport trunk allowed vlan 5,10 switchport trunk allowed vlan 5,10,15,20
    • Dno switchport trunk encapsulation isl switchport trunk encapsulation dot1q switchport trunk allowed vlan add 20

    Show answer

    Answer: D

    Explanation

    I don't understand, we must configure the OLD SW right? but the new sw is in ISL encapsulation and letter D has the command [no trunk encapsulation ISL]. Unless the question is wrong and they meant to configure the new sw.

    Source: Adapted from community discussion — Friday_Night

    Next question
