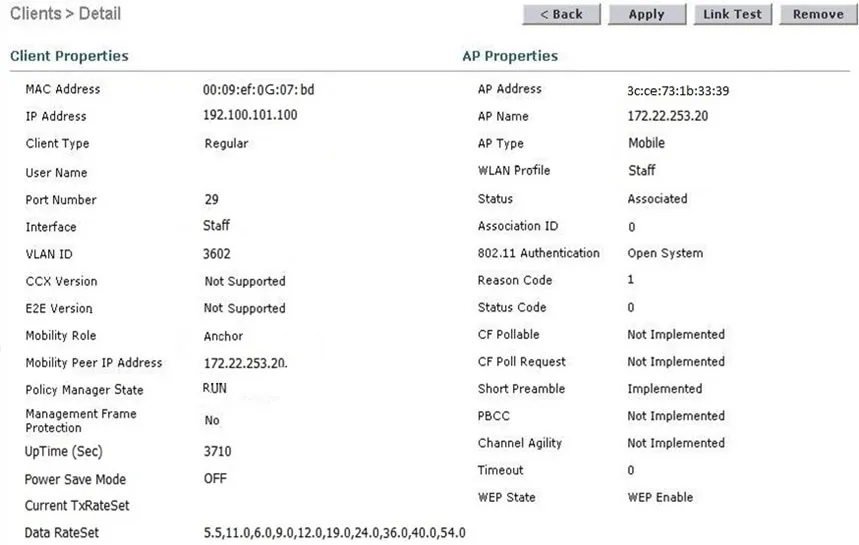

Refer to the exhibit.
The WLC administrator sees that the controller to which a roaming client associates has Mobility Role Anchor configured under Clients > Detail. Which type of roaming is supported?
Answer: B
Layer 3 intercontroller is correct because the mobility peer IP address is in different subnet from the client IP address
Source: Adapted from community discussion — Sparks026

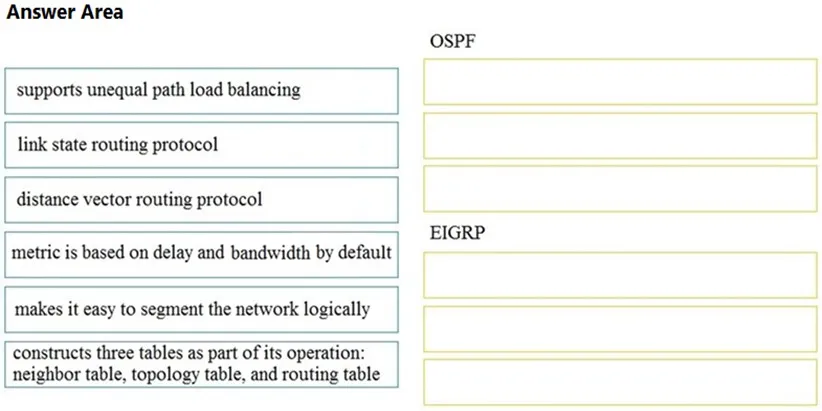

DRAG DROP - Drag and drop the characteristics from the left onto the correct routing protocol types on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

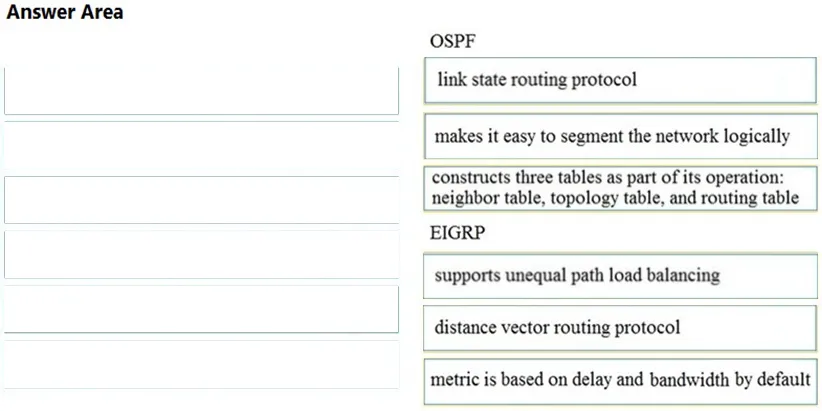

Answer: See figure below
The three table types do exist for both EIGRP and OSPF, and initially I had put the 3 tables under EIGRP. However you only have 3 slots under EIGRP, and there's already 3 items that can ONLY be EIGRP: unequal path LB, Distance Vector (OSPF is link-state), and metric based on BW and Delay (OSPF is only cost based on BW)
Source: Adapted from community discussion — danman32
Which feature is supported by EIGRP but is not supported by OSPF?
Answer: B
What is the correct EBGP path attribute list, ordered from most preferred to least preferred, that the BGP best-path algorithm uses?
Answer: B
Path Selection Attributes: Weight > Local Preference > Originate > AS Path > Origin > MED > External > IGP Cost > eBGP Peering > Router ID
Source: Adapted from community discussion — skh
A local router shows an EBGP neighbor in the Active state. Which statement is true about the local router?
Answer: A
BGP CONNECT session : BGP waits for a TCP connection with the remote peer. If successful, an OPEN message is sent. If unsuccessful, the session is placed in an Active state.
Source: Adapted from community discussion — kebkim

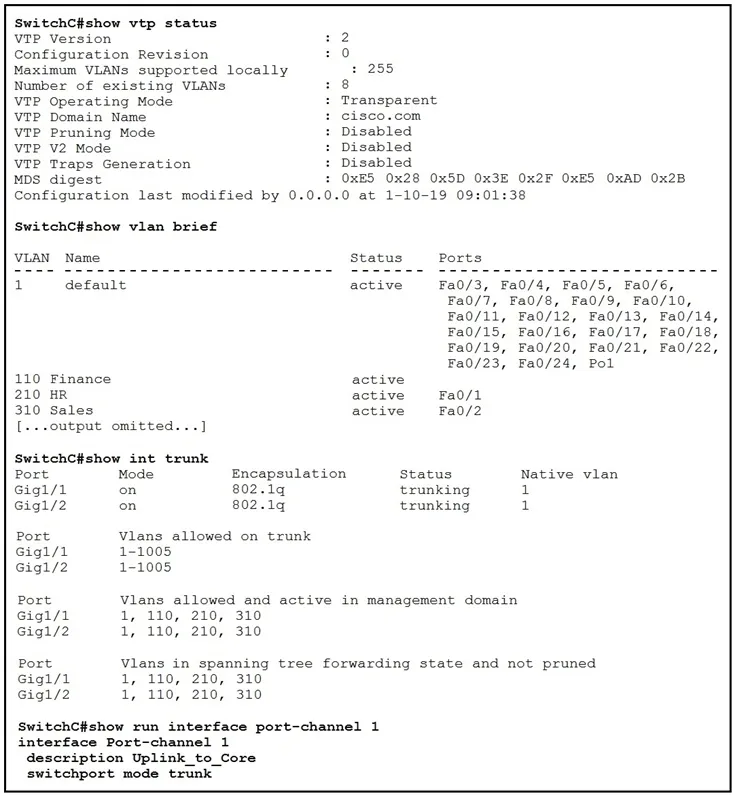

Refer to the exhibit.
SwitchC connects HR and Sales to the Core switch. However, business needs require that no traffic from the Finance VLAN traverse this switch. Which command meets this requirement?
Answer: D
Answer is D. B would prune vlan 110 because there are no ports in that vlan, except that vtp mode is transparent, so pruning mode is Disabled.
Source: Adapted from community discussion — last7
Refer to the exhibit.
An engineer must ensure that all traffic leaving AS 200 will choose Link 2 as the exit point. Assuming that all BGP neighbor relationships have been formed and that the attributes have not been changed on any of the routers, which configuration accomplishes this task?
Answer: A
I go for answer C BGP assigns the first valid path as the current best path. BGP then compares the best path with the next path in the list, until BGP reaches the end of the list of valid paths. This list provides the rules that are used to determine the best path: 1. Prefer the path with the highest WEIGHT. Note: WEIGHT is a Cisco-specific parameter. It is local to the router on which it is configured. 2. Prefer the path with the highest LOCAL_PREF. Note: A path without LOCAL_PREF is considered to have had the value set with the bgp default local-preferencecommand, or to have a value of 100 by default. https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13753-25.html
Source: Adapted from community discussion — Broekie
Which action is the vSmart controller responsible for in a Cisco SD-WAN deployment?
Answer: C
vSmart functions: 1. vSmart is the brain of the entire system. 2. Works with vBond to authenticate Viptela devices as they join the network. 3. Builds Control Plane connections with vEdge using TLS. 4. Orchestrate connectivity between vEdges via the policies there by creating the network topology. 5. Acts as a Route reflector by advertising the branches prefixes based on the policy. 6. Shares the data plane keys of a vEdge with other vEdges based on the policy to allow them to build the tunnels – IKEless IPSEC. 7. Policies are configured on vSmart.
Source: Adapted from community discussion — Rockford
Which feature of EIGRP is not supported in OSPF?
Answer: A
Which NTP Stratum level is a server that is connected directly to an authoritative time source?
Answer: B
ENCORE 350-401, Chapter 15, Pg 396, section "Network Time Protocol", paragraph 2: "NTP servers that are directly attached to an authoritative time source are stratum 1 servers" Answer is B, quote taken directly from the book
Source: Adapted from community discussion — DUGGIEFRESH
