Implementing Cisco Enterprise Network Core Technologies (ENCOR)1,003 questions across 101 pages are complete and free, with no account or card.
1003 questions in this bank
Free access · progress saved on this device
Refer to the exhibit.
Which type of antenna does the radiation pattern represent?
Answer: D
"Directional patch" antenna and "yagi" antenna look quite similar. Pay attention to the rear end (negative Z). See e.g. here: https://www.raymaps.com/index.php/some-common-antenna-radiation-patterns/
Source: Adapted from community discussion — weecee
Wireless users report frequent disconnections from the wireless network. While troubleshooting, a network engineer finds that after the user is disconnected, the connection re-establishes automatically without any input required. The engineer also notices these message logs: AP 'AP2' is down. Reason: Radio channel set. 6:54:04 PM AP 'AP4' is down. Reason: Radio channel set. 6:44:49 PM AP 'AP7' is down. Reason: Radio channel set. 6:34:32 PM Which action reduces the user impact?
Answer: D
when a radio changes from one channel to another, the user gets disconnected shortly, so increase DCA to more than 10 mins( default DCA) to reduce the number of times users are disconnceted .
Source: Adapted from community discussion — AliMo123
Refer to the exhibit.
The inside and outside interfaces in the NAT configuration of this device have been correctly identified. What is the effect of this configuration?
Answer: D
If you have no enough knowledge please do not write any comment, even a beginner knows the keyword (overload) means your are using PAT, so what port you are talking about?
Source: Adapted from community discussion — Akam

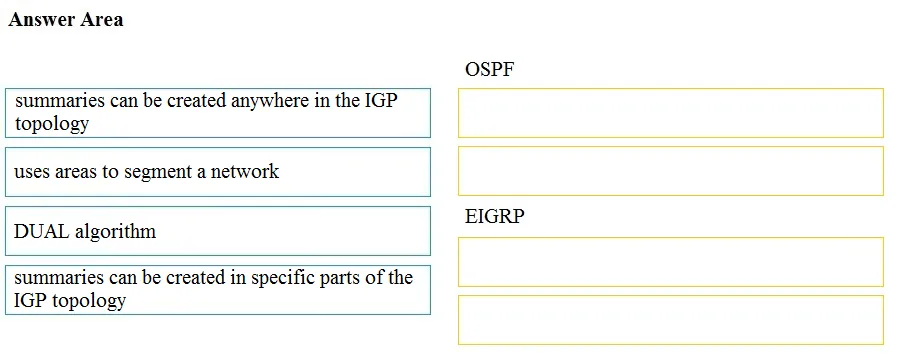

DRAG DROP - Drag and drop the descriptions from the left onto the routing protocol they describe on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

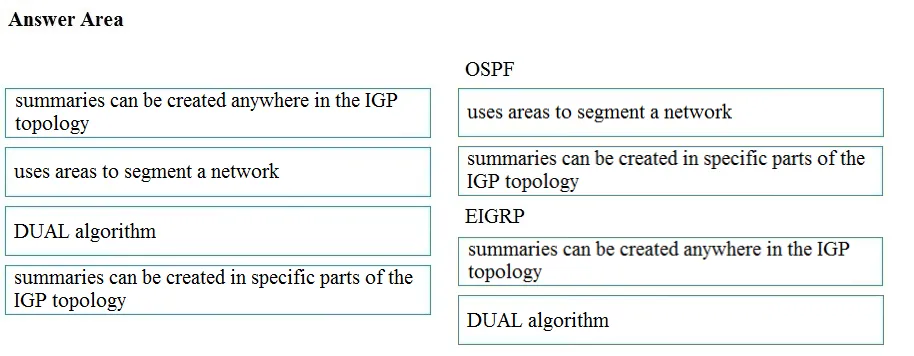

Answer: See figure below
What is the purpose of an RP in PIM?
Answer: A
Look closely at the answer. 'Send join messages TOWARD a multicast source' - not '[...] TO multicast source' You are right that RP join message will be send TO FHR but it is also correct that the join messages are sent TOWARDS source. A is correct answer.
Source: Adapted from community discussion — vdsdrs

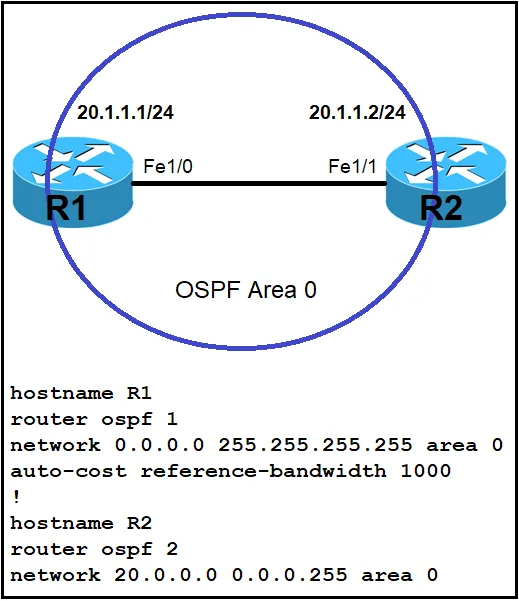

Refer to the exhibit. Which command must be applied to R2 for an OSPF neighborship to form?
Answer: B
This question is stupid. B, C and D all work. Tested on two 1941 routers running on IOS 15.1. This is due to the fact the network command just specifies interfaces that run OSPF and due to the wildcards all three options have 20.1.1.2 inside their range. B is a /32 and simpoly the IP C will be automaticly converted to 0.0.0.0 255.255.255.255 D will be automaticly converted to 20.1.0.0 0.0.255.255
Source: Adapted from community discussion — pyrokar

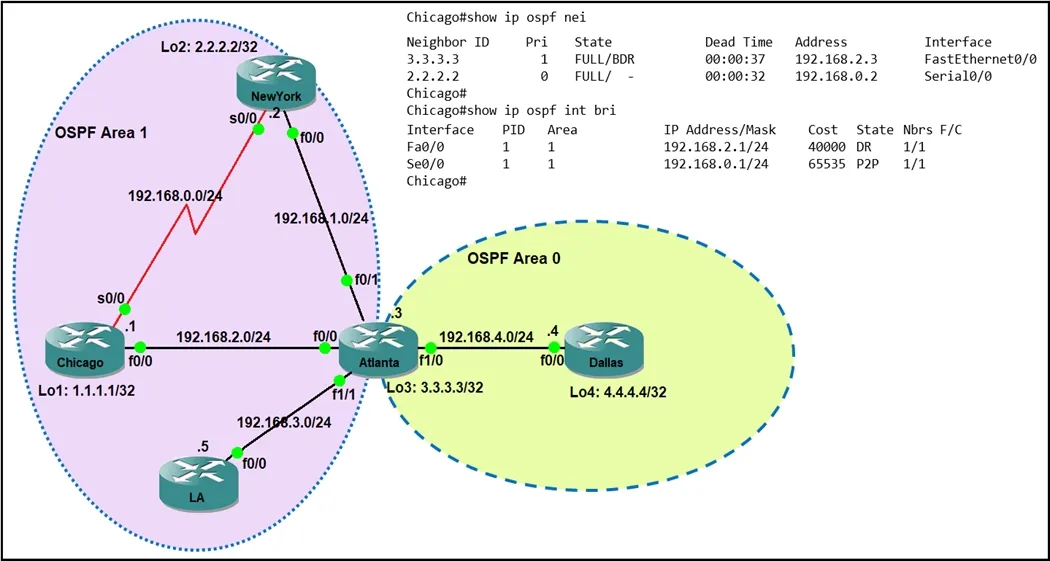

Refer to the exhibit. Which router is the designated router on the segment 192.168.0.0/24?
Answer: A
A is the correct answer. Whenever you see "point-to" in and SOPF network type know that there is no DR and BDR election.
Source: Adapted from community discussion — wabenzy

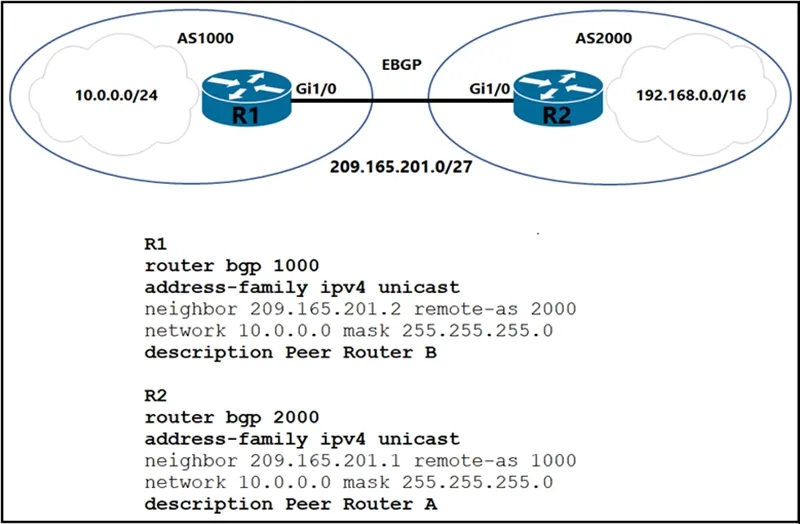

Refer to the exhibit. Which two commands are needed to allow for full reachability between AS 1000 and AS 2000? (Choose two.)
Answer: AC
A & C are correct. Need to negate the 10.0.0.0 /24 network on R2 and then add the 192.168.0.0 /16 network on R2. Hence, A & C, although I think to be exact the answer on A should be "no network 10.0.0.0 mask 255.255.255.0" vs. the "no network 10.0.0.0 255.255.255.0".
Source: Adapted from community discussion — rpidcock

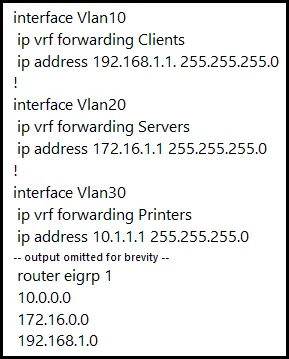

Refer to the exhibit. An engineer attempts to configure a router on a stick to route packets between Clients, Servers, and Printers; however, initial tests show that this configuration is not working. Which command set resolves this issue?
Answer: C
Correct Answer is C. Just to add my vote to help clarify, once you remove the VRF from the interface, this also strips the IP address configuration previously configured, therefore remove the VRF and then configure the interface IP.
Source: Adapted from community discussion — FrameRelay

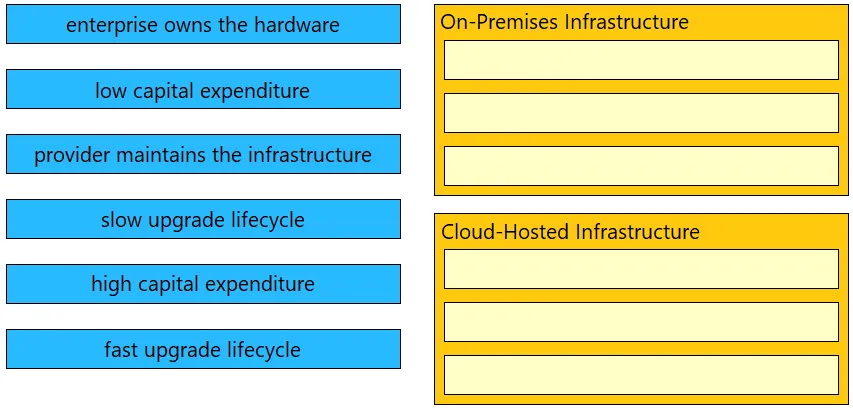

DRAG DROP - Drag and drop the characteristics from the left onto the infrastructure types on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below

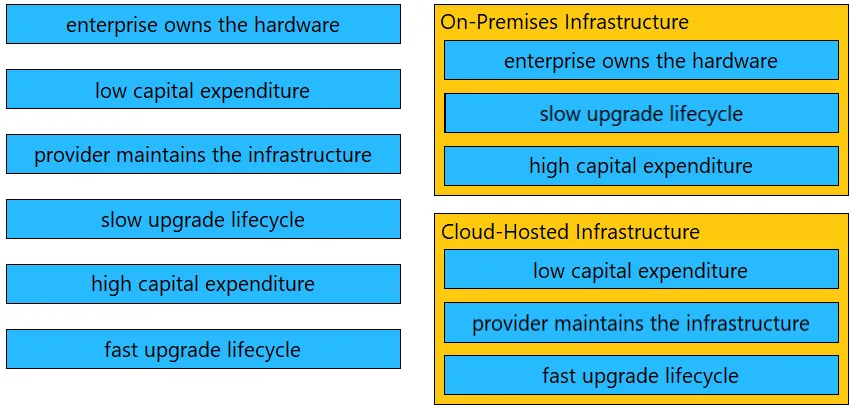

On Premisses enterprise owns the hardware slow upgrade lifecycle high capital expenditure Cloud-Hosted low capital expenditure provider maintains the infrastructure fast upgrade lifecycle
Source: Adapted from community discussion — Pudu_vlad
