350-401 practice questions 51–60

1. Question 51 · 1003 in bank

   What is provided to the client to identify the authenticated session in subsequent API calls after authenticating to the Cisco DNA Center API?

   • Aauthentication token
   • Bclient X.509 certificate
   • Csession cookie
   • Dusername and password

   Show answer

   Answer: A

   Explanation

   When you are successfully authenticated to the Cisco DNA Center controller, you receive a token that con-tains a string that looks similar to the following: "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOiI1YTU4Y2QzN2UwNWJiYTAwOGVmNjJiOT IiLCJhdXRoU291cmNlIjoiaW50ZXJuYWwiLCJ0ZW5hbnROYW1lIjoiVE5UMCIsInJvbGVzIjpbIjVhMz E1MTYwOTA5MGZiYTY5OGIyZjViNyJdLCJ0ZW5hbnRJZCI6IjVhMzE1MTlkZTA1YmJhMDA4ZWY2 MWYwYSIsImV4cCI6MTUyMTQ5NzI2NCwidXNlcm5hbWUiOiJkZXZuZXR1c2VyIn0.tgAJfLc1OaUwa JCX6lzfjPG7Om2x97oiTIozUpAzomM" --- OCG

   Source: Adapted from community discussion — chiacche

   Next question

2. Question 52 · 1003 in bank



   Refer to the exhibit. A network engineer must be notified when a user switches to configuration mode. Which script should be applied to receive an SNMP trap and a critical-level log message?

   • Aaction 1.0 snmp-trap strdata “Configuration change alarm” action 1.0 syslog priority critical msg “Configuration change alarm”
   • Baction 1.0 snmp-trap strdata “Configuration change alarm” action 2.0 syslog msg “Configuration change alarm”
   • Caction 1.0 snmp-trap strdata “Configuration change alarm” action 1.1 syslog priority critical msg “Configuration change alarm”
   • Daction 1.0 snmp-trap strdata “Configuration change critical alarm”

   Show answer

   Answer: C

   Explanation

   o configure an event manager applet that notifies a network engineer when a user enters configuration mode, and sends both an SNMP trap and a critical-level log message, the correct script should include both actions properly sequenced. Correct Answer: C action 1.0 snmp-trap strdata “configuration change alarm” action 1.1 syslog priority critical msg “configuration change alarm” Explanation: action 1.0 snmp-trap strdata “configuration change alarm”: This line sends an SNMP trap with a message indicating a configuration change. action 1.1 syslog priority critical msg “configuration change alarm”: This line logs a critical message to the syslog indicating the same configuration change.

   Source: Adapted from community discussion — andrpercud

   Next question

3. Question 53 · 1003 in bank

   How does the Cisco SD-Access control plane simplify traditional routing environments?

   • ARouting adjacencies are no longer required.
   • BSeparation of EID and RLOC reduces the size of routing tables.
   • CRouters query all routes to the map server.
   • DFull routing tables are shared and ensure that all routers know all paths within the underlay fabric and overlay.

   Show answer

   Answer: B

   Next question

4. Question 54 · 1003 in bank

   Which template is used when multiple templates are grouped together to run in succession in Cisco DNA Center?

   • Aproject
   • Bregular
   • Cconfiguration
   • Dcomposite

   Show answer

   Answer: D

   Explanation

   In Cisco DNA Center, when you need to group multiple templates together to run in succession, you use a Composite Template

   Source: Adapted from community discussion — BT22

   Next question

5. Question 55 · 1003 in bank

   In a wireless network environment, what is calculated using the numerical values of the transmitter power level, cable loss, and antenna gain?

   • ASNR
   • BRSSI
   • CEIRP
   • DdBi

   Show answer

   Answer: C

   Explanation

   Effective Isotropic Radiated Power The radiated (transmitted) power is rated in either dBm or W. Power that comes off an antenna is measured as effective isotropic radiated power (EIRP). EIRP is the value that regulatory agencies, such as the FCC or European Telecommunications Standards Institute (ETSI), use to determine and measure power limits in applications such as 2.4-GHz or 5-GHz wireless equipment. In order to calculate EIRP, add the transmitter power (in dBm) to the antenna gain (in dBi) and subtract any cable losses (in dB).

   Source: Adapted from community discussion — alexzs27

   Next question

6. Question 56 · 1003 in bank

   Which method requires a client to authenticate and has the capability to function without encryption?

   • AWEP
   • BPSK
   • Copen
   • DWebAuth

   Show answer

   Answer: D

   Explanation

   WebAuth is used for authentication, not encryption. A pre-shared key (PSK) is used in conjunction with WebAuth to provide encryption capabilities. https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wlan-security/115951-web-auth-wlc-guide-00.html#:~:text=Although%20the%20combination,method%20without%20encryption.

   Source: Adapted from community discussion — AbdullahMohammad251

   References

   • Cisco documentation

   Next question

7. Question 57 · 1003 in bank

   An engineer must update the local web authentication details on a Cisco 5520 WLC. The engineer has one active SSID configured for web authentication and plans to update the virtual interface with a nonroutable IP address. Which command must the engineer apply?

   • Aconfig wlan create wlan_idname
   • Bconfig interface address virtual 1.1.1.1
   • Cconfig interface address dynamic-interface virtual 192.0.2.1
   • Dconfig interface address virtual 192.0.2.1

   Show answer

   Answer: D

   Explanation

   From ChatGPT: To update the local web authentication details on a Cisco 5520 Wireless LAN Controller (WLC) and configure the virtual interface with a non-routable IP address, the engineer should use the following command in the WLC CLI: config interface address virtual For example, if the engineer wants to set the virtual interface IP address to a non-routable IP like 192.0.2.1, the command would be: config interface address virtual 192.0.2.1 This virtual interface is used for web authentication redirection.

   Source: Adapted from community discussion — ExamTaker1017

   Next question

8. Question 58 · 1003 in bank

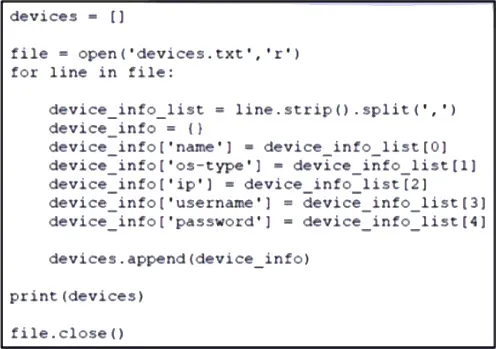

   Refer to the exhibit. What is achieved when this Python script is executed?

   • AAll devices that are looped through in the devices.txt file are put into a list that is appended to the parent dictionary.
   • BAll devices that are looped through in the devices.txt file are put into a single dictionary that is appended to the parent list.
   • CEach device that is looped through in the devices.txt file is put into its own list that is appended to the parent dictionary.
   • DEach device that is looped through in the devices.txt file is put into its own dictionary that is appended to the parent list.

   Show answer

   Answer: D

   Explanation

   Explained by Claude AI: 1. The script expects a text file called 'devices.txt' that contains device information in a comma-separated format. 2. The script then reads through the file line by line: for line in file: device_info_list = line.strip().split(',') # Removes whitespace and splits by commas device_info = {} # Creates an empty dictionary for each device 3. For each line, the script creates a dictionary to store the device's information in a more organized way. The strip() method removes any extra whitespace or newline characters, and split(',') breaks the line into a list using commas as separators. 4. The script then assigns each piece of information to specific keys in the dictionary. 5. After creating the dictionary for a device, it's added to the main list. 6. Finally, the script prints the entire list of devices and closes the file.

   Source: Adapted from community discussion — abrielirus123

   Next question

9. Question 59 · 1003 in bank

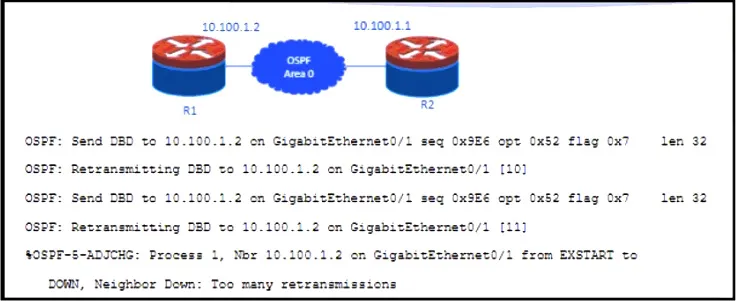

   Refer to the exhibit. Why does OSPF fail to establish an adjacency between R1 and R2?

   • Aauthentication mismatch
   • Binterface MTU mismatch
   • Ctimers mismatch
   • Darea mismatch

   Show answer

   Answer: B

   Explanation

   It's B. Re-created in CML: *Nov 20 22:11:01.285: OSPF-1 ADJ Gi1/0/1: First DBD and we are not SLAVE *Nov 20 22:11:06.066: OSPF-1 ADJ Gi1/0/1: Rcv DBD from 1.1.1.1 seq 0x1172 opt 0x52 flag 0x7 len 32 mtu 1000 state EXSTART *Nov 20 22:11:06.066: OSPF-1 ADJ Gi1/0/1: Nbr 1.1.1.1 has smaller interface MTU *Nov 20 22:12:33.751: %OSPF-5-ADJCHG: Process 1, Nbr 1.1.1.1 on GigabitEthernet1/0/1 from EXSTART to DOWN, Neighbor Down: Too many retransmissions If you want to see what MTU value the neighbor is sending: debug ip ospf adj hth

   Source: Adapted from community discussion — NetworkJanitor

   Next question

10. Question 60 · 1003 in bank

    SIMULATION - Guidelines - This is a lab item in which tasks will be performed on virtual devices. • Refer to the Tasks tab to view the tasks for this lab item. • Refer to the Topology tab to access the device console(s) and perform the tasks. • Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window. • All necessary preconfigurations have been applied. • Do not change the enable password or hostname for any device. • Save your configurations to NVRAM before moving to the next item. • Click Next at the bottom of the screen to submit this lab and move to the next question. • When Next is clicked, the lab closes and cannot be reopened. Topology -



    Tasks - The operations team started configuring network devices for a new site. Complete the configurations to achieve these goals: 1. Configure Rapid PVST+ on SW20. 2. The trunk between SW20 and SW30 is not operational. Troubleshoot the issue and ensure PC3 can ping PC1 (10.10.100.10) across the link. 3. The LACP port channel between SW10 and SW20 is not operational. Troubleshoot the issue and ensure PC3 can ping PC2 (10.10.100.20) across the port channel. Note: No access is provided to SW10 or SW30. Resolve these issues by making changes only to SW20. Traffic on all trunks should be restricted to only active VLANs.



    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

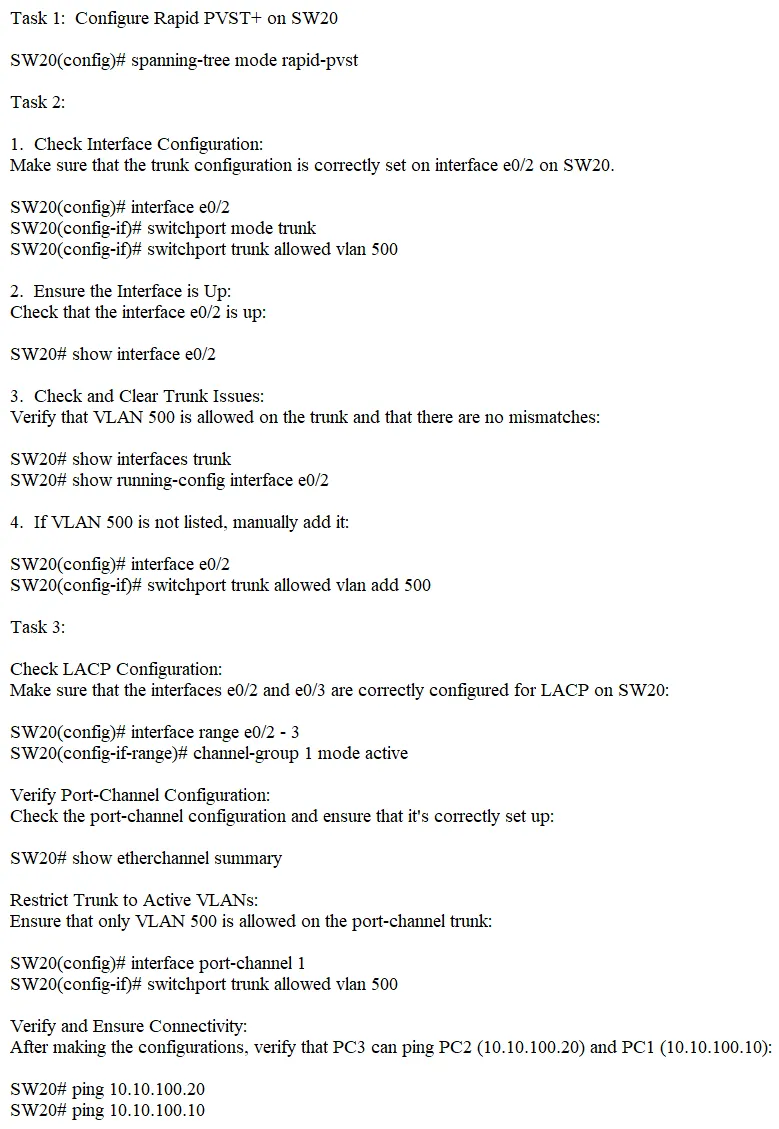

    Show the answer figure

    Answer: See figure below

    Explanation

    Task 1 ! spanning-tree mode rapid-pvst ! Task 2 ! vlan 500 exit ! interface Ethernet0/0 switchport trunk allowed vlan 500 switchport trunk encapsulation dot1q switchport mode trunk ! interface Ethernet0/1 switchport access vlan 500 switchport mode access ! Task 3 ! interface Port-channel1 switchport trunk allowed vlan 500 switchport trunk encapsulation dot1q switchport mode trunk ! interface range Ethernet0/2-3 switchport trunk allowed vlan 500 switchport trunk encapsulation dot1q switchport mode trunk channel-group 1 mode active !

    Source: Adapted from community discussion — cjoyce1980



    Next question
