Implementing and Operating Cisco Data Center Core Technologies (DCCOR)504 questions across 51 pages are complete and free, with no account or card.
504 questions in this bank
Free access · progress saved on this device
Refer to the exhibit. A secure server that provides services to EPG-2 must be placed in EPG-1. The remaining EPGs `" EPG-2, EPG-3, and EPG-4 `" must communicate without any contracts. Which set of actions accomplishes this goal?
Answer: C
The Cisco UCS blade chassis must send SNMPv3 traps to a network monitoring system. The SNMP trap messages should be authenticated and have protection from disclosure. Which SNMP security privilege level should be configured?
Answer: A
If you select V3 for the version, the privilege associated with the trap. This can be one of the following: • Auth—Authentication but no encryption • Noauth—No authentication or encryption • Priv—Authentication and encryption https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/System-Monitoring/4-0/b_UCSM_GUI_System_Monitoring_Guide_4-0/b_UCSM_GUI_System_Monitoring_Guide_4-0_chapter_0111.pdf
Source: Adapted from community discussion — 7korn7

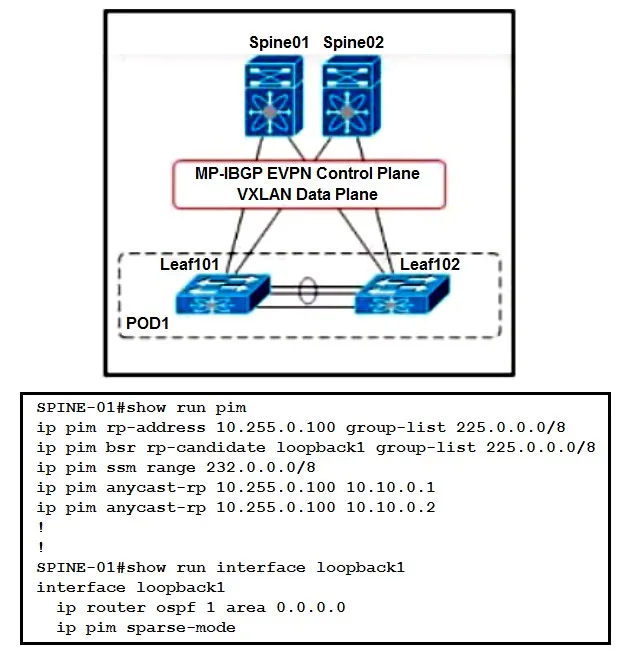

Refer to the exhibit. An engineer must implement VXLAN with anycast gateway. To accomplish this, an engineer must set up PIM Source-Specific Multicast for host reachability. Which IP address must be applied to interface loopback1 to accomplish this goal?
Answer: B
moreover you need to have 2 loopbacks for pim-anycast RP, one of them has anycast RP configured, another one has unique IP for communicating with other RP switch, so basically any of the A,B,C options could be correct
Source: Adapted from community discussion — vladdar
An engineer must configure a Cisco UCS blade system that is managed by Cisco UCS Manager. All four connected interfaces between the blade system and the fabric interconnects must be used. Additionally, the connectivity must tolerate any link failure between the I/O module and the fabric interconnects. Which action accomplishes these requirements?
Answer: C
I think answer is C Chassis link action in Chassis/FEX discovery policy sets the minimum number of links to discover the chassis. You must set Link Group Preference to Port Channel if you want fault tolerance
Source: Adapted from community discussion — Salilgen
What occurs when running the command install deactivate <filename> while a software maintenance upgrade is performed on a Cisco Nexus 9000 Series switch?
Answer: B
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/system_management/configuration/guide/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide/sm_smu.html#task_B8B0F5BA80BE41AEA93197F560665648
Source: Adapted from community discussion — malkovitch
What is an advantage of NAS compared to SAN?
Answer: C

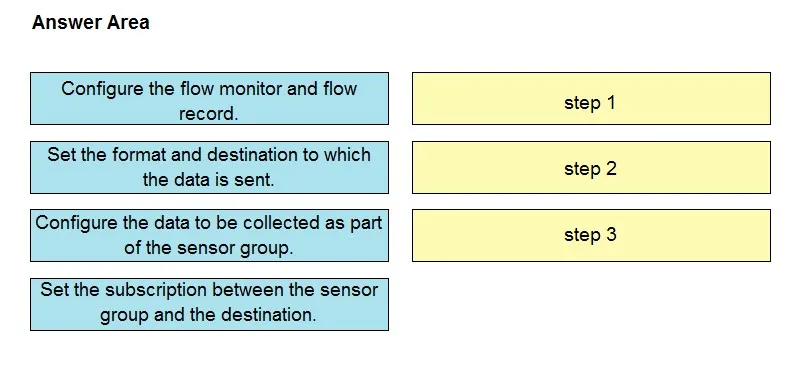

DRAG DROP - A network engineer must implement a telemetry solution to collect real-time structured data in a large-scale network. Drag and drop the actions from the left into the order on the right to implement the solution. Not all actions are used. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

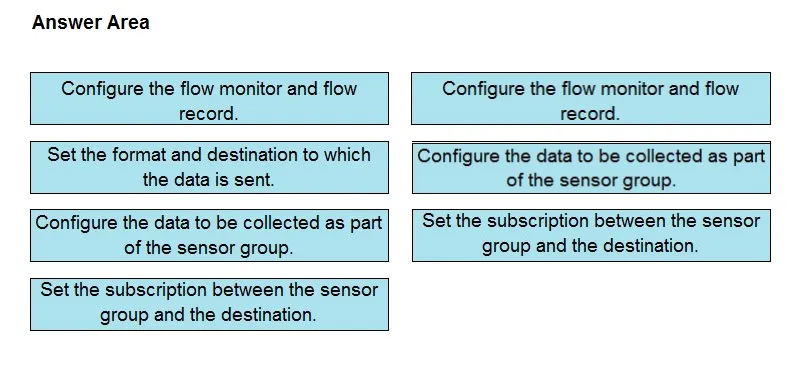

Answer: See figure below
The answer is wrong. We use flow record and flow monitor with exported in NetFlow, but not in steaming telemetry. Here the steps should be: - set format and destination - set sensor group - set subscription
Source: Adapted from community discussion — examz_collector
Where does the witness VM reside in a Cisco HyperFlex Edge deployment?
Answer: D
An engineer must implement protection against ICMP DoS attacks on a Cisco Nexus 9000 Series Switch. The requirement is to rate-limit ICMP without denying all other ICMP traffic. The ICMP traffic currently passing through the Cisco Nexus 9000 device must not be affected. Which configuration accomplishes these goals?
Answer: C
A network engineer must determine the cooling requirements for a Cisco UCS C-Series Rack Server. The server with PCIe cards is configured with a fan configuration policy. Which configuration should be used for the fan policy of the server?
Answer: B
High Power—This setting can be used for server configurations that require fan speeds ranging from 60% to 85%. This policy is ideal for servers that contain PCIe cards that overheat easily and have high temperatures. https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/gui/config/guide/3_0/b_Cisco_UCS_C-series_GUI_Configuration_Guide_301/b_Cisco_UCS_C-series_GUI_Configuration_Guide_201_chapter_011.html#:~:text=Configuring%20the%20Fan%20Policy
Source: Adapted from community discussion — 7korn7
