AZ-500 practice questions 321–330

1. Question 321 · 496 in bank

   You company has an Azure subscription named Sub1. Sub1 contains an Azure web app named WebApp1 that uses Azure Application Insights. WebApp1 requires users to authenticate by using OAuth 2.0 client secrets. Developers at the company plan to create a multi-step web test app that preforms synthetic transactions emulating user traffic to Web App1. You need to ensure that web tests can run unattended. What should you do first?

   • AIn Microsoft Visual Studio, modify the .webtest file.
   • BUpload the .webtest file to Application Insights.
   • CRegister the web test app in Azure AD.
   • DAdd a plug-in to the web test app.

   Show answer

   Answer: C

   Explanation

   C is correct answer. The context of the question is from a Security/Access/Identities perspective, and not from developer's perspective. Check the answer here, section "Client Secret": https://docs.microsoft.com/en-us/azure/azure-monitor/app/availability-multistep#dealing-with-sign-in

   Source: Adapted from community discussion — Elpresidento27

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn

   Next question

2. Question 322 · 496 in bank

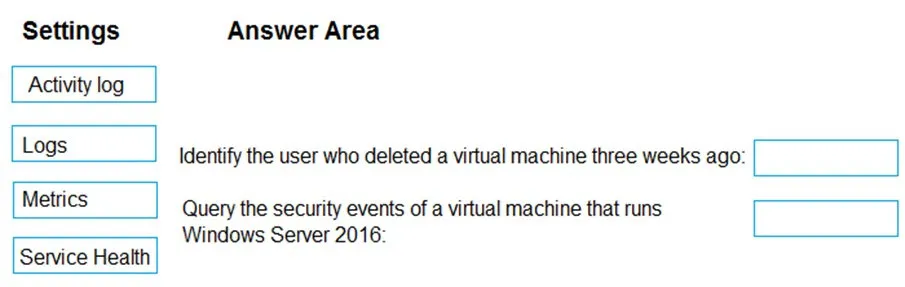

   DRAG DROP - You have an Azure subscription that contains 100 virtual machines. Azure Diagnostics is enabled on all the virtual machines. You are planning the monitoring of Azure services in the subscription. You need to retrieve the following details: ✑ Identify the user who deleted a virtual machine three weeks ago. ✑ Query the security events of a virtual machine that runs Windows Server 2016. What should you use in Azure Monitor? To answer, drag the appropriate configuration settings to the correct details. Each configuration setting may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

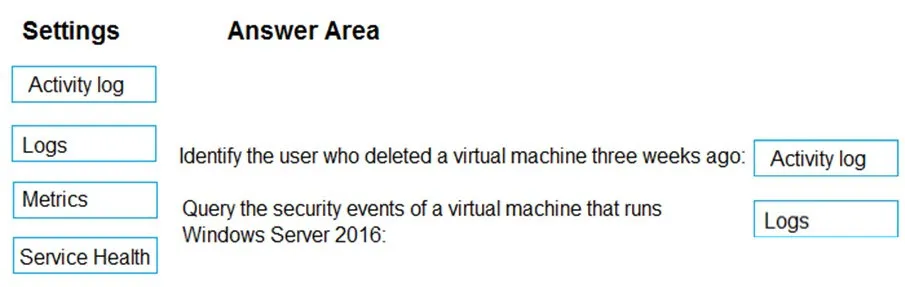

   Box1: Activity log - Azure activity logs provide insight into the operations that were performed on resources in your subscription. Activity logs were previously known as ג€audit logsג€ or ג€operational logs,ג€ because they report control-plane events for your subscriptions. Activity logs help you determine the ג€what, who, and whenג€ for write operations (that is, PUT, POST, or DELETE). Box 2: Logs - Log Integration collects Azure diagnostics from your Windows virtual machines, Azure activity logs, Azure Security Center alerts, and Azure resource provider logs. This integration provides a unified dashboard for all your assets, whether they're on-premises or in the cloud, so that you can aggregate, correlate, analyze, and alert for security events. Reference: https://docs.microsoft.com/en-us/azure/security/azure-log-audit

   Source: Adapted from community discussion — DA0410

   References

   • Microsoft Learn
   • Microsoft Learn



   Next question

3. Question 323 · 496 in bank

   HOTSPOT - You have an Azure subscription that contains the resources shown in the following table.



   VM1 and VM2 are stopped. You create an alert rule that has the following settings: ✑ Resource: RG1 ✑ Condition: All Administrative operations ✑ Actions: Action groups configured for this alert rule: ActionGroup1 ✑ Alert rule name: Alert1 You create an action rule that has the following settings: ✑ Scope: VM1 ✑ Filter criteria: Resource Type = "Virtual Machines" ✑ Define on this scope: Suppression ✑ Suppression config: From now (always) ✑ Name: ActionRule1 For each of the following statements, select Yes if the statement is true. Otherwise, select No. Note: Each correct selection is worth one point. Hot Area:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Box 1: The scope for the action rule is set to VM1 and is set to suppress alerts indefinitely. Box 2: The scope for the action rule is not set to VM2. Box 3: Adding a tag is not an administrative operation. References: https://docs.microsoft.com/en-us/azure/azure-monitor/platform/alerts-activity-log https://docs.microsoft.com/en-us/azure/azure-monitor/platform/alerts-action-rules

   Source: Adapted from community discussion — Karls

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn



   Next question

4. Question 324 · 496 in bank

   DRAG DROP - You have an Azure subscription named Sub1 that contains an Azure Log Analytics workspace named LAW1. You have 500 Azure virtual machines that run Windows Server 2016 and are enrolled in LAW1. You plan to add the System Update Assessment solution to LAW1. You need to ensure that System Update Assessment-related logs are uploaded to LAW1 from 100 of the virtual machines only. Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer: See figure below

   Explanation

   Reference: https://docs.microsoft.com/en-us/azure/azure-monitor/insights/solution-targeting

   Source: Adapted from community discussion — kabooze

   References

   • Microsoft Learn
   • Microsoft Learn



   Next question

5. Question 325 · 496 in bank

   You have an Azure subscription named Sub1 that contains the virtual machines shown in the following table.



   You need to ensure that the virtual machines in RG1 have the Remote Desktop port closed until an authorized user requests access. What should you configure?

   • AAzure Active Directory (Azure AD) Privileged Identity Management (PIM)
   • Ban application security group
   • CAzure Active Directory (Azure AD) conditional access
   • Djust in time (JIT) VM access

   Show answer

   Answer: D

   References

   • Microsoft Learn
   • Microsoft Learn

   Next question

6. Question 326 · 496 in bank

   SIMULATION - You need to ensure that web1234578 is protected from malware by using Microsoft Antimalware for Virtual Machines and is scanned every Friday at 01:00. To complete this task, sign in to the Azure portal.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   You need to install and configure the Microsoft Antimalware extension on the virtual machine named web1234578. 1. In the Azure portal, type Virtual Machines in the search box, select Virtual Machines from the search results then select web1234578. Alternatively, browse to Virtual Machines in the left navigation pane. 2. In the properties of web11597200, click on Extensions. 3. Click the Add button to add an Extension. 4. Scroll down the list of extensions and select Microsoft Antimalware. 5. Click the Create button. This will open the settings pane for the Microsoft Antimalware Extension. 6. In the Scan day field, select Friday. 7. In the Scan time field, enter 60. The scan time is measured in minutes after midnight so 60 would be 01:00, 120 would be 02:00 etc. 8. Click the OK button to save the configuration and install the extension.

   Next question

7. Question 327 · 496 in bank

   SIMULATION - You need to ensure that the events in the NetworkSecurityGroupRuleCounter log of the VNET01-Subnet0-NSG network security group (NSG) are stored in the logs1234578 Azure Storage account for 30 days. To complete this task, sign in to the Azure portal.

   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   You need to configure the diagnostic logging for the NetworkSecurityGroupRuleCounter log. 1. In the Azure portal, type Network Security Groups in the search box, select Network Security Groups from the search results then select VNET01- Subnet0-NSG. Alternatively, browse to Network Security Groups in the left navigation pane. 2. In the properties of the Network Security Group, click on Diagnostic Settings. 3. Click on the Add diagnostic setting link. 4. Provide a name in the Diagnostic settings name field. It doesn't matter what name you provide for the exam. 5. In the Log section, select NetworkSecurityGroupRuleCounter. 6. In the Destination details section, select Archive to a storage account. 7. In the Storage account field, select the logs1234578 storage account. 8. In the Retention (days) field, enter 30. 9. Click the Save button to save the changes.

   References

   • Microsoft Learn

   Next question

8. Question 328 · 496 in bank

   You are troubleshooting a security issue for an Azure Storage account. You enable the diagnostic logs for the storage account. What should you use to retrieve the diagnostics logs?

   • AAzure Security Center
   • BAzure Monitor
   • Cthe Security admin center
   • DAzure Storage Explorer

   Show answer

   Answer: D

   Explanation

   Mmmm. In the link you provide we can see: View log data To view and analyze your log data, you should download the blobs that contain the log data you are interested in to a local machine. Many storage-browsing tools enable you to download blobs from your storage account; you can also use the Azure Storage team provided command-line Azure Copy Tool AzCopy to download your log data. Nothing about Azure Monitor. So I think the answer continues to be D. Azure Storage Explorer

   Source: Adapted from community discussion — Oskarma

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn

   Next question

9. Question 329 · 496 in bank

   You have an Azure subscription that contains the resources shown in the following table.



   You plan to enable Azure Defender for the subscription. Which resources can be protected by using Azure Defender?

   • AVM1, VNET1, storage1, and Vault1
   • BVM1, VNET1, and storage1 only
   • CVM1, storage1, and Vault1 only
   • DVM1 and VNET1 only
   • EVM1 and storage1 only

   Show answer

   Answer: C

   Explanation

   Just confirmed with Microsoft - Azure defender can protect your DNS traffic at network layer, but not the virtual network - answer should be C https://docs.microsoft.com/en-ca/azure/security-center/azure-defender

   Source: Adapted from community discussion — neemz

   References

   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn
   • Microsoft Learn

   Next question

10. Question 330 · 496 in bank

    DRAG DROP - You have an Azure subscription that contains the following resources: ✑ A network virtual appliance (NVA) that runs non-Microsoft firewall software and routes all outbound traffic from the virtual machines to the internet ✑ An Azure function that contains a script to manage the firewall rules of the NVA ✑ Azure Security Center standard tier enabled for all virtual machines ✑ An Azure Sentinel workspace ✑ 30 virtual machines You need to ensure that when a high-priority alert is generated in Security Center for a virtual machine, an incident is created in Azure Sentinel and then a script is initiated to configure a firewall rule for the NVA. How should you configure Azure Sentinel to meet the requirements? To answer, drag the appropriate components to the correct requirements. Each component may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point. Select and Place:



    This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

    Show the answer figure

    Answer: See figure below

    Explanation

    Reference: https://docs.microsoft.com/en-us/azure/sentinel/create-incidents-from-alerts https://docs.microsoft.com/en-us/azure/sentinel/connect-azure-security-center

    Source: Adapted from community discussion — zellck

    References

    • Microsoft Learn
    • Microsoft Learn
    • Microsoft Learn



    Next question
