300-415 practice questions 371–380

1. Question 371 · 382 in bank

   What is the primary purpose of monitoring "Event Trace" for OMP agent and SD-WAN subsystems?

   • AIt provides the functionality to run diagnostics of SD-WAN tracking between the SD-WAN Manager and SD-WAN subsystems.
   • BIt adds support for event notifications for Cisco IOS XE devices and SD-WAN subsystems.
   • CIt adds support for event alerts for Cisco WAN Edge routers and SD-WAN subsystems.
   • DIt provides the functionality to capture the SD-WAN traces between the SD-WAN daemons and SD-WAN subsystems.

   Show answer

   Answer: D

   Next question

2. Question 372 · 382 in bank

   Select 2

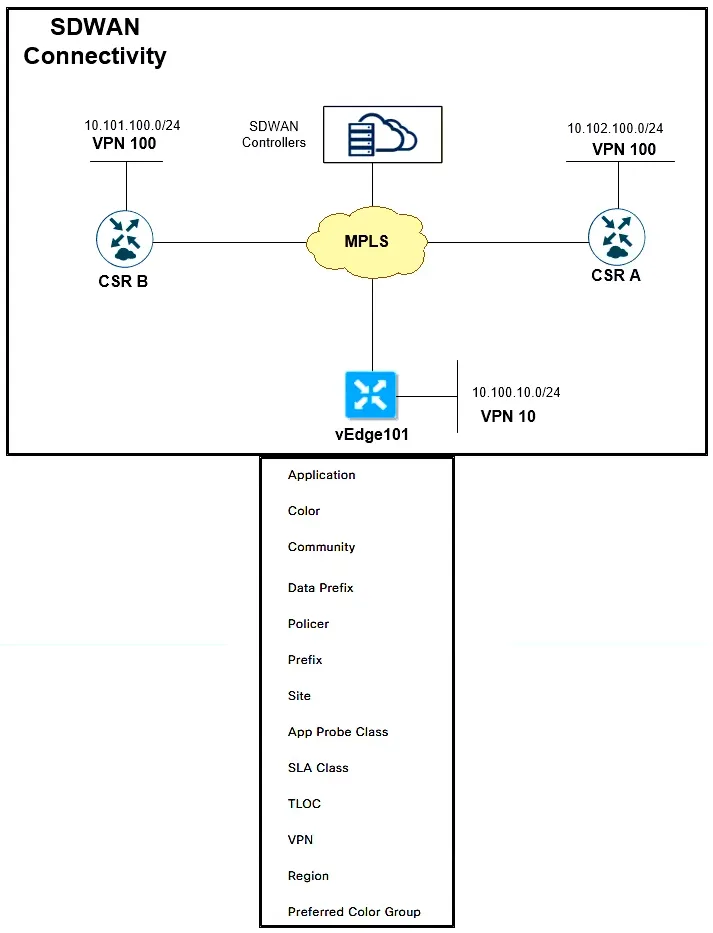

   Refer to the exhibit. Spokes in VPN100 must reach services in VPN10 at the data center. These services include DHCP, DNS, and application servers. Which two components must be configured before creating the policy for route leaking between VPN 100 and VPN10? (Choose two.)

   • AVPN
   • Bcolor
   • CTLOC
   • Dprefix
   • Edata prefix

   Show answer

   Answer: AE

   Next question

3. Question 373 · 382 in bank

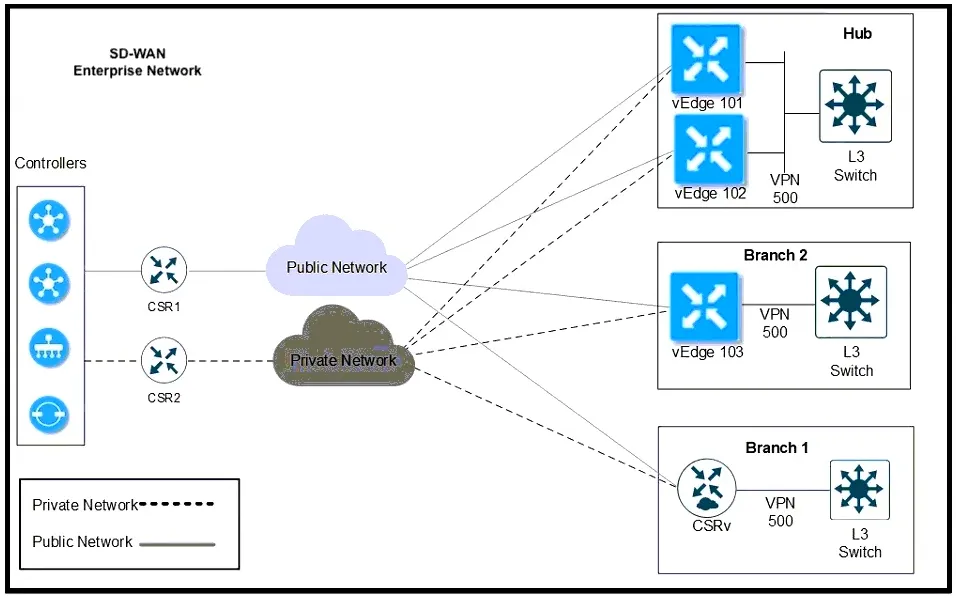

   Refer to the exhibit. An engineer is performing a proof of concept before migrating to the Cisco Catalyst SD-WAN solution in the data center by configuring the WAN vEdge101 device. Which configuration accomplishes the task?

   • A//IMG//
   • B//IMG//
   • C//IMG//
   • D//IMG//

   Show answer

   Answer: D

   Next question

4. Question 374 · 382 in bank

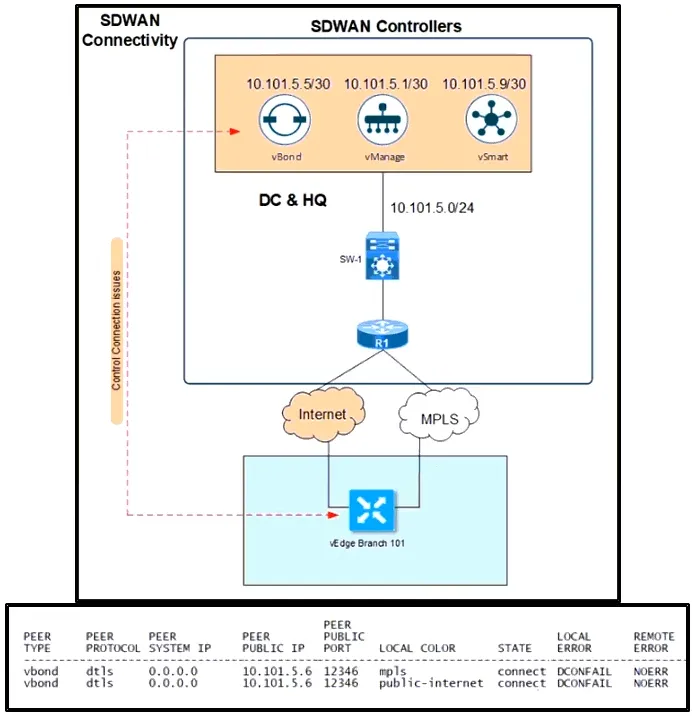

   Refer to the exhibit. A WAN Edge device cannot connect to SD-WAN Validator; however, can ping it. Which action resolves the issue?

   • AVerify that the SD-WAN Validator IP address is correct.
   • BModify the system IP on WAN Edge.
   • CInstall the correct root certificate on WAN Edge.
   • DSwitch the peer protocol from DTLS to TLS.

   Show answer

   Answer: A

   Next question

5. Question 375 · 382 in bank

   An engineer must advertise OSPF-learned routes and modify the update interval for route filtering by TLOC color to 300 on an SD-WAN device. Which configuration accomplishes this task?

   • A//IMG//
   • B//IMG//
   • C//IMG//
   • D//IMG//

   Show answer

   Answer: A

   Next question

6. Question 376 · 382 in bank



   Refer to the exhibit. vEdge101 has six possible routes to connect to spokes. However, only four routes are currently in use. Which CLI configuration ensures that all six routes are used?

   • AvEdge101# omp no shutdown send-path-limit 16 graceful-restart
   • Bvsmart # omp no shutdown send-backup-paths graceful-restart
   • CvEdge101# omp no shutdown send-backup-paths send-path-limit 16 graceful-restart
   • Dvsmart# omp no shutdown send-path-limit 16 send-backup-paths graceful-restart

   Show answer

   Answer: D

   Next question

7. Question 377 · 382 in bank

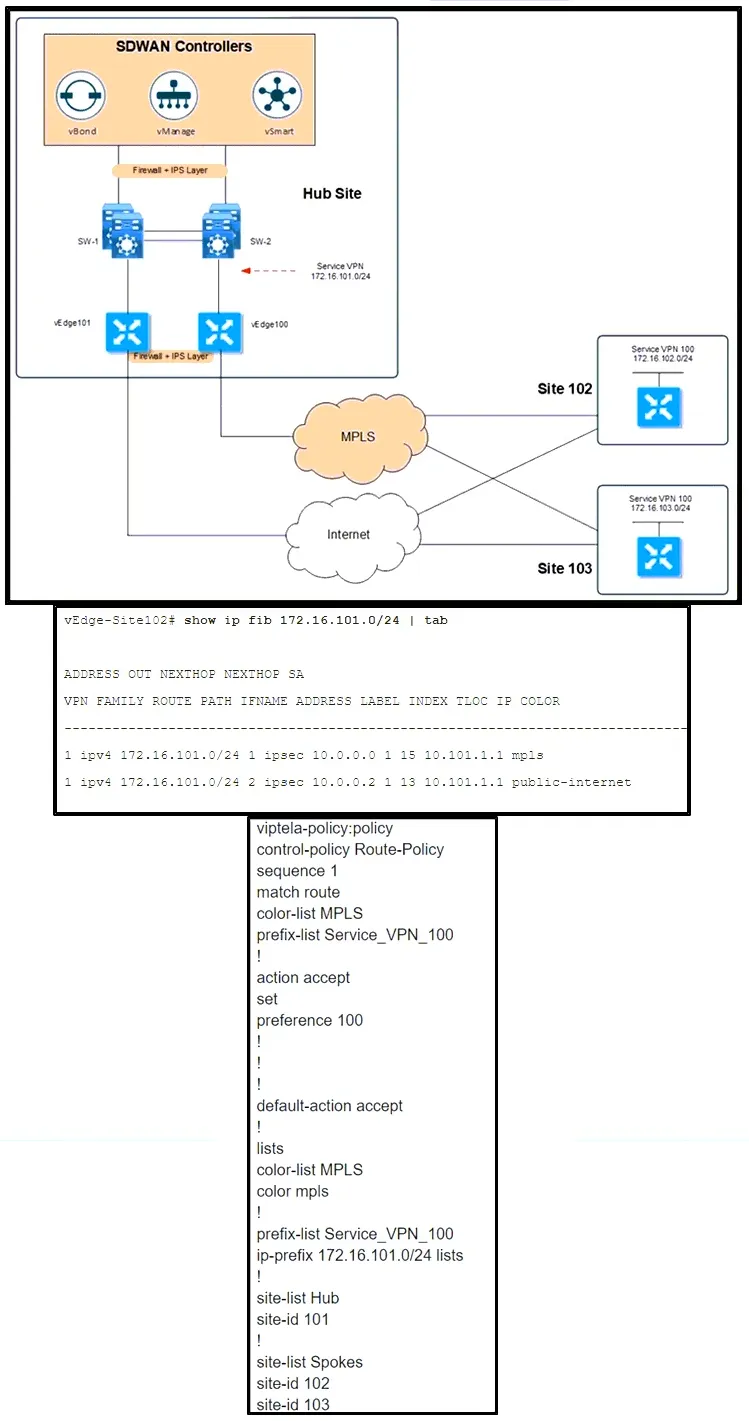

   Refer to the exhibit. An enterprise requires spoke sites 102 and 103 to use the MPLS circuit to reach the 172.16.101.0/24 subnet (Service VPN 100) advertised by site 101 (Hub Site). Which policy configuration meets this requirement?

   • Aapply-policy site-list Spokes control-policy Route-Policy in
   • Bapply-policy site-list Spokes control-policy Route-Policy out
   • Capply-policy site-list Hub control-policy Route-Policy in
   • Dapply-policy site-list Hub control-policy Route-Policy out

   Show answer

   Answer: B

   Next question

8. Question 378 · 382 in bank

   Which interface does Cisco Catalyst SD-WAN Cloud OnRamp for IaaS use to set up the customer gateway and map the host VPC to a transit VPC in an AWS environment?

   • AGigabitEthernet3
   • BGigabitEthernet4
   • CGigabitEthernet1
   • DGigabitEthernet2

   Show answer

   Answer: D

   Next question

9. Question 379 · 382 in bank

   What are the minimum number of subnets required for configuring a virtual private cloud in a Cisco Catalyst SD-WAN controller cloud deployment?

   • A1
   • B2
   • C3
   • D4

   Show answer

   Answer: B

   Next question

10. Question 380 · 382 in bank



    Refer to the exhibit. A customer must configure the CSRv Cisco IOS XE SD-WAN router for service insertion at one of their sites. One of the network consultants shares a snapshot as to how to configure it. Which configuration template is required for the on-site engineer to achieve this configuration?

    • A//IMG//
    • B//IMG//
    • C//IMG//
    • D//IMG//

    Show answer

    Answer: A

    Next question
