300-415 practice questions 331–340

1. Question 331 · 382 in bank

   Select 2

   What are the two protocols redistributed into OMP? (Choose two.)

   • AOSPF
   • BRSVP
   • CLDP
   • DRIP
   • EEIGRP

   Show answer

   Answer: AE

   Next question

2. Question 332 · 382 in bank

   How does the replicator role function in Cisco SD-WAN?

   • AWAN Edge devices advertise the rendezvous point to all the receivers through the overlay network.
   • BWAN Edge devices advertise the rendezvous point to all the receivers through the underlay network.
   • CvSmart Controllers advertise the rendezvous point to all the receivers through the overlay network.
   • DvSmart Controllers advertise the rendezvous point to all the receivers through the underlay network.

   Show answer

   Answer: C

   Explanation

   https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/routing/vEdge-20-x/routing-book/m-multicast-routing.html For efficient use of WAN bandwidth, strategic Cisco SD-WAN routers can be deployed and configured as replicators throughout the overlay network. Replicators mitigate the requirement for a Cisco SD-WAN router with local sources or the PIM-RP to replicate a multicast stream once for each receiver. As discussed above, replicators advertise themselves, using OMP multicast-autodiscover routes, to the Cisco vSmart Controllers in the overlay network. The controllers then forward the replicator location information to the PIM-enabled Cisco IOS XE SD-WAN routers that are in the same VPN as the replicator. so IMHO, answer C is correct.

   Source: Adapted from community discussion — namashivaya

   References

   • Cisco documentation

   Next question

3. Question 333 · 382 in bank



   Refer to the exhibit. Which configuration extends the INET interface on R1 to be used by R2 for control and data connections?

   • AR1 interface ge0/2 interface ge0/2.10 ip address 43.43.43.2/30 tloc-extension ge0/0 tunnel-interface color public-internet R2 interface ge0/2 interface ge0/2.10 ip address 43.43.43.1/30 tunnel-interface color public-internet
   • BR1 interface ge0/2 mtu 1504 no shutdown interface ge0/2.10 ip address 43.43.43.2/30 tunnel-interface color public-internet R2 interface ge0/2 mtu 1504 no shutdown interface ge0/2.10 ip address 43.43.43.1/30 tloc-extension ge0/0
   • CR1 interface ge0/2 mtu 1504 no shutdown interface ge0/2.10 ip address 43.43.43.2/30 tloc-extension ge0/0 R2 interface ge0/2 mtu 1504 no shutdown interface ge0/2.10 ip address 43.43.43.1/30 tunnel-interface color public-internet
   • DR1 interface ge0/2 no shutdown interface ge0/2.10 ip address 43.43.43.2/30 tloc-extension ge0/0 R2 interface ge0/2 no shutdown interface ge0/2.10 ip address 43.43.43.1/30 tloc-extension ge0/0

   Show answer

   Answer: C

   Explanation

   C R1 interface ge0/2 mtu 1504 no shut ! interface ge0/2.10 ip address 43.43.43.2/30 tloc-extension ge0/0 ! R2 interface ge0/2 mtu 1504 no shut ! interface ge0/2.10 ip address 43.43.43.1/30 tunnel interface color public !

   Source: Adapted from community discussion — Khrysis

   Next question

4. Question 334 · 382 in bank

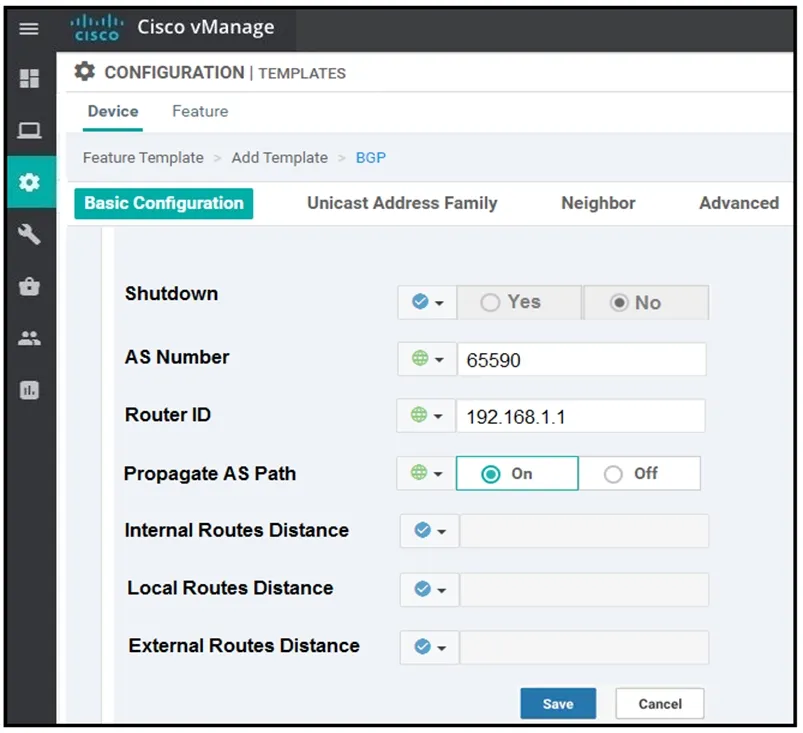

   Refer to the exhibit. Which configuration value is used to change the administrative distance of iBGP routes to 20?

   • AConfigure Internal Routes Distance to 20.
   • BConfigure Propagate AS Path to off.
   • CConfigure Local Routes Distance to 20.
   • DConfigure External Routes Distance to 20.

   Show answer

   Answer: C

   Explanation

   nop, do not let the "internal routes" confuse you. the description says " - for routes coming from one AS into another-", if you recall your BGP, eBGP (external ) is from one AS to an other. if the routes are within the same AS , it is iBGP (internal routes). in vManage the description for local routes = iBGP

   Source: Adapted from community discussion — A_Wolf

   References

   • Cisco documentation
   • Cisco documentation

   Next question

5. Question 335 · 382 in bank

   How is multicast routing enabled on devices in the Cisco SD-WAN overlay network?

   • AThe WAN Edge routers originate multicast service routes to the vSmart controller via OMP, which then forwards joins for requested multicast groups based on IGMP v2 or v3 toward the source or PIM-RP as specified in the original PIM join message.
   • BThe WAN Edge routers originate multicast service routes to the vSmart controller via OMP, which then forwards joins for requested multicast groups based on IGMP v1 or v2 toward the source or PIM-RP as specified in the original PIM join message.
   • CThe vSmart controller originates multicast service routes to the WAN Edge routers via OMP, which then forwards joins for requested multicast groups based on IGMP v1 or v2 toward the source or PIM-RP as specified in the original PIM join message.
   • DThe vSmart controller originates multicast service routes to the WAN Edge routers via OMP, which then forwards joins for requested multicast groups based on IGMP v2 or v3 toward the source or PIM-RP as specified in the original PIM join message.

   Show answer

   Answer: B

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/routing/ios-xe-17/routing-book-xe/m-multicast-routing.html

   Source: Adapted from community discussion — Oritopo

   References

   • Cisco documentation
   • Cisco documentation

   Next question

6. Question 336 · 382 in bank

   If Smart Account Sync is not used, which Cisco SD-WAN component is used to upload an authorized serial number file?

   • AWAN Edge
   • BvSmart
   • CvBond
   • DvManage

   Show answer

   Answer: D

   Explanation

   Reference: https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/cisco-sd-wan-certificates-deploy-2020aug.pdf page 14

   Next question

7. Question 337 · 382 in bank

   WAN Edge routers are configured manually to use UDP port offset to use nondefault offset values when IPsec tunnels are created. What is the offset range?

   • A1-19
   • B0-18
   • C0-19
   • D1-18

   Show answer

   Answer: C

   Explanation

   Reference: https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2020/pdf/R6BGArNQ/TECSEC-2355.pdf

   References

   • Cisco documentation

   Next question

8. Question 338 · 382 in bank

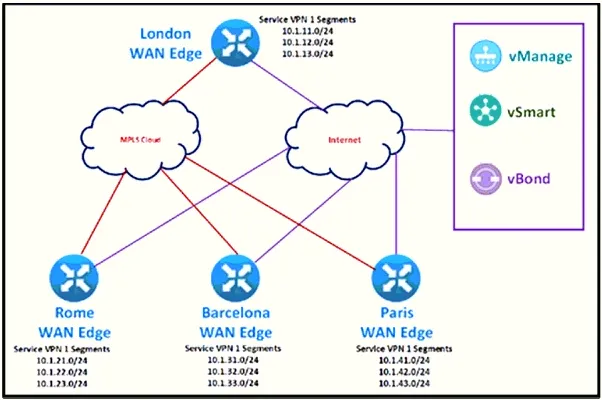

   Refer to the exhibit.



   The SD-WAN network is configured with a default full-mesh topology. The SD-WAN engineer wants the Barcelona WAN Edge to use the MPLS TLOC as the preferred TLOC when forwarding Telnet traffic based on a configured SLA class list. Which configuration must the engineer use to create a policy to call the SLA class and set the preferred color to MPLS?

   • A//IMG//
   • B//IMG//
   • C//IMG//
   • D//IMG//

   Show answer

   Answer: C

   Next question

9. Question 339 · 382 in bank

   What is the next step when the WAN Edge device boots up and resolves the domain in the ZTP process for WAN Edge deployment?

   • AThe WAN Edge device establishes secure connections with the vManage and vSmart and downloads the configuration using NETCONF.
   • BThe WAN Edge router authenticates to the vBond orchestrator with the chassis serial number and root certificate.
   • CThe WAN Edge device establishes secure control plane connections with the controllers and secure data plane connections in the SD-WAN overlay network.
   • DThe WAN Edge device learns the vBond and organization name from the configuration and initiates a secure control connection to the vBond orchestrator.

   Show answer

   Answer: B

   Next question

10. Question 340 · 382 in bank

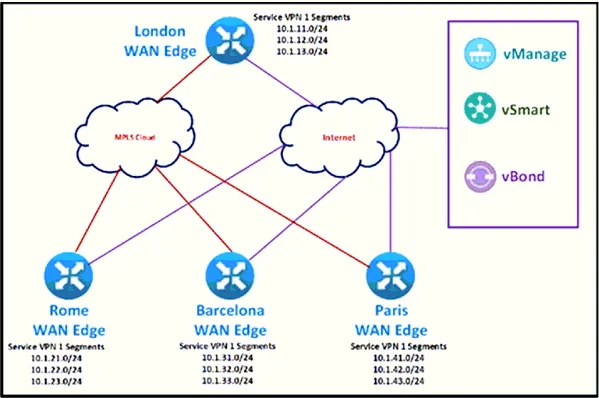

    Refer to the exhibit.



    The SD-WAN network is configured with a default full-mesh topology. The network engineer wants the Rome WAN Edge to use the MPLS TLOC as the preferred TLOC when forwarding Telnet traffic as long as the MPLS link has these characteristics: Loss: 5% Latency: 100ms - Jitter: 100 ms - Which configuration must the network engineer use to create a list that that classifies the MPLS link characteristics?

    • A//IMG//
    • B//IMG//
    • C//IMG//
    • D//IMG//

    Show answer

    Answer: A

    Next question
