Implementing Cisco SD-WAN Solutions (ENSDWI)382 questions across 39 pages are complete and free, with no account or card.
382 questions in this bank
Free access · progress saved on this device
In which VPN is the NAT operation on an outgoing interface configured for direct Internet access?
Answer: A
Reference: https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/sdwan-dia-deploy-2019nov.pdf
Which SD-WAN component is configured to enforce a policy to redirect branch-to-branch traffic toward a network service such as a firewall or IPS?
Answer: B
B is correct, Service-chaining is a Control-policy, and control policies are enforced on the V-Smart Centralized Control (Topology) policy is the most powerful form of policies which can be used to implement arbitrary overlay VPN topologies such as hub-and-spoke and partially-mesh, traffic engineering like preferring one site over another for a specific destination, service chaining by inserting a network service such as a firewall into the path of specific data traffic in an automated manner, and much more. Centralize control policies are defined on the vManage, configured and enforced on the vSmart Controllers affecting the control plane of the Cisco SD-WAN overlay fabric, whereas centralized data policies are defined on the vManage, configured on the vSmart Controllers, distributed by OMP to and enforced on the WAN Edge routers affecting the data plane of the overlay network.
Source: Adapted from community discussion — RafaJohnston76

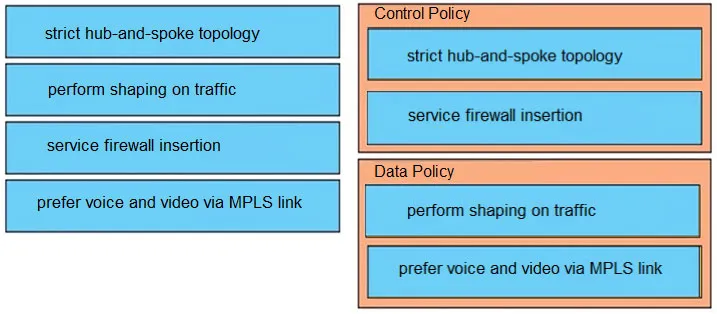

DRAG DROP - Drag and drop the policies from the left onto the policy types on the right. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
I believe that when a policy influences the entire network topology, it could be categorized as a control policy. On the other hand, if a policy only has an impact on a single WAN device, it could be referred to as a data policy.
Source: Adapted from community discussion — TMT91
Which command verifies a policy that has been pushed to the vEdge router?
Answer: D
Reference: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book.pdf
Source: Adapted from community discussion — bullett00th
DRAG DROP - Drag and drop the actions from the left into the correct sequence on the right to create a data policy to direct traffic to the Internet exit. Select and Place:
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
Reference: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/vEdge-as-NAT-device.html
Source: Adapted from community discussion — CCNPWILL
Which policy configures an application-aware routing policy under Configuration > Policies?
Answer: B
Its asking about the configuration option under Configure > Policies screen. Yes, it is centralized data policy but configuration option is named " Centralized Policy " so B is correct https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/application-aware-routing.html#id_114072 In Cisco vManage NMS, select the Configure > Policies screen. When you first open this screen, the Centralized Policy tab is selected by default.
Source: Adapted from community discussion — tarq
How are the individual applications monitored on per user basis in the overlay network?
Answer: D
Which IP address must be reachable by a WAN Edge device for the ZTP process to work?
Answer: C

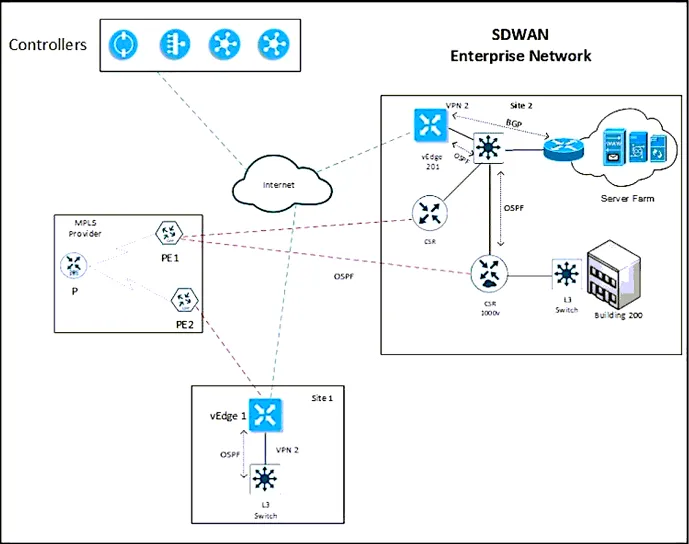

Refer to the exhibit. Which configuration ensures that OSPF routes learned from Site2 are reachable at Site1 and vice-versa?
Answer: D

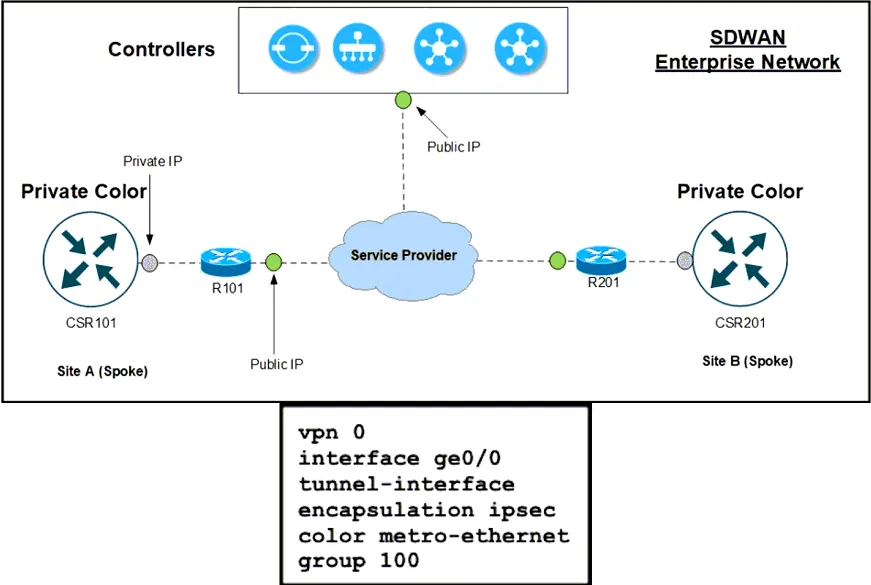

Refer to the exhibit. The network design team has advised to use private IP addresses and private colors over the SP circuit for the data plane connections. The Public IP should be used for control connections. Which configuration should be applied at SiteA to achieve this task?
Answer: B
