Implementing Cisco SD-WAN Solutions (ENSDWI)382 questions across 39 pages are complete and free, with no account or card.
382 questions in this bank
Free access · progress saved on this device
A policy is created to influence routing path in the network using a group of prefixes. Which policy application will achieve this goal when applied to a site list?
Answer: A
Reference: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/control-policies.html
Which component calculates Quality of Experience in a Cloud OnRamp environment?
Answer: D

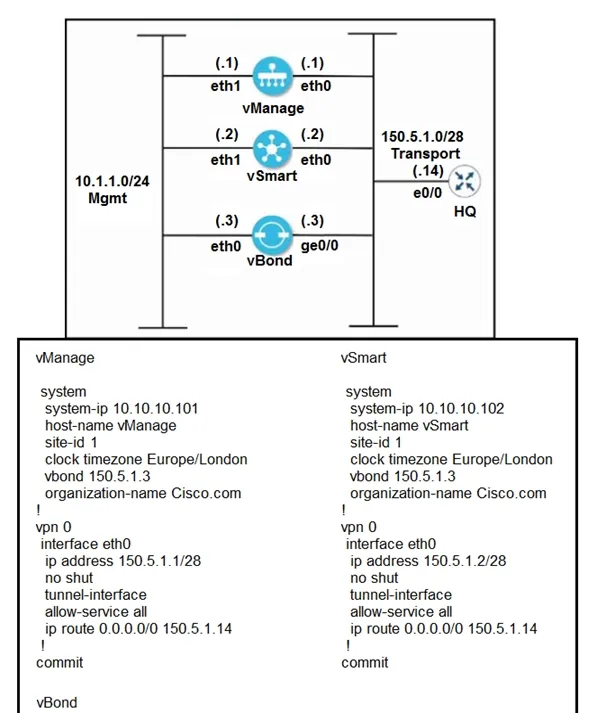

Refer to the exhibit. An engineer is troubleshooting an issue where vManage and vSmart have a problem establishing a connection to vBond. Which action fixes the issue?
Answer: B
vBond system system-ip 10.10.10.103 host-name vBond site-id 1 clock timezone Europe/London vBond 150.5.1.3 organization-name Cisco.com ! Vpn 0 Interface ge0/0 ip address 150.5.1.3/28 no shut tunnel-interface encapsulation ipsec allow-servide all ip route 0.0.0.0/0 150.5.1.14 ! commit
Source: Adapted from community discussion — Nean

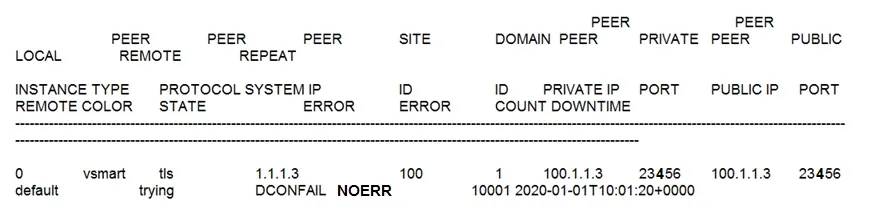

Refer to the exhibit. The control connection is failing. Which action resolves the issue?
Answer: B
Refer to the exhibit. An engineer is troubleshooting tear down of control connections even though a valid CertificateSerialNumber is entered. Which two actions resolve the issue? (Choose two.)
Answer: AE
I reckon it's A & E. The correct serial number and device model must be configured and provisioned on PnP portal (software.cisco.com) and vManage.
Source: Adapted from community discussion — Mr_Cipher
Which protocol is used for the vManage to connect to the vSmart Controller hosted in Cloud?
Answer: D
Netconf and CLI: Netconf is a standards-based protocol used by Cisco vManage to provision a Cisco vSmart Controller. In addition, each Cisco vSmart Controller provides local CLI access and AAA.
Source: Adapted from community discussion — BGP65000
Which component of the Cisco SD-WAN control plane architecture should be located in a public Internet address space and facilitates NAT-traversal?
Answer: C
Reference: https://www.cisco.com/c/dam/global/da_dk/assets/pdfs/cisco_virtual_update_cisco_sdwan_viptela.pdf
Which set of platforms must be in separate VMs as of release 16.1?
Answer: A
Which third-party Enterprise CA server must be used for a cloud-based vSmart controller?
Answer: A
From SD-WAN book Should you choose to manage this functionality yourself, there are plenty of enterprise CA options available. Some common choices are Microsoft Certificate Services, OpenSSL, and even Cisco Identity Services Engine. Think it is C
Source: Adapted from community discussion — lecha3096
Which set of elements are verified by the controller to confirm the identity of edge devices?
Answer: A
"In addition to the device serial and chassis numbers, the automatic validation and authentication procedure depends on having each device configured with the same organization name. You configure this name on Cisco vManage, and it is included in the configuration file on all devices. The organization name must be identical on all the devices that belong to a single organization (the name is case-sensitive). The organization name is also included in the certificate for each device, which is created either by Cisco SD-WAN or by an enterprise root CA. "
Source: Adapted from community discussion — Speirsington
