300-415 practice questions 301–310

1. Question 301 · 382 in bank

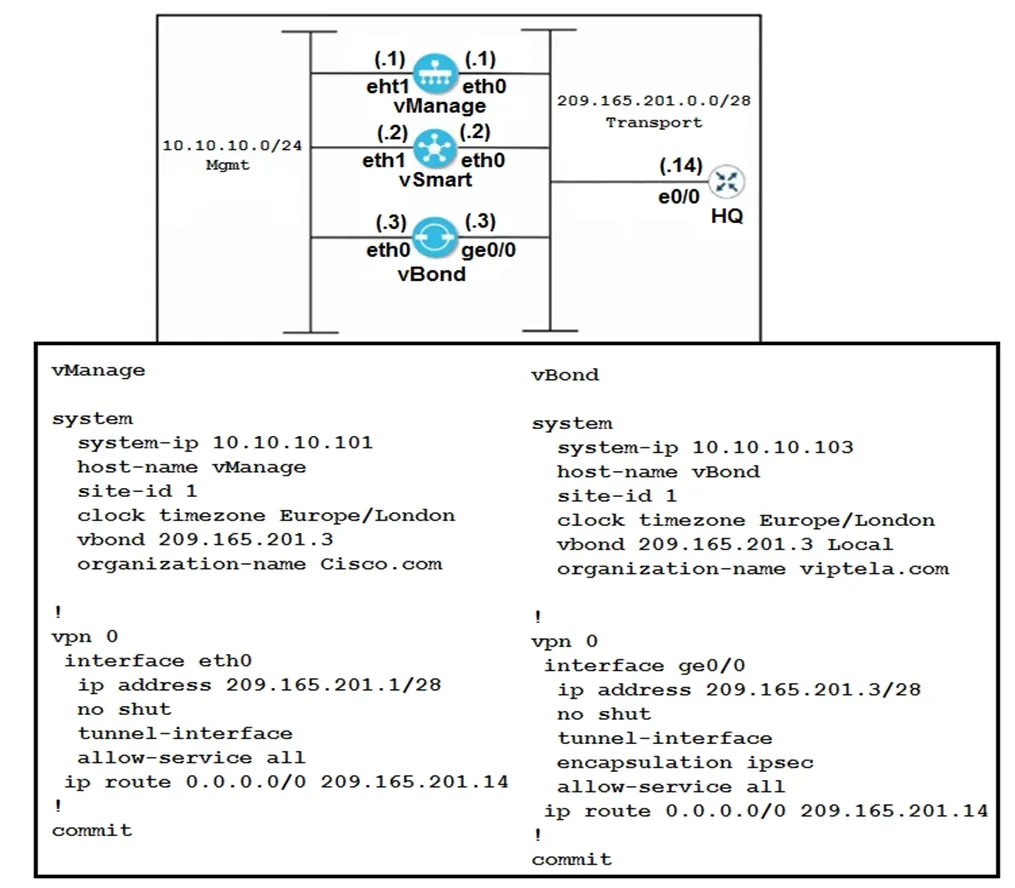

   Refer to the exhibit. vManage and vBond have an issue establishing a connection with each other. Which action resolves the issue?

   • AChange the organization name on both controllers to match viptela.com.
   • BConfigure the encapsulation ipsec command under the tunnel interface on vManage.
   • CReconfigure the system IPs to belong to the same subnet.
   • DRemove the encapsulation ipsec command under the tunnel interface of vBond.

   Show answer

   Answer: A

   References

   • cisco.com documentation

   Next question

2. Question 302 · 382 in bank

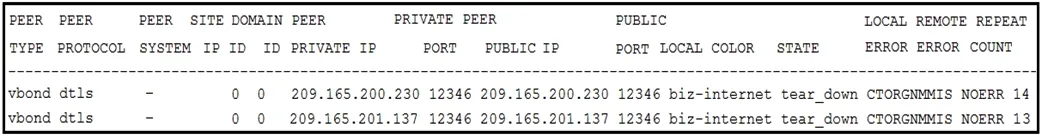

   Refer to the exhibit. An engineer is getting a CTORGNMMIS error on a controller connection. Which action resolves this issue?

   • AConfigure a valid certificate on vSMART.
   • BConfigure a valid organization name.
   • CConfigure a valid serial number on the WAN Edge.
   • DConfigure a valid product ID.

   Show answer

   Answer: B

   Explanation

   Reference: https://community.cisco.com/t5/networking-documents/sd-wan-routers-troubleshoot-control-connections/ta-p/3813237

   References

   • Cisco documentation

   Next question

3. Question 303 · 382 in bank

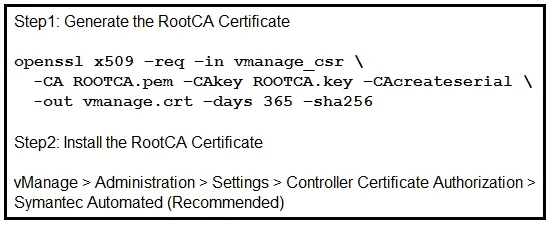

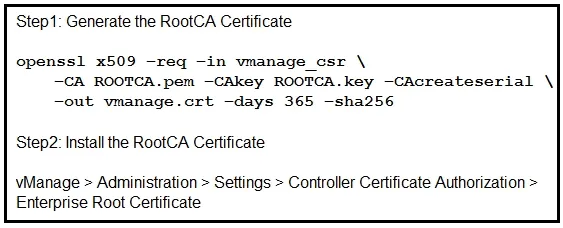

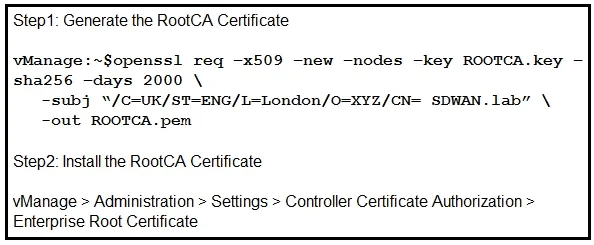

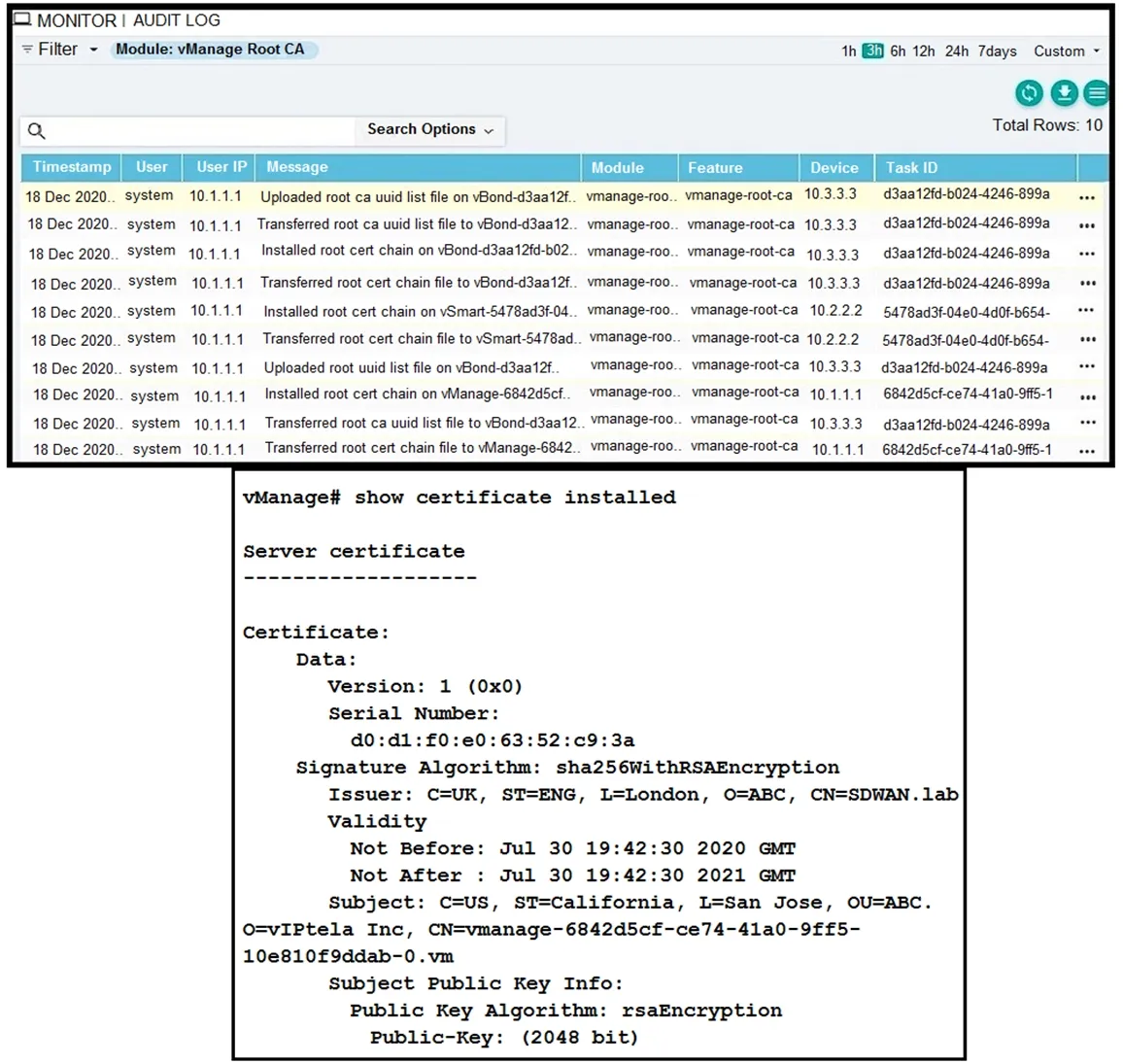

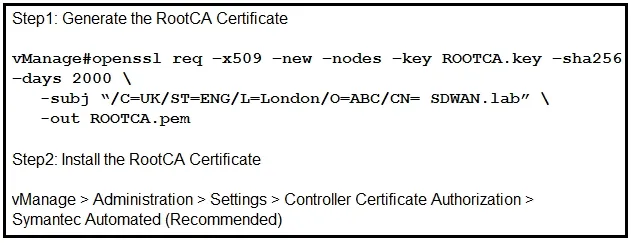

   Refer to the exhibit. A small company was acquired by a large organization. As a result, the new organization decided to update information on their Enterprise RootCA and generated a new certificate using openssl. Which configuration updates the new certificate and issues an alert in vManage Monitor | Events Dashboard? A.



   B.



   C.



   D.



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

   Answer:

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/solutions/CVD/SDWAN/cisco-sdwan-controller-cert-deploy-guide.html

   Source: Adapted from community discussion — DP

   References

   • Cisco documentation

   Next question

4. Question 304 · 382 in bank

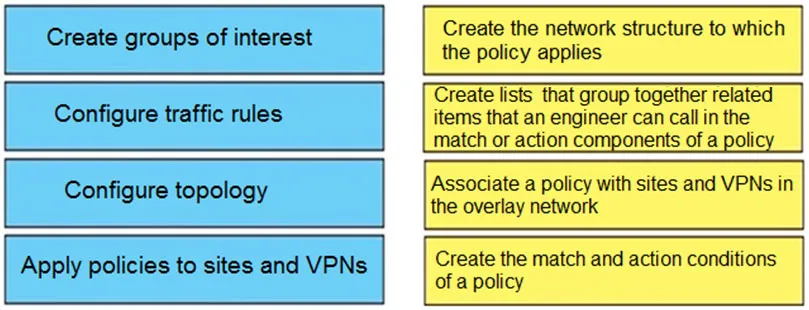

   DRAG DROP - Drag and drop the vManage policy configuration procedures from the left onto the correct definitions on the right. Select and Place:



   This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.

   Show the answer figure

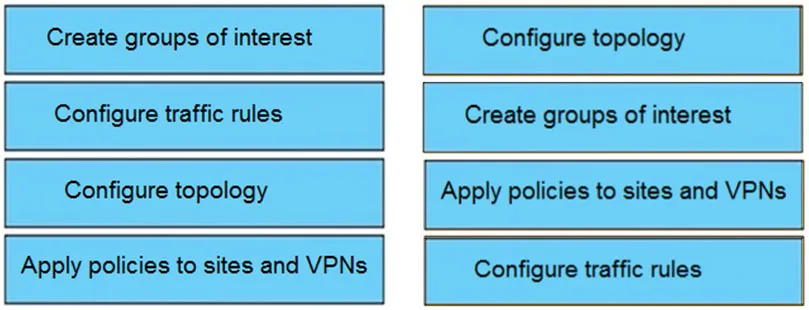

   Answer: See figure below

   Explanation

   Reference: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/data-policies.html



   Next question

5. Question 305 · 382 in bank

   A vEdge platform is sending VRRP advertisement messages every 10 seconds. Which value configures the router back to the default timer?

   • A2 seconds
   • B5 seconds
   • C1 second
   • D3 seconds

   Show answer

   Answer: C

   Explanation

   Reference: https://sdwan-docs.cisco.com/Product_Documentation/vManage_Help/Release_18.3/Configuration/Templates/VPN_Interface_Ethernet

   Source: Adapted from community discussion — milan74

   Next question

6. Question 306 · 382 in bank

   Select 2

   Which two services are critical for zero touch provisioning on-boarding? (Choose two.)

   • AEMAIL
   • BSNMP
   • CAAA
   • DDHCP
   • EDNS

   Show answer

   Answer: DE

   References

   • Cisco documentation

   Next question

7. Question 307 · 382 in bank

   When redistribution is configured between OMP and BGP at two Data Center sites (DC) that have Direct Connection Interlink, which step avoids learning the same routes on WAN Edge routers of the DCs from LAN?

   • ASet down-bit on WAN Edge routers on DC1
   • BDefine different VRFs on both DCs
   • CSet OMP admin distance lower than BGP admin distance
   • DSet same overlay AS on both DC WAN Edge routers

   Show answer

   Answer: D

   Explanation

   By default, OMP is transparent to BGP even if propagate-aspath configured. overlay-as is a feature that prepends AS specified as a parameter of this command to BGP AS_PATH attribute of routes exported from OMP to BGP. If you configure the same overlay AS number on multiple devices in the overlay network, all these devices are considered to be part of the same AS, and as a result, they do not forward any routes that contain the overlay AS number, hence routing loop will be prevented. As Hoon said, answer D

   Source: Adapted from community discussion — ZeroBits

   References

   • Cisco documentation

   Next question

8. Question 308 · 382 in bank

   Which Cisco SD-WAN WAN Edge platform supports LTE and Wi-Fi?

   • AISR 1101
   • BASR 1001
   • CCSR 1000v
   • DvEdge 2000

   Show answer

   Answer: A

   References

   • Cisco documentation

   Next question

9. Question 309 · 382 in bank

   Which device information is required on PNP/ZTP to support the zero touch onboarding process?

   • Aserial and chassis numbers
   • Binterface IP address
   • Cpublic DNS entry
   • Dsystem IP address

   Show answer

   Answer: A

   Explanation

   Reference: https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/sd-wan-wan-edge-onboarding-deploy-guide-2020jan.pdf

   Next question

10. Question 310 · 382 in bank

    Which configuration step is taken on vManage after WAN Edge list is uploaded to support the on-boarding process before the device comes online?

    • AVerify the device certificate
    • BEnable the ZTP process
    • CSet the device as valid
    • DSend the list to controllers

    Show answer

    Answer: C

    Explanation

    Reference: https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/sd-wan-wan-edge-onboarding-deploy-guide-2020jan.pdf

    Source: Adapted from community discussion — mac_tire

    References

    • Cisco documentation
    • Cisco documentation

    Next question
