Question 961 · 1003 in bank
How are control traffic, client authentication and data traffic handled in a mobility express environment?
Show answer
Answer: B
Implementing Cisco Enterprise Network Core Technologies (ENCOR)1,003 questions across 101 pages are complete and free, with no account or card.
1003 questions in this bank
Free access · progress saved on this device
How are control traffic, client authentication and data traffic handled in a mobility express environment?
Answer: B
Which feature allows clients to perform Layer 2 roaming between wireless controllers?
Answer: A
Mobility Groups is the feature that allows clients to perform Layer 2 roaming between wireless controllers. In a network with multiple wireless controllers, mobility groups enable seamless roaming for clients as they move across different controllers. When a client roams from one controller's coverage area to another, the controllers within the same mobility group exchange information to ensure a smooth handover of the client's connection.
Source: Adapted from community discussion — Mizuchan
What is a characteristic of Cisco DNA Northbound APIs?
Answer: D
While Cisco DNA Northbound APIs may support RESTCONF, it is just one protocol used for interacting with the APIs. The primary purpose of the Northbound APIs is to enable automation and orchestration based on intent.
Source: Adapted from community discussion — slacker_at_work
Which two components are supported by LISP? (Choose two.)
Answer: AB
DRAG DROP - Drag and drop the NTP elements from the left onto the correct descriptions on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
DRAG DROP - Drag and drop the Cisco DNA Center northbound API characteristics from the left to the right. Not all options are used.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
It's Intent API + RESTful + JSON "The Intent API is a Northbound REST API that exposes specific capabilities of the Catalyst Center platform. The Intent API provides policy-based abstraction of business intent, allowing focus on an outcome rather than struggling with individual mechanisms steps. The RESTful Catalyst Center Intent API uses HTTPS verbs (GET, POST, PUT, and DELETE) with JSON structures to discover and control the network." https://developer.cisco.com/docs/dna-center/#!preface "These RESTful APIs simple, extensible, and secure. They support the standard HTTP verbs GET, POST, PUT and DELETE. A REST endpoint accepts and returns HTTPS messages that contain JavaScript Object Notation (JSON) documents. You can use any programming language to generate the messages and the JSON documents that contain the API methods." https://developer.cisco.com/dnacenter/intentapis/
Source: Adapted from community discussion — Mistwalker

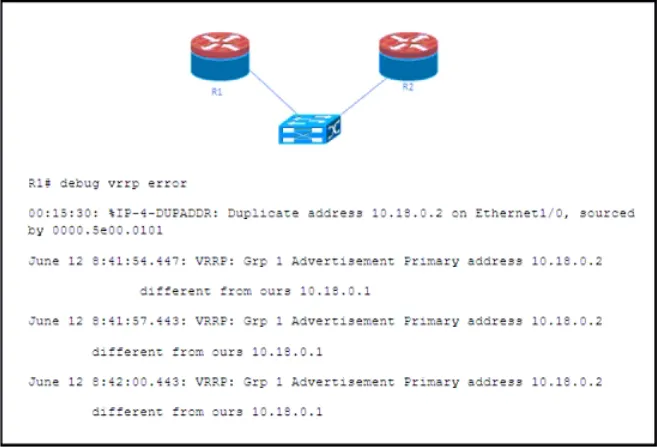

Refer to the exhibit. R1 and R2 are on the same VLAN. VRRP is configured between the two routers. What is the cause of the VRRP error?
Answer: D
Note that in VRRP (Virtual Router Redundancy Protocol), the primary address to be considered is the virtual IP address (VIP) assigned to the VRRP group
Source: Adapted from community discussion — slacker_at_work
An engineer is implementing a new SSID on a Cisco Catalyst 9800 Series WLC that must be broadcast on 6 GHz radios. Users will be required to use EAP-TLS to authenticate. Which wireless Layer 2 security method is required?
Answer: C
When configuring a 6GHz SSID there are certain security requirements that must be met: WPA3 L2 security with OWE, SAE or 802.1x-SHA256 Protected Management Frame Enabled; Any other L2 security method is not allowed, that is, no mixed mode possible. https://www.cisco.com/c/en/us/support/docs/wireless/catalyst-9800-series-wireless-controllers/220712-configure-and-verify-wi-fi-6e-wlan-layer.html
Source: Adapted from community discussion — Mekai2020
Which Cisco SD-WAN component authenticates the routers and the vSmart controllers?
Answer: D
DRAG DROP - Drag and drop the characteristics from the left onto the corresponding switching architectures on the right.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
