DRAG DROP - Drag and drop the automation characteristics from the left onto the appropriate tools on the right. Not all options are used.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
What is a characteristic of a virtual machine?
Answer: B
Refer to the Exhibit. External users require HTTP connectivity to an internal company web server that is listening on TCP port 8080. Which command set accomplishes?
Answer: C
C. interface G0/0 ip address 209.165.200.225 255.255.255.224 ip nat outside interface G0/1 ip address 10.1.1.1 255.255.255.0 ip nat inside ip nat inside source static tcp 10.1.1.1 8080 209.165.200.225 80 This translates traffic on http standard port (80) to port 8080. 8080 is not a default http port... doesn't make sense that anything outside of this private network would be trying to send http traffic to 8080
Source: Adapted from community discussion — outnumber_gargle024
A network engineer must configure the VTY lines on a router to achieve these results: • Remote access should be permitted only for secure protocols. • Only a password should be required for device authentication. • All idle EXEC sessions must be terminated in 60 minutes. Which configuration should be applied?
Answer: B
Configuring Line Local Password Authentication To enable password authentication on a line, the following two commands are required under line configuration mode: ■ password password to configure the password ■ login to enable password checking at login
Source: Adapted from community discussion — AM17212
How does NETCONF YANG represent data structures?
Answer: B
NETCONF provides various operations to retrieve and edit configuration data from network devices. The Content Layer consists of configuration and state data which is XML-encoded. The schema of the configuration and state data is defined in a data modeling language called YANG.
Source: Adapted from community discussion — Tadese

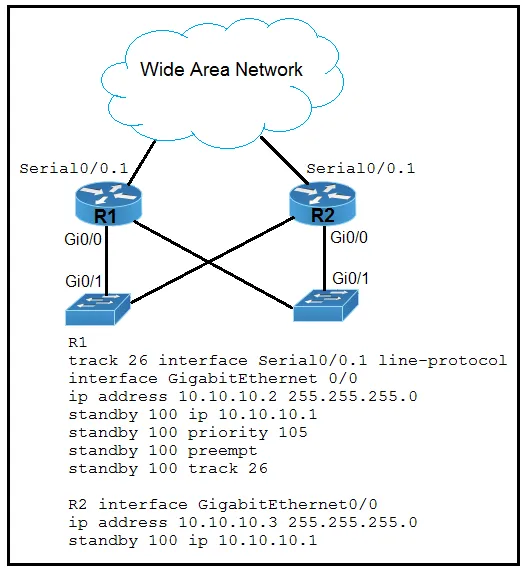

Refer to the exhibit. An engineer must modify the existing configuration so that R2 can take over as the primary router when serial interface 0/0.1 on R1 goes down. Which command must the engineer apply?
Answer: A
It's A. Tracked objects will decrement priority by 10 as the default action, so that doesn't need to be explicitly configured. R2 will not become the active router without "standby preempt" unless R1 goes down completely, as f490efc mentioned, so that *does* need to be set. The scenario in this question, along with the above explanation, are mirrored here: https://www.cisco.com/c/en/us/support/docs/ip/hot-standby-router-protocol-hsrp/13780-6.html#toc-hId-1284746180
Source: Adapted from community discussion — Mistwalker

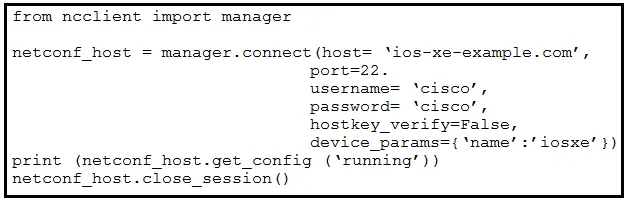

Refer to the exhibit. An engineer deploys a script to retrieve the running configuration from a NETCONF-capable Cisco IOS XE device that is configured with default settings. The script fails. Which configuration must be applied to retrieve the configuration using NETCONF?
Answer: B
As per Cisco, Netconf uses SSH but defaults to port number 830 https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/1612/b_1612_programmability_cg/configuring_yang_datamodel.pdf NETCONFuses a simple RemoteProcedure Call (RPC) based mechanism to facilitate communication between a client and a server. The client can be a script or application running as part of a network manager. The server istypically a network device (switch or router). It usesSecureShell (SSH) asthe transport layer across network devices. It uses SSH port number 830 as the default port. The port number is a configurable option.
Source: Adapted from community discussion — peugeotdude

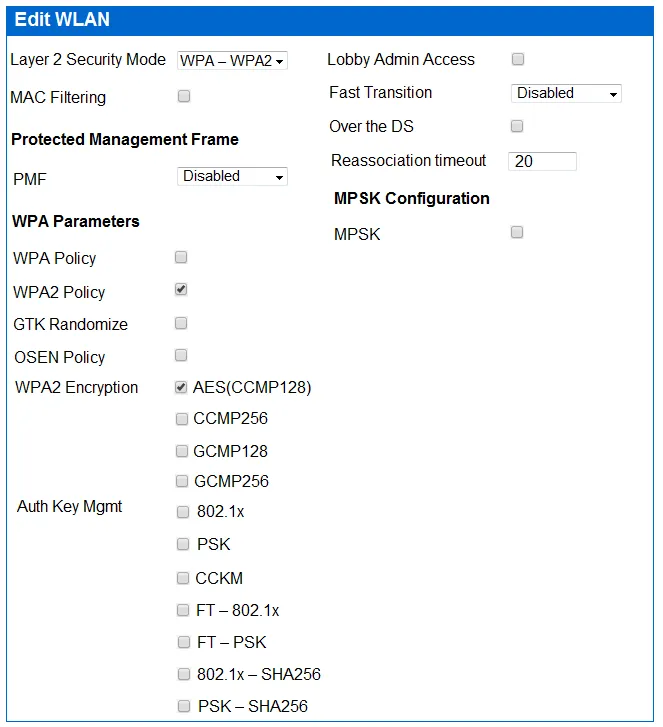

Refer to the exhibit. Which action must be taken to configure a WLAN for WPA2-AES with PSK and allow only 802.11r-capable clients to connect?
Answer: A
Fast Transition (FT) is the mechanism used for 802.11r, which is the IEEE standard for fast roaming. By enabling Fast Transition and configuring FT + PSK, the WLAN will use WPA2-AES with a Pre-Shared Key (PSK) for authentication and encryption, and only clients capable of 802.11r will be allowed to connect using this configuration.
Source: Adapted from community discussion — Mizuchan

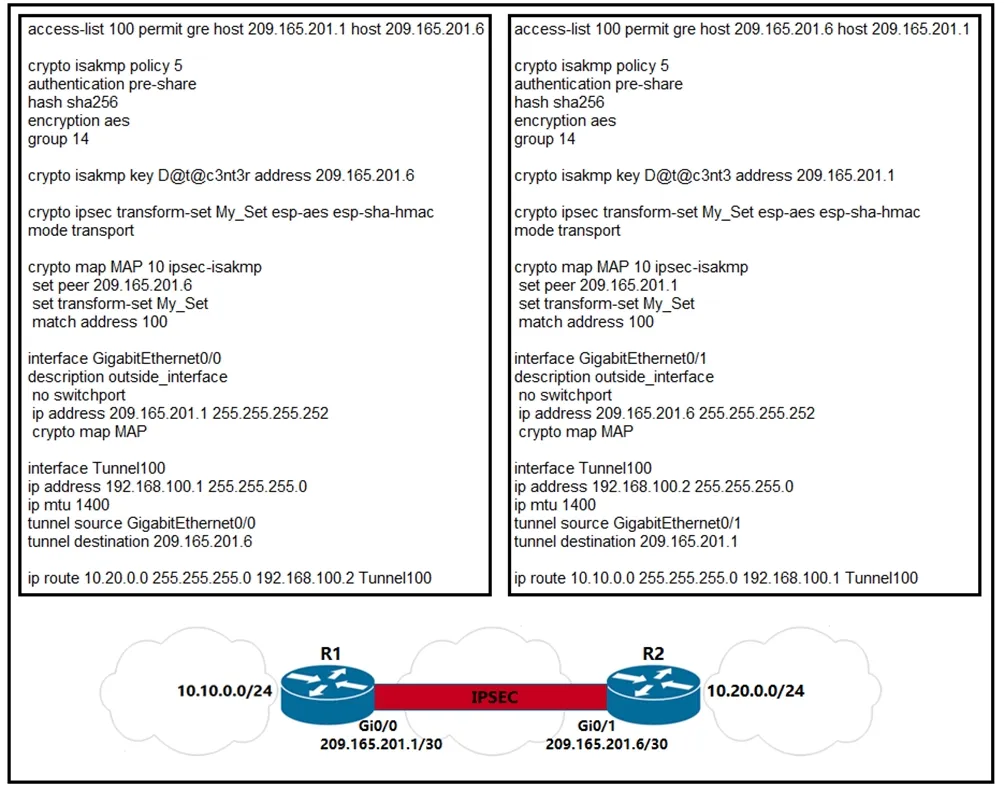

Refer to the exhibit. A network engineer must simplify the IPsec configuration by enabling IPsec over GRE using IPsec profiles. Which two configuration changes accomplish this? (Choose two).
Answer: CD
The correct answer is: C. Remove all configuration related to crypto map from R1 and R2 and eliminate the ACL. D. Create an IPsec profile, associate the transform-set, and apply the profile to the tunnel interface.
Source: Adapted from community discussion — xziomal9
Refer to the exhibit. Which address type is 10.10.10.10 configured for?
Answer: D
