Implementing Cisco Enterprise Network Core Technologies (ENCOR)1,003 questions across 101 pages are complete and free, with no account or card.
1003 questions in this bank
Free access · progress saved on this device
Refer to the exhibit. An engineer is configuring WebAuth on a Cisco Catalyst 9800 Series WLC. The engineer has purchased a third-party certificate using the FQDN of the WLC as the CN and intends to use it on the WebAuth splash page. What must be configured so that the clients do not receive a certificate error?
Answer: A
Which technology does VXLAN use to provide segmentation for Layer 2 and Layer 3 traffic?
Answer: C
A VXLAN header that includes a 24-bit field—called the VXLAN network identifier (VNI)—that is used to uniquely identify the VXLAN. The VNI is similar to a VLAN ID, but having 24 bits allows you to create many more VXLANs than VLANs. Reference: https://www.ciscopress.com/articles/article.asp?p=2999385&seqNum=3#:~:text=destination%20IP%20address.-,Virtual%20Network%20Identifier,-A%20virtual%20network
Source: Adapted from community discussion — Asymptote
Refer to the exhibit. What is the output of this code?
Answer: A
Answer is A. {:#<15} - This is adding # to the returned string to fill 15 characters. It does nothing if the string is greater than 15 characters. {:#<10} - This is adding # to the returned string to fill 10 characters. It does nothing if the string is greater than 10 characters.
Source: Adapted from community discussion — Alondrix

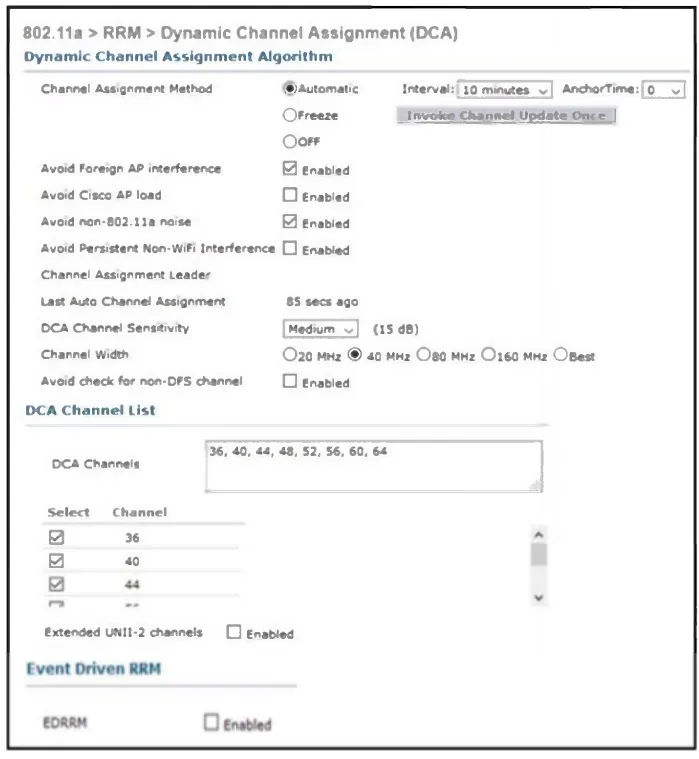

Refer to the exhibit. An engineer is troubleshooting an issue with non-Wi-Fi interference on the 5-GHz band. The engineer has enabled Cisco CleanAir and set the appropriate traps, but the AP does not change the channel when it detects significant interference. Which action will resolve the issue?
Answer: C
It's not A, "Enable the Avoid Persistent Non-WiFi interference option," because this option, while it does make the system aware of persistent non-WiFi interference, doesn't necessarily prompt an immediate channel change. This setting helps the system to recognize and avoid areas of persistent interference when making decisions on channel assignments during its regular update intervals, rather than triggering an immediate response to interference. Option C, "Enable the Event Driven RRM," is more directly involved in making real-time adjustments to the RF environment, including immediate channel changes in response to detected interference. This is why C is the more effective choice for resolving the issue described, as it actively and dynamically responds to interference detected by Cisco CleanAir.
Source: Adapted from community discussion — supershysherlock

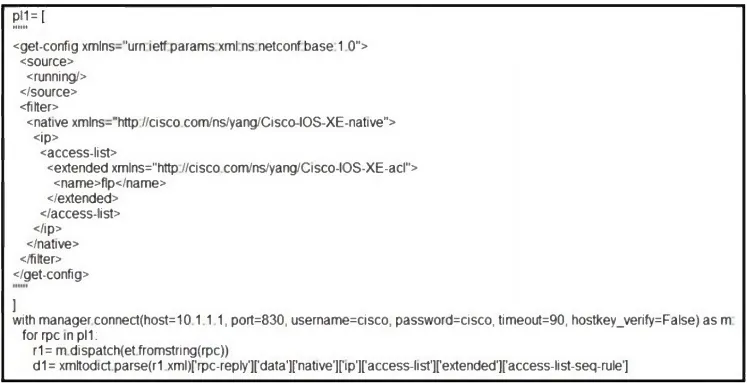

Refer to the exhibit. What is achieved by the XML code?
Answer: C
A and B cannot be correct because the python code is not using the print function/ display information. based on the code, I believe the answer is C because the last line is reference Sequence numbers ["access-list-seq-rule"]
Source: Adapted from community discussion — kldoyle97
An engineer measures the Wi-Fi coverage at a customer site The RSSI values are recorded as follows: • Location A: -72 dBm • Location B: -75 dBm • Location C -65 dBm • Location D -80 dBm Which two statements does the engineer use to explain these values to the customer? (Choose two.)
Answer: CD
The following matches options C & D perfectly: "For every 3 dB decrease, the power is cut in half. Similarly, every 10 dB increase in level is 10 times the power, and every 10 dB decrease in level results in 1/10 the power. This is sometimes referred to as the “rule of 3s and 10s.”" https://www.sciencedirect.com/topics/computer-science/signal-strength
Source: Adapted from community discussion — Horsefeathers
DRAG DROP - Drag and drop the code snippets from the bottom onto the blanks in the script to convert a Python object into a compact JSON object by removing space characters. Not all options are used.
This is an interactive task on the real exam — a drag-and-drop, hotspot or ordering question. There is nothing to select here, so the answer is shown below for reference.
Answer: See figure below
I guess answer should be "dumps", data. separators If you have a Python object, you can convert it into a JSON string by using the json.dumps() method.
Source: Adapted from community discussion — studying_1
Where are operations related to software images located in the Cisco DNA Center GUI?
Answer: D
of course D is right , pls fix from OCG , p.628 The following are some of the Cisco DNA [design] tools: ■ Network Hierarchy: ■ Network Settings: ■ Image Repository: ■ Network Profiles:
Source: Adapted from community discussion — shefo1
Which type of antenna is designed to provide a 360-degree radiation pattern?
Answer: D
Which two security mechanisms are used by Cisco Threat Defense to gain visibility into the most dangerous cyber threats? (Choose two.)
Answer: BD
Question 770 answers this: Which technology uses network traffic telemetry, contextual information, and file reputation to provide insight into cyber threats? D. threat defense
Source: Adapted from community discussion — Horsefeathers
